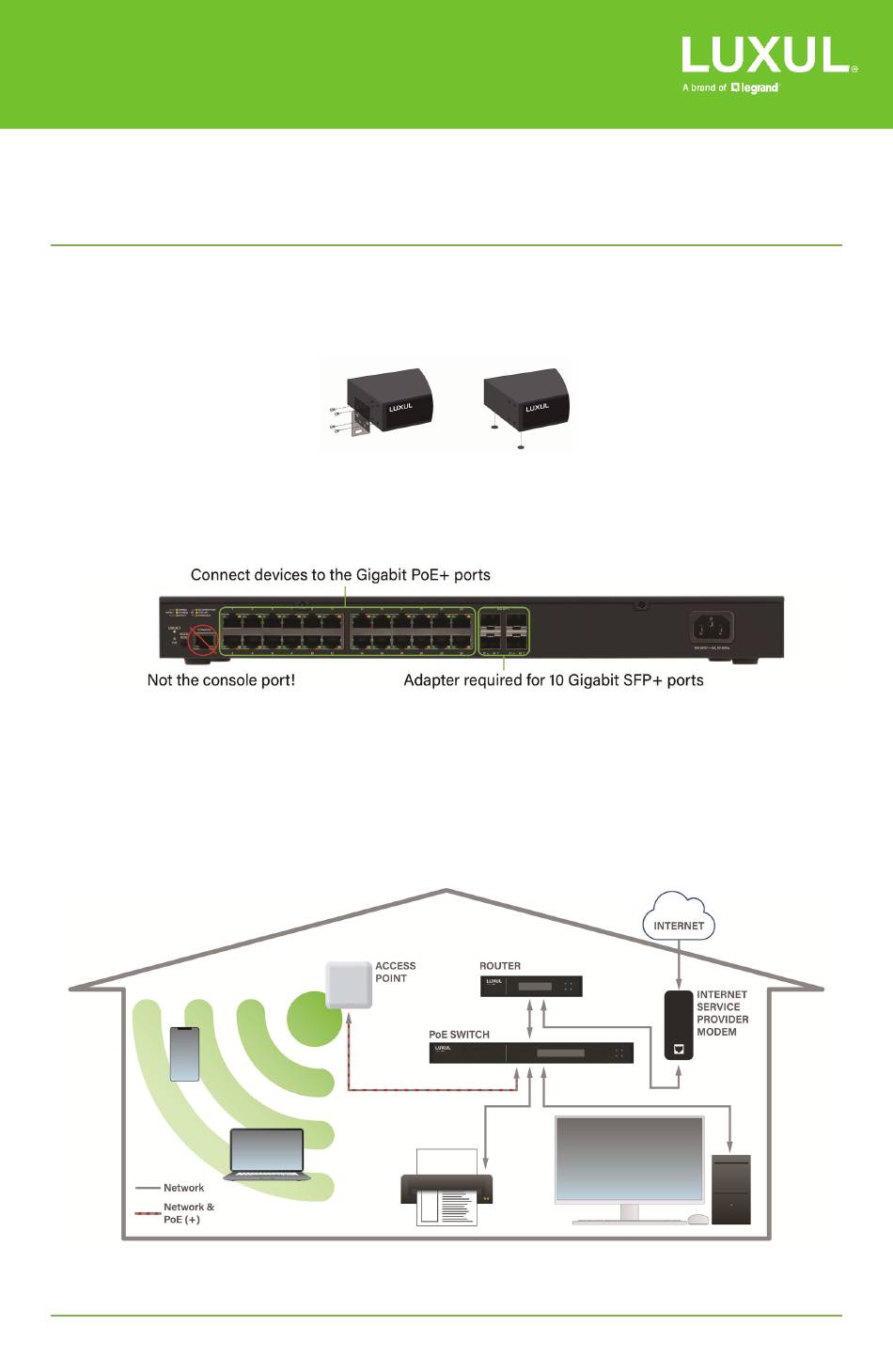

SW-615-24P-R Managed PoE+ Switch

Quick Installation Guide

Placement

1. Attach either the rack mounting ears or the adhesive feet.

2. If applicable, mount the device in the rack.

Connections for service

1. Connect one of the LAN ports on your router to one of the Gigabit PoE+ ports on the

switch.

2. Connect your PoE/PoE+ powered devices to the Gigabit PoE+ ports.

3. Use either the Gigabit PoE+ ports or the SFP+ ports (with the appropriate modules)

for devices that have their own power. SFP modules are not included with this

product.

4. Connect the power cord to the switch and to a properly grounded power outlet. The

switch takes a minute or more to boot.

Document 411-3001-01 Rev D June 2023

Need help?

Do you have a question about the LUXUL SW-615-24P-R and is the answer not in the manual?

Page 1 SW-615-24P-R Managed PoE+ Switch Quick Installation Guide Placement 1. Attach either the rack mounting ears or the adhesive feet. 2. If applicable, mount the device in the rack. Connections for service 1. Connect one of the LAN ports on your router to one of the Gigabit PoE+ ports on the switch.
Page 2 SW-615-24P-R Quick Installation Guide Advanced configuration The default network settings work for most at-home offices and other small networks, so you might not need to change anything. Skip this section unless you know that you need to make configuration changes on the switch. 1.
Page 3 SW-615-24P-R Quick Installation Guide What's on the back panel LINK/ACT and Information on port LEDs – Link activity and speed (default), or PoE PoE LEDs status Mode/Reset Tap to change between LINK/ACT and PoE modes button Press and hold until the System LED blinks and all port lights turn off (typically 2 to 4 seconds) to reboot Press and hold until the System LED blinks and all port lights turn on (typically 7 to 10 seconds) to restore factory default settings...
