Installing the Tape

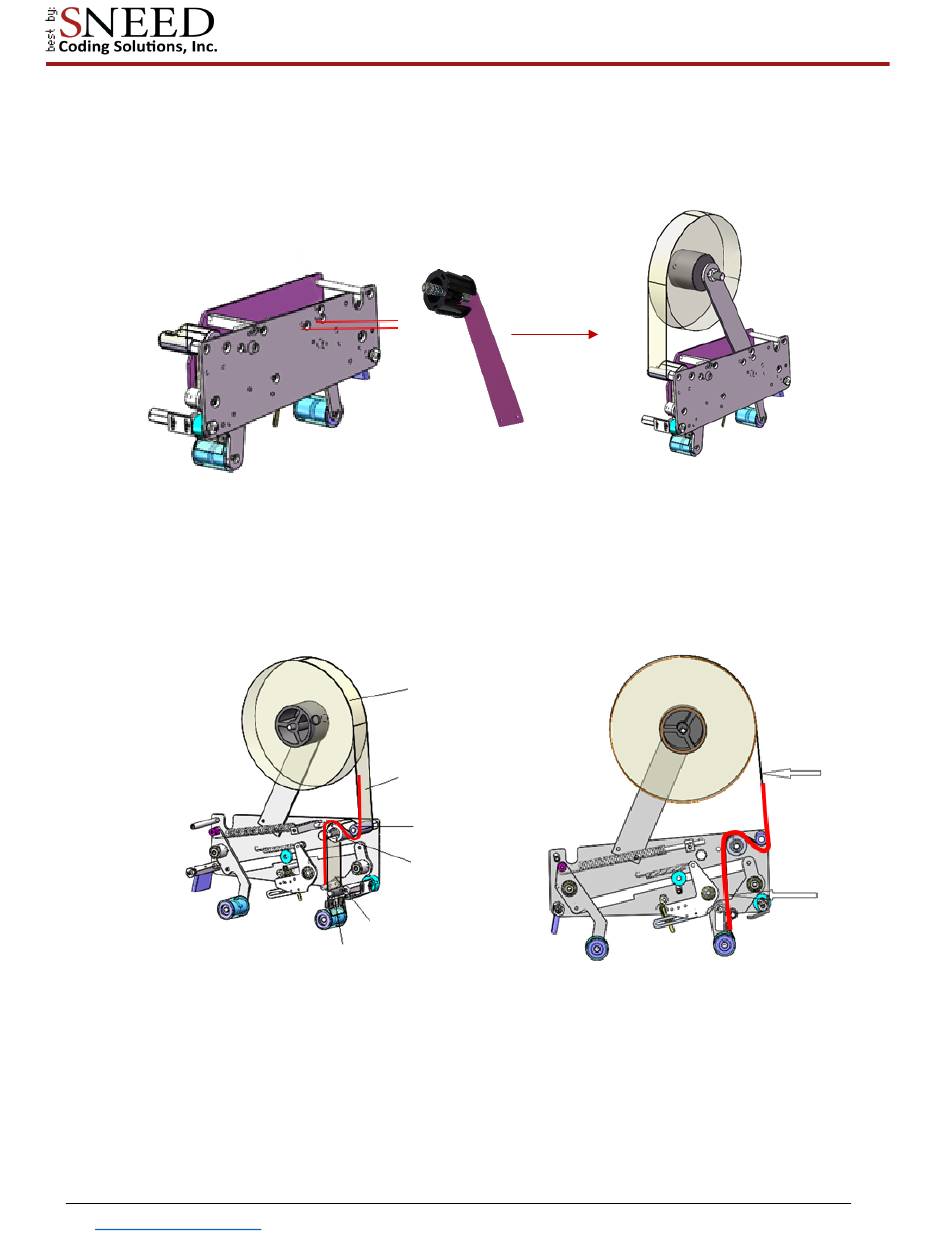

1. Begin by attaching the tape arms to each tape head using the included screws. (top and
bottom)
2. Next Install the tape onto the tape wheel so that when you pull the tape down the adhesive
side is facing outward.
3. Now guide the tape under the first guide roller, over the one-way roller, and through the
clip just above the last guide roller.
www.sneedcoding.com
The red line in figure 5 shows the tape path.
Tape roll
Adhesive face
Guide roller
One -way roller
Adhesive face
Guide wheel
Figure 5
9
| (833)926-3464 | support@sneedcoding.com
Adhesive face
Adhesive face
