Page 1

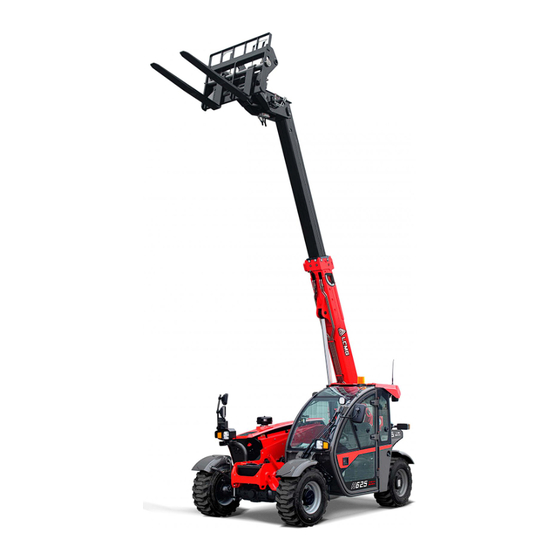

Maintenance Manual H625/H735/H933/H1440/H1840 HR2150 Telescopic Handler △ WARNING Before operation and maintenance, the drivers and maintenance personnel are required to read this manual thoroughly. Otherwise, fatal accident may occur. This manual shall be kept properly for future reference personnel concerned.
Page 2
Fourth edition and printed for the first time in July 2023 Lingong Heavy Machinery Co., Ltd. Add.: 12F, Building 3, Lushang Olympic City, No. 9777, Jingshi Road, Lixia District, Jinan City, Shandong Province, China Tel.: 86-0531-67605017 Technical service hotline: 86-0531-67605017 Fax: 86-0531-67605017 Parts sales hotline: 86-0531-67605016 Website: www.lgmg.com.cn...
Page 3
Maintenance Manual of Telescopic Handler Foreword Thanks for purchasing the telescopic handler produced by Lingong Heavy Machinery Co., Ltd. This machine is designed according to EN 1459-1:2017+A1:2020. This manual introduces the maintenance of the telescopic handler for safety guidelines and correct operation and maintenance of the machine. How to get the best out of your machine is a goal we pursue together with you, and it depends to a large extent on how familiar you are with the machine and how carefully and thoroughly it is maintained.
Page 4
Maintenance Manual of Telescopic Handler of the specification herein but not prohibited, always make sure that this operation will not cause personal injury to yourself or others. Please operate the machine in strict accordance with the safety requirements in the manual. The user is responsible for all consequences caused by non-compliance with the safety requirements of the machine.
Maintenance Manual of Telescopic Handler Safety Notices The operator shall understand and abide by the current national and local safety regulations. If such regulations are not available, the safety instructions in this manual shall prevail. Most accidents are caused by failure to obey operation and maintenance specifications of the machine. To avoid unnecessary accident, please read and follow all warnings and precautions in this manual and on the machine before operation or maintenance.
△ To replace the labels, please manual is illegible or missing, the safety and operation information necessary for safe running contact the service personnel of LGMG. cannot be provided. 1.3 Checking for damaged, loose or missing parts Confirm that the Operation Manual and the...
Maintenance Manual of Telescopic Handler Inspect the entire machine to check: the engine is placed horizontally and shut down. If ⚫ the welds or structural parts for cracks the engine is hot, shut it down and check the oil ⚫ the chassis for deformation or open weld level after 10 minutes so that the engine oil can ⚫...
Page 11
Maintenance Manual of Telescopic Handler day, whichever comes first. Kubota V3307: 1. Sight hole 1. Oil filler plug 2. Filler 2. Oil dipstick Place the telescopic handler on the Pull out the oil dipstick and wipe it with a horizontal ground, stop the engine and wait clean cloth, re-insert it into the engine oil till it is cool.
Page 12
Maintenance Manual of Telescopic Handler 1. Fuel level gauge 1. DEF level gauge Check the fuel level via the fuel level gauge Check the DEF level via the DEF level gauge on the instrument panel. on the instrument panel. Keep the fuel tank full to minimize any 1.4.5 Draining water from the fuel condensation due to atmospheric conditions.
Page 13
Tire Speed Single tire Model pressure immediately when the clean fuel is drained. (km/h) load (Kg) (kpa) 3) Wipe away the spilled fuel oil. 2865 H625 Perkins 904J: 1891 H735 4750 H933 4750 H1440 5600 H1840 5600 HR2150...
Page 14
Maintenance Manual of Telescopic Handler 1.4.8 Checking the coolant level △ CAUTION: Check whether the air and the fuel level of the water hose is properly connected to the tire heater in the cab-HR2150 only valve before inflation and keep a certain distance from everyone during inflation.
Maintenance Manual of Telescopic Handler 2. Fuel tank Clean the radiator through blowing from the Note: The specifications of the coolant and fuel of air outlet side of the radiator with the A/C system shall be consistent with that of the compressed air.
Page 16
Maintenance Manual of Telescopic Handler H1440/H1840/HR2150: A. Cab outer filter element A/C filter 1.5.4 Checking the transmission Remove the protective cover. fluid level (If equipped) Take out the A/C filter element (1) and clean it with compressed air. If the filter element is This item is performed every 50 hours or weekly, damaged, replace it.
Page 17
Maintenance Manual of Telescopic Handler position. prevent the machine from moving. △ CAUTION: During the process of checking the transmission fluid level and replacing the transmission fluid, pay attention to cleanliness to avoid entering of dirt into the transmission system and damaging the transmission. 1.5.5 Lubricating the slewing 2.
Maintenance Manual of Telescopic Handler adding the grease until the grease overflows from the upper and lower fixing surfaces of the slewing bearing . Grease Grade: Lithium-based grease 2#. Check the lubrication of the slewing bearing gear and the slewing reducer gear, clean the gear surface if necessary, and apply the Shut down the engine, and find the water grease again.
Page 19
3) Install the protective cover. vehicle. H735/H933: Check the reducer oil level every 250 hours or quarterly. Improper reducer oil level will lead to equipment performance degradation, and continuous use will lead to component damage. Check the oil level of the final drive H625:...
Page 20
Maintenance Manual of Telescopic Handler 1. Oil filler plug Carefully clean the breather (3) and 2. Oil drain plug surrounding area. 3. Breather H735/H933: Check the oil level: remove the oil filler plug (1) and check whether the oil level is at the 1.
Page 21
Maintenance Manual of Telescopic Handler to release the possible pressure. oil filler. Otherwise, fill the oil to the specified 2. Turn the wheel so that the plug (4) is in the position and install the plug (1). horizontal position, remove the plug to check 1.6.4 Checking transfer box oil whether the oil level is at the lower edge of the level (If equipped)
Page 22
Maintenance Manual of Telescopic Handler Type 2 1. Oil filler \ Oil level sight glass 1. Oil filler \ Oil level sight glass 2. Oil drain plug 2. Oil outlet 3. Breather 3. Breather Remove the plug on the reducer side and check Stop the engine, park the machine on a level the oil level as shown in the figure.
Page 23
Maintenance Manual of Telescopic Handler 2) Measure the distance between the bottom of the chain and the top of the boom with a ruler. The distance of the two same chain must be consistent. 1) Raise the outrigger and keep the boom level. 2) Fully extend the boom.
Page 24
Maintenance Manual of Telescopic Handler mm and 85 mm. If necessary, adjust with boom. tensioner “5”. Loosen lock nut “6” and tighten 1.6.8 Checking hydraulic oil nut “7” until the desired distance is reached. This item is performed every 250 hours or Retighten the lock nut “6”...
Page 25
Maintenance Manual of Telescopic Handler secure frequently. ⚫ Check the wiring of the battery cable. The Before replacing the hydraulic oil, the oil stain wiring is firm and free from corrosion. separator can be used to test whether it is ⚫...
Be careful when handling high battery, only the charger approved by temperature engine oil. Risk of burning! the LGMG can be used. △ When working on the oil system, ⚫ Do not replenish the battery with white eyes.
Page 27
Maintenance Manual of Telescopic Handler also be replaced. Perkins 1104D: 1. Oil dipstick 2. Oil drain plug 1. Oil filler plug 3. Sealing ring 2. Oil filter Kubota V3307: Kubota V3307: 1. Oil drain plug Warm up the engine. 1. Oil filter Place the engine horizontally.
Page 28
Maintenance Manual of Telescopic Handler 1. Oil filler plug 2. Oil filter Perkins 904J: 1. Cover 2. Seal ring 3. Filter element 4. Filter housing Clean the area near the oil filter mounting seat. Remove the cover (1) from the filter housing 1.
Page 29
Maintenance Manual of Telescopic Handler tightness. Warm up the engine and run it at low speed for 3 minutes to check the drain plug and the △ ! Explosion and fire hazard. Engine filter for leakage. fuel is combustible. Check the location Turn off the engine, wait a few minutes, of the machine.
Page 30
Maintenance Manual of Telescopic Handler filter. 3) Place the container under the drain valve. 5) Disconnect the electrical connector (8), then manually remove the connecting oil cup (7) and remove the old O-ring (6). Clean the oil cup (7). Connect a suitable tube to the connector (2), 6) Remove the fuel filter (5) with the belt then open the drain valve (1) to drain the filter.
Page 31
Maintenance Manual of Telescopic Handler filter. 2) Place the container under the drain valve. 3) Open the drain valve to drain the filter. Allow the liquid to flow into the container. 4) Remove the fuel filter with the belt wrench. 5) Wipe the sealing surface of the filter holder with a clean fiber-free cloth.
Page 32
Maintenance Manual of Telescopic Handler 5) Wipe the sealing surface of the filter holder discharge the fuel and remove the hose. with a clean fiber-free cloth. 4) Rotate the filter fuel cup (2) counterclockwise 6) Apply a thin layer of oil to the new filter seal to remove it from the filter housing (1).
Page 33
Maintenance Manual of Telescopic Handler Perkins 904J: 1) Ensure that the fuel supply valve (if equipped) is in the OFF position. 2) Place a suitable container under the fuel filter to collect all spilled fuel. 7) Replace with a new filter element and position the thread (7) on the thread (6).
Page 34
Maintenance Manual of Telescopic Handler with a clean fiber-free wiper. 4) Apply a thin layer of diesel to the seal ring of the new filter. 5) Screw in a new filter manually until seal fit and tighten it. 6) Exhaust the fuel system. 1.7.4 Bleeding the fuel system 2.
Page 35
Maintenance Manual of Telescopic Handler electric fuel injection pump for 1-2 min. 3. Turn the key switch to OFF position. 4. Start the engine and run it at a low idle speed for about 5 min, and check that the fuel system does not leak.
Page 36
Maintenance Manual of Telescopic Handler Replace the belt, Check the belt tensioner for looseness, damage, replace the belt tensioner if necessary. Kubota V3307: The belt must be replaced if the following conditions occur. ⚫ There are cracks in at least two belt ribs. ⚫...
Page 37
Replace the hydraulic oil tank return filter Remove the filter element from the filter element cover. H625: Check the seal of the filter cover and replace it if necessary. Install a new filter element and tighten it. Scrub off any oil droplets splashed during installation.
Page 38
Maintenance Manual of Telescopic Handler Replace every 500 hours or six months, whichever comes first. Regular filter replacement is necessary for good machine performance and long service life. Dirty or blocked filter may cause the hydraulic component performance degradation, and continuous use may cause component damage.
H625/H735/H933: The main filter element needs to be replaced only when the air cleaner primary element is cleaned 5-6 times or the regular maintenance time is reached.
Page 40
Park the machine on level ground and turn off the filter element. engine. If the safety filter element has just H625: been replaced, it is necessary to confirm whether the safety filter element is installed correctly before the installation of the main...
Page 41
Maintenance Manual of Telescopic Handler a new one. 1.8.3 Replacing the transmission fluid, transfer box oil and filter (If equipped) First maintenance after 250 h, then maintain the vehicle every 1000 h. H735/H933: Drain the transmission fluid 1) Stop the engine, park the machine on a level ground, set the gear selector to N gear, shut down the engine, pull up the parking brake handle, and chock the tire to prevent the...
Page 42
Maintenance Manual of Telescopic Handler 1) Add the lubricating oil through the oil filler (1) to the lower edge of the oil filler, wait for 5 minutes, check the oil level again, and add it if necessary. 2) Install the upper oil filler plug. 1.8.4 Replacing transfer box oil (If equipped) Place a suitable container under the drain...
Maintenance Manual of Telescopic Handler H625: 1. Oil filler \ Oil level sight glass H735/H933: 2. Oil outlet 3. Breather Place a suitable container under the drain plug (2), remove the oil filler plug (1) and drain plug (2), drain all oil, clean and install the plug (2).
Maintenance Manual of Telescopic Handler oil. 1. Filler plug 2. Drain plug 3. Turn the wheel so that the plug (4) is in a Place a suitable container under the drain horizontal position. Add the specified oil to the plug (2), first remove the oil filler plug (1) and lower edge of the filling hole.
Page 45
Maintenance Manual of Telescopic Handler and the drain valve of the engine coolant (if equipped) as well as the coolant drain valve of the transmission (if equipped), discharge It is recommended to do this with a Chain check the coolant and hold it with a container. gauge.
Page 46
Maintenance Manual of Telescopic Handler the minimum size (52.2 mm-52.2 × 2%= 51.156 mm; 42.2 mm-42.2 × 2%= 41.356mm), replace the chain. In addition to wear, the high pressure between the side plate and the pulley may cause joint jamming. In this case, a pair of chains should also be replaced.
Page 47
1/2 of the tank. It is tank. strictly prohibited for the oil to overflow. H625: 3) Drain the hydraulic oil from the hydraulic oil tank completely into a suitable container. To speed up the oil drain, open the oil tank filler cap.
Page 48
Maintenance Manual of Telescopic Handler flange and tank Drain plug H735: Name Suction oil filter Connecting bolt of suction oil flange and filter Connecting bolt of suction oil Name flange and tank Drain plug Drain plug Suction filter Connecting bolt of suction oil flange and tank H1440/H1840: Name...
Maintenance Manual of Telescopic Handler 1.11 Appendix 1.11.1 Maintenance instructions 1. General instructions Before starting the Telescopic handler, ensure that the area is well ventilated. Wear suitable clothes and avoid jewelry and loose and comfortable clothes. If necessary, tie and protect your hair.
Page 50
Maintenance Manual of Telescopic Handler machine on solid level ground, retract the boom to the stowed position, stop the engine, and place pads under the wheels. Repeatedly press and release the travel brake pedal (foot brake); repeatedly pull and release the parking brake handle (hand brake).
Page 51
Maintenance Manual of Telescopic Handler connecting rod when working in the area below the boom. The installation of safety support 1) Fully raise the boom. 2) Fit the safety support on the lift cylinder connecting rod and secure it with axis pin. 3) Slowly lower the boom and stop before coming into contact with the safety support.
Page 52
Maintenance Manual of Telescopic Handler 1.11.2 Maintenance List H625 (H06025001K3R1000) (EU stageⅢ-Kubota V3307 engine ) Maintenance List Mainte nance Material code Name Specification Unit (Q'TY) Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling...
Page 53
Maintenance Manual of Telescopic Handler element 4120711698 Return filter FILTER TL368BD Hydraulic system SAE J306: Front axle:6.1L 1650h 5301000361 Gear oil Gear oil Liter (L) 12.2 75W-80 Rear axle:6.1L 5301000045 CH-4 15W/40 Engine oil Engine oil Liter (L) 4110703186002 HH1C0-32430 The oil filling Oil filter element FILTER...
Page 54
Maintenance Manual of Telescopic Handler H735 H735 (H07035001K3R1000) (EU stageⅢ-Kubota V3307 engine ) Maintenance List Mainte nance Material code Name Specification Unit (Q'TY) Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110703186002 Oil filter element FILTER...
Page 55
Maintenance Manual of Telescopic Handler filter element gauge Primary fuel filter 4110001638007 FS1212-B-AM FILTER element LH0160D010 4120704125001 Return filter FILTER Hydraulic system BN3HC 1. Final drive: 8 L; SAE J306: 1650h 5301000361 Gear oil Gear oil Liter (L) 19.2 Single-side wheel 75W-80 reducer: 0.8 L;...
Page 56
Maintenance Manual of Telescopic Handler H735 H735 (H07035001K5C1000) (EU stageⅤ-Kubota V3307 engine ) Maintenance List Mainte nance Material code Name Specification Unit (Q'TY) Remark Period 5301000138 CJ-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110703186002 Oil filter element FILTER...
Page 57
Maintenance Manual of Telescopic Handler element gauge Secondary fuel 4110705288001 1K947-43172 FILTER filter element LH0160D010 4120704125001 Return filter FILTER Hydraulic system BN3HC 1. Final drive: 8 L; SAE J306: 1650h 5301000361 Gear oil Gear oil Liter (L) 19.2 Single-side wheel 75W-80 reducer: 0.8 L;...
Page 58
Maintenance Manual of Telescopic Handler H933 H933 (H09033001K3R1000) (EU stageⅢ-Kubota V3307 engine ) Maintenance List Mainte nance Material code Name Specification Unit (Q'TY) Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110703186002 Oil filter element FILTER...
Page 59
Maintenance Manual of Telescopic Handler filter element gauge Primary fuel filter 4110001638007 FS1212-B-AM FILTER element LH0160D010 4120704125001 Return filter FILTER Hydraulic system BN3HC 1. Final drive: 8 L; SAE J306: 1650h 5301000361 Gear oil Gear oil Liter (L) 19.2 Single-side wheel 75W-80 reducer: 0.8 L;...
Page 60
Maintenance Manual of Telescopic Handler H1440 H1440 (H14040000P3G10) (EU stageⅢ-Perkins 1104D engine) Maintenance List Mainte nance Material code Name Specification Unit Q'TY Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject Oil filter element 4110703313001 FILTER...
Page 61
Maintenance Manual of Telescopic Handler 4110703313001 Oil filter element FILTER 2654407 Engine 5301000045 CH-4 15W/40 Engine oil Engine oil Liter (L) (The oil filling Primary fuel filter amount is subject 4110703313002 FILTER 4395038 1500h element to the oil level Secondary fuel gauge) 4110703313003 FILTER...
Page 62
Maintenance Manual of Telescopic Handler H1840 H1840 (H18040000P3G10) (EU stageⅢ-Perkins 1104D engine) Maintenance List Mainte nance Material code Name Specification Unit Q'TY Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110703313001 Oil filter element FILTER...
Page 63
Maintenance Manual of Telescopic Handler 4110703313001 Oil filter element FILTER 2654407 Engine 5301000045 CH-4 15W/40 Engine oil Engine oil Liter (L) (The oil filling Primary fuel filter amount is subject 4110703313002 FILTER 4395038 1500h element to the oil level Secondary fuel gauge) 4110703313003 FILTER...
Page 64
Maintenance Manual of Telescopic Handler H1840 H1840 (H18040001P3G1000) (EU stageⅢ-Perkins 1104D engine) Maintenance List Mainte nance Material code Name Specification Unit Q'TY Remark Period 5301000045 CH-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110703313001 Oil filter element FILTER...
Page 65
Maintenance Manual of Telescopic Handler filter element 4120706735 Return filter FILTER TL368E/5 Hydraulic system 1. Final drive: 8 L; SAE J306: 1650h 5301000361 Gear oil Gear oil Liter (L) 21.2 Single-side wheel 75W-80 reducer: 1.3 L; 4110703313001 Oil filter element FILTER 2654407 Engine...
Page 66
Maintenance Manual of Telescopic Handler H1840 H1840 (H18040000P5C1000) (EU stageⅤ-Perkins 904J engine) Maintenance List Mainte nance Material code Name Specification Unit Q'TY Remark Period 5301000138 CJ-4 15W/40 Engine Engine oil Engine oil Liter (L) (The oil filling amount is subject 4110705047001 Oil filter element FILTER...
Page 67
Maintenance Manual of Telescopic Handler 5301000138 CJ-4 15W/40 Engine oil Engine oil Liter (L) Engine 4110705047001 Oil filter element FILTER 5698037 (The oil filling Primary fuel filter amount is subject 4110705047003 FILTER 5181459 1500h element to the oil level Secondary fuel gauge) 4110705047002 FILTER...
Page 68
Maintenance Manual of Telescopic Handler HR2150 HR2150 (H21050011P3G1000) (EU stageⅢ-Perkins 1104D-E44TA engine) Maintenance List Maintena Material code Name Specification Unit Remark Q'TY Period Engine Engine 5301000045 CH-4 15W/40 Engine oil Liter (L) (The oil filling amount is subject to the oil level 4110703313001 Oil filter element FILTER...
Page 69
Maintenance Manual of Telescopic Handler High-pressure 4120002095004 FILTER GFX-100*5 filter element High-pressure LH0160D005B 4120703941001 FILTER filter element N3HC Hydraulic system 4120708507 Return filter FILTER TL235A/5 PAF1-0.02-0.4 4120002631 Air breather FILTER 5-10L Slewing reducer 5304000039 Gear oil Gear oil L-CKD220 Liter (L) SAE J306: 1250h 5301000361...
Page 71
Maintenance Manual of Telescopic Handler 1.11.3 Selection of oils Type Recommended types and standards Oil parts Lowest ambient temperature ≥-10℃ ,SAE 15W-40 Engine oil Engine (EU StageⅢ engines) API CH-4 Lowest ambient temperature <-10℃ , SAE 10W-30 Lowest ambient temperature ≥-10℃ , SAE 15W-40 Engine oil Engine (EU StageⅤ...
Page 72
Maintenance Manual of Telescopic Handler 1.11.4 Maintenance items Maintenance level Every Maintenance Every Every Operation content Weekly Quarterly item year months 250h 500h 1000h 2000h 4000h ● Check engine oil level ● Check the coolant level ● Check the fuel level ●...
Page 73
Maintenance Manual of Telescopic Handler Maintenance level Every Maintenance Every Every Operation content Weekly Quarterly item year months 250h 500h 1000h 2000h 4000h ● Check transmission fluid level Replace the transmission ● Transmission lubricating oil (at least once a year) ●...
Page 74
Maintenance Manual of Telescopic Handler Maintenance level Every Maintenance Every Every Operation content Weekly Quarterly item year months 250h 500h 1000h 2000h 4000h variable-speed joystick are flexible ● Check the seat belt Check the coolant level and the ● fuel level of the water heater in the cab (if equipped) ●...
Page 75
Maintenance Manual of Telescopic Handler Maintenance level Every Maintenance Every Every Operation content Weekly Quarterly item year months 250h 500h 1000h 2000h 4000h ● Check brake system pressure ● Adjust brake ● Brake Check brake pads and brake system discs for wear ●...
Page 76
Maintenance Manual of Telescopic Handler 1.11.5 Engine DTC Perkins 1104D: Impact on the machine Description Engine does Engine Engine Low power not start speed decreases shutdown No. 1 Fuel injector fault √ √ No. 2 Fuel injector fault √ √ No.
Page 77
Maintenance Manual of Telescopic Handler Machine security module Ignition key switch fault ECM supply voltage fault √ √ SAE J1939 data link failure √ 5V sensor DC power supply √ √ fault 8-volt sensor DC power √ supply failure Customer/system parameter √...
Page 78
Maintenance Manual of Telescopic Handler Perkins 904J: J1939 codes Description 27–3 EGR #1 Valve Position: Voltage Above Normal 27–4 EGR #1 Valve Position: Voltage Below Normal 29–2 Accelerator Pedal Position #2: Data Erratic, Intermittent, or Incorrect 29–3 Accelerator Pedal Position #3: Voltage Above Normal 29–4 Accelerator Pedal Position #3: Voltage Below Normal 29–8...
Page 79
Maintenance Manual of Telescopic Handler 111–18 Engine Coolant Level: Low - Moderately Severe Level (2) 157–3 Engine Fuel Injector Metering Rail #1 Pressure: Voltage Above Normal 157–4 Engine Fuel Injector Metering Rail #1 Pressure: Voltage Below Normal 157–12 Engine Fuel Injector Metering Rail #1 Pressure: Fault 157–16 Engine Fuel Injector Metering Rail #1 Pressure: High - Medium Severe Level (2) 157–18...
Page 80
Maintenance Manual of Telescopic Handler 631–2 Custom Module: Data Erratic, Intermittent, or Incorrect 637–11 Engine Timing Sensor: Other Failure Modes 639–9 J1939 Network #1: Abnormal Update Rate 639–14 J1939 Network #1: Special Instructions 651–2 Engine #01 Cylinder Fuel injector: Data Erratic, Intermittent, or Incorrect 651–5 Engine #01 Cylinder Fuel injector: Current Below Normal 651–6...
Page 81
Maintenance Manual of Telescopic Handler 1761–2 EGR #1 DEF Tank Capacity #1: Data Erratic, Intermittent, or Incorrect 1761–12 EGR #1 DEF Tank Capacity #1: Fault 1761–17 EGR #1 DEF Tank Capacity #1: Low - Least Severe Level (1) 1761–18 EGR #1 DEF Tank Capacity #1: Low - Moderately Severe Level (2) 2630–3 Engine Filling Air Cooler Outlet Temperature: Voltage Above Normal 2630–4...
Page 82
Maintenance Manual of Telescopic Handler 3510–3 Sensor Power Supply Voltage 2: Voltage Above Normal 3510–4 Sensor Power Supply Voltage 2: Voltage Below Normal. 3516–2 EGR #1 DEF Concentration: Data Erratic, Intermittent, or Incorrect 3516–11 EGR #1 DEF Concentration: Other Failure Modes 3516–12 EGR #1 DEF Concentration: Fault 3516–15...
Page 83
Maintenance Manual of Telescopic Handler 4376–6 EGR #1 DEF Return Valve: Current Below Normal 4376–7 EGR #1 DEF Return Valve: Current Above Normal 4376–14 EGR #1 DEF Return Valve: Incorrect Response 4750–3 EGR #1 DEF Return Valve: Special Instructions 4750–4 EGR Cooler Inlet Temperature: Voltage Above Normal 4765–17 EGR Cooler Inlet Temperature: Voltage Below Normal...
Page 84
Maintenance Manual of Telescopic Handler Kubota V3307-E3: Detection item DTC set parameter Despite rpm, oil pressure switch Oil Pressure Error Oil pressure switch is on Overheat of engine water Engine water temperature Engine overheat temperature ≥110 °C Open circuit of sensor / harness, Voltage of coolant temperature Water temperature sensor: High + B short circuit...
Page 85
Maintenance Manual of Telescopic Handler Kubota V3307-CR-E5: Inspection Item DTC Set Parameter DTC Description Large phase shift between NE Phase difference between (crankshaft position sensor) pulse NE-G Phase Shift NE pulse and G pulse within and G (camshaft position sensor) +30 ~-20°...
Page 86
Maintenance Manual of Telescopic Handler Harness open circuit; Harness or injector coil open No.1 Cylinder Injector circuit Harness/Coil Open Circuit Injector coil open circuit Harness open circuit; Harness or injector coil open No.3 Cylinder Injector circuit Harness/Coil Open Circuit Injector coil open circuit Harness open circuit;...
Page 87
Maintenance Manual of Telescopic Handler sensor (T1) voltage: Above 1: High to +B 4.92 V DOC inlet temperature Exhaust Gas Temperature Sensor sensor (T0) voltage: 4765 Sensor/harness shorted to ground 0: Low Below 0.08 V DOC inlet temperature Exhaust Gas Temperature Sensor Sensor/harness open or shorted sensor (T0) voltage: 4765...
Page 88
Maintenance Manual of Telescopic Handler command given Starter Motor Relay Drive Circuit Starter motor relay drive circuit Harness shorted to ground Shorted to Ground shorted to ground EEPROM checksum error EEPROM Checksum Error 523700 KBT-EEPROM checksum error Throttle position deviation is not corrected after 20 load Intake Throttle Feedback Error 523580...
Page 89
Maintenance Manual of Telescopic Handler DPF outlet temperature Exhaust Gas Temperature Sensor Sensor/harness open or shorted sensor (T2) voltage: Above 3246 2: High to +B 4.92 V DPF differential pressure Differential Pressure Sensor 1: 3251 Sensor/harness shorted to ground sensor voltage: Below 0.2 V DPF differential pressure Differential Pressure Sensor 1: Sensor/harness open or shorted...
Page 90
Maintenance Manual of Telescopic Handler CAN off No Communication with EGR 523578 No communication with EGR CAN1 shorted to +B/GND, or high CAN1 Bus Off CAN1 Bus Off 523604 traffic error CAN2 KBT frame open CAN-KBT original frame open CAN-KBT Frame Error 523548 circuit circuit...
Page 91
Maintenance Manual of Telescopic Handler 1.11.6 Lubrication points indication Lubrication point of the whole machine: 1. If work time is less than 50 h per week, then maintain it once a week. 2. If work continuously for a long time, the lubrication period is reduced to every 10 hours or every day.
Page 92
Maintenance Manual of Telescopic Handler Take H1840 as an example...
Page 93
Maintenance Manual of Telescopic Handler Only HR2150...
