Tech Controllers EU-R-10z User Manual page 2

Description
EU-R-10z room regulators are installed in heating zones. They send
temperature information to EU-L-10 external controller, which uses the
information to control the thermostatic actuators (opening them when
the room temperature is too low and closing them when the pre-set
temperature has been reached).
Current temperature is displayed on the screen.
Controller assets:
• built-in temperature sensor
• wall-mountable cover
4
5

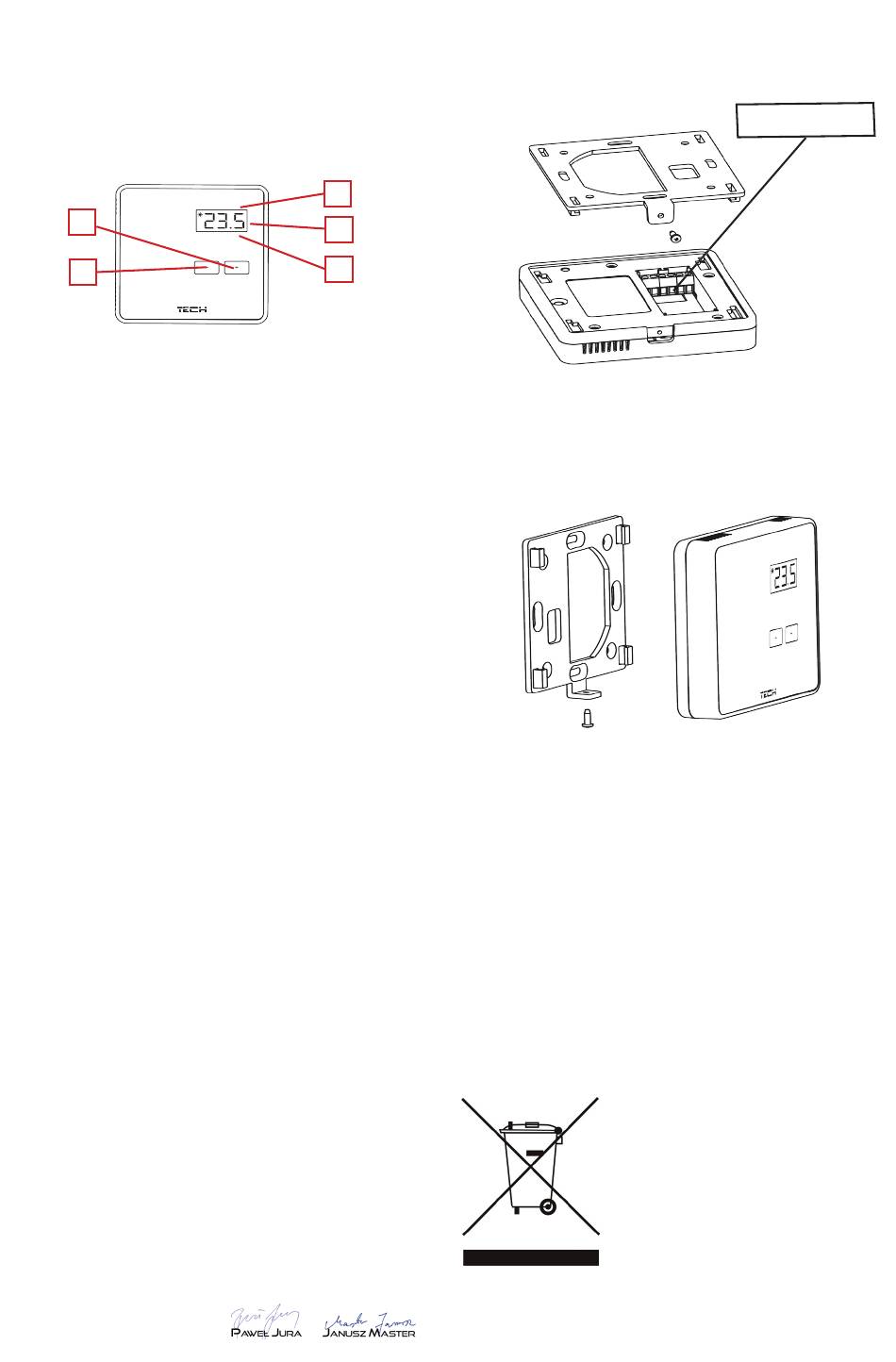

1. Light intensity sensor
2. Display - current zone temperature.
3. Control light (The light is flashing - the pre-set zone temperature has not
been reached. The light is on - the pre-set temperature has been reached.)
4. PLUS button
5. MINUS button
The regulator also has a built-in light intensity sensor, which is responsible
for the brightness of the display. When it is dark in the room, the screen
dims and when it is light, the screen brightens.
Change of pre-set temperature
The pre-set zone temperature may be changed directly in EU-R-10z
controller using PLUS and MINUS buttons.
During controller inactivity, the displays shows current zone temperature.
Press PLUS or MINUS to adjust the pre-set temperature - the digits will
start flashing.
After setting the desired temperature value, wait 3 seconds to save the
settings.
Hysteresis
Room temperature hysteresis is used to define tolerance of the pre-set
temperature in order to prevent undesired oscillation in case of small
temperature fluctuation. For example:
Pre-set temperature is 23°C
Hysteresis is 1°C
Room regulator temperature is considered too low when it drops to 22°C.
In order to set the hysteresis, press plus and minus buttons (+ -) at the
same time. Set the desired value and wait 3 seconds to save the settings.
EU Declaration of conformity
Hereby, we declare under our sole responsibility that EU-R-10z
manufactured by TECH, headquartered in Wieprz Biała Droga 31, 34-122
Wieprz, is compliant with:
• Directive 2014/35/EU of the European Parliament and of the Council of
February 26, 2014 on the harmonisation of the laws of Member States
relating to the making available on the market of electrical equipment
designed for use within certain voltage limits (EU Journal of Laws L 96,
of 29.03.2014, p. 357),
• Directive 2014/30/EU of the European Parliament and of the Council of
February 26, 2014 on the harmonisation of the laws of Member States
relating to electromagnetic compatibility (EU Journal of Laws L 96 of
29.03.2014, p.79),
• Directive 2009/125/EC establishing a framework for the setting of
ecodesign requirements for energy-related products,
• the regulation by the Ministry of Economy of May 8, 2013 concerning
the essential requirements as regards the restriction of the use of
certain hazardous substances in electrical and electronic equipment,
implementing provisions of RoHS directive 2011/65/EU.
For compliance assessment, harmonized standards were used: PN-EN
60730- 2-9:2011, PN-EN 60730-1:2016-10.
Wieprz, 10.10.2018
How to install the controller
First connect the sensor cables.
1
2
3
Mount the EU-R-10z sensor hanger on the wall and fit the cover.
Software version
In order to check the software version of EU-R-10z regulator, press and
hold plus and minus buttons + - for about 3 seconds.
Technical data
Range of room temperature settings.....................................50C-350C
Supply voltage.......................................................................5V DC
Power consumption...................................................................0,2W
Measurement error..............................................................+/-0,50C
The place of
connecting the sensor
We are committed to protecting the environment.
Manufacturing electronic devices imposes an
obligation of providing for environmentally safe
disposal of used electronic components and
devices. Hence, we have been entered into a
register kept by the Inspection For Environmental
Protection. The crossed-out bin symbol on a
product means that the product may not be
disposed of to household waste containers.
Recycling of wastes helps
environment. The user is obliged to transfer
their used equipment to a collection point where
all electric and electronic components.
to protect the
