Page 1

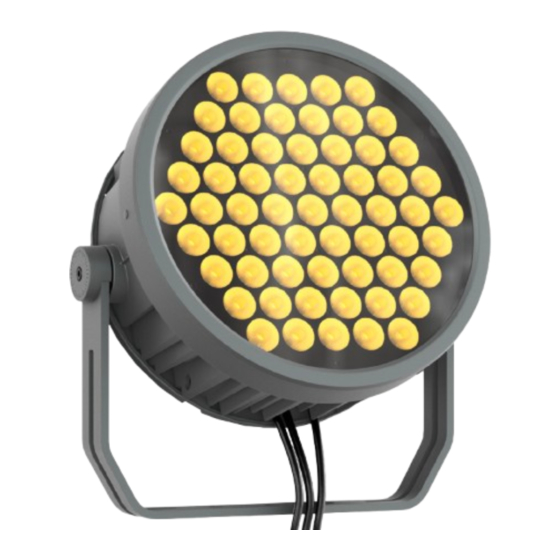

ARCSPOT XL FC IP66 Spot featuring 11600 lumen with 61x4W RGB+WarmWhite source, 10° native USER MANUAL English version REV.01-02/24 PRELIMINARY...
Page 2
PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
LENS (CODE ASLENS15/25/45 - OPTIONAL) ..............25 BRACKET FOR WALL MOUNTING AND SUSPENSION ON POLES (CODE MOSUNIBRACKJR) ......................28 13 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............29 VISUAL CHECK OF PRODUCT HOUSING ..............29 14 - TEST OF IP66 RATING PROLIGHTS - ArcSpot XLFC...
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
Page 5
• Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
Page 6
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. PROLIGHTS - ArcSpot XLFC...
Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/ARCSPOTXLFC#accessories 2 - TECHNICAL DRAWING 339mm 153mm 310mm [13.3in] [6.0in] [12.2in] Ø397mm [15.6in] Fig. 01 Weight: 11,9 kg - 26,23 lbs PROLIGHTS - ArcSpot XLFC...
NOTE: In external installations it is advisable to mount the product with the cables facing downwards to avoid water or humidity deposits which can compromise functionality in the long term. C6002 RSR1235B clamp Steel security cable 42mm 100mm 3xØ13mm [1.7in] [3.9in] [Ø0.5in] Fig. 02 PROLIGHTS - ArcSpot XLFC...
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - ArcSpot XLFC...
Install a DMX termination plug on the last fixture on the link. If a splitter is used, terminate each branch of the link. NOTE: when not using the DMX input or DMX output connectors, you must seal the cable ends with the supplied caps. PROLIGHTS - ArcSpot XLFC...
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR connector, as shown in figure. Pin1 : GND - Shield (Black) Pin2 : - Signal (Yellow) Pin3 : + Signal (Red) Pin4 : Auto-addressing (White) Example: 5 pin XLR connector Fig. 07 PROLIGHTS - ArcSpot XLFC...
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX OUT DATAMASTER Fig. 04 - Example 12 DMX channels configuration Fig. 08 PROLIGHTS - ArcSpot XLFC...
HIGH LED MODE Delivering the full output on every BRIGHTNESS primary color. HIGH QUALITY Calibrated white output at 6000K, when all primary colors are set to full. PROLIGHTS - ArcSpot XLFC...
Page 15
10000K MANUAL DIMMER:0-255 User generated color preset by assigning values to each primary color attribute. GREEN DIMMER:0-255 After enabled this mode, the unit will be automatically assigned as Master. BLUE DIMMER:0-255 WARM WHITE DIMMER:0-255 FACTORY DEFAULT PROLIGHTS - ArcSpot XLFC...
RDM Model ID: 0xD144 RDM Personality ID List DMX Mode Footprint 12CH 12CH 13CH 13CH MODE PARAMETER 12CH 13CH DIMMER DIMMER FINE CCT FINE CROSSFADE GREEN BLUE WARM WHITE STROBE COLOR MACRO EFFECTS EFFECTS SPEED CONTROL RESERVED PROLIGHTS - ArcSpot XLFC...
Page 21
16 bit value Function Note From From OPEN Default @ 255 STROBE FROM SLOW TO FAST OPEN PULSE IN FROM SLOW TO FAST CLOSE PULSE OUT FROM SLOW TO FAST OPEN RANDOM FROM SLOW TO FAST OPEN PROLIGHTS - ArcSpot XLFC...
Page 22
STEEL BLUE MEDIUM BLUE-GREEN PEACOCK BLUE MAGENTA DARK PINK MIDDLE ROSE LIGHT SALMON ENGLISH ROSE LIGHT ROSE ORANGE DEEP AMBER STRAW LIGHT AMBER SPRING YELLOW DARK YELLOW GREEN JUST BLUE SKY BLUE LAVENDER LIGHT LAVENDER PINK CARNATION PROLIGHTS - ArcSpot XLFC...
Page 23
6500K 7000K 8000K 9000K 10000K FULL ON Effects 8 bit value 16 bit value Function Note From From NO FUNCTION Default @ 0 FX 1 FX 2 FX 3 FX 4 FX 5 (FX 1 -4) PROLIGHTS - ArcSpot XLFC...
Page 24
STAND ALONE MASTER DMX STAND ALONE MASTER NO DMX STAND ALONE SLAVE STAND ALONE EFFECTS STAND ALONE STATIC COLORS STAND ALONE WHITE PRESETS STAND ALONE COLOR MACROS STAND ALONE MANUAL COLORS RESERVED RESET ALL CHANNEL CONTROLLED RESERVED PROLIGHTS - ArcSpot XLFC...
LENS (CODE ASLENS15/25/45 - OPTIONAL) Place fixture on a stable surface. • Remove the rubber caps (A), then unscrew the metal front ring screws (B). • Remove the metal front ring (C). Fig. 12 PROLIGHTS - ArcSpot XLFC...
Page 28
Turn the fixture with lenses upside and proceed as follows: • Unscrew the lenses holder screws (D). • Remove the lenses holder (E). NOTE: be careful to match the spaces in the same way as they are disassembled to close the product correctly. Fig. 12 PROLIGHTS - ArcSpot XLFC...
Page 29
Gently replace each lens as shown in figure, Fig. 12 PROLIGHTS - ArcSpot XLFC...
BRACKET FOR WALL MOUNTING AND SUSPENSION ON POLES (CODE MOSUNIBRACKJR) NOTE: Do not mount the bracket on a support whose surface shows deformations, injuries, crushing, etc. Both the bracket and the unit must be secured with a safety cable. Fig. 12 PROLIGHTS - ArcSpot XLFC...
IP grade of the fixture. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
It is recommended to verify IP grade using IPTESTBOX every time the bodies are removed for maintenance. Remove the gore valve from the rear cover. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. PROLIGHTS - ArcSpot XLFC...
Page 33
Insert the threaded end into the threaded valve hole socket. For the operating procedure using the instrument, refer to the IPTESTBOX user manual. PROLIGHTS - ArcSpot XLFC...
