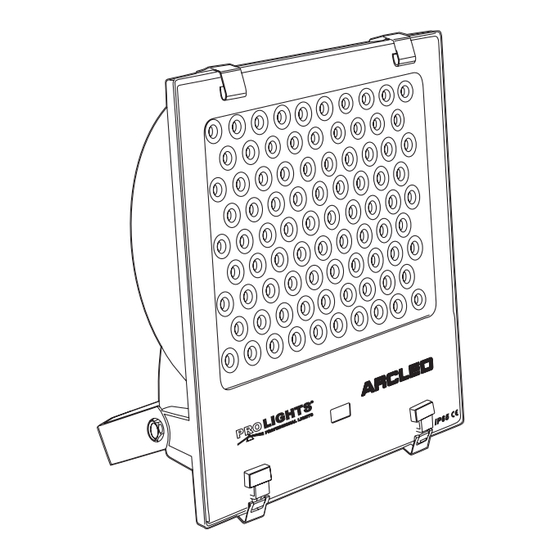

ProLights ARCLED345 User Manual

ProLights ARCLED345 User Manual

Led colour changer
Table of Contents
  • Table of Contents
  • Arcled345
  • Sicurezza
  • Avvertenze Generali
  • Attenzione E Precauzioni Per L'installazione
  • Informazioni Generali
  • Descrizione E Specifiche Tecniche
  • Elementi DI Comando E Collegamenti
  • Descrizione
  • Specifiche Tecniche
  • Installazione
  • Montaggio
  • Funzioni E Impostazioni
  • Funzionamento
  • Impostazioni Base
  • Funzionamento in Modalità Automatica
  • Collegamento
  • Collegamenti Della Linea DMX
  • Costruzione del Terminatore DMX
  • Impostazione Dell'indirizzo DI Start E Canali DMX
  • Tabella Canali DMX (Funzionamento a 11 Canali)
  • Manutenzione
  • Pulizia Sistema Ottico E Manutenzione

Advertisement

Available languages

Available languages

Quick Links

ARCLED345
Led colour changer
Manuale Utente
User Manual
Version: 3.0 - 11 DMX channels
I
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCLED345 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ProLights ARCLED345

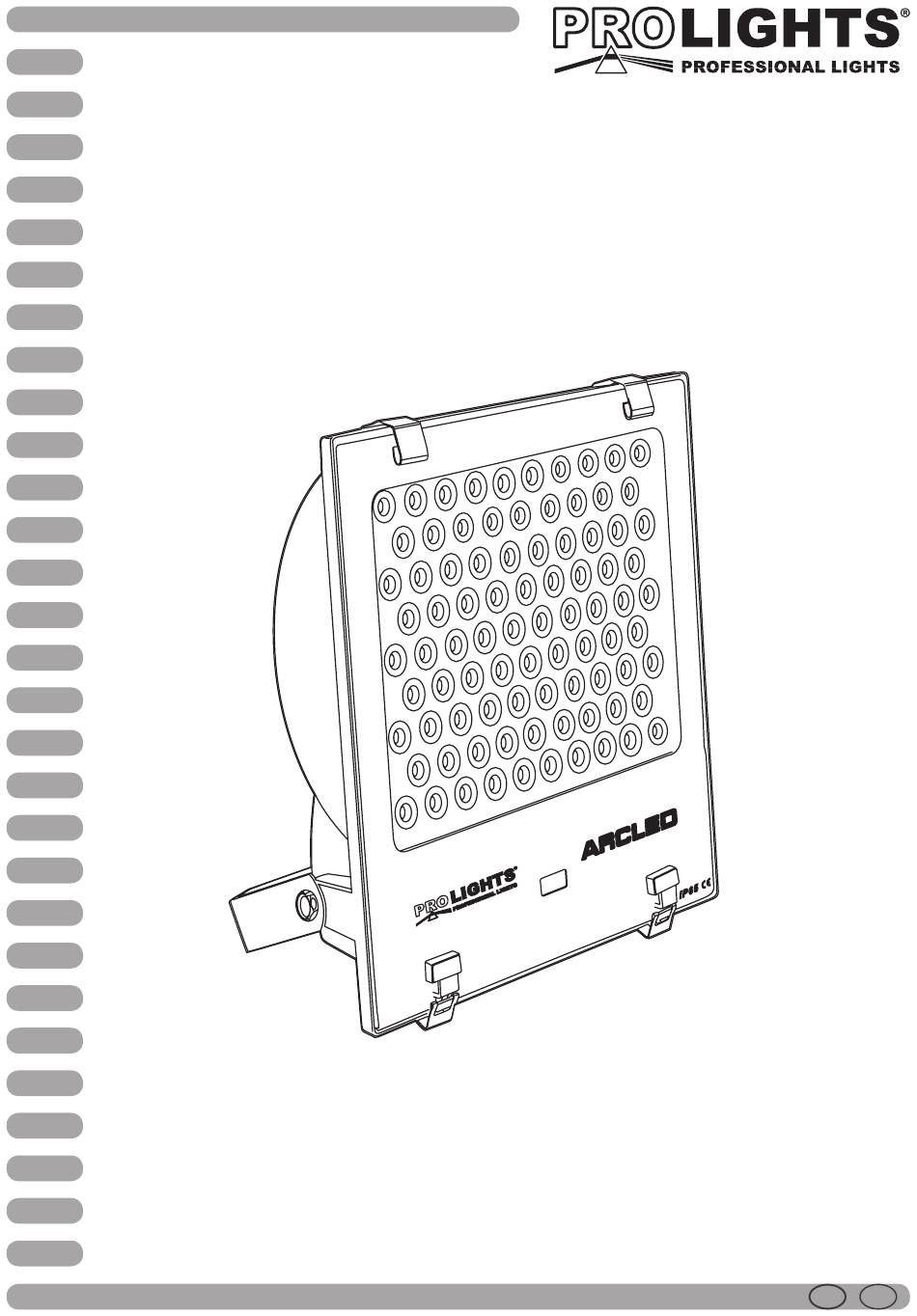

  • Page 1 ARCLED345 Led colour changer Manuale Utente User Manual Version: 3.0 - 11 DMX channels...
  • Page 2 REV.010-10/09 -11CH...
  • Page 3: Table Of Contents

    ARCLED345 INTRODUZIONE ARCLED345 PROLIGHTS è una serie di cambiacolori led di alta tecnologia con grado di protezione IP65, ideale in tutti i contesti d’illuminazione artistica per interni ed esterni. INDICE Sicurezza Avvertenze generali Attenzione e precauzioni per l’installazione Informazioni generali 1 Descrizione e specifiche tecniche 1.1 Elementi di comando e collegamenti...
  • Page 4: Sicurezza

    ARCLED345 ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con atten- zione questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni importanti riguardo l’installazione, l’uso e la manutenzione dell’unità. SICUREZZA Avvertenze generali • I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e pertanto recano la sigla .
  • Page 5: Descrizione E Specifiche Tecniche

    ARCLED345 - 1 - DESCRIZIONE E SPECIFICHE TECNICHE 1.1 Elementi di comando e collegamenti DMX OUT DMX IN FUNCTION ADDRESS+ POWER IN AC220V Fig.1 1. Vite di serraggio per la staffa di montaggio (2); 2. Staffe di montaggio; 3. Uscita dei segnali DMX (XLR a 3 poli) per il collegamento con l’ingresso DMX di una ulteriore unità DMX per effetti luce: pin 1=massa, 2=DMX-, 3=DMX+;...
  • Page 6: Descrizione

    ARCLED345 1.2 Descrizione ARCLED PROLIGHTS è una serie di cambiacolori led di alta tecnologia con grado di protezione IP65, ideale in tutti i contesti d’illuminazione artistica per interni ed esterni. Dotati di sintesi di colore RGB, i prodotti della linea ARCLED offrono infinite possibilità cromatiche (16 milioni di colori) ed estrema versatilità sia per l’illuminazione creativa di spettacoli sia come strumento nell’illuminazione artistica architetturale.
  • Page 7: Installazione

    - 2 - INSTALLAZIONE 2.1 Montaggio Il cambiacolori ARCLED345 può essere fissato mediante viti per mezzo delle sue staffe di montaggio (fig.2) oppure con supporto per fari (gancio a C) ad una traversa. Per orientare l’unità allentare le viti di bloccaggio (1);...
  • Page 8: Funzioni E Impostazioni

    - 3 - FUNZIONI E IMPOSTAZIONI 3.1 Funzionamento Per accendere ARCLED345, inserire il cavo di rete in una presa di rete (230V ~/50Hz). L’unità può essere comandata da un unità DMX di comando luce oppure svolgere autonomamente il suo programma. Per spegnere, staccare la spina dalla presa di rete.
  • Page 9: Funzionamento In Modalità Automatica

    ARCLED345 3.3 Funzionamento in modalità automatica Se alla presa DMX IN è presente un segnale di comando DMX, il punto Led, sul display, relativo alla posizio- ne C inizia a lampeggiare.In modalità Master/Slave il punto Led lampeggiante appare invece accanto alla posizione B.
  • Page 10: Collegamento

    ARCLED345 3.4 Collegamento Si possono collegare più unità per comandare, per mezzo dell’unità principale (Master), tutte le unità se- condarie (Slave). 1. Collegare l’uscita DMX OUT dell’unità principale con l’ingresso DMX IN della prima unità secondaria ser- vendosi di un cavo XLR a 3 poli.
  • Page 11: Impostazione Dell'indirizzo Di Start E Canali Dmx

    Per valori DMX da 001 a 003 entrambe le unità sono controllate da DMX; per valori DMX da 004 a 007 si può accedere alle funzioni dell’ unità ARCLED345 n°1; per valori DMX da 008 a 011 si può accedere alle funzioni dell’ unità ARCLED345 n°2.
  • Page 12: Manutenzione

    ARCLED345 - 4 - MANUTENZIONE 4.1 Pulizia sistema ottico e manutenzione • Durante gli interventi, assicurarsi che l’area sotto il luogo di installazione sia libera da personale non qualificato. • Spegnere l’unità, scollegare il cavo di alimentazione ed aspettare finché l’unità non sia raffreddata.
  • Page 13 ARCLED345 INTRODUCTION Thank you for purchasing a PROLIGHTS product. ARCLED345 is a LED color changer with a high protection rating (IP65) for indoor & outdoor applications. INDEX Safety General instructions Warnings and installation precautions General information 1 Description and technical specifications 1.1 Operating elements and connections...
  • Page 14 ARCLED345 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instructions • The products referred to in this manual conform to the European Community Directives and are therefore marked with .
  • Page 15 ARCLED345 - 1 - DESCRIPTION AND TECHNICAL SPECIFICATIONS 1.1 Operating elements and connections DMX OUT DMX IN FUNCTION ADDRESS+ POWER IN AC220V Fig.1 1. Knobs for mounting brackets (2); 2. Mounting brackets; 3. DMX OUT (XLR 3 poles): pin 1=ground, 2=DMX-, 3=DMX+;...
  • Page 16 ARCLED345 1.2 Description PROLIGHTS ARCLED is a series of high-tech IP65 colorchangers, ideal for all indoor and outdoor artistic lighting applications. Based on RGB color mixing system, ARCLED of products offer an unlimited chromatic possibili- ties (up to 16 millions colors) and a high versatility for creative and spectacular entertainment lighting effects as well as for artistic architectural lighting applications.
  • Page 17 - 2 - INSTALLATION 2.1 Mounting The ARCLED345 can be fixed (as shown below) using the mounting bracket screws or using the dedicated lighting support if mounted on a crossbeam. To adjust it’s inclination, it’s necessary to tighten down the screws.
  • Page 18 • If the master unit send a signal to slave unit, a small dot will flash on A position. Fig.3 ARCLED345 allows several operating modes (fig. 4). By the 3 digits display the ARCLED345 shows the cur- rent operating mode and the assigned value. By using the FUNCTION button and ADDRESS+ button it is possible to set-up the following primary settings: • MODE 1 (fig.4): press the FUNCTION button to change the cursor from A position to B position and C...
  • Page 19 ARCLED345 3.3 Operation without DMX controller If a control signal is present on the DMX IN, a small dot on the C position (fig.3) will start to flash. In master/ slave modes, the small dot appears on B position. To set-up the internal programs, please refer to fig.5 as follows: • In build-in programs 1 - 5, Mode 4 is to adjust the cycle speed.
  • Page 20 ARCLED345 3.4 Linking Several units may be interconnected in order to control all further slave units via the master unit. 1. Connect the DMX OUT (6) of the master unit via a 3-pole XLR cable to the DMX IN (5) of the first slave unit.
  • Page 21 3.7 Adjusting the start address and the number of DMX channels For operating the ARCLED345 with a light controller, adjust the DMX start address for the first DMX channel. If e. g. on the controller the address 17, is provided for controlling the unit, adjust the start address 17 on the ARCLE345.
  • Page 22 ARCLED345 - 4 - MAINTENANCE 4.1 Cleaning the unit and maintenance • Make sure the area below the installation place is free from unwanted persons during set-up. • Switch off the unit, unplug the main cable and wait until the unit has cooled down.
  • Page 23 Place Stamp Here Affrancare Spett.le Music&Lights s.r.l. Via Appia Km 136.200 04020 Itri (LT) Italy "...
  • Page 28 Music & Lights Srl entertainment technologies Via Appia Km 136,200 - 04020 Itri (LT) ITALY ISO 9001:2000 tel. +39 0771 72190 fax +39 0771 721955 Certified Company www.musiclights.it info@musiclights.it...
