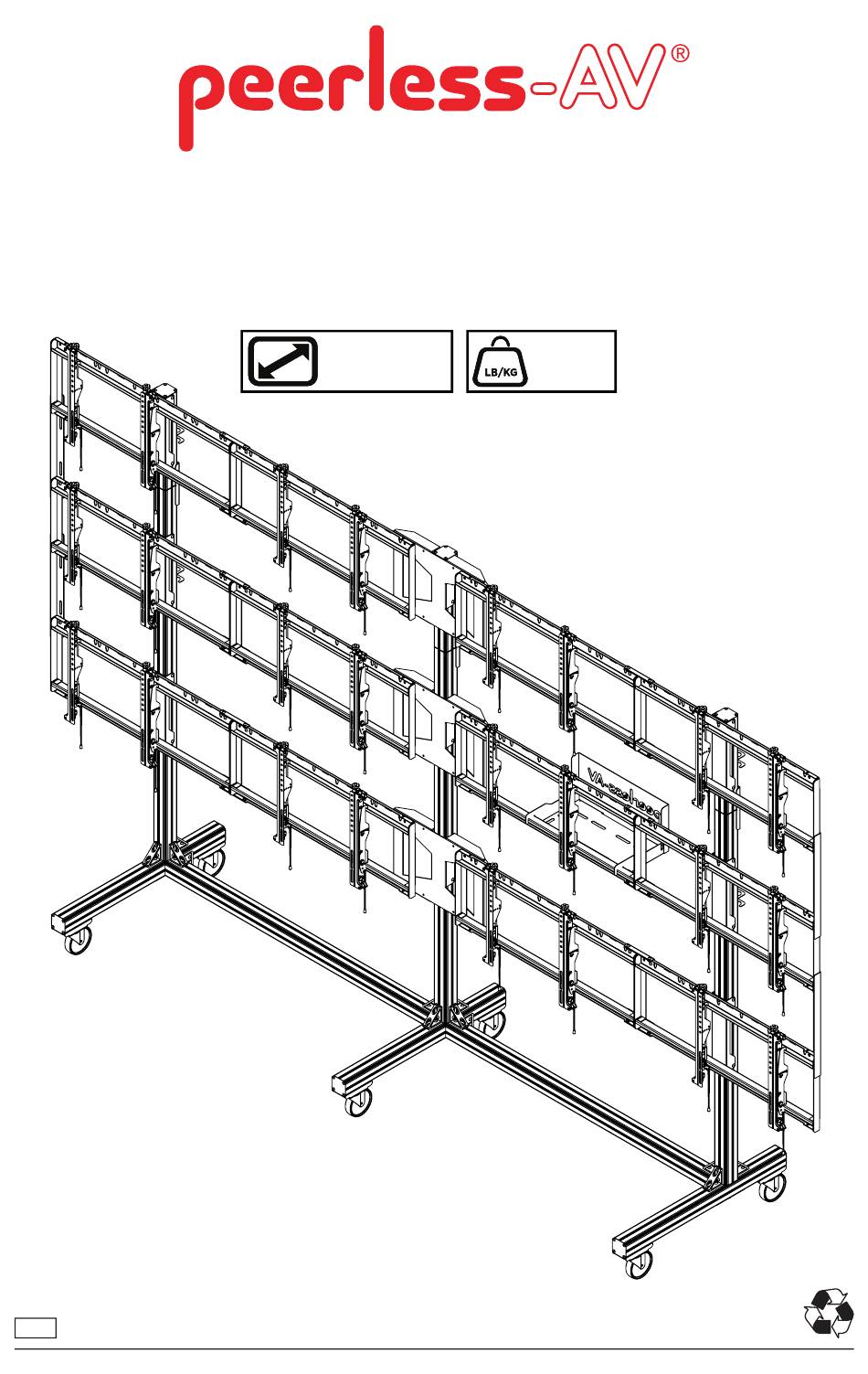

  • Page 1 All manuals and user guides at all-guides.com DS-C555-4X3 46" - 55" 1200 lb (117 - 140 cm) (545 kg) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 2 All manuals and user guides at all-guides.com WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
  • Page 3 All manuals and user guides at all-guides.com This page intentionally left blank. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 4 All manuals and user guides at all-guides.com Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # caster, 5" swivel 600-0026 caster support 145-T1799 cover 145-T1809 base leg 145-T1767 horizontal leg support 145-T1785 base support tube 145-T1812 base support 560-T1261...
  • Page 5 All manuals and user guides at all-guides.com N ( 6 ) P ( 1 ) O ( 1 ) dual cross computer shelf computer cover support S ( 3 ) bracket, 4x2 M ( 6 ) Q ( 3 ) configuration vertical support extension...
  • Page 6 All manuals and user guides at all-guides.com U (4) Do not fully tighten hardware V (2) U (2) SIDE VIEW 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 7 All manuals and user guides at all-guides.com V (4) V (4) U (4) V (4) U (4) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 8 All manuals and user guides at all-guides.com TIGHTEN Flush edges CONNECTING HARDWARE Casters must be flush to end of horizontal leg support. SIDE VIEW Y (2) Do not fully tighten hardware U (4) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 9 All manuals and user guides at all-guides.com TIGHTEN CONNECTING HARDWARE TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 10 All manuals and user guides at all-guides.com Do not fully tighten hardware U (4) Y (2) TOP VIEW TIGHTEN CONNECTING HARDWARE I (3) Q (3) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 11 All manuals and user guides at all-guides.com LOCK WHEELS TIGHTEN CONNECTING HARDWARE 1/8" 1/8" (3mm) (3mm) V (4) U (6) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 12 All manuals and user guides at all-guides.com Use metric formula below and diagram to the right to determine hole pattern required for center vertical support bracket. Repeat (x2). All dimensions are metric. BACK OF DISPLAY Use the outside mounting holes when… a x 4 >...
  • Page 13 All manuals and user guides at all-guides.com M (6) S (3) TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 14 All manuals and user guides at all-guides.com 11-1 TIGHTEN CONNECTING HARDWARE N (2) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 15 All manuals and user guides at all-guides.com 11-2 TIGHTEN CONNECTING N (2) HARDWARE 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 16 All manuals and user guides at all-guides.com 11-3 TIGHTEN CONNECTING HARDWARE N (2) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 17 All manuals and user guides at all-guides.com V (8) U (8) U (2) TIGHTEN CONNECTING HARDWARE V (2) J (4) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 18 All manuals and user guides at all-guides.com 13-1 Center adaptor brackets vertically on back of screen. 13-2 BB CC 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 19 All manuals and user guides at all-guides.com 14-1 "LOCKED" POSITION Must hang displays on bottom row first; Secure pin in "locked" position. 14-2 "LOCKED" POSITION Must hang displays on middle row second; Secure pin in "locked" position. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 20 All manuals and user guides at all-guides.com 14-3 "LOCKED" POSITION Must hang displays on top row last; Secure pin in "locked" position. 14-4 Optional: Insert M5 x 10mm type-F socket pin screws (X) to lock latches. "LOCKED" POSITION 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 21 All manuals and user guides at all-guides.com Display adjustment TILT FORWARD SIDE SIDE SIDE TILT BACKWARD TILT RIGHT TILT LEFT SIDE DOWN ROTATE LEFT ROTATE RIGHT 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 22 All manuals and user guides at all-guides.com TIGHTEN CONNECTING HARDWARE R (6) T (6) TOP VIEW Optional: Unlock wheels to move cart to desired location; Lock wheels before hanging screens. LOCK WHEELS 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 23 All manuals and user guides at all-guides.com X (24) C (6) 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 24 All manuals and user guides at all-guides.com 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 25 All manuals and user guides at all-guides.com 19-1 1/8" (3mm) X (2) 19-2 TIGHTEN CONNECTING HARDWARE 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 26 All manuals and user guides at all-guides.com Route cables through cord brackets. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 27 All manuals and user guides at all-guides.com 21-1 Display removal Pull down on bracket cords and hold. Swing screen away from cart and lift to remove. 21-2 "UNLOCKED" POSITION Remove displays from top row first. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 28 All manuals and user guides at all-guides.com 21-3 "UNLOCKED" POSITION Remove displays from middle row second. 21-4 "UNLOCKED" POSITION Remove displays from bottom row last. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 29 All manuals and user guides at all-guides.com This page intentionally left blank. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 30 All manuals and user guides at all-guides.com This page intentionally left blank. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 31 All manuals and user guides at all-guides.com This page intentionally left blank. 2015-06-24 #:009-9118-6 (2019-09-04)
  • Page 32 (from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
