Integra DTR-80.1 B MDD Service Manual
  1. Manuals
  2. Brands
  3. Integra Manuals
  4. Stereo Receiver
  5. DTR-80.1 B MDD
  6. Service manual
Integra DTR-80.1 B MDD Service Manual

Integra DTR-80.1 B MDD Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
SERVICE MANUAL
AV RECEIVER
DTR-80.1(B)
MODEL
Black model
B MDD
120V AC, 60Hz
B MMA
220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Ref. No. 4173
ON THE
DTR-80.1
Sep, 2009
RC-746M

Advertisement

loading

Related Manuals for Integra DTR-80.1 B MDD

Summary of Contents for Integra DTR-80.1 B MDD

  • Page 1 DTR-80.1 Ref. No. 4173 SERVICE MANUAL SERVICE MANUAL Sep, 2009 AV RECEIVER DTR-80.1(B) MODEL RC-746M Black model B MDD 120V AC, 60Hz B MMA 220-240V AC, 50/60Hz SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
  • Page 2 DTR-80.1 SERVICE PROCEDURE-1 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to the marking adjacent to the symbol. Ce symbole indique que le fusible utilise est e lent.
  • Page 3 DTR-80.1 SERVICE PROCEDURE-2 5. To check version of Microprocessor, DSP and Video FW(Firmware) 1. Press and hold down DISPLAY button, then press ON/STANDBY button when the unit is power on. The main microprocessor version will be displayed on Front Display for about 3 seconds. [e.g.] M a i n : 1 .2 2 /0 9 Z 1 1 A H...
  • Page 4 DTR-80.1 SERVICE PROCEDURE-3 6. Replacing Power Amplifier Parts When a power amplifier of certain channel is broken and goes into Protect mode, the following parts in the channel must be replaced at the sametime, because these parts get damage in most cases. <Note>...
  • Page 5 DTR-80.1 EXPLODED VIEWS-1 A557 U007 x 3 pcs. A553 A279 MDD type --- x 12 pcs. U0046 MMA type --- x 11 pcs. A215 A251 A551 L=10mm A287 A183 x 24 pcs. A289 F2005 P4104 F2001 A291 F2004 U0040 A193 U0031 A293 A561...
  • Page 6 DTR-80.1 A247 EXPLODED VIEWS-2 A297 A031 A115 A009 x 2 pcs. x 4 pcs. x 2 pcs. x 10 pcs. A049 L=15mm Q6062 A296 A105 Q6066 x 2 pcs. A033 A295 Q6064 x 2 pcs. Q6068 A103 U0014 A111 x 2 pcs. A113 x 8 pcs.
  • Page 7 DTR-80.1 EXPLODED VIEWS-3 A215 L=110mm A693 P8641 P7501 U0057 A655 P3101 x 2 pcs. A691 A691 A653 x 2pcs. U0054 U0050 U0101 A647 A653 A645 x 2 pcs. A659 U0056 A651 x 3 pcs. x 19 pcs. U0053 A215 L=30mm A672 A638 x 2 pcs.
  • Page 8 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 BLOCK DIAGRAMS-1 / PART-1 AUDIO SECTION PHONES AUDIO MUTING XM-RADIO For only DD,DC TUNER DHC-** only PACK 9CH POWER AMPLIFIER NJU7312A XM/DT IC except SA*** 3-3-2 x2 CS3318 for US MAIN L SPEAKER TERMINALS EXCEPT DHC-80.1/PR-SC5507 DAC FL SIRIUS MIX L AMUTE...
  • Page 9 VCR/DVR VOUT5 6dB/4dB VOUT MONITOR COMPOSITE VOUT1 VIDEO OUTPUT 6dB4dB VCR/DVR VOUT2 ADC_V DVD/BD VOUT3 ZONE 2 VIN1 Video Signal Flow INTEGRA ONLY VIN2 VCR/DVR VIN3 Analog Analog VIN4 VOUT6 VIN5 6dB/4dB Analog Analog CBL/SAT VIN6 VIN7 (S-video) (S-video) VOUT4...
  • Page 10 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1/PR-SC5507 BLOCK DIAGRAMS-4 / PART-4 USB FS RJ-45 Reserved USB HS HOST DSP/ETHER/USB/NET SECTION Reserved HiSideSw SDR SDRAM(x16bit) EtherMAC HiSideSw from HDMI block EMIFB x32DataBus NAND Controles NANDFlash EMFB_A[1:2] EMIFA EMFA_D[0:7] Reserved 256Mbit Level Convert DSDSLRSEL UART2 RS-232C for Linux SerialConsole UART2 24.576MHz...
  • Page 11 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 BLOCK DIAGRAMS-5 / PART-5 DIGITAL AUDIO CLOCK SECTION 12.288MHz 11.2896MHz AXR0[10]/AXR1[3] DSP3(***) AXR0[11]/AXR1[2] PCMF2 PCMF3 PCM_SL/SBL4 // PCMF4 AXR0[10]/AXR1[3] AXR0[0] AXR0[11]/AXR1[2] AXR0[0] AXR0[11]/AXR1[2] AXR0[0] PCMSUR2 PCMSUR3 PCM_FL/LHLW4 AXR0[11]/AXR1[2] AXR0[1] AXR0[12]/AXR1[1] AXR0[1] AXR0[12]/AXR1[1] AXR0[1] PCMCSW2 PCMCSW3 PCM_C4 AXR0[12]/AXR1[1] AXR0[2] AXR0[13]/AXR1[0]...
  • Page 12 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-1 / PART-6 AMP1 (VOLTAGE AMP) SECTION BACLA-0226 IDLING CURRENT ADJUSTMENT U008 AMPLIFIER PC BOARD 1. Wait for 4 - 6 minutes after power on. (Heat running) 2. Re-adjust the trimming resistors according to the following values. Adjustment point Measured value Re-adjustment value...
  • Page 13 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-2 / PART-7 AMP2 (FINAL STAGE) SECTION BAAMP-0191 BAAMP-0192 U0020 AMPLIFIER PC BOARD U0021 AMPLIFIER PC BOARD TO BAAMP-0192 PART-7 : I2 P6350A TO BAAMP-0192 PART-7 : J2 P6340A +60V +60V +B1R +B1L L6001 L6000 R6081 R6080 IPRO...
  • Page 14 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1 SCHEMATIC DIAGRAMS-3 / PART-8 AMP3 (POWER SUPPLY, PROTECT ,ETC.) SECTION BAAF-0180 U0010 POWER SUPPLY PC BOARD inputC GND_inputC GND_NFC 2SC1740S-S Q6002 P5022B P5032B U0014 THERMAL SENS PC BOARD inputSR GND_inputSR BCETC-0184 GND_NFSR Q6380 LM61CIZ 2SC1740S-S Q6004 P5024B P5034B inputRH GND_inputRH GND_NFRH...
  • Page 15 NE5532 -13V -6.8V 47/50 Q4009A R4225 Q4223 Q4222 RN2402 RN1402 C4226 C4225 47/50 Q4009B 104J 104J C4637 47/50 NE5532 integra ONLY C4617 R4607 Q4043 R4603 C4613 NE5532 IN/OUT1 TAPE_OUT_L +13V 47/50 C4633 OUT/IN1 CONT1 Q4010A TAPE_OUT_R C4951 NE5532AP 47/50 OUT/IN2...
  • Page 16 2.2K 2.2K C4402 C4403 220K 1SS352 100/25 100/25 D4436 R4841 HP AMP R4842 220K 47/50 R4810 R4830 102J C4800 C4244 integra ONLY +13V Q4800 (+20+2dB) C4445 104J RN1441 D4445 1SS352 Q4441A C4441 NE5532AP C4461 NJM4556A 47/50 R4811 R4831 47/50 100K...
  • Page 17 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-6 / PART-11 ANALOG AUDIO SECTION 3 BAACC-0212-1 U0044 BUFFER AMPLIFIER PC BOARD R4522 22(1/2W) C4500 NE5532 47/50 47/50 Q4500A C4502 47/50 Q4500B C4503 47/50 NE5532 C4501 R4523 22(1/2W) C4504 NE5532 47/50 47/50 Q4501A C4506 47/50 Q4501B C4507...
  • Page 18 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-7 / PART-12 ANALOG VIDEO SECTION TO HDMI TO D Terminal PWB TO MICON PWB TO ASP PWB TO TRM PWB TO RF PWB TO Primary PS PWB TO BAVD-0205 TO BAHDM-0132 / 0157 TO BAHDM-0132 / 0157 TO BATRM-0214 TO BAPS-0217 PART-13 : A2...
  • Page 19 TX-NR1007/3007/5007/1007/5007,DTR-70.1/80.1/PR-SC5507,DHC-80.1 SCHEMATIC DIAGRAMS-9 / PART-14 SIRIUS, ANALOG TUNER SECTION BADG-0208(3/9) BARF-0204 U0045 SIRIUS, ANALOG TUNER PC BOARD 3PLLVSWSCL 3PLLVSWSCL 3PLLVSELSDA 3PLLVSELSDA FRONT SIDE STEREO STEREO +9VTU MAX=110mA +9VTU -15V- PREF TU_L_OUT 10/50(UTSP) PLYPSVSW TUNER_GND 10/50(UTSP) PRESW TU_L TU_R_OUT PRESR TUNER_GND PREC DET_OUT PRESB...
  • Page 20 DTR-80.1/PR-SC5507 SCHEMATIC DIAGRAMS-10 / PART-15 DSUB 15 SECTION BADG-0208(9/9) BAETC-0247 U0047 DSUB15 PC BOARD VGASDA A_HS DSUB15VGA P8000 A_VS VGASCL A_BLUE A_GREEN A_RED...
  • Page 21 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-11 / PART-16 DG AUDIO IN SECTION BADG-0208(8/9) TO BAHDM-0132/0157 PART-29 : A1 JL3889A NSCT-5P896 BAETC-0246 2.5mm pich U0046 DG AUDIO IN PC BOARD SEL_SPDIF GNDDAC +5VDG L3884 P3886 R3914 C3886 COAX1 LBC2518T2R2M LBC2518T470M 232RXD 104K C3888 100/16...
  • Page 22 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1 , PR-SC5507 SCHEMATIC DIAGRAMS-12 / PART-17 CODEC, DAC AND VLSC SECTION BADG-0208-1 U0040 CODEC, DAC AND VLSC PC BOARD VLSC on VLSC off VLSC on VLSC off R1220-29,R1450-51 C1230-39 331J 221J +OP6 +OP3 R1240-49,R1430-31 C1440-41 R1390 R1393 R1280-89,R1500-01 C1240-49 331J...
  • Page 23 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-13 / PART-18 MAIN MICROPROCESSOR SECTION TO BAETC-0246 TO_BAHDM-0132/0157 TO DEBUGER TO FLASH WRITER PART-16 : H2 PART-29 : E1 BADG-0208(2/9) NSCT-9P2472 IMSA-9618S-09A P3885A P7002 P7003B IMSA-9142S-18A P3608B NPLG-11P0966 BACPU-0209 U0041 MAIN CPU PC BOARD 2.2K R7001 105Z...
  • Page 24 DTR-70.1/80.1, DHC-80.1 SCHEMATIC DIAGRAMS-16 / PART-21 DISPLAY SECTION BADIS-0121(1/2) BADIS-0121 U0050 DISPLAY PC BOARD FLAC1 NSCT-5P876 JL9303A TO BCPS-0126 PART-22 : E4 FLAC2 J9303 Q7500 70.1/80.1 5J450606B15 (JL5 450 B) 50.1 5J300606B15 (JL5 300 B) HNA-16SL04T Q7500A +3.3VMPU FL HOLDER 2009991168UL P7501:NSAS-80P1805 GNDVD...
  • Page 25 DTR-70.1/80.1, DHC-80.1 SCHEMATIC DIAGRAMS-17 / PART-22 DG POWER SUPPLY SECTION BADIS-0121(2/2) BAPS-0126 U0055 DG POWER SUPPLY PC BOARD GNDDAC GNDDAC +5.9V +5.9V GNDDG GNDDG F9301 D9303 D10XB60H +9VDG 3.15A 125V R9350 D9350 DSP_AC1 1SS352 0.22(1/2W) R9351 DSP_AC2 -VP_AC1 5.6K R9352 -VP_AC2 FLAC1 Q9350...
  • Page 26 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1 SCHEMATIC DIAGRAMS-18 / PART-23 POWER SUPPLY AND SPEAKER TERMINAL SECTION BATRM-0214(1/2) U0065 BAETC-0219 NPLG-3P117 P9422B ANALOG AUDIO POWER SUPPLY PC BOARD (EH) BATRM-0214 U0060 Q9427 2SB1565-E R9429 POWER SUPPLY AND SPEAKER TERMINAL PC BOARD BLUE Q9429 BLUE R9430 (or 2SA1488-Y) 2SB1565-E BLUE...
  • Page 27 Dtype ELECTROLYTIC CAPACITORS( )ARE IN F/WV NSCT-7P878 ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. J9110 MPOWER P9008A Except DC, Integra Except DC, Integra Except DC, Integra EX) 030 33pF 330pF 0.033 APOWER1 P9200,9300 CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
  • Page 28 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-21 / PART-26 NET / USB / ZONE2 SECTION BAHDM-0132/0157 (1/8) SPI0 & control signals U007 to 2nd DSP HDMI PC BOARD from HDMI Block from DIR Block VDD_MPU3.3V C3202 105Z VDD_CSW3.3 TC74VHC157FT Q3202 DIG/NETUSB R3233 +3.3V SELECT...
  • Page 29 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-22 / PART-27 NET / USB / POWER SECTION BAHDM-0132/0157 (2/8) for Debugging Boot Opt. NAND UART1 SPI0 R3115 or R3116 BOOT2 BOOT7 +5VHD U007 BOOT1 R3111 or R3112 BOOT5 TPD2E001DRLR BOOT0 HDMI PC BOARD R3109 or R3110 BOOT6 BOOT3...
  • Page 30 TX-NR1007/3007/5007/1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-23 / PART-28 DSP MEMORY SECTION BAHDM-0132/0157 (3/8) U007 HDMI PC BOARD GND_ARM VDD_MPU3.3V GND_ARM PA_12 MB_A12 +3.3V C3001 105Z R3009 L3001 PBA_0 MB_BA0 BLM18PG121SN1D PA_0 MB_A0 GND_ARM PA_1 MB_A1 C3002 105Z VDD_NAND3.3V C3003 106K/6.3 33x4 R3010 MB_A0...
  • Page 31 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-24 / PART-29 DSP CONNECTOR SECTION BAHDM-0132/0157 (4/8) U007 HDMI PC BOARD TO_BAETC-0246 TO_BADG-0208 TO_BADG-0208 TO_BADG-0208 TO_BACPU-0209 PART-16 : E2 PART-17 : A6 PART-17 : A7 PART-17 : A8 PART-18 : D1 NSCT-5P97 IMSA-9142B-18A IMSA-9142B-8A IMSA-9142B-16A JL3889B IMSA-9142B-18A P3608A...
  • Page 32 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-25 / PART-30 2ND DSP SECTION BAHDM-0132/0157 (5/8) U007 HDMI PC BOARD SPI0 & control signals GND_ARM High from1stDSP R3411 2.2K R3410 EM2_A14 EM2_A15 to 2nd DSP R3416 EM2_A13 +3.3V BYTE EM2_A12 EM2_A11 EM2_D15 Q15/A-1 +1.2V EM2_A10 EM2_D7...
  • Page 33 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-26 / PART-31 3RD DSP SECTION BAHDM-0132/0157 (6/8) U007 HDMI PC BOARD SPI0 & control signals GND_ARM High from 2nd DSP R3511 2.2K R3510 EM3_A14 EM3_A15 R3516 from 3rd DSP EM3_A13 +3.3V BYTE EM3_A12 EM3_A11 EM3_D15 Q15/A-1 +1.2V...
  • Page 34 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-27 / PART-32 HDMI IN/OUT SECTION BAHDM-0132/0157 (7/8) U007 HDMI PC BOARD TX_SCL TX_SDA TX_INT TX_RST TX2_INT GNDHD 3.3V TX2_RST +3.3VHD1 INPSEL Q205 HPLG_DET TC74VHC157FT SN74CB3Q3305PWR HPLG2_DET L251 INPSEL R268 +3.3VHD1 C8632 SELECT RX_CLK PCMLRCK_DR0_A BLM18PG181SN1 R269 0ohm...
  • Page 35 TX-NR1007/3007/5007/NA1007/5007, DTR-80.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-28 / PART-33 HDMI IN / ENCORDER / POWER SUPPLY SECTION BAHDM-0132/0157 (8/8) U007 HDMI PC BOARD +3.3VHD1 VPOWER +5VHD VSW_SDET TX_SCL VSW_VDET Q8802 TRINO or ADV7800 PART +3.3VEN TX_SDA Q8804 VSW_CDET BH18FB1WG NC_TA48033BF 122mA ANALOG INPUT TX_INT VSW_SDA...
  • Page 36 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-31 / PART-36 REON (VX-50) SECTION BAHDM-0157 U007 HDMI PC BOARD REON VIDEO SIGNAL I/O REON FLASH MEMORY I/O REON POWER SUPPLY NO CONNECTION TO PART25 SYNC SIGAL OUTPUT TO PART22 PCI_AD[31:0] TO PART25 SYNC SIGNAL INPUT VSS1 VSS64 VICLK1...
  • Page 37 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-32 / PART-37 REON (VX-50) MEMORY SECTION BAHDM-0157 U007 HDMI PC BOARD MAD[13:0] DQS0 MCLK MDQS0 MCLK DQS1 /CLK /MCLK 47x4 MDQS1 MCLK DQS2 CLKE R8123 MCLKE RN8063 MDQS2 MCLKE DQS3 MAD3 MDQS3 RN8037 33X4 MDQ0 DQS4 /RAS...
  • Page 38 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-33 / PART-38 VIDEO DECODER / SW SECTION BAHDM-0157 U007 HDMI PC BOARD C8102 C8104 L8006 105K 823K LBC2518T2R2M X8001 P8003C cn11 L8005 NC_NSCT-9P2472 28.6363MHz LBC2518T2R2M R8102 ADINCV 103K C8050 A_HS ANALOG VIDEO 104Z C8049 ADINSY VGASDA AGND...
  • Page 39 TX-NR3007/5007/NA5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAMS-36 / PART-41 FRONT HDMI / USB SECTION BAHDM-0291 U0101 FRONT HDMI / USB PC BOARD R8870 HP DET R8869 102K DSDA_FTI C8876 DDC DATA DSCL_FTI DDC CLK C8875 105Z CERemote XCN_FTI C8880 CK Shield XCP_FTI 106K/6.3 L8861...
  • Page 40 TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1, PR-SC5507 SCHEMATIC DIAGRAM-37 (PART-42) WAVEFORM SECTION Video Waveform Part Digital Audio Waveform Part Video source color and pattern Composite waveform S-Video Y waveform S-Video C waveform WF21 SD-7:B7 WF22 SD-7:B7 WF23 SD-7:B7 NOTE: LR CLOCK (SAI_LRCK, CX_LRCK) WF01 is short for Waveform01 .
  • Page 41 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-01 / U001 U0010 POWER SUPPLY PC BOARD (BAAF-0180) Component side view from soldering side P5001A P5034B P5000A P5037B P5033B P5038B P5035B P5030B P5036B P6140D P5032B P6140F P6240D P5031B P6140E P6140B P6240B P6240A P6140A P6240G P6140G P5002A P6240F P6240C...
  • Page 42 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-02 / U001 U0010 POWER SUPPLY PC BOARD (BAAF-0180) Soldering side view from component side P5001A P5033B P5037B P5000A P5034B P5035B P5038B P5030B P6240D P6140D P5036B P6140E P5031B P6140F P5032B P6140B P6140A P6240B P6240A P6140G P6240G P5002A P6140C P6240C...
  • Page 43 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-03 / U002 U0020 U0021 AMPLIFIER PC BOARD (C,SR,RH,SBR,R) (BAAMP-0191) AMPLIFIER PC BOARD (L,SBL,LH,SL) (BAAMP-0192) Component side view from soldering side Component side view from soldering side P6072 J6052 P6073 P6071 P6078 P6074 P6076 P6075 P6077 P6070 BCAMP-0191 J6045...
  • Page 44 C4080 C4090 P4022 P4012 C4131 P4013 P4005 P4004 P4018 C4110 P4010 P4007 P4006 P4001 C4042 integra only Z3SW/Z3L/Z3R Z2SW/Z2L/Z2R LH/RH OUT SWR/SBL/SBR OUT SWL/SL/SR OUT C/L/R OUT SBL/SBR OUT SW/SL/SR C/L/R VCR IN VCR OUT CBL/SAT GAME/TV TAPE IN TAPE OUT...
  • Page 45 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-05 / U003 U0030 ANALOG AUDIO PC BOARD (BAASP-0202) Soldering side view from component side R4563 R4383 C4381 GND_TU TUNE_L R4404 R4406 GND_TU MIX-L TUNE_R GND_TU R4408 SIRIUS_R D4403 1.SIRIUS_L MIX-R LPF-OUT R4387 R4386 R4407 Z2SW Z3SW...
  • Page 46 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-06 / U003 U0031 ANALOG VIDEO PC BOARD (BAVD-0203) Component side view from soldering side JL2601B TO HDMI BCVD-0203 TO HDMI TRGB POFF2_HDM TO TRM 25140203 GNDVD TRGC +12VDG P2901 C2006 L2000 MM_SDA POFF MM_SCL +SUB E2000...
  • Page 47 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-07 / U003 U0030 ANALOG VIDEO PC BOARD (BAVD-0203) Soldering side view from component side TRGB POFF2_HDM GNDVD +12VTRG +12VDG TRGC POFF GNDTU MM_SDA +SUB MM_SCL GNDVD MM_RST VIN_AUX2 UART_RX +9VTU +3.3VST UART_TX IRIN œ...
  • Page 48 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-08 / U004 U0040 CODEC, DAC PC BOARD (BADG-0208) Component side view from soldering side Soldering side view from component side GND TCKTDOTDI TMS L3710 R3771 BCDG-0208 R3725 L3712 R3724 R3891 R3774 R3723 P1010 R3770 R3721 25140208D...
  • Page 49 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-09 / U004 U0041 U0042 MAIN CPU PC BOARD (BACPU-0209) ZONE-2 & ZONE-3 PC BOARD (BAAR-0210) Component side view from soldering side Soldering side view from component side Component side view from soldering side INT3 INT2 INT1...
  • Page 50 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-09 / U004 U0045 SIRIUS PC BOARD (BARF-0204) U0043 PHONO AMP. PC BOARD (BAAF-0211) Component side view from soldering side Soldering side view from component side Component side view from soldering side PHONO EQ R4008 Q4004 R4007...
  • Page 51 DTR-70.1/80.1, DHC-80.1 PRINTED CIRCUIT BOARD VIEWS-11 / U005 U0050 DISPLAY PC BOARD (BADIS-0121) Component side view from soldering side BCDIS-0121 25140121C œ J7675 œ œ œ Q7500 œ S7641 J7681 J7629 J7630 D7570 J7680 J7678 J7679 U7560 J7674 J7677 S7642 LEFT J7663 J7623...
  • Page 52 DTR-70.1/80.1, DHC-80.1 PRINTED CIRCUIT BOARD VIEWS-12 / U005 U0050 DISPLAY PC BOARD (BADIS-0121) Solderng side view from component side Q7540 œ œ R7511 œ œ R7512 Q7504 œ œ œ œ œ œ œ œ Q7503 C7515 C7512 œ œ œ...
  • Page 53 DTR-70.1/80.1, DHC-80.1 PRINTED CIRCUIT BOARD VIEWS-13 / U005 U0051 Z2/Z3 SWITCH PC BOARD (BASW-0122) U0055 DG POWER SUPPLY PC BOARD (BAPS-0126) Component side view from soldering side Solderng side view from component side Component side view from soldering side D7595 BCSW-0122 R7599 BCPS-0126...
  • Page 54 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-14 / U006 U0060 POWER SUPPLY & SPEAKER TERMINAL PC BOARD (BATRM-0214) Component side view from soldering side F9401A F9402A J6887 Q9423 GNDTU P9422B SPRLC 25140214C SPRLF SPRLSPB BCTRM-0214 SPRLSR R9427 J6890 SPRLSB R9428 R6822 C6872 J6886 SPRLFW P9422C...
  • Page 55 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-15 / U006 U0060 POWER SUPPLY & SPEAKER TERMINAL PC BOARD (BATRM-0214) Soldering side view from component side J6887 F9402A F9401A Q9423 GNDTU P9422B SPRLC SPRLF 25140214C SPRLSPB SPRLSR BCTRM-0214 R9427 J6890 SPRLSB C6872 R6822 R9428 SPRLFW J6886 P9422C...
  • Page 56 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-16 / U006 U0061 SPEAKER TERMINAL (SR/RH) PC BOARD (BATRM-0215) Component side view from soldering side Soldering side view from component side P6808 P6808 JL6901A JL6901A D6848 D6848 C6838 C6838 J6915 J6915 C6901 C6901 C6900 C6900 J6924 J6924 C6903...
  • Page 57 TX-NR3007/5007/NA5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-17 / U007, U010 U007 HDMI PC BOARD (BAHDM-0157) Component side view from soldering side RN8062 RN8072 DAC OUT AD IN C8840 C8839 C8838 R3603 RN8067 RN8063 P8008 C8057 C8111 C8103 R3116 RN8015 RN8019 R3510 RN8066 C8215...
  • Page 58 TX-NR3007/5007/NA5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507 PRINTED CIRCUIT BOARD VIEWS-18 / U007, U010 U007 HDMI PC BOARD (BAHDM-0157) Soldering side view from component side C8084 C8083 C3507 C3509 R8099 R8097 C8086 R8095 C3523 C3506 C3556 C8085 R8126 C8081 C3508 R8264 C8082 RN8068 R8100 R8098 R8096 C3462...
  • Page 59 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-19 / U008 U0080~U0088 AMPLIFIER PC BOARD (BACLA-0226~0234) Component side view from soldering side BIAS BIAS BIAS BIAS R6040 R6047 R6043 R6045 R6283 R6287 R6280 R6113 R6285 R6110 R6117 R6115 Q6043 Q6040 C6007 C6003 Q6045 C6005 C6000 R5243 R5245...
  • Page 60 TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1 PRINTED CIRCUIT BOARD VIEWS-20 / U008 U0080~U0088 AMPLIFIER PC BOARD (BACLA-0226~0234) Soldering side view from component side BIAS BIAS BIAS BIAS R6040 R6045 R6043 R6047 R6283 R6280 R6285 R6287 R6110 R6115 R6113 R6117 Q6040 C6003 Q6043 C6000 C6005 Q6045 C6007 R5240 R5245...
  • Page 61 DTR-80.1 PACKING PROCEDURE A771 A832 A841 A831 A891 A842 A833 A852 A892 A851 A834 A893 A853 A707 A861 A894 A717 Upper side marking A715 Rear side (F & R) marking A707 A705 A706 A701 (Outer) (Inner) (Outer) A890 Front side A707 Front side P901...
  • Page 62 1/207 PAGE DTR-80.1 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED.
  • Page 63 2/207 PAGE Q6064 TTA0002(Q)TO3PL 2204140 EXPLODED Q6065 TTA0002(Q)TO3PL 2204140 EXPLODED Q6066 TTA0002(Q)TO3PL 2204140 EXPLODED Q6067 TTA0002(Q)TO3PL 2204140 EXPLODED Q6068 TTA0002(Q)TO3PL 2204140 EXPLODED Q9427 2SB1565-E 2202715 EXPLODED Q9427or 2SA1488-Y ( 1) 2203394 EXPLODED Q9428 2SD2394-E 2202705 EXPLODED Q9428or 2SC3851-Y ( 1) 2203384 EXPLODED Q9429...
  • Page 64 3/207 PAGE F9100or FUSE 6.3A-SE-TL250V ( 1) 252279GR !, <MMA> EXPLODED F9301 FUSE 3.15A-UL/T-233 252323GR EXPLODED F9301or FUSE 3.15A-T/UL-ST2 ( 1) 252256GR EXPLODED F9401 FUSE 3.15A-UL/T-233 252323GR EXPLODED F9401or FUSE 3.15A-T/UL-ST2 ( 1) 252256GR EXPLODED F9402 FUSE 3.15A-UL/T-233 252323GR EXPLODED F9402or FUSE 3.15A-T/UL-ST2...
  • Page 65 4/207 PAGE A029 RETAINER (HS-R)B 27142163 EXPLODED A031 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A033 HOLDER 27190432 (CLUMP) UA-0 EXPLODED A037 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A039 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A041 HEAT SINK(S) 27160608 EXPLODED A043 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A045 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED...
  • Page 66 5/207 PAGE A119 SCREW 4TTC+8C(3BC) 830440089GR EXPLODED A121 SPACER 27270489 EXPLODED A125 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A126 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED t10 x 10 x 100 A127 CUSHION 28141746 EXPLODED A131 HEAT SINK (SP) 27160643 EXPLODED t0.5 x w30 x d10 A133 SPACER 27270495...
  • Page 67 6/207 PAGE A193 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A195 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A197 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A199 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A200 SCREW 4TTC+8C(3BC) 830440089GR EXPLODED A201 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A203 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A205 SCREW 3TTB+8B(3CM)SR 801637 EXPLODED A215...
  • Page 68 7/207 PAGE A555 SCREW 4TTB+8C(3BC) 838440089GR EXPLODED A557 SCREW 3TTB+8B(3BC) 838430088GR EXPLODED A561 LABEL HOOKUP-INTEGRA 29363195 <MDD> EXPLODED A601 F PANEL R80.1(B) 27213232 N <MDD> EXPLODED A601 F PANEL R80.1(B) 27213233 N <MMA> EXPLODED A603 BADGE 28135278 EXPLODED A605 FACET...
  • Page 69 8/207 PAGE t5 x 30 x 5 A693 CUSHION 28141562 EXPLODED A694 CUSHION (FNP) t25 x 15 x 10 28141828 EXPLODED [TUNER UNIT] EXPLODED U001 U0010 + U0011 + U0012 + U0013 + U0014 BAAF-0180-1C * 1B234580-1C EXPLODED U0010 POWER SUPPLY PC board ass'y BAAF-0180-1C 1B2345180-1C EXPLODED...
  • Page 70 9/207 PAGE U005 U0050 + U0051 + U0053 + U0054 + U0055 BADIS-0121-1C * 1B234521-1C EXPLODED + U0056 + U0057 EXPLODED U0050 DISPLAY PC board ass'y BADIS-0121-1C 1B2345121-1C EXPLODED U0051 Z2/Z3 SWITCH PC board ass'y BASW-0122-1C 1B2345122-1C EXPLODED U0052 HEADPHONE JACK PC board ass'y BAETC-0123-1C N NSP EXPLODED...
  • Page 71 10/207 PAGE U0086 BACLA-0232-1A 1B2345232-1A AMPLIFIER PC board ass'y (R/SR/CBR/RH/C) EXPLODED U0087 AMPLIFIER PC board ass'y (L/SL/SBL/LH) BACLA-0233-1A 1B2345233-1A EXPLODED U0088 BACLA-0234-1A 1B2345234-1A AMPLIFIER PC board ass'y (R/SR/CBR/RH/C) EXPLODED U0101 FRONT HDMI / USB PC board ass'y BAHDM-0291-1B 1B2345291-1B EXPLODED U011 TUNER UNIT FAEH06-E01EX...
  • Page 72 11/207 PAGE Q6003 2SC1740S-S 2213285T PCB-U001 Q6004 2SC1740S-S 2213285T PCB-U001 Q6005 2SC1740S-S 2213285T PCB-U001 Q6006 2SC1740S-S 2213285T PCB-U001 Q6007 2SC1740S-S 2213285T PCB-U001 Q6008 2SC1740S-S 2213285T PCB-U001 Q6226 2SB1240-R 2213794T PCB-U001 Q6380 LM61CIZ 22242212 PCB-U001 Q6380A RETAINER (PTH) 27141884-1 PCB-U001 Q6381 LM61CIZ 22242212 PCB-U001...
  • Page 73 12/207 PAGE C6601 MKT C B32529C0102J289 376491024T PCB-U001 C6601 or TF C ECQ-B50V-102J ( 1) 374721024T PCB-U001 C6602 PLA C ECQE250V-334J 3700083S PCB-U001 C6611 MKT C B32529C0102J289 376491024T PCB-U001 C6611 or TF C ECQ-B50V-102J ( 1) 374721024T PCB-U001 C6612 TF C ECQ-V100V-334J 374733344T PCB-U001...
  • Page 74 13/207 PAGE R6613 METAL O R RS1/2WBJ-22 443522204T PCB-U001 R6701 CARBON R R16J-22K 417342234T PCB-U001 R6702 CARBON R R16J-10K 417341034T PCB-U001 R6704 CARBON R R16J-33K 417343334T PCB-U001 R6706 CARBON R R16J-22K 417342234T PCB-U001 R6708 CARBON R R16J-33K 417343334T PCB-U001 R6709 CARBON R R16J-5.6K 417345624T...
  • Page 75 14/207 PAGE P5000A SOCKET AS NSAS-20P1811 2009991171UL PCB-U001 P5001A SOCKET AS NSAS-16P1810 2009991170UL PCB-U001 P5002A CRIMP AS CRIMP SR805_1 20799169UL PCB-U001 P5010B PLUG NPLG-3P0958 25056008 PCB-U001 P5011B PLUG NPLG-3P0958 25056008 PCB-U001 P5012B PLUG NPLG-3P0958 25056008 PCB-U001 P5013B PLUG NPLG-3P0958 25056008 PCB-U001 P5014B PLUG...
  • Page 76 15/207 PAGE P6500 PLUG NPLG-7P163 25055179 PCB-U001 P6550 PLUG NPLG-2P83 25055099 PCB-U001 P6560 PLUG NPLG-2P568 25055600 PCB-U001 P6601 SOCKET AS NSAS7P-1815 2009991174UL PCB-U001 P6601A PLUG NPLG-7P163 25055179 PCB-U001 P6602 RETAINER (TRM-12) 27142148 PCB-U001 P6602B RETAINER MET37-0002 27142009T PCB-U001 P6603 RETAINER (TRM-12) 27142148 PCB-U001...
  • Page 77 16/207 PAGE Q6070 2SC2631-R 2214984T PCB-U002 Q6070 or 2SC2631-S ( 1) 2214985T PCB-U002 Q6071 2SC2631-R 2214984T PCB-U002 Q6071 or 2SC2631-S ( 1) 2214985T PCB-U002 Q6072 2SC2631-R 2214984T PCB-U002 Q6072 or 2SC2631-S ( 1) 2214985T PCB-U002 Q6073 2SC2631-R 2214984T PCB-U002 Q6073 or 2SC2631-S ( 1) 2214985T...
  • Page 78 17/207 PAGE L6015 FR CORE 5597-45502 PCB-U002 L6016 FR CORE 5597-45502 PCB-U002 L6017 FR CORE 5597-45502 PCB-U002 L6018 FR CORE 5597-45502 PCB-U002 [CAPACITOR] PCB-U002 C6040 TF C ECQ-V50V-223J 374722234T PCB-U002 C6041 TF C ECQ-V50V-223J 374722234T PCB-U002 C6042 TF C ECQ-V50V-223J 374722234T PCB-U002 C6043...
  • Page 79 18/207 PAGE R6170 CARBON R R16J-33K 417343334T PCB-U002 R6171 CARBON R R16J-33K 417343334T PCB-U002 R6172 CARBON R R16J-33K 417343334T PCB-U002 R6173 CARBON R R16J-33K 417343334T PCB-U002 R6174 CARBON R R16J-33K 417343334T PCB-U002 R6175 CARBON R R16J-33K 417343334T PCB-U002 R6176 CARBON R R16J-33K 417343334T PCB-U002...
  • Page 80 19/207 PAGE R6216 CARBON R R16J-47K 417344734T PCB-U002 R6217 CARBON R R16J-47K 417344734T PCB-U002 R6218 CARBON R R16J-47K 417344734T PCB-U002 R6230 CARBON R R16J-47K 417344734T PCB-U002 R6231 CARBON R R16J-47K 417344734T PCB-U002 R6232 CARBON R R16J-47K 417344734T PCB-U002 R6233 CARBON R R16J-47K 417344734T PCB-U002...
  • Page 81 20/207 PAGE JL6042B WIRE TRAP NPLG-3P586 25055624 PCB-U002 P001 BCAMP-0191 25140191B PCB-U002 P002 BCAMP-0192 { 1} 25140192 PCB-U002 P6030A PLUG IMSA-9115B-05 25056335 PCB-U002 P6031A PLUG IMSA-9115B-05 25056335 PCB-U002 P6032A PLUG IMSA-9115B-05 25056335 PCB-U002 P6033A PLUG IMSA-9115B-05 25056335 PCB-U002 P6034A PLUG IMSA-9115B-05 25056335 PCB-U002...
  • Page 82 21/207 PAGE P6073 PLUG NPLG-2P645 25055689 PCB-U002 P6074 PLUG NPLG-2P645 25055689 PCB-U002 P6075 PLUG NPLG-2P645 25055689 PCB-U002 P6076 PLUG NPLG-2P645 25055689 PCB-U002 P6077 PLUG NPLG-2P645 25055689 PCB-U002 P6078 PLUG NPLG-2P645 25055689 PCB-U002 P6240 SOCKET AS NSAS-4P1789 2009991155AUL PCB-U002 P6250 SOCKET AS NSAS-5P1791 2009991157AUL PCB-U002...
  • Page 83 22/207 PAGE D2006 DIODE RL1N4003 22380260T PCB-U003 D2007 DIODE RL1N4003 22380260T PCB-U003 D2008 DIODE RL1N4003 22380260T PCB-U003 D2009 ZENER D UDZS3.9B 224550390R2 PCB-U003 D2010 C-DIODE 1SS352 223234R2 PCB-U003 D2010 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D2010 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003...
  • Page 84 23/207 PAGE D2706 C-DIODE 1SS352 223234R2 PCB-U003 D2706 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D2706 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D2706 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D2707 C-DIODE 1SS352 223234R2 PCB-U003 D2707 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003...
  • Page 85 24/207 PAGE D4405 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4431 C-DIODE 1SS352 223234R2 PCB-U003 D4431 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D4431 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D4431 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4432 C-DIODE 1SS352 223234R2...
  • Page 86 25/207 PAGE D4443 C-DIODE 1SS352 223234R2 PCB-U003 D4443 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003 D4443 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U003 D4443 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U003 D4444 C-DIODE 1SS352 223234R2 PCB-U003 D4444 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U003...
  • Page 87 26/207 PAGE Q2701 or RN1402 ( 1) 2214470R2 PCB-U003 Q2702 2SA1162-GR 2214375R2 PCB-U003 Q2703 KRC102S 2216190R2 PCB-U003 Q2703 or RN1402 ( 1) 2214470R2 PCB-U003 Q2704 2SA1162-GR 2214375R2 PCB-U003 Q2705 KRC102S 2216190R2 PCB-U003 Q2705 or RN1402 ( 1) 2214470R2 PCB-U003 Q2706 KRA102S 2216220R2 PCB-U003...
  • Page 88 27/207 PAGE Q4221 NE5532APSR 22242283R2 PCB-U003 Q4222 RN1402 2214470R2 PCB-U003 Q4223 RN2402 2214530R2 PCB-U003 Q4224 RN1402 2214470R2 PCB-U003 Q4225 RN2402 2214530R2 PCB-U003 Q4226 NJW1112 22242597R2 PCB-U003 Q4227 NJW1112 22242597R2 PCB-U003 Q4301 NE5532APSR 22242283R2 PCB-U003 Q4341 NE5532APSR 22242283R2 PCB-U003 Q4342 NE5532APSR 22242283R2 PCB-U003 Q4371...
  • Page 89 28/207 PAGE Q4641 RN1441 2215410R2 PCB-U003 Q4642 RN1441 2215410R2 PCB-U003 Q4643 RN1441 2215410R2 PCB-U003 Q4644 RN1441 2215410R2 PCB-U003 Q4645 RN1441 2215410R2 PCB-U003 Q4646 RN1441 2215410R2 PCB-U003 Q4647 RN1441 2215410R2 PCB-U003 Q4648 RN1441 2215410R2 PCB-U003 Q4741 RN1441 2215410R2 PCB-U003 Q4742 RN1441 2215410R2 PCB-U003 Q4800...
  • Page 90 29/207 PAGE L2514 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2515 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2516 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2517 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2518 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2519 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2520 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2521 EMIFIL BK1608LM182-T 230958R1 PCB-U003 L2522...
  • Page 91 30/207 PAGE C2103 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2105 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2106 C-CERA C CK725B1H-102K1 332101025R1 PCB-U003 C2108 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2110 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2112 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2114 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003...
  • Page 92 31/207 PAGE C2178 VR C CE04W35V-47M(VR) 394664707T PCB-U003 C2179 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U003 C2180 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2182 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2184 C-CERA C CK725B0J-225K 332092255R1 PCB-U003 C2185 C-CERA C CK725B1H-102K1 332101025R1 PCB-U003 C2186 VR C CE04W35V-47M(VR) 394664707T PCB-U003...
  • Page 93 32/207 PAGE C2224 VR C CE04W50V-1M(VR) 394680107T PCB-U003 C2225 VR C CE04W50V-4.7M(VR) 394680477T PCB-U003 C2226 VR C CE04W50V-1M(VR) 394680107T PCB-U003 C2227 VR C CE04W50V-1M(VR) 394680107T PCB-U003 C2228 VR C CE04W50V-4.7M(VR) 394680477T PCB-U003 C2229 VR C CE04W50V-4.7M(VR) 394680477T PCB-U003 C2231 C-CERA C CK725B0J-225K 332092255R1 PCB-U003...
  • Page 94 33/207 PAGE C2515 C-CERA C CK725B1H-102K1 332101025R1 PCB-U003 C2516 UTSP C CE04W50V-10M(UTSP) 397581007T NO USE from Mark K. PCB-U003 C2517 VR C CE04W6.3V-470M(VR) 394624717T NO USE from Mark K. PCB-U003 C2518 VR C CE04W6.3V-470M(VR) 394624717T NO USE from Mark K. PCB-U003 C2519 VR C...
  • Page 95 34/207 PAGE C2700 VR C CE04W6.3V-220M(VR) 394622217T PCB-U003 C2701 C-CERA C CK725B1H-102K1 332101025R1 PCB-U003 C2702 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C2704 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C2705 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U003 C2707 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C2708 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003...
  • Page 96 35/207 PAGE C4091 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4092 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4093 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U003 C4094 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U003 C4101 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4102 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4103 UTSP C CE04W50V 47M(UTSP)
  • Page 97 36/207 PAGE C4204 UTSP C CE04W25V-100M(UTSP) 397551017T PCB-U003 C4205 UTSP C CE04W25V-100M(UTSP) 397551017T PCB-U003 C4206 UTSP C CE04W25V-220M(UTSP) 397552217T PCB-U003 C4207 UTSP C CE04W25V-220M(UTSP) 397552217T PCB-U003 C4208 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U003 C4209 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U003 C4210 UTSP C CE04W25V-220M(UTSP)
  • Page 98 37/207 PAGE C4409 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C4410 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C4411 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C4412 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U003 C4417 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C4418 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003 C4419 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U003...
  • Page 99 38/207 PAGE C4601 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4602 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4603 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4604 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4605 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4606 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4607 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003...
  • Page 100 39/207 PAGE C4651 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4652 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4653 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4654 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4655 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4656 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003 C4657 C-CERA C CC725CH1H-221J1 342102214R1 PCB-U003...
  • Page 101 40/207 PAGE R2008 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U003 R2009 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U003 R2010 METAL R RNU2WCJ-4.7 452730474F PCB-U003 R2011 METAL R RNU2WCJ-4.7 452730474F PCB-U003 R2013 C-CARBON R RN72K2E-015JE 435220154R1 PCB-U003 R2014 METAL R RNU1/2WCJ-0.22 453532294T PCB-U003 R2017 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U003...
  • Page 102 41/207 PAGE R2123 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003 R2135 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2136 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003 R2147 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2148 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003 R2149 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2150 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003...
  • Page 103 42/207 PAGE R2195 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003 R2196 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U003 R2197 C-CARBON R RN72K1J-392JE 435033924R1 PCB-U003 R2198 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2199 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2200 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2201 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003...
  • Page 104 43/207 PAGE R2518 C-CARBON R RN72K1J-022JE 435030224R1 NO USE from Mark K. PCB-U003 R2519 C-CARBON R RN72K1J-220JE 435032204R1 NO USE from Mark K. PCB-U003 R2521 C-CARBON R RN72K1J-220JE 435032204R1 NO USE from Mark K. PCB-U003 R2522 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U003 R2523 C-CARBON R...
  • Page 105 44/207 PAGE R2720 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R2721 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U003 R2722 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U003 R2723 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4001 C-CARBON R RN72K1J-562JE 435035624R1 PCB-U003 R4002 C-CARBON R RN72K1J-562JE 435035624R1 PCB-U003 R4003 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003...
  • Page 106 45/207 PAGE R4078 METAL O R RS1/2WBJ-22 443522204T PCB-U003 R4081 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4082 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4083 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4084 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4085 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4086 C-CARBON R RN72K1J-224JE 435032244R1...
  • Page 107 46/207 PAGE R4125 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4126 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4131 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4132 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4133 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4134 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4135 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003...
  • Page 108 47/207 PAGE R4217 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U003 R4218 METAL O R RS1/2WBJ-10 443521004T PCB-U003 R4219 METAL O R RS1/2WBJ-10 443521004T PCB-U003 R4221 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4222 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4223 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4224 C-CARBON R RN72K1J-224JE...
  • Page 109 48/207 PAGE R4351 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4352 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4353 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4354 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4355 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4357 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003 R4359 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U003...
  • Page 110 49/207 PAGE R4403 METAL O R RS1/2WBJ-22 443522204T PCB-U003 R4404 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U003 R4405 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U003 R4406 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4407 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4409 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U003 R4410 C-CARBON R RN72K1J-331JE 435033314R1...
  • Page 111 50/207 PAGE R4465 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U003 R4466 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U003 R4467 C-CARBON R RN72K1J-333JE 435033334R1 PCB-U003 R4468 C-CARBON R RN72K1J-333JE 435033334R1 PCB-U003 R4477 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4478 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4479 METAL O R RS1/2WBJ-47 443524704T PCB-U003...
  • Page 112 51/207 PAGE R4606 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4607 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U003 R4610 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4611 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4612 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4613 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003 R4614 C-CARBON R RN72K1J-563JE 435035634R1 PCB-U003...
  • Page 113 52/207 PAGE R4650 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4651 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4652 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4653 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4654 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4655 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4656 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003...
  • Page 114 53/207 PAGE R4686 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4687 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4688 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4741 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4742 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4751 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003 R4752 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U003...
  • Page 115 54/207 PAGE R4832 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4833 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4834 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4835 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U003 R4841 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 R4842 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U003 [SW TRM] PCB-U003 NTM-1P232(M1700) 25060301...
  • Page 116 55/207 PAGE P2108 PIN JACK NPJ-9PDGLR630 25045851 PCB-U003 P2108 or PIN JACK NPJ-9PDGLR520 ( 1) 25045732 PCB-U003 P2110 PIN JACK NPJ-10PDSY628 25045849 PCB-U003 P2110 or PIN JACK NPJ-10PDBY481 ( 1) 25045684 PCB-U003 P2111 PIN JACK NPJ-10PDSY628 25045849 PCB-U003 P2111 or PIN JACK NPJ-10PDBY481 ( 1)
  • Page 117 56/207 PAGE P7010A PLUG IMSA-9142B-26A 25056603 PCB-U003 RL4001 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4002 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4003 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4004 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4005 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4006 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4008 RELAY NRL-2P2A-DC12-178 25065664 PCB-U003 RL4009...
  • Page 118 57/207 PAGE D4004 ZENER D UDZS3.6B 224550360R2 PCB-U004 D7002 C-DIODE 1SS352 223234R2 PCB-U004 D7002 or C-DIODE 1SS355 ( 1) 223269R2 PCB-U004 D7002 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U004 D7002 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U004 D7003 C-DIODE 1SS352 223234R2 PCB-U004 D7003 or...
  • Page 119 58/207 PAGE NE5532APSR 22242283R2 <MDD> PCB-U004 Q1001 PCM1795DBR 22242612R2 PCB-U004 Q1002 PCM1795DBR 22242612R2 PCB-U004 Q1003 PCM1795DBR 22242612R2 PCB-U004 Q1004 PCM1795DBR 22242612R2 PCB-U004 Q1005 PCM1795DBR 22242612R2 PCB-U004 Q1006 PCM1795DBR 22242612R2 PCB-U004 Q101 LC72725KV-TLM-E 22242584R2 <MMA> PCB-U004 Q1200 NE5532APSR 22242283R2 PCB-U004 Q1201 NE5532APSR 22242283R2 PCB-U004...
  • Page 120 59/207 PAGE Q1229 NE5532APSR 22242283R2 PCB-U004 Q1230 NE5532APSR 22242283R2 PCB-U004 Q1231 NE5532APSR 22242283R2 PCB-U004 Q1232 NE5532APSR 22242283R2 PCB-U004 Q1233 NE5532APSR 22242283R2 PCB-U004 Q1234 NE5532APSR 22242283R2 PCB-U004 Q1235 NE5532APSR 22242283R2 PCB-U004 Q1236 NE5532APSR 22242283R2 PCB-U004 Q1237 NE5532APSR 22242283R2 PCB-U004 Q1238 NE5532APSR 22242283R2 PCB-U004 Q1239...
  • Page 121 60/207 PAGE Q3886 74HCU04F 222740046R2 PCB-U004 Q3886 or TC74HCU04AF ( 1) 222740046R2TO PCB-U004 Q3887 TC74VHC157FT 22274157ER2TO PCB-U004 Q3888 ICL3221ECVZ 22242268R2 PCB-U004 Q3889 TC74VHC157FT 22274157ER2TO PCB-U004 Q4001 NE5532APSR 22242283R2 PCB-U004 Q4002 2SC2240-BL(TPE2_F) 2211406T PCB-U004 Q4003 2SC2240-BL(TPE2_F) 2211406T PCB-U004 Q4004 2SC2712-GR 2213145R2 PCB-U004 Q4005 2SC2712-GR...
  • Page 122 61/207 PAGE Q7006 KRC102S 2216190R2 PCB-U004 Q7006 or RN1402 ( 1) 2214470R2 PCB-U004 Q7007 KRC102S 2216190R2 PCB-U004 Q7007 or RN1402 ( 1) 2214470R2 PCB-U004 Q7008 KRA107S 2216350R2 PCB-U004 Q7008 or RN2407(TE85L_F) ( 1) 2216360R2 PCB-U004 Q7009 KRC104S 2216210R2 PCB-U004 Q7009 or RN1404 ( 1) 2214490R2...
  • Page 123 62/207 PAGE Q7033 KRC104S 2216210R2 PCB-U004 Q7033 or RN1404 ( 1) 2214490R2 PCB-U004 Q7034 KRA102S 2216220R2 PCB-U004 Q7034 or RN2402 ( 1) 2214530R2 PCB-U004 Q7035 KRC104S 2216210R2 PCB-U004 Q7035 or RN1404 ( 1) 2214490R2 PCB-U004 Q7036 74HC595F 222745955R2 PCB-U004 Q7037 S3F80K9 22242602R3 PCB-U004...
  • Page 124 63/207 PAGE L1022 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U004 L1023 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U004 L1024 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U004 L3700 CHOKE COIL LBC2518T470M 231364M470R2 PCB-U004 L3701 CHOKE COIL LBC2518T470M 231364M470R2 PCB-U004 L3702 CHOKE COIL LBC2518T4R7M 231364M047R2 PCB-U004 L3703 EMIFIL BK1608LM182-T 230958R1 PCB-U004...
  • Page 125 64/207 PAGE C1002 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1003 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1004 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004 C1005 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1006 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004 C1007 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004 C1008 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004...
  • Page 126 65/207 PAGE C1032 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004 C1033 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1034 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1035 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1036 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004 C1037 C-FILM C ECHU16V-104J 373041044R2 PCB-U004 C1038 UTSP C CE04W10V-220M(UTSP) 397532217T PCB-U004...
  • Page 127 66/207 PAGE C1210 C-FILM C ECHU50V-152J 373021524R2 PCB-U004 C1211 C-FILM C ECHU50V-152J 373021524R2 PCB-U004 C1212 C-FILM C ECHU50V-152J 373021524R2 PCB-U004 C1213 C-FILM C ECHU50V-152J 373021524R2 PCB-U004 C1214 C-FILM C ECHU50V-152J 373021524R2 PCB-U004 C1215 MKT C B32529C0152J289 376491524T PCB-U004 C1216 MKT C B32529C0152J289 376491524T PCB-U004...
  • Page 128 67/207 PAGE C1243 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1244 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1245 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1246 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1247 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1248 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1249 UPZ C 2AUPZTF331JE 376333314T PCB-U004...
  • Page 129 68/207 PAGE C1276 UPZ C 2AUPZTF101JE 376331014T PCB-U004 C1277 UPZ C 2AUPZTF101JE 376331014T PCB-U004 C1278 UPZ C 2AUPZTF101JE 376331014T PCB-U004 C1279 UPZ C 2AUPZTF101JE 376331014T PCB-U004 C1280 C-FILM C ECHU50V-222J 373022224R2 PCB-U004 C1281 C-FILM C ECHU50V-222J 373022224R2 PCB-U004 C1282 C-FILM C ECHU50V-222J 373022224R2 PCB-U004...
  • Page 130 69/207 PAGE C1451 UPZ C 2AUPZTF331JE 376333314T PCB-U004 C1460 MKT C B32529C0682J289 376496824T PCB-U004 C1461 MKT C B32529C0682J289 376496824T PCB-U004 C1470 UPZ C 2AUPZTF221JE 376332214T PCB-U004 C1471 UPZ C 2AUPZTF221JE 376332214T PCB-U004 C1480 UPZ C 2AUPZTF101JE 376331014T PCB-U004 C1481 UPZ C 2AUPZTF101JE 376331014T PCB-U004...
  • Page 131 70/207 PAGE C3719 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3720 C-CERA C CK725B1H-102K1 332101025R1 PCB-U004 C3721 C-CERA C CK725B1H-223K1 332102235R1 PCB-U004 C3722 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3723 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3724 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3725 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004...
  • Page 132 71/207 PAGE C3890 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3891 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C3892 C-CERA C CK725B1C-104K1 332121045R1 PCB-U004 C3893 C-CERA C CC725CH1H-080D1 342100802R1 PCB-U004 C3894 C-CERA C CK725B1C-104K1 332121045R1 PCB-U004 C3895 C-CERA C CC725CH1H-080D1 342100802R1 PCB-U004 C3896 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U004...
  • Page 133 72/207 PAGE C4012 UTSP C CE04W25V-220M(UTSP) 397552217T PCB-U004 C4013 MKT C B32529C0682J289 376496824T PCB-U004 C4014 C-FILM C ECHU50V-182J 373021824R2 PCB-U004 C4015 MKT C B32529C0682J289 376496824T PCB-U004 C4016 C-FILM C ECHU50V-182J 373021824R2 PCB-U004 C4017 UTSP C CE04W50V-22M(UTSP) 397582207T PCB-U004 C4018 UTSP C CE04W50V-22M(UTSP) 397582207T PCB-U004...
  • Page 134 73/207 PAGE C4522 UTSP C CE04W50V-100M(UTSP) 397581017T PCB-U004 C4523 UTSP C CE04W50V-100M(UTSP) 397581017T PCB-U004 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U004 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U004 C4900 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4901 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4902 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004...
  • Page 135 74/207 PAGE C4929 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4951 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4952 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4953 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4954 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004 C4959 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U004...
  • Page 136 75/207 PAGE C7017 C-CERA C CK725B1H-102K1 332101025R1 PCB-U004 C7018 C-CERA C CK725B1H-102K1 332101025R1 PCB-U004 C7019 C-CERA C CK725B1H-102K1 332101025R1 PCB-U004 C7020 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C7021 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C7022 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C7023 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004...
  • Page 137 76/207 PAGE C7056 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U004 C7057 UTSP C CE04W50V-10M(UTSP) 397581007T PCB-U004 C7058 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U004 C7059 VR C CE04W6.3V-470M(VR) 394624717T PCB-U004 C7060 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U004 C7061 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U004 C7302 VR C CE04W6.3V-470M(VR) 394624717T PCB-U004...
  • Page 138 77/207 PAGE R1016 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1017 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1018 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1019 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R1020 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R1021 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1022 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004...
  • Page 139 78/207 PAGE R1049 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1050 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1051 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1052 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R1053 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U004 R1054 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U004 R1055 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 140 79/207 PAGE R1214 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1215 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1216 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1217 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1218 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1219 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U004 R1220 C-CARBON R RN72K1J-271JE 435032714R1 PCB-U004...
  • Page 141 80/207 PAGE R1247 C-CARBON R RN72K1J-271JE 435032714R1 PCB-U004 R1248 C-CARBON R RN72K1J-271JE 435032714R1 PCB-U004 R1249 C-CARBON R RN72K1J-271JE 435032714R1 PCB-U004 R1250 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1251 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1252 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1253 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004...
  • Page 142 81/207 PAGE R1280 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1281 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1282 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1283 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1284 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1285 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1286 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004...
  • Page 143 82/207 PAGE R1313 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1314 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1315 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1316 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1317 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1318 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004 R1319 C-CARBON R RN72K1J-681JE 435036814R1 PCB-U004...
  • Page 144 83/207 PAGE R1346 C-CARBON R RN72K1J-182JE 435031824R1 PCB-U004 R1347 C-CARBON R RN72K1J-182JE 435031824R1 PCB-U004 R1348 C-CARBON R RN72K1J-182JE 435031824R1 PCB-U004 R1349 C-CARBON R RN72K1J-182JE 435031824R1 PCB-U004 R1350 C-CARBON R RN72K1J-561JE 435035614R1 PCB-U004 R1351 C-CARBON R RN72K1J-561JE 435035614R1 PCB-U004 R1352 C-CARBON R RN72K1J-561JE 435035614R1 PCB-U004...
  • Page 145 84/207 PAGE R1379 C-CARBON R RN72K1J-152JE 435031524R1 PCB-U004 R1380 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1381 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1382 C-CARBON R RN72K1J-152JE 435031524R1 PCB-U004 R1383 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1384 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004 R1385 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U004...
  • Page 146 85/207 PAGE R1470 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R1471 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R1480 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R1481 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R1490 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1491 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004 R1500 C-CARBON R RN72K1J-820JE 435038204R1 PCB-U004...
  • Page 147 86/207 PAGE R1625 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1626 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1627 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1628 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1629 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1630 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R1631 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 148 87/207 PAGE R1684 C-CARBON R RN72K1J-273JE 435032734R1 PCB-U004 R1685 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 METAL O R RS1/2WBJ-22 443522204T PCB-U004 R3702 C-CARBON R RN72K1J-750JE 435037504R1 PCB-U004 R3703 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U004 R3707 C-CARBON R RN72K1J-151JE 435031514R1 PCB-U004 R3708 C-CARBON R RN72K1J-151JE 435031514R1 PCB-U004...
  • Page 149 88/207 PAGE R3736 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R3737 C-CARBON R RN72K1J-151JE 435031514R1 PCB-U004 R3738 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3739 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004 R3740 C-CARBON R RN72K1J-152JE 435031524R1 PCB-U004 R3741 C-CARBON R RN72K1J-151JE 435031514R1 PCB-U004 R3742 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U004...
  • Page 150 89/207 PAGE R3771 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R3772 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3773 C-CARBON R RN72K1J-105JE 435031054R1 PCB-U004 R3774 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3775 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3776 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U004 R3777 C-CARBON R RN72K1J-391JE 435033914R1 PCB-U004...
  • Page 151 90/207 PAGE R3890 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3891 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R3892 C-CARBON R RN72K1J-823JE 435038234R1 PCB-U004 R3893 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R3894 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R3895 C-CARBON R RN72K1J-100JE 435031004R1 PCB-U004 R3896 C-CARBON R RN72K1J-823JE 435038234R1 PCB-U004...
  • Page 152 91/207 PAGE R3923 C-CARBON R RN72K1J-100JE 435031004R1 PCB-U004 R4005 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U004 R4006 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U004 R4007 METAL O R RS1/2WBJ-2.2K 443522224T PCB-U004 R4008 METAL O R RS1/2WBJ-2.2K 443522224T PCB-U004 R4009 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U004 R4010 C-CARBON R RN72K1J-223JE...
  • Page 153 92/207 PAGE R4037 NF CARBON R R25J-100 415471014T PCB-U004 R4038 NF CARBON R R25J-100 415471014T PCB-U004 C-CARBON R RN72K1J-220JE 435032204R1 <MDD> PCB-U004 C-CARBON R RN72K1J-000JE 435030004R1 <MDD> PCB-U004 R4500 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U004 R4501 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U004 R4502 C-CARBON R RN72K1J-224JE...
  • Page 154 93/207 PAGE R4904 METAL R RNU1/2WCJ-4.7 453530474T PCB-U004 R4905 METAL R RNU1/2WCJ-4.7 453530474T PCB-U004 R4906 C-CARBON R RN72K1J-471JE 435034714R1 PCB-U004 R4907 C-CARBON R RN72K1J-471JE 435034714R1 PCB-U004 R4908 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R4909 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R4910 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 155 94/207 PAGE C-CARBON R RN72K1J-223JE 435032234R1 PCB-U004 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U004 C-CARBON R RN72K1J-103JE 435031034R1 <MDD> PCB-U004 C-CARBON R RN72K1J-103JE 435031034R1 <MDD> PCB-U004 C-CARBON R RN72K1J-103JE 435031034R1 <MDD> PCB-U004 C-CARBON R RN72K1J-103JE 435031034R1 <MDD> PCB-U004 C-CARBON R RN72K1J-103JE 435031034R1 <MDD>...
  • Page 156 95/207 PAGE R7024 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7025 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7026 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7027 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7028 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7029 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7030 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 157 96/207 PAGE R7070 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7071 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7072 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7074 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7075 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7076 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U004 R7077 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 158 97/207 PAGE R7110 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7112 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7114 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7116 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7117 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7118 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7119 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004...
  • Page 159 98/207 PAGE R7149 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U004 R7150 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7151 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7152 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7153 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7154 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7155 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004...
  • Page 160 99/207 PAGE R7182 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7183 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U004 R7184 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7185 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7186 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7187 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7188 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004...
  • Page 161 100/207 PAGE R7216 C-CARBON R RN72K1J-224JE 435032244R1 PCB-U004 R7225 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7228 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U004 R7232 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U004 R7233 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7234 C-CARBON R RN72K1J-103JE 435031034R1 <MDD> PCB-U004 R7235 C-CARBON R RN72K1J-103JE 435031034R1...
  • Page 162 101/207 PAGE R7273 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U004 R7274 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U004 R7275 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U004 R7276 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U004 R7285 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004 R7286 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U004 R7289 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U004...
  • Page 163 102/207 PAGE [SW TRM] PCB-U004 NTM-1P233(M1969) 25060302 PCB-U004 TRM-423(SCREW) NEJITANSI ST3 25060495 PCB-U004 JL3889A WIRE HOL NSCT-5P896 25051109 PCB-U004 JL9501A WIRE HOL NSCT-7P898 25051111 PCB-U004 P004 BCDG-0208 25140208E PCB-U004 P005 BCCPU-0209 { 1} 25140209 PCB-U004 P006 BCAR-0210 { 1} 25140210 PCB-U004 P007 BCAF-0211...
  • Page 164 103/207 PAGE P3888 ST JACK MSJ-035-22 25045887 PCB-U004 P3888 or JACK YKB21-5130 ( 1) 25045387 PCB-U004 P4002B SOCKET NSCT-9P1024 25051234 PCB-U004 P4003 NTM-1P233(M1969) 25060302 PCB-U004 P4008B SOCKET NSCT-9P2102 25052205 PCB-U004 P4009B SOCKET NSCT-15P2108 25052211 PCB-U004 P4020B SOCKET 9210B-1-13Z140-PT1 25053364 PCB-U004 P4021B SOCKET 9210B-1-13Z140-PT1...
  • Page 165 104/207 PAGE U7560 REMO SENS TSOP34338RF1F 24130017 PCB-U005 [SEMI CONDUCTOR] PCB-U005 D7500 ZENER D UDZS10B 224551000R2 PCB-U005 D7520 C-DIODE 1SS355 223269R2 PCB-U005 D7520 or C-DIODE 1SS352 ( 1) 223234R2 PCB-U005 D7520 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U005 D7520 or C-DIODE KDS4148U ( 1)
  • Page 166 105/207 PAGE D7561 or C-DIODE 1SS352 ( 1) 223234R2 PCB-U005 D7561 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U005 D7561 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U005 D7570 SPCF D TSAL5300 225488 PCB-U005 D7580 C-DIODE 1SS355 223269R2 PCB-U005 D7580 or C-DIODE 1SS352 ( 1) 223234R2...
  • Page 167 106/207 PAGE D9351 C-DIODE CRS09(TE85L_Q) 223274R2 PCB-U005 Q7500 FL TUBE HNA-16SL05T 212271A PCB-U005 Q7500A HOLDER (FL) 27191303 PCB-U005 Q7501 M66005-0001AHP 22242208R3 PCB-U005 Q7502 M66005-0001AHP 22242208R3 PCB-U005 Q7503 2SC2712-GR 2213145R2 PCB-U005 Q7504 2SC2712-GR 2213145R2 PCB-U005 Q7530 NJM4580M-D 22241448R2 PCB-U005 Q7532 RN1441 2215410R2 PCB-U005 Q7533...
  • Page 168 107/207 PAGE C7511 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U005 C7512 C-CERA C CC725CH1H-180J1 342101804R1 PCB-U005 C7513 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U005 C7514 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U005 C7516 ELECT C CE04W35V-47M 355764709T PCB-U005 C7518 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U005 C7519 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U005...
  • Page 169 108/207 PAGE C9302 VR C CE04W16V-10000M(VR) 394641037S PCB-U005 C9304 VR C CE04W63V-470M(VR) 394674717S PCB-U005 C9305 VR C CE04W63V-47M(VR) 394674707T PCB-U005 C9306 TF C ECQ-V50V-223J 374722234T PCB-U005 C9307 TF C ECQ-V50V-334J 374723344T PCB-U005 C9350 VR C CE04W16V-470M(VR) 394644717T PCB-U005 C9351 VR C CE04W6.3V-1000M(VR) 394621027T PCB-U005...
  • Page 170 109/207 PAGE R7534 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U005 R7535 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U005 R7536 C-CARBON R RN72K1J-333JE 435033334R1 PCB-U005 R7537 C-CARBON R RN72K1J-333JE 435033334R1 PCB-U005 R7538 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U005 R7539 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U005 R7540 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U005...
  • Page 171 110/207 PAGE R7625 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U005 R7626 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U005 R7627 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U005 R7628 C-CARBON R RN72K1J-392JE 435033924R1 PCB-U005 R7629 C-CARBON R RN72K1J-123JE 435031234R1 PCB-U005 R7631 C-CARBON R RN72K1J-271JE 435032714R1 PCB-U005 R7632 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U005...
  • Page 172 111/207 PAGE R9352 C-CARBON R RN72K1J-562JE 435035624R1 PCB-U005 R9353 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U005 R9354 C-CARBON R RN72K1J-392JE 435033924R1 PCB-U005 [SW TRM] PCB-U005 E7580 NTM-1P233(M1969) 25060302 PCB-U005 F9301A FUSE HOL NSCT-1P2031 25052133T PCB-U005 F9301B FUSE HOL NSCT-1P2031 25052133T PCB-U005 JL4103B SOCKET NSCT-5P97 25050269...
  • Page 173 112/207 PAGE P9301A PLUG NPLG-6P120 25055136 PCB-U005 S7590 R ENCODE EVEHD1F3024B 25065695W PCB-U005 S7611 PUSH SW NPS-111-S681 25035718T PCB-U005 S7612 PUSH SW NPS-111-S681 25035718T PCB-U005 S7613 PUSH SW NPS-111-S681 25035718T PCB-U005 S7614 PUSH SW NPS-111-S681 25035718T PCB-U005 S7615 PUSH SW NPS-111-S681 25035718T PCB-U005...
  • Page 174 113/207 PAGE S7642 PUSH SW NPS-111-S681 25035718T PCB-U005 S7643 PUSH SW NPS-111-S681 25035718T PCB-U005 S7644 PUSH SW NPS-111-S681 25035718T PCB-U005 S7645 PUSH SW NPS-111-S681 25035718T PCB-U005 S7646 PUSH SW NPS-111-S681 25035718T PCB-U005 S7647 PUSH SW NPS-111-S681 25035718T PCB-U005 S7648 PUSH SW NPS-111-S681 25035718T PCB-U005...
  • Page 175 114/207 PAGE D9000 DIODE 1SS133 223163T PCB-U006 D9001 DIODE 1SS133 223163T PCB-U006 D9002 DIODE 1SS133 223163T PCB-U006 D9003 DIODE 1SS133 223163T PCB-U006 D9004 DIODE 1SS133 223163T PCB-U006 D9005 DIODE 1SS133 223163T PCB-U006 D9006 DIODE 1SS133 223163T PCB-U006 D9007 ZENER D MTZJ5.1B 224470512T PCB-U006...
  • Page 176 115/207 PAGE Q9426 2SK365-GR 2212445T PCB-U006 [TRANS COIL] PCB-U006 L6800 S COIL SC-0.8X11.5X12.5T-6.5L 231393S PCB-U006 L6801 S COIL SC-0.8X11.5X12.5T-6.5L 231393S PCB-U006 L6802 S COIL SC-0.8X11.5X12.5T-6.5L 231393S PCB-U006 L6803 S COIL SC-0.8X11.5X12.5T-6.5L 231393S PCB-U006 L6804 S COIL SC-0.8X11.5X12.5T-6.5L 231393S PCB-U006 L6805 S COIL SC-0.8X11.5X12.5T-6.5L 231393S...
  • Page 177 116/207 PAGE C6830 MKT C B32529C0102J289 376491024T PCB-U006 C6830 or TF C ECQ-B50V-102J ( 1) 374721024T PCB-U006 C6831 MKT C B32529C0102J289 376491024T PCB-U006 C6831 or TF C ECQ-B50V-102J ( 1) 374721024T PCB-U006 C6832 MKT C B32529C0102J289 376491024T PCB-U006 C6832 or TF C ECQ-B50V-102J ( 1)
  • Page 178 117/207 PAGE C6870 TF C ECQ-V50V-473J 374724734T PCB-U006 C6871 TF C ECQ-V50V-473J 374724734T PCB-U006 C6872 TF C ECQ-V50V-473J 374724734T PCB-U006 C6873 TF C ECQ-V50V-473J 374724734T PCB-U006 C6874 TF C ECQ-V50V-473J 374724734T PCB-U006 C6875 TF C ECQ-V50V-473J 374724734T PCB-U006 C6876 TF C ECQ-V50V-473J 374724734T PCB-U006...
  • Page 179 118/207 PAGE C9424 UTSP C CE04W25V-100M(UTSP) 397551017T PCB-U006 D9008 DIODE 1SS133 223163T PCB-U006 D9009 DIODE 1SS133 223163T PCB-U006 [RESISTOR] PCB-U006 R6800 CARBON R R16J-22 417342204T PCB-U006 R6801 CARBON R R16J-22 417342204T PCB-U006 R6802 CARBON R R16J-22 417342204T PCB-U006 R6803 CARBON R R16J-22 417342204T PCB-U006...
  • Page 180 119/207 PAGE R9001 CARBON R R16J-100K 417341044T PCB-U006 R9005 CARBON R R16J-27 417342704T PCB-U006 R9100 THERMISTOR M3R014C 4000148 PCB-U006 R9101 THERMISTOR M3R014C 4000148 PCB-U006 R9102 THERMISTOR M3R014C 4000148 PCB-U006 R9104 CARBON R R16J-1K 417341024T PCB-U006 R9105 CARBON R R16J-100K 417341044T PCB-U006 R9106 CARBON R...
  • Page 181 120/207 PAGE F9100A FUSE HOL NSCT-1P2031 25052133T !, <MMA> PCB-U006 F9100B FUSE HOL SN5051 250113 !, <MDD> PCB-U006 F9100B FUSE HOL NSCT-1P2031 25052133T !, <MMA> PCB-U006 F9401A FUSE HOL NSCT-1P2031 25052133T PCB-U006 F9401B FUSE HOL NSCT-1P2031 25052133T PCB-U006 F9402A FUSE HOL NSCT-1P2031 25052133T PCB-U006...
  • Page 182 121/207 PAGE P6806 NTM-2PDMCR399 25060471 PCB-U006 P6807 NTM-2PDMCR399 25060471 PCB-U006 P6808 NTM-2PDMCR399 25060471 PCB-U006 P6809 NTM-2PDMCR399 25060471 PCB-U006 P6810 NTM-2PDMCR399 25060471 PCB-U006 P6851B SOCKET IMSA-9142S-26A 25053235 PCB-U006 P6853B PLUG NPLG-9P0964 25056014 PCB-U006 P6902B PLUG NPLG-9P356 25055373 PCB-U006 P9000 AC INLET NPLG-2P913 25055960 PCB-U006...
  • Page 183 122/207 PAGE RL6807 RELAY NRL-2P5A-DC12-192 25065702 PCB-U006 RL6807 or RELAY NRL-2P5A-DC12-155 ( 1) 25065607 PCB-U006 RL6808 RELAY NRL-2P5A-DC12-192 25065702 PCB-U006 RL6808 or RELAY NRL-2P5A-DC12-155 ( 1) 25065607 PCB-U006 RL6809 RELAY NRL-2P5A-DC12-192 25065702 PCB-U006 RL6809 or RELAY NRL-2P5A-DC12-155 ( 1) 25065607 PCB-U006 RL6810 RELAY...
  • Page 184 123/207 PAGE D8302 C-DIODE 1SS352 223234R2 PCB-U007 D8302 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U007 D8302 or C-DIODE KDS4148U ( 1) 223283R2 PCB-U007 D8351 C-DIODE 1SS226(TE85L_F) 223266R2 PCB-U007 D8352 C-DIODE 1SS352 223234R2 PCB-U007 D8352 or C-DIODE MA2J111 ( 1) 223279R2 PCB-U007 D8352 or C-DIODE...
  • Page 185 124/207 PAGE Q3102 MIC2005-0.5YM6 22242590R2 PCB-U007 Q3103 BH18LB1WG-TR 22242562R2 PCB-U007 Q3104 TPD2E001DRLR 22242589R2 PCB-U007 Q3106 BH33FB1WG-TR 22242585R2 PCB-U007 Q3107 TA48033BF(TE16L_NQ) 22278033DBR2TO PCB-U007 Q3108 KSZ8041NL 22242591R2 PCB-U007 Q3109 BD7820 22242300R2 PCB-U007 Q3110 MIC2005-0.5YM6 22242590R2 PCB-U007 Q3202 TC74VHC157FT 22274157ER2TO PCB-U007 Q3204 TC7SZU04FU 22242512R2TO PCB-U007 Q3205...
  • Page 186 125/207 PAGE Q3504 BD7820 22242300R2 PCB-U007 Q3604 PCM1754DBQR 22242598R2 PCB-U007 Q8001 ADV7800BSTZ-150 22242606R3 PCB-U007 Q8002 TA48018BF(TE16L_NQ) 22278018DBR2TO PCB-U007 Q8003 K4S641632K-UC60 22242462R2 PCB-U007 Q8003 or K4S641632N-LC60 ( 1) 22242603R2 PCB-U007 Q8161 TA48018BF(TE16L_NQ) 22278018DBR2TO PCB-U007 Q8162 SII9185ACTU 22242471R3 PCB-U007 Q8305 S-812C50BUC-C5ET2G 22242407R2 PCB-U007 Q8306 NC7SZ08P5X_F042...
  • Page 187 126/207 PAGE Q8809 TC74VCX162827 22242395R2 PCB-U007 Q8810 TC74VCX162827 22242395R2 PCB-U007 Q8811 TC74VCX162827 22242395R2 PCB-U007 Q8812 TC74VCX162827 22242395R2 PCB-U007 Q8813 TC74VCX162827 22242395R2 PCB-U007 Q8814 TC74VCX162827 22242395R2 PCB-U007 Q8815 TC74VCX162827 22242395R2 PCB-U007 Q8817 TC74VCX162827 22242395R2 PCB-U007 Q8818 TC74VCX162827 22242395R2 PCB-U007 Q8951 MP1593DN 22242601R2 PCB-U007 Q8952...
  • Page 188 127/207 PAGE [TRANS COIL] PCB-U007 L251 CORE BLM18PG181SN1D 2350005R1 PCB-U007 L261 EMIFIL BK1608LM182-T 230958R1 PCB-U007 L3001 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3002 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3003 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3004 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3005 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3102 CORE BLM18PG181SN1D...
  • Page 189 128/207 PAGE L3409 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3410 CORE MMZ1608Y601BT 2350004R1 PCB-U007 L3411 CORE MMZ1608Y601BT 2350004R1 PCB-U007 L3501 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 L3502 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3503 CORE MMZ1608Y601BT 2350004R1 PCB-U007 L3505 CORE BLM18PG121SN1D 2350006R1 PCB-U007 L3506 CORE BLM18PG121SN1D 2350006R1 PCB-U007...
  • Page 190 129/207 PAGE L8404 CORE BLM18PG181SN1D 2350005R1 PCB-U007 L8405 CORE BLM18PG181SN1D 2350005R1 PCB-U007 L8406 C-R NET MNR12E0APJ000 43464900002R2 PCB-U007 L8407 C-R NET MNR12E0APJ000 43464900002R2 PCB-U007 L8408 CORE BLM18PG181SN1D 2350005R1 PCB-U007 L8409 C-R NET MNR12E0APJ000 43464900002R2 PCB-U007 L8410 C-R NET MNR12E0APJ000 43464900002R2 PCB-U007 L8450 C-R NET...
  • Page 191 130/207 PAGE L8853 C-CARBON R RN72K2B-000JE 433220004R1 PCB-U007 L8854 C-CARBON R RN72K2B-000JE 433220004R1 PCB-U007 L8855 C-CARBON R RN72K2B-000JE 433220004R1 PCB-U007 L8856 C-CARBON R RN72K2B-000JE 433220004R1 PCB-U007 L8951 CHOKE COIL 0182-7E08Q-100M-RA 231396M100R2 PCB-U007 L8952 CHOKE COIL 0182-7E08Q-6R8N-RA 231395P068R2 PCB-U007 L8953 CHOKE COIL 0182-7E08Q-6R8N-RA 231395P068R2 PCB-U007...
  • Page 192 131/207 PAGE C3002 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3003 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3004 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3005 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3006 C-CERA C CC725CH1H-102J1 342101024R1 PCB-U007 C3007 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3008 C-CERA C CC725CH1H-102J1 342101024R1 PCB-U007...
  • Page 193 132/207 PAGE C3035 C-CERA C CC725CH1H-102J1 342101024R1 PCB-U007 C3036 C-CERA C CC725CH1H-120J1 342101204R1 PCB-U007 C3037 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3038 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3039 C-CERA C CK725B1H-103K1 332101035R1 PCB-U007 C3040 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3041 C-CERA C CK725B0J-106K 332091065R2 PCB-U007...
  • Page 194 133/207 PAGE C3126 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3127 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3128 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3129 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3130 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3131 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3132 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U007...
  • Page 195 134/207 PAGE C3165 CHIP ELECT C CEWX10V-220M 398132217R2 PCB-U007 C3166 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3202 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3204 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3205 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3206 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3207 C-CERA C CK725B0J-106K 332091065R2...
  • Page 196 135/207 PAGE C3408 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3409 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3410 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3412 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3413 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3414 C-CERA C CC725CH1H-102J1 342101024R1 PCB-U007 C3415 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007...
  • Page 197 136/207 PAGE C3442 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3443 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3444 C-CERA C CC725CH1H-102J1 342101024R1 PCB-U007 C3445 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3446 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3447 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3448 C-CERA C CK725B0J-106K 332091065R2 PCB-U007...
  • Page 198 137/207 PAGE C3514 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U007 C3515 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3516 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3517 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3518 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3519 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3520 C-CERA C CK725B0J-106K 332091065R2 PCB-U007...
  • Page 199 138/207 PAGE C3547 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3548 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C3549 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3550 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3551 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C3552 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U007 C3553 C-CERA C CK725B1H-103K1 332101035R1...
  • Page 200 139/207 PAGE C8023 CHIP ELECT C CEWX16V-10M 398141007R2 PCB-U007 C8024 CHIP ELECT C CEWX16V-10M 398141007R2 PCB-U007 C8025 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8026 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8027 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8028 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8029 C-CERA C CK725B1H-103K1...
  • Page 201 140/207 PAGE C8056 C-CERA C CK725B1H-103K1 332101035R1 PCB-U007 C8057 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8058 C-CERA C CK725B1H-103K1 332101035R1 PCB-U007 C8060 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8061 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8062 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8063 CHIP TANTAL F93-6.3V-100M 395521017R2 PCB-U007...
  • Page 202 141/207 PAGE C8090 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8091 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8092 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8093 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8094 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8095 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8096 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007...
  • Page 203 142/207 PAGE C8146 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8147 CHIP TANTAL F93-16V-10M 395541007R2 PCB-U007 C8147 or CHIP TANTAL TCSCS1C106MAAR ( 1) 396541007R2 PCB-U007 C8148 CHIP ELECT C CEWX4V-100M 3981G1017R2 PCB-U007 C8161 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8162 CHIP ELECT C CEWX4V-100M 3981G1017R2 PCB-U007...
  • Page 204 143/207 PAGE C8207 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8208 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8209 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8210 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8211 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8212 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8213 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007...
  • Page 205 144/207 PAGE C8237 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8238 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8239 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8240 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8241 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8242 CHIP TANTAL F93-16V-10M 395541007R2 PCB-U007 C8242 or CHIP TANTAL TCSCS1C106MAAR ( 1)
  • Page 206 145/207 PAGE C8267 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8268 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8269 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8270 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8271 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8272 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8273 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007...
  • Page 207 146/207 PAGE C8321 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 C8322 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 C8326 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8327 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8328 CHIP ELECT C CEWX16V-22M 398142207R2 PCB-U007 C8329 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8330 C-CERA C CK725F1A-105Z1 332181050R1...
  • Page 208 147/207 PAGE C8379 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8380 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8381 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8390 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8398 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 C8399 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 C8401 CHIP ELECT C CEWX4V-22M 3981G2207R2 PCB-U007...
  • Page 209 148/207 PAGE C8429 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8430 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8431 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8432 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8433 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8434 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8435 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007...
  • Page 210 149/207 PAGE C8473 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8474 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8475 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8476 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8477 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8478 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8479 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007...
  • Page 211 150/207 PAGE C8516 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8517 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8518 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8519 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8521 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8522 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C8525 C-CERA C CK725B0J-106K 332091065R2 PCB-U007...
  • Page 212 151/207 PAGE C8563 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8564 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C8565 C-CERA C CK725B0J-106K 332091065R2 PCB-U007 C8566 C-CERA C CK725B1H-102K1 332101025R1 PCB-U007 C8567 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8573 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8584 C-CERA C CK725B0J-106K 332091065R2 PCB-U007...
  • Page 213 152/207 PAGE C8804 CHIP ELECT C CEWX4V-220M 3981G2217R2 PCB-U007 C8805 CHIP ELECT C CEWX4V-220M 3981G2217R2 PCB-U007 C8810 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8811 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8812 C-CERA C CK725B1A-154K1 332131545R1 PCB-U007 C8813 C-CERA C CK725B1H-153K1 332101535R1 PCB-U007 C8814 C-CERA C CK725F1A-105Z1...
  • Page 214 153/207 PAGE C8867 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8868 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8869 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8870 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8871 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8872 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8873 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007...
  • Page 215 154/207 PAGE C8925 C-CERA C CC725CH1H-090D1 342100902R1 PCB-U007 C8926 CHIP TANTAL F93-10V-47M 395534707R2 PCB-U007 C8926 or CHIP TANTAL TCSCS1A476MBAR ( 1) 396534707R2 PCB-U007 C8927 C-CERA C CK725F1E-104Z1 332161040R1 PCB-U007 C8928 C-CERA C CC725CH1H-101J1 342101014R1 PCB-U007 C8951 C-CERA C CK725B1C-104K1 332121045R1 PCB-U007 C8952 C-CERA C...
  • Page 216 155/207 PAGE C8984 C-CERA C CK725B1H-103K1 332101035R1 PCB-U007 C8985 C-CERA C CK725B1H-222K1 332102225R1 PCB-U007 C8986 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 C8987 CD C UCD1A471MNL1GS 396634717R2 PCB-U007 C8988 C-CERA C CK725F1A-105Z1 332181050R1 PCB-U007 [RESISTOR] PCB-U007 R268 C-CARBON R RN72K1J-331JE 435033314R1 PCB-U007 R269 C-CARBON R RN72K1J-331JE...
  • Page 217 156/207 PAGE R3023 C-R NET RM7LJ470X04 43484747004R2 PCB-U007 R3024 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3025 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R3026 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3028 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3029 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R3032 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007...
  • Page 218 157/207 PAGE R3063 C-CARBON R RN72K1J-680JE 435036804R1 PCB-U007 R3064 C-CARBON R RN72K1J-680JE 435036804R1 PCB-U007 R3065 C-CARBON R RN72K1J-680JE 435036804R1 PCB-U007 R3066 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R3101 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R3102 C-CARBON R RN72K1J-153JE 435031534R1 PCB-U007 R3108 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007...
  • Page 219 158/207 PAGE R3147 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 R3148 C-CARBON R RN72K1J-390JE 435033904R1 PCB-U007 R3149 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R3150 C-CARBON R RN72K1J-151JE 435031514R1 PCB-U007 R3151 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R3152 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R3154 C-CARBON R RN72K1J-390JE 435033904R1 PCB-U007...
  • Page 220 159/207 PAGE R3186 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U007 R3187 C-CARBON R RN72K1J-223FE 435032232R1 PCB-U007 R3188 C-CARBON R RN72K1J-224FE 435032242R1 PCB-U007 R3189 C-CARBON R RN72K1J-103FE 435031032R1 PCB-U007 R3190 C-CARBON R RN72K1J-393FE 435033932R1 PCB-U007 R3191 C-CARBON R RN72K1J-105FE 435031052R1 PCB-U007 R3192 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U007...
  • Page 221 160/207 PAGE R3236 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3237 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U007 R3238 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3239 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U007 R3240 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R3241 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U007 R3242 C-CARBON R RN72K1J-221JE 435032214R1 PCB-U007...
  • Page 222 161/207 PAGE R3273 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3274 C-CARBON R RN72K1J-390JE 435033904R1 PCB-U007 R3275 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U007 R3276 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3277 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U007 R3278 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3279 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007...
  • Page 223 162/207 PAGE R3306 C-CARBON R RN72K1J-332JE 435033324R1 PCB-U007 R3307 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U007 R3308 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U007 R3309 C-CARBON R RN72K1J-332JE 435033324R1 PCB-U007 R3310 C-CARBON R RN72K1J-182JE 435031824R1 PCB-U007 R3311 C-CARBON R RN72K1J-471JE 435034714R1 PCB-U007 R3312 C-CARBON R RN72K1J-223JE 435032234R1 PCB-U007...
  • Page 224 163/207 PAGE R3425 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3426 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 R3427 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3428 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3429 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 R3430 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 R3431 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007...
  • Page 225 164/207 PAGE R3459 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3460 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3461 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3462 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3464 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R3465 C-CARBON R RN72K1J-223FE 435032232R1 PCB-U007 R3466 C-CARBON R RN72K1J-392FE 435033922R1 PCB-U007...
  • Page 226 165/207 PAGE R3521 C-CARBON R RN72K1J-471JE 435034714R1 PCB-U007 R3522 C-CARBON R RN72K1J-330JE 435033304R1 PCB-U007 R3523 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3524 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3525 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3526 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 R3527 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007...
  • Page 227 166/207 PAGE R3554 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3555 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R3556 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3557 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3558 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3559 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R3560 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007...
  • Page 228 167/207 PAGE R8054 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U007 R8055 C-CARBON R RN72K1J-272JE 435032724R1 PCB-U007 R8056 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007 R8057 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007 R8058 C-CARBON R RN72K1J-562JE 435035624R1 PCB-U007 R8059 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007 R8060 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007...
  • Page 229 168/207 PAGE R8096 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8097 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8098 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8099 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8100 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8101 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8102 C-CARBON R RN72K1J-105JE 435031054R1 PCB-U007...
  • Page 230 169/207 PAGE R8205 C-CARBON R RN72K1J-330JE 435033304R1 PCB-U007 R8206 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8207 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8210 C-CARBON R RN72K1J-470JE 435034704R1 PCB-U007 R8211 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007 R8212 C-CARBON R RN72K1J-101JE 435031014R1 PCB-U007 R8213 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007...
  • Page 231 170/207 PAGE R8329 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8330 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8333 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8334 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U007 R8335 C-CARBON R RN72K1J-222JE 435032224R1 PCB-U007 R8336 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U007 R8337 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007...
  • Page 232 171/207 PAGE R8417 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8418 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8419 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8420 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8421 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8422 C-R NET RM7LJ220X04 43484722004R2 PCB-U007 R8423 C-R NET RM7LJ220X04 43484722004R2 PCB-U007...
  • Page 233 172/207 PAGE R8481 C-CARBON R RN72K1J-472JE 435034724R1 PCB-U007 R8482 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U007 R8492 C-CARBON R RN72K1J-102JE 435031024R1 PCB-U007 R8501 C-CARBON R RN72K1J-330JE 435033304R1 PCB-U007 R8502 C-CARBON R RN72K1J-120JE 435031204R1 PCB-U007 R8503 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 R8504 C-R NET RM7LJ330X04 43484733004R2 PCB-U007...
  • Page 234 173/207 PAGE R8602 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 R8607 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8608 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8609 C-CARBON R RN72K1J-000JE 435030004R1 PCB-U007 R8617 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8618 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007 R8619 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007...
  • Page 235 174/207 PAGE R8714 C-R NET RM7LJ222X04 43484722204R2 PCB-U007 R8715 C-R NET RM7LJ103X04 43484710304R2 PCB-U007 R8716 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8717 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8718 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U007 R8719 C-CARBON R RN72K1J-103JE 435031034R1 PCB-U007 R8720 C-CARBON R RN72K1J-220JE 435032204R1 PCB-U007...
  • Page 236 175/207 PAGE R8816 C-CARBON R RN72K1J-181JE 435031814R1 PCB-U007 R8817 C-CARBON R RN72K1J-332JE 435033324R1 PCB-U007 R8818 C-CARBON R RN72K1J-332JE 435033324R1 PCB-U007 R8819 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U007 R8820 C-CARBON R RN72K1J-332JE 435033324R1 PCB-U007 R8821 C-CARBON R RN72K1J-821JE 435038214R1 PCB-U007 R8822 C-CARBON R RN72K1J-473JE 435034734R1 PCB-U007...
  • Page 237 176/207 PAGE R8920 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U007 R8921 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U007 R8922 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U007 R8923 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U007 R8924 C-CARBON R RN72K1J-122JE 435031224R1 PCB-U007 R8940 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U007 R8941 C-CARBON R RN72K1J-104JE 435031044R1 PCB-U007...
  • Page 238 177/207 PAGE RN8013 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8014 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8015 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8016 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8017 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8018 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8019 C-R NET RM7LJ330X04 43484733004R2 PCB-U007...
  • Page 239 178/207 PAGE RN8057 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8058 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8059 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8060 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8061 C-R NET RM7LJ330X04 43484733004R2 PCB-U007 RN8062 C-R NET RM7LJ680X04 43484768004R2 PCB-U007 RN8063 C-R NET RM7LJ470X04 43484747004R2 PCB-U007...
  • Page 240 179/207 PAGE [SW TRM] PCB-U007 JL3201 WIRE TRAP NPLG-5P588 25055626 PCB-U007 JL3889B SOCKET NSCT-5P97 25050269 PCB-U007 JL8002B SOCKET NSCT-5P97 25050269 PCB-U007 P3001 SOCKET(B to B) IMSA-9850S-20Y900 25052813R2 PCB-U007 P3101A PLUG NPLG-5P918 25055965R2 PCB-U007 P3102A SOCKET NSCT-9P2472 25052575R2 PCB-U007 P3103A SOCKET YKF45-0029N 25053242 PCB-U007...
  • Page 241 180/207 PAGE U0081 AMPLIFIER PC BOARD (R/SR/SBR/RH/C) (BACLA-0227-1A) PCB-U008 U0082 AMPLIFIER PC BOARD (R/SR/SBR/RH/C) (BACLA-0228-1A) PCB-U008 U0083 AMPLIFIER PC BOARD (L/SL/SBL/LH) (BACLA-0229-1A) PCB-U008 U0084 AMPLIFIER PC BOARD (R/SR/SBR/RH/C) (BACLA-0230-1A) PCB-U008 U0085 AMPLIFIER PC BOARD (L/SL/SBL/LH) (BACLA-0231-1A) PCB-U008 U0086 AMPLIFIER PC BOARD (R/SR/SBR/RH/C) (BACLA-0232-1A) PCB-U008 U0087 AMPLIFIER PC BOARD (L/SL/SBL/LH) (BACLA-0233-1A)
  • Page 242 181/207 PAGE Q5014 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5015 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5016 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5017 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5018 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5020 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5021 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5022 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5023 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5024 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5025...
  • Page 243 182/207 PAGE Q5040 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q5041 2SA949-O(TPE6_F) 2211353T PCB-U008 Q5041 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q5042 2SA949-O(TPE6_F) 2211353T PCB-U008 Q5042 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q5043 2SA949-O(TPE6_F) 2211353T PCB-U008 Q5043 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q5044...
  • Page 244 183/207 PAGE Q5058 2SA1360-Y 2202094 PCB-U008 Q5058 or 2SA1360-O ( 1) 2202093 PCB-U008 Q5060 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5061 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5062 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5063 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5064 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5065 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5066 2SC2240-BL(TPE2_F) 2211406T PCB-U008 Q5067 2SC2240-BL(TPE2_F)
  • Page 245 184/207 PAGE Q5083 or 2SC3423-O ( 1) 2202103 PCB-U008 Q5083A HEAT SINK (CLA)B 27160642 PCB-U008 Q5083B SCREW 3TTB+8B(3BC) 838430088GR PCB-U008 Q5084 2SC3423-Y 2202104 PCB-U008 Q5084 or 2SC3423-O ( 1) 2202103 PCB-U008 Q5084A HEAT SINK (CLA)B 27160642 PCB-U008 Q5084B SCREW 3TTB+8B(3BC) 838430088GR PCB-U008 Q5085...
  • Page 246 185/207 PAGE Q6020 or 2SA1048-GR ( 1) 2212125T PCB-U008 Q6020 or 2SA933S-S ( 1) 2213355T PCB-U008 Q6020 or KTA1267-GR ( 1) 2215995T PCB-U008 Q6021 2SA933S-R 2213354T PCB-U008 Q6021 or 2SA1048-GR ( 1) 2212125T PCB-U008 Q6021 or 2SA933S-S ( 1) 2213355T PCB-U008 Q6021 or KTA1267-GR...
  • Page 247 186/207 PAGE Q6028 or 2SA933S-S ( 1) 2213355T PCB-U008 Q6028 or KTA1267-GR ( 1) 2215995T PCB-U008 Q6030 2SC2229-O(TPE6_F) 2211633T PCB-U008 Q6030 or 2SC2229-Y(TPE6_F) ( 1) 2211634T PCB-U008 Q6031 2SC2229-O(TPE6_F) 2211633T PCB-U008 Q6031 or 2SC2229-Y(TPE6_F) ( 1) 2211634T PCB-U008 Q6032 2SC2229-O(TPE6_F) 2211633T PCB-U008 Q6032 or...
  • Page 248 187/207 PAGE Q6046 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q6047 2SA949-O(TPE6_F) 2211353T PCB-U008 Q6047 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q6048 2SA949-O(TPE6_F) 2211353T PCB-U008 Q6048 or 2SA949-Y(TPE6_F) ( 1) 2211354T PCB-U008 Q6100 TTA-004(Q)TO126 2217442 PCB-U008 Q6101 TTA-004(Q)TO126 2217442 PCB-U008 Q6102 TTA-004(Q)TO126 2217442 PCB-U008...
  • Page 249 188/207 PAGE C5010 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5011 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5012 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5013 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5014 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5015 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008 C5016 UTSJ C CE04W50V-47M(UTSJ) 398084707T PCB-U008...
  • Page 250 189/207 PAGE C5076 VX C CE04W100V-10M(VX_BLK) 397391007T PCB-U008 C5077 VX C CE04W100V-10M(VX_BLK) 397391007T PCB-U008 C5078 VX C CE04W100V-10M(VX_BLK) 397391007T PCB-U008 C5080 VX C CE04W63V-22M(VX_BLK) 397372207T PCB-U008 C5081 VX C CE04W63V-22M(VX_BLK) 397372207T PCB-U008 C5082 VX C CE04W63V-22M(VX_BLK) 397372207T PCB-U008 C5083 VX C CE04W63V-22M(VX_BLK) 397372207T PCB-U008...
  • Page 251 190/207 PAGE C5123 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5124 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5125 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5126 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5127 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5128 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008 C5130 SPC C CE04W100V-100M(RJ5) 396791017T PCB-U008...
  • Page 252 191/207 PAGE C6020 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008 C6021 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008 C6022 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008 C6023 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008 C6024 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008 C6025 UTSP C CE04W50V 47M(UTSP) 397584707T PCB-U008...
  • Page 253 192/207 PAGE R5025 CARBON R R16J-330 417343314T PCB-U008 R5026 CARBON R R16J-330 417343314T PCB-U008 R5027 CARBON R R16J-330 417343314T PCB-U008 R5028 CARBON R R16J-330 417343314T PCB-U008 R5030 CARBON R R16J-330 417343314T PCB-U008 R5031 CARBON R R16J-330 417343314T PCB-U008 R5032 CARBON R R16J-330 417343314T PCB-U008...
  • Page 254 193/207 PAGE R5062 CARBON R R16J-2.7K 417342724T PCB-U008 R5063 CARBON R R16J-2.7K 417342724T PCB-U008 R5064 CARBON R R16J-2.7K 417342724T PCB-U008 R5065 CARBON R R16J-2.7K 417342724T PCB-U008 R5066 CARBON R R16J-2.7K 417342724T PCB-U008 R5067 CARBON R R16J-2.7K 417342724T PCB-U008 R5068 CARBON R R16J-2.7K 417342724T PCB-U008...
  • Page 255 194/207 PAGE R5118 CARBON R R16J-2.2K 417342224T PCB-U008 R5120 CARBON R R16J-2.2K 417342224T PCB-U008 R5121 CARBON R R16J-2.2K 417342224T PCB-U008 R5122 CARBON R R16J-2.2K 417342224T PCB-U008 R5123 CARBON R R16J-2.2K 417342224T PCB-U008 R5124 CARBON R R16J-2.2K 417342224T PCB-U008 R5125 CARBON R R16J-2.2K 417342224T PCB-U008...
  • Page 256 195/207 PAGE R5155 METAL O R RS1/2WBJ-10K 443521034T PCB-U008 R5156 METAL O R RS1/2WBJ-10K 443521034T PCB-U008 R5157 METAL O R RS1/2WBJ-10K 443521034T PCB-U008 R5158 METAL O R RS1/2WBJ-10K 443521034T PCB-U008 R5160 NF CARBON R R25J-1.0K 415471024T PCB-U008 R5161 NF CARBON R R25J-1.0K 415471024T PCB-U008...
  • Page 257 196/207 PAGE R5212 CARBON R R16J-18K 417341834T PCB-U008 R5213 CARBON R R16J-18K 417341834T PCB-U008 R5214 CARBON R R16J-18K 417341834T PCB-U008 R5215 CARBON R R16J-18K 417341834T PCB-U008 R5216 CARBON R R16J-18K 417341834T PCB-U008 R5217 CARBON R R16J-18K 417341834T PCB-U008 R5218 CARBON R R16J-18K 417341834T PCB-U008...
  • Page 258 197/207 PAGE R5248 NF CARBON R R25J-15 415471504T PCB-U008 R5250 CARBON R R16J-68K 417346834T PCB-U008 R5251 CARBON R R16J-68K 417346834T PCB-U008 R5252 CARBON R R16J-68K 417346834T PCB-U008 R5253 CARBON R R16J-68K 417346834T PCB-U008 R5254 CARBON R R16J-68K 417346834T PCB-U008 R5255 CARBON R R16J-68K 417346834T...
  • Page 259 198/207 PAGE R5295 CARBON R R16J-100K 417341044T PCB-U008 R5296 CARBON R R16J-100K 417341044T PCB-U008 R5297 CARBON R R16J-100K 417341044T PCB-U008 R5298 CARBON R R16J-100K 417341044T PCB-U008 R5300 NF CARBON R R25J-82 415478204T PCB-U008 R5301 NF CARBON R R25J-82 415478204T PCB-U008 R5302 NF CARBON R R25J-82...
  • Page 260 199/207 PAGE R5372 CARBON R R16J-560K 417345644T PCB-U008 R5373 CARBON R R16J-560K 417345644T PCB-U008 R5374 CARBON R R16J-560K 417345644T PCB-U008 R5375 CARBON R R16J-560K 417345644T PCB-U008 R5376 CARBON R R16J-560K 417345644T PCB-U008 R5377 CARBON R R16J-560K 417345644T PCB-U008 R5378 CARBON R R16J-560K 417345644T PCB-U008...
  • Page 261 200/207 PAGE R6038 CARBON R R16J-1.8K 417341824T PCB-U008 R6040 TRIM R N06HR1KBB 5211401T PCB-U008 R6041 TRIM R N06HR1KBB 5211401T PCB-U008 R6042 TRIM R N06HR1KBB 5211401T PCB-U008 R6043 TRIM R N06HR1KBB 5211401T PCB-U008 R6044 TRIM R N06HR1KBB 5211401T PCB-U008 R6045 TRIM R N06HR1KBB 5211401T PCB-U008...
  • Page 262 201/207 PAGE R6075 NF CARBON R R25J-82 415478204T PCB-U008 R6076 NF CARBON R R25J-82 415478204T PCB-U008 R6077 NF CARBON R R25J-82 415478204T PCB-U008 R6078 NF CARBON R R25J-82 415478204T PCB-U008 R6110 CARBON R R16J-10K 417341034T PCB-U008 R6111 CARBON R R16J-10K 417341034T PCB-U008 R6112...
  • Page 263 202/207 PAGE R6272 NF CARBON R R25J-18 415471804T PCB-U008 R6273 NF CARBON R R25J-18 415471804T PCB-U008 R6274 NF CARBON R R25J-18 415471804T PCB-U008 R6275 NF CARBON R R25J-18 415471804T PCB-U008 R6276 NF CARBON R R25J-18 415471804T PCB-U008 R6277 NF CARBON R R25J-18 415471804T PCB-U008...
  • Page 264 203/207 PAGE R6308 NF CARBON R R25J-2.2 415470224T PCB-U008 R6310 NF CARBON R R25J-10 415471004T PCB-U008 R6311 NF CARBON R R25J-10 415471004T PCB-U008 R6312 NF CARBON R R25J-10 415471004T PCB-U008 R6313 NF CARBON R R25J-10 415471004T PCB-U008 R6314 NF CARBON R R25J-10 415471004T PCB-U008...
  • Page 265 204/207 PAGE P5024A NTM-1P233(M1969) 25060302 PCB-U008 P5025A NTM-1P233(M1969) 25060302 PCB-U008 P5026A NTM-1P233(M1969) 25060302 PCB-U008 P5027A NTM-1P233(M1969) 25060302 PCB-U008 P5028A NTM-1P233(M1969) 25060302 PCB-U008 P6010A SOCKET NSCT-3P2183 25052286 PCB-U008 P6011A SOCKET NSCT-3P2183 25052286 PCB-U008 P6012A SOCKET NSCT-3P2183 25052286 PCB-U008 P6013A SOCKET NSCT-3P2183 25052286 PCB-U008 P6014A...
  • Page 266 205/207 PAGE D8861 or C-DIODE 1SS352 ( 1) 223234R2 PCB-U010 D8862 C-DIODE KDS4148U 223283R2 PCB-U010 D8862 or C-DIODE 1SS352 ( 1) 223234R2 PCB-U010 Q3300 TPD2E001DRLR 22242589R2 PCB-U010 Q8861 TMDS141RHARG4 22242586R2 PCB-U010 [TRANS COIL] PCB-U010 L8861 CORE BLM18PG181SN1D 2350005R1 PCB-U010 [CAPACITOR] PCB-U010 C3302 C-FILM C...
  • Page 267 W50 SBT-70 29110200 PACKING A751A UPC LABEL DTR80.1DD 29390897 N <MDD> PACKING A751A EAN LABEL DTR80.1MA 29390900 N <MMA> PACKING A761 LABEL (MMA) 29390973 <MMA> PACKING A771 WRNTY CARD (INTEGRA) 29365136 <MDD> PACKING [ACCESSARY] PACKING A831 INS MANUAL En(DTR-70.1/80.1) 29400074 PACKING...
  • Page 268 207/207 PAGE A832 INS MANUAL U9(RC736/737/738/739) 29344962 PACKING A833 INS MANUAL U2JaEn(Software_807/HT-RC180) 29400164 PACKING A834 INS MANUAL En(Pand/Rhap/InterSir_INTE) 29400168 <MDD> PACKING A841 INST SHEET En(2009E_RIHD) 29355745 PACKING A842 INST SHEET WINDOWS7 29355775 PACKING A851 HANDBILL (SIRIUS) 29380149 <MDD> PACKING A852 LABEL (SPCABLE)2009 29390881...

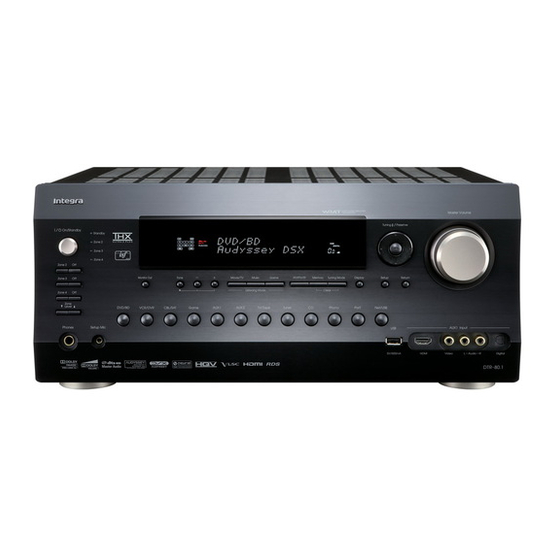

  • Page 269 DTR-80.1 Integra Division of ONKYO CORPORATION Service Dept. Technical Support : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 http://www.onkyo.com/ Integra Division of ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com...

This manual is also suitable for:

Dtr-80.1 seriesDtr-80.1 b mma
