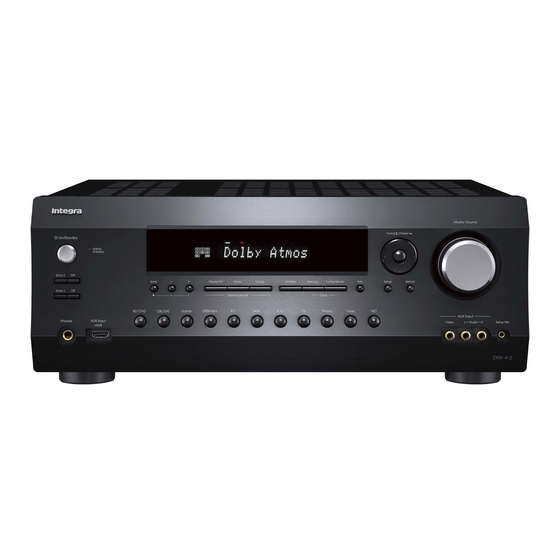

DRX-4.2
AV RECEIVER
Instruction Manual
En
Table of contents
Connections
- Connecting Speakers
Playback
Setup
Troubleshooting
Appendix
Supplementary Information
Front Panel≫ Rear Panel≫ Remote≫
≫
≫
≫
≫
≫
≫
≫
≫

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRX-4.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Integra DRX-4.2

Summary of Contents for Integra DRX-4.2

  • Page 1 ≫ Table of contents ≫ Connections ≫ - Connecting Speakers DRX-4.2 AV RECEIVER ≫ Playback ≫ Setup ≫ Troubleshooting Instruction Manual ≫ Appendix ≫ Supplementary Information Front Panel≫ Rear Panel≫ Remote≫...

  • Page 2: Table Of Contents

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box Connecting an AV Component in a Separate Room (Multi-zone Connection) Part Names Connecting a TV (ZONE 2) Front Panel Connecting a Pre-main Amplifier (ZONE 2) Display Connecting a Pre-main Amplifier (ZONE 3) Rear Panel Connecting Antennas Remote Controller...
  • Page 3 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode Playing Back USB Storage Device Selecting a Listening mode Basic Operations Listening Mode Effects Device and Supported Format Selectable listening modes Setup Playing back files on a PC and NAS (Music Server) Windows Media Player settings ®...

  • Page 4: Troubleshooting

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Updating the Firmware via Network Updating via USB Initial Setup with Auto Start-up Wizard Operations Troubleshooting When the unit is operating erratically Troubleshooting Appendix About HDMI General Specifications Front Panel≫ Rear Panel≫ Remote≫...

  • Page 5: What's In The Box

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box 1. Main unit (1) 2. Remote controller (RC-913R) (1), Batteries (AAA/R03) (2) 3. Speaker setup microphone (1) • Used during Initial Setup. 4. Indoor FM antenna (1) 5. AM loop antenna (1) 6.

  • Page 6: Part Names

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Part Names Front Panel 7 8 9 bkbl bpbq br bs ❏ For details, see ( Front Panel≫ Rear Panel≫ Remote≫...
  • Page 7 Contents Connections Playback Setup ≫ ≫ ≫ ≫ On/Standby button 2. Hybrid Standby indicator: Lights if the unit enters standby mode when the functions such as HDMI Standby Through and Network Standby that work in standby are enabled. 3. You can adjust the sound quality of the speakers. Press the Tone button to select an item to adjust from "Bass"...

  • Page 8: Display

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Display 1. Speaker/Channel display: Displays the output channel that corresponds to the 6. Displays various information of the input signals. selected listening mode. • "DialogNorm: X dB" ("X" is a numerical value) may be displayed when a 2.

  • Page 9: Rear Panel

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Rear Panel ❏ For details, see ( p10) Front Panel≫ Rear Panel≫ Remote≫...
  • Page 10 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio 20. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a signals with a digital optical cable or digital coaxial cable. subwoofer cable.

  • Page 11: Remote Controller

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Remote Controller On/Standby button 2. Input selector buttons: Switches the input to be played. 3. Q (Quick Menu) button: Pressing this button during playback can make settings such as "Tone" and "Level" quickly on the TV screen while playing. ( p154) 4.

  • Page 12: Connections

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connections Connecting speakers Connecting the TV Connecting Playback Devices Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting Antennas Network Connection Connecting External Control Devices Connecting the Power Cord Front Panel≫ Rear Panel≫ Remote≫...

  • Page 13: Connecting Speakers

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting speakers You can select the layout of speakers to be installed from various patterns when using this unit. Use the following flow chart to select the speaker layout that suits your speakers and usage environment.

  • Page 14: Speaker Installation

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Installation „ 5.1 Channel System This is a basic 5.1 Channel System. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
  • Page 15 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System p14) and added surround back speakers. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
  • Page 16 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( p14) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ❏...
  • Page 17 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Front High Speakers/Rear High Speakers This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and Installation Example added front high speakers or rear high speakers combined.
  • Page 18 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Ceiling Speakers Installation Example This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined. By installing such height speakers, when the input format is Dolby Atmos, you can select the Dolby Atmos listening mode which realizes the most up-to-date 3D sound including overhead sound.
  • Page 19 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Dolby Enabled Speakers (Dolby Speakers) This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and Installation Example added Dolby enabled speakers (front) or Dolby enabled speakers (surround) combined.
  • Page 20 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System A 7.1.2 Channel System is a speaker layout consisting of the 7.1 Channel System ( p15) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ❏...
  • Page 21 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Front High Speakers/Rear High Speakers This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and Installation Example a powered subwoofer, and added front high speakers or rear high speakers combined.
  • Page 22 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Ceiling Speakers Installation Example This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined.
  • Page 23 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Dolby Enabled Speakers (Dolby Speakers) This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a Installation Example powered subwoofer, and added Dolby enabled speakers (front), Dolby enabled speakers (surround) or Dolby enabled speakers (surround back) combined.
  • Page 24 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System A 5.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 5.1 Channel System ( p14).
  • Page 25 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers *2: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 26 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 27 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3’/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
  • Page 28 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more The width between the rear high speakers should match the one for the front 3´...
  • Page 29 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use top rear speakers at the rear     *4: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 30 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) *3: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 31 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 32 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System A 7.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 7.1 Channel System ( p15).
  • Page 33 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers *2: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 34 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 35 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3’/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
  • Page 36 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more ...
  • Page 37 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use top rear speakers at the rear (Example 5) Use Dolby Enabled Speakers (Surround Back) at the rear         *5: 125° to 150° The Dolby enabled speakers are the special speaker that the sound is emitted The top rear speakers are installed on the ceiling at rear of the listening position, toward the ceiling, and have the effect the sound to come from above by...
  • Page 38 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) *4: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 39 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.

  • Page 40: Speaker Connections And "Speaker Setup" Settings

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Connections and "Speaker Setup" Settings Connections Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass „...
  • Page 41 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Connect the Subwoofer a Subwoofer cable Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.
  • Page 42 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have. Next •...
  • Page 43 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Zone 2 Bi-Amp...
  • Page 44 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System (Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 45 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have. Next •...
  • Page 46 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Zone 2 Bi-Amp...
  • Page 47 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System(Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 48 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 49 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Front High Zone Speaker Zone 2...
  • Page 50 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System(Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Front High Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 51 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 7.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 52 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 7.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Zone 2...
  • Page 53 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1.4 ch < > Subwoofer Height 1 Speaker Top Middle Height 2 Speaker Rear High Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 54 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p163) Speaker Setup Speaker Channels 5.1.4 ch < > Subwoofer Height 1 Speaker Top Middle Height 2 Speaker Rear High Zone Speaker...
  • Page 55 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System Power amplifier This is an example of combining the top middle speakers at the front and the rear high p163) "Speaker Setup" settings during Initial Setup ( speakers at the rear to the 7.1 Channel System. The height speakers in front can be selected „...
  • Page 56 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System + ZONE SPEAKER MAIN ROOM Power amplifier ZONE 2 MAIN ROOM: This is an example of combining the top middle speakers at the front and the p163) "Speaker Setup" settings during Initial Setup ( rear high speakers at the rear to the 7.1 Channel System.

  • Page 57: Connecting A Power Amplifier

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Power Amplifier Power amplifier You can connect a power amplifier to the unit and use the unit as a pre-amplifier in order to produce a large volume that cannot be output with the unit only. Connect the speakers to the power amplifier.

  • Page 58: Speaker Combinations

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker combinations • Up to two powered subwoofers can be connected in either combination. Speaker SURROUND ZONE 2 (*1) ZONE 3 (*1) FRONT CENTER SURROUND HEIGHT 1 HEIGHT 2 Bi-AMP (*1) Channels BACK (ZONE SPEAKER) (ZONE SPEAKER)

  • Page 59: Connecting The Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the TV Connect this unit between a TV and AV component. Connecting this unit with the TV can output the video and audio signals of the AV component to the TV, or play the audio of the TV on this unit.

  • Page 60: To Arc Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ To ARC TV If the TV supports the ARC (Audio Return Channel) function (*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection.

  • Page 61: To Non-Arc Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ To Non-ARC TV If the TV does not support the ARC (Audio Return Channel) function (*), connect an HDMI cable and digital optical cable. If the TV does not have a DIGITAL OPTICAL OUT jack, you can use an analog audio cable to connect with the AUDIO IN TV jack.

  • Page 62: Connecting Playback Devices

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Playback Devices Connecting an AV Component with HDMI Jack Mounted This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc.

  • Page 63: Connecting An Av Component Without Hdmi Jack Mounted

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component without HDMI Jack Mounted This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too.

  • Page 64: Connecting An Audio Component

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an Audio Component This is a connection example of an audio component. Connect a CD player using a digital optical cable or analog audio cable. You can also connect a turntable that has an MM-type cartridge to the PHONO jack.

  • Page 65: Connecting A Video Camera, Etc

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Video Camera, etc. Connect a video camera, etc. to the AUX Input HDMI jack on the front panel using an HDMI cable. Video camera a HDMI cable Front Panel≫ Rear Panel≫ Remote≫...

  • Page 66: Connecting An Av Component In A Separate Room (Multi-Zone Connection)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting a TV (ZONE 2) While a disc is played on a Blu-ray Disc player in the main room (where this unit is located), you can play the video and audio of the same Blu-ray Disc player or another AV component on the TV equipped with an HDMI IN jack in a separate room (ZONE 2).

  • Page 67: Connecting A Pre-Main Amplifier (Zone 2)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 2) You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 2 PRE/LINE OUT jack of this unit and the LINE IN jack of the pre-main amplifier or power amplifier in the separate room.

  • Page 68: Connecting A Pre-Main Amplifier (Zone 3)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 3) You can enjoy 2-ch audio in the separate room (ZONE 3) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 3 PRE/LINE OUT jack of this unit and the LINE IN jack of the pre-main amplifier or power amplifier in the separate room.

  • Page 69: Connecting Antennas

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Antennas Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape. (North American (Australian models)

  • Page 70: Network Connection

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Network Connection This unit can be connected to the network using a wired LAN. You can enjoy network functions such as Internet radio by network connection. Connect the router and the ETHERNET jack with the LAN cable as shown in the illustration. a LAN cable Front Panel≫...

  • Page 71: Connecting External Control Devices

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting External Control Devices IR IN/OUT port When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the remote control signal is difficult to reach (due to installation in the cabinet, etc.).

  • Page 72: Trigger Out Jack

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 12V TRIGGER OUT jack When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit.

  • Page 73: Connecting The Power Cord

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the Power Cord Connect the power cord after all the connections are completed. • This unit includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

  • Page 74: Playback

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playback AV Component Playback Internet Radio Spotify AirPlay ® DTS Play-Fi ® FlareConnect USB Storage Device Playing back files on a PC and NAS (Music Server) Play Queue Listening To the AM/FM Radio Multi-zone Convenience functions Listening Mode...

  • Page 75: Av Component Playback

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ AV Component Playback You can play the audio from AV components, such as Blu-ray disc players through this unit. • When a TV is connected to the HDMI OUT SUB jack, press Q, and select "Other" - "HDMI Out" to switch between MAIN and SUB. Basic Operations Perform the following procedure when this unit is on.

  • Page 76: Internet Radio

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio By connecting this unit to an Internet-connected network, you can enjoy Internet radio services, such as TuneIn Radio, etc. • To play Internet radio services, the network needs to be connected to the Internet. •...
  • Page 77 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio Service Menu You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon is displayed while a station is being played. When only this icon is displayed, pressing Enter will display the menu on the screen.

  • Page 78: Spotify

    ZONE speaker terminals or when the volume of the audio device in a separate room is configured so that its volume can be adjusted on Integra DRX-4.2 XXX Devices Available this unit. In any other cases, adjust the volume on the audio device placed in a separate room.

  • Page 79: Airplay

    Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on this unit. Next, click the AirPlay icon iTunes, select this unit from the displayed devices, and start play of a music file. iPhone Integra DRX-4.2 XXXXXX e.g., iOS 10 Front Panel≫ Rear Panel≫ Remote≫...

  • Page 80: Dts Play-Fi

    "Group playback" that plays the same music in separate • To use a music streaming distribution service, user registration may be rooms at home. To enjoy this function, download Integra Music Control App required. (available on iOS or Android™).

  • Page 81: Flareconnect Tm

    ≫ ≫ FlareConnect When downloading Integra Control Pro (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can enjoy the group playback that plays the same music on multiple audio products supporting the FlareConnect function.
  • Page 82 Contents Connections Playback Setup ≫ ≫ ≫ ≫ USB Storage Device You can play music files stored on a USB storage device. Basic Operations Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2.
  • Page 83 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • To return to the previous screen, press • To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files.
  • Page 84 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Device and Supported Format USB Storage Device Requirements WAV (.wav/.WAV): WAV files contain uncompressed PCM digital audio. • This unit can use USB storage devices that comply with the USB mass • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, storage class standard.
  • Page 85 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing back files on a PC and NAS (Music Server) Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported. • The network servers supported by this unit are PCs that incorporate players equipped with the server functions such as Windows Media Player 11 or 12, or NASes ®...
  • Page 86 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2. Start the server (Windows Media Player 11, Windows Media Player 12, or ®...
  • Page 87 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Select the target server with the cursors, and press Enter to display the items Player 12, it must be configured beforehand. list screen. Setting PC • This unit cannot access pictures and videos stored on servers. 1.
  • Page 88 Contents Connections Playback Setup ≫ ≫ ≫ ≫ – It is playing a music file on a USB storage device. • Depending on the version of Windows Media Player, the names of items to ® select may differ from the above description. ❏...
  • Page 89 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Supported Audio Formats This unit supports the following music file formats. Remote play of FLAC and Apple Lossless (.m4a/.mp4/.M4A/.MP4): DSD is not supported. • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz •...
  • Page 90 Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.) When downloading Integra Control Pro (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can save your favorite playlist...
  • Page 91 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • If there are no tracks on the Play Queue list, only "Play Now " is 3. To delete a track, slide the track to the left until the trash icon changes to " ".
  • Page 92 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening To the AM/FM Radio You can receive AM and FM radio stations on this unit with the built-in tuner. Tuning into a Radio Station Perform the following procedure when this unit is on. Tuning Automatically 1.
  • Page 93 Contents Connections Playback Setup ≫ ≫ ≫ ≫ When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" ( p93). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.
  • Page 94 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Presetting a Radio Station Registration Procedure You can preset up to 40 of your favorite AM/FM radio stations. After tuning in to the AM/FM radio station you want to register, perform the following procedure.
  • Page 95 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Selecting a Preset Radio Station 1. Press Tuner. 2. Press the cursors to select a preset number. Deleting a Preset Radio Station 1. Press Tuner. 2. Press the cursors to select the preset number to delete. 3.
  • Page 96 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Using RDS (Australian models) RDS stands for Radio Data System, and is a method of transmitting data in FM characters. This is not a malfunction. Also, if the signal from a station is weak, radio signals.
  • Page 97 You cannot select different stations of AM/FM broadcasts for the main room and separate room. Integra Control Pro is useful for the multi-zone playback operation. Download Integra Control Pro (available on iOS or Android™) to a mobile device, such as a smartphone and tablet to use it.
  • Page 98 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Switch remote control mode (Zone 2) At the time of purchase, the remote controller is in the mode to control playback Setting the ZONE in the main room. To play a source in ZONE 2, set the remote controller to the control mode (ZONE 2) ZONE control mode (ZONE 2).
  • Page 99 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Switch remote control mode (Zone 3) At the time of purchase, the remote controller is in the mode to control playback Setting the ZONE in the main room. Settings are required to playback a source in ZONE 3. control mode (ZONE 3) When outputting from the speakers: Set "2.
  • Page 100 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back Set the remote controller to the ZONE control mode (ZONE 2/ZONE 3) p98, 99), and then perform the following operations. 1. Point the remote controller at the unit, and press . •...
  • Page 101 Contents Connections Playback Setup ≫ ≫ ≫ ≫ component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output. • When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign"...
  • Page 102 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Convenience functions Adjusting the tone You can adjust the sound quality of the speakers. 1. Press the Tone button on the main unit to select the setting to adjust from "Bass" and "Treble". Bass: Enhances or moderates the low-tone range of the speakers.
  • Page 103 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing Movie/TV, Music, and Game. Selecting a Listening mode 1.
  • Page 104 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Checking the input format and listening mode Pressing repeatedly will switch the display of the main unit in the following order. Input source and volume Listening mode Input format The display is switched in a few seconds.
  • Page 105 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode Effects In alphabetical order region (sound elements for the subwoofer). • To enable transfer of this audio format, connect via a digital cable and set „ AllCh Stereo audio output on the player to Bitstream output. This mode is ideal for background music.
  • Page 106 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ DSD possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. It also supports low bit rates. This mode is suitable for playing sources recorded in DSD. •...
  • Page 107 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Game-Sports audio mixing, and it is characterized by the precise positioning of sounds and the ability to express sound movement. This mode is suitable for sports games. • To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.
  • Page 108 Contents Connections Playback Setup ≫ ≫ ≫ ≫ that is called a dubbing stage on the assumption that the soundtrack is played speakers is absorbed into the sound from the nearby speakers, and cannot be in such theaters with similar equipment and conditions. These soundtracks distinguished any more.
  • Page 109 Contents Connections Playback Setup ≫ ≫ ≫ ≫ sources recorded in a multichannel format. In this mode, the THX ASA processing technology creates a broad and stable back sound field when playing music sources recorded in 5.1ch, such as DTS, Dolby Digital, and DVD-Audio.
  • Page 110 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Selectable listening modes „ Movie/TV button You can select a variety of listening modes Input Format Listening Mode according to the audio format of the signal to be Multich PCM Direct input. Input Format Listening Mode Multich...
  • Page 111 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct Direct *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Cinema THX Cinema THX Cinema THX Sel Cin...
  • Page 112 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct DTS 96/24 Direct DTHD DTHD DTS 96/24 *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Cinema...
  • Page 113 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Direct DTS-HD HR Direct DTS-HD MSTR Direct DTS Express DTS-HD HR DTS-HD MSTR *1 *2 *1 *2 *1 *2 DSur DSur DSur...
  • Page 114 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Music button Input Format Listening Mode Input Format Listening Mode DTS-ES Direct Multich PCM Direct Input Format Listening Mode Stereo Analog Direct Multich ES Matrix Stereo ES Discrete DSur DSur DTS Neural:X DSur DTS Neural:X DTS Neural:X...
  • Page 115 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct Direct Stereo Stereo Stereo *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Music THX Music THX Music...
  • Page 116 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct DTS 96/24 Direct DTHD Stereo Stereo Stereo DTS 96/24 DTHD *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X...
  • Page 117 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Direct DTS-HD HR Direct DTS-HD MSTR Direct Stereo Stereo Stereo DTS Express DTS-HD HR DTS-HD MSTR *1 *2 *1 *2 *1 *2 DSur...
  • Page 118 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Game button Input Format Listening Mode Input Format Listening Mode DTS-ES Direct Multich PCM Direct Input Format Listening Mode Stereo Multich Analog Direct DSur DSur ES Matrix DTS Neural:X DTS Neural:X ES Discrete THX Games THX Games...
  • Page 119 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct Direct *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Games THX Games THX Games THX Sel Gam...
  • Page 120 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct DTS 96/24 Direct DTHD DTS 96/24 DTHD *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Games...
  • Page 121 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Direct DTS-HD HR Direct DTS-HD MSTR Direct DTS Express DTS-HD HR DTS-HD MSTR *1 *2 *1 *2 *1 *2 DSur DSur DSur...
  • Page 122 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode DTS-ES Direct ES Matrix ES Discrete DSur DTS Neural:X THX Games Game-RPG Game-Action Game-Rock Game-Sports AllCh Stereo Full Mono This can only be selected when no surround back speaker is connected. Surround back speakers need to be installed.
  • Page 123 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setup Menu Menu list You can configure advanced settings to have a more enjoyable experience with this unit. For operation details, refer to "Menu operations". ( p125) 1. Input/Output 1. TV Out / OSD Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.
  • Page 124 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source 1. IntelliVolume Adjust the volume level when there are differences in volume level among multiple devices p137 connected to this unit. 2. Name Edit Set an easy name for each input. p137 Audio Select Select the priority for input selection when multiple audio sources are connected to one input selector.
  • Page 125 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Menu operations Use the on-screen displays (OSD) that appear on the TV to make the settings. Press on the remote controller to display the Setup menu. Setup 1. Input/Output Assign 1. TV Out / OSD 2.
  • Page 126 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. Input/Output Assign Setting Item Default Value Setting Details OSD Language English Select the on-screen display language from the „ 1. TV Out / OSD following. English, German, French, Spanish, Italian, Dutch, Make settings for TV output and On-Screen Displays (OSD) that appear on the Swedish, Russian, Chinese Impose OSD...
  • Page 127 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. HDMI Input Setting Item Default Value Setting Details "HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Change input assignment between the input selectors and HDMI IN jacks. Assign a desired HDMI IN jack to the TV button. If you do not assign a jack, select "---".
  • Page 128 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 4. Digital Audio Input Setting Item Default Value Setting Details "COMPONENT 1", "COMPONENT 2": Assign the Change input assignment between the input selectors and DIGITAL IN COAXIAL/ COMPONENT VIDEO IN jacks to the PC button. OPTICAL jacks.
  • Page 129 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 2. Speaker „ 5. Analog Audio Input Change input assignment between the input selectors and AUDIO IN jacks. If you „ 1. Configuration do not assign a jack, select "---". Change the settings of connection environment of the speakers. Setting Item Default Value Setting Details...
  • Page 130 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Height 2 Speaker Rear High Set the speaker type if height speakers are Bi-Amp Set whether the front speakers are bi-amp connected to the HEIGHT 2 terminals.
  • Page 131 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Center 80Hz (THX) Select the crossover frequency from "40Hz" to Surround 80Hz (THX) Select the crossover frequency from "40Hz" to "200Hz"...
  • Page 132 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Distance Setting Item Default Value Setting Details Surround Left 7.0 ft/2.10 m Specify the distance between each speaker and Set the distance from each speaker to the listening position. the listening position. Setting Item Default Value Setting Details...
  • Page 133 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5. Dolby Enabled Speaker Setting Item Default Value Setting Details Height 2 Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB" (in Change the settings of Dolby Enabled Speakers. 0.5 dB increments).
  • Page 134 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7. THX Audio Setting Item Default Value Setting Details Height 1 0.0 dB After selecting the speaker frequency between Change the THX Audio settings. "25 Hz" and "16 kHz" with the cursors / , adjust the volume of that frequency between "-6.0 dB"...
  • Page 135 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 3. Audio Adjust Setting Item Default Value Setting Details Loudness Plus When this is set to "On", you can enjoy even subtle „ 1. Multiplex/Mono nuances of audio expression at low volume. This is only available when the THX listening mode is Change the settings of multiplex audio playback.
  • Page 136 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Dolby „ 5. Volume Change the setting of when Dolby signals are input. Change the Volume settings. Setting Item Default Value Setting Details Setting Item Default Value Setting Details Loudness When playing Dolby TrueHD, enable the dialog Volume Display Absolute...
  • Page 137 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source „ Audio Select Select the priority for input selection when multiple audio sources are connected „ 1. IntelliVolume to one input selector, for example, connections to both the "BD/DVD" HDMI IN jack and the "BD/DVD"...
  • Page 138 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 5. Listening Mode Preset Setting Item Default Value Setting Details PCM Fixed Mode Select whether to fix input signals to PCM (except multi-channel PCM) when you select "HDMI", You can preset your favorite listening mode to each input. (For example, you can "COAXIAL", or "OPTICAL"...
  • Page 139 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Hardware Setting Item Default Value Setting Details HDMI Standby When this is set to anything other than "Off", „ 1. HDMI Through you can play the video and audio of an HDMI- connected player on the TV even if the unit is in Change the settings of the HDMI function.
  • Page 140 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Network Setting Item Default Value Setting Details Audio TV Out You can enjoy audio through the speakers of the Change the settings of the Network function. TV while this unit is on. •...
  • Page 141 Setting Details Setting Item Default Value Setting Details Friendly Name Integra DRX-4.2 Change the model name of this unit which is Usage Data To improve the quality of our products and services, XXXXXX displayed on the device connected to the network we may collect information about your usage via a to an easily recognized name.
  • Page 142 Auto Standby This setting allows the unit to enter standby mode application such as Integra Remote that can control automatically after 20 minutes of inactivity without this unit. any video or audio input. (When "USB Power Out •...
  • Page 143 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 4. 12V Trigger A Setting Item Default Value Setting Details CBL/SAT Main Set the 12V trigger output setting to each input. Set when outputting the control signal (maximum 12 V/100 mA) through the 12V "Off": No output TRIGGER OUT A jack.
  • Page 144 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details STRM BOX Main Set the 12V trigger output setting to each input. Main Set the 12V trigger output setting to each input. "Off": No output "Off": No output "Main": Output when "STRM BOX"...
  • Page 145 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Main Set the 12V trigger output setting to each input. TUNER Main Set the 12V trigger output setting to each input. "Off": No output "Off": No output "Main": Output when "TV"...
  • Page 146 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5. 12V Trigger B Setting Item Default Value Setting Details CBL/SAT Zone 2 Set the 12V trigger output setting to each input. Set when outputting the control signal (maximum 12 V/25 mA) through the 12V "Off": No output TRIGGER OUT B jack.
  • Page 147 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details STRM BOX Zone 2 Set the 12V trigger output setting to each input. Zone 2 Set the 12V trigger output setting to each input. "Off": No output "Off": No output "Main": Output when "STRM BOX"...
  • Page 148 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Zone 2 Set the 12V trigger output setting to each input. TUNER Zone 2 Set the 12V trigger output setting to each input. "Off": No output "Off": No output "Main": Output when "TV"...
  • Page 149 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 6. 12V Trigger C Setting Item Default Value Setting Details CBL/SAT Main/Zone 2/ Set the 12V trigger output setting to each input. Set when outputting the control signal (maximum 12 V/25 mA) through the 12V Zone 3 "Off": No output TRIGGER OUT C jack.
  • Page 150 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details STRM BOX Main/Zone 2/ Set the 12V trigger output setting to each input. Main/Zone 2/ Set the 12V trigger output setting to each input. Zone 3 "Off": No output Zone 3...
  • Page 151 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Main/Zone 2/ Set the 12V trigger output setting to each input. TUNER Main/Zone 2/ Set the 12V trigger output setting to each input. Zone 3 "Off": No output Zone 3...
  • Page 152 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 7. Multi Zone Setting Item Default Value Setting Details Maximum Volume Off Set the maximum value for Zone 3 to prevent the „ 1. Zone 2 volume from becoming too loud. Select a value from "Off", and "50"...
  • Page 153 Setting Details network function is activated. Remote ID If multiple Integra/ONKYO products are installed in „ 4. Initial Setup the same room, select the ID for the remote control used with this unit from "1", "2" and "3" to prevent Make the initial setup from the setup menu.
  • Page 154 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Quick Menu Menu operations You can quickly adjust the settings you frequently use, such as tone adjustments, etc. You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.
  • Page 155 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ AccuEQ – When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off" AccuEQ Room Calibration: Enable or disable the equalizer function that – When the input signal is DTS:X, and "Dialog Control" is not 0 dB corrects for sound distortion caused by the acoustic environment of the room.
  • Page 156 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Web Setup Menu operations You can make the settings for the network function of this unit using an Internet Network Connection: This unit does not support wireless connection, so select browser on a PC, smartphone, etc. "Wired".
  • Page 157 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Firmware Update Updating Function on This Unit This unit has a function to update the firmware (system software) via network or USB port. This function can improve various operations and add various functions.
  • Page 158 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Updating the Firmware via Network • Check that the unit is turned on, and the connection to the Internet is secured. • If "Firmware Update" is grayed out and cannot be selected, wait for a while •...
  • Page 159 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • Others: After removing the power plug once, insert it to the outlet, and then start the operation from the beginning. ❏ Updating via USB ( p160) Front Panel≫ Rear Panel≫ Remote≫...
  • Page 160 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Updating via USB • Prepare a 128MB or larger USB storage device. The format of USB storage as an independent device. devices supports FAT16 or FAT32 file system format. 5. Press – Media inserted into a USB card reader may not be used for this function. The Setup menu is displayed on the TV screen.
  • Page 161 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • When "Completed!" is displayed, the update is complete. 8. Disconnect the USB storage device from the unit. 9. Press On/Standby on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version.
  • Page 162 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Initial Setup with Auto Start-up Wizard Operations When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for TV’s REMOTE startup using simple operations following on-screen guidance.
  • Page 163 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • If you have terminated the Initial Setup halfway, turn this unit to standby mode. • If the power of this unit suddenly turns off, the wires in the speaker cables Then turning the power on again can display the Initial Setup again. have touched the rear panel or other wires, and the protection circuit is The Initial Setup appears on the screen each time the power is turned on working.
  • Page 164 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Once the measurement is completed, it is possible to perform the measurement in 2 additional listening positions. To perform the measurement, select "Next" and press Enter, then follow the instructions. To not perform the measurement, select "Finish (Calculate)"...
  • Page 165 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Troubleshooting „ Tuner „ Network function Before starting the procedure „ USB storage device Problems may be solved by simply turning the power on/off or disconnecting/ „ Multi-zone function (for compatible models only) 172 connecting the power cord, which is easier than working on the connection, setting and operating procedure.

  • Page 166: When The Unit Is Operating Erratically

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ When the unit is operating erratically ❏ Try restarting the unit Restarting this unit may solve the problem. After turning the unit to standby mode, press and hold the On/Standby button of the main unit for at least 5 seconds, and then restart the unit.

  • Page 167: Troubleshooting

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Troubleshooting „ Power ❏ Cannot turn on the unit • Make sure that the power cord is properly plugged into the wall outlet. p73) • Unplug the power cord from the outlet once, wait 5 seconds or more, then plug it in again. ❏...
  • Page 168 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ No sound from a connected player • Change the input selector on this unit to the position of the terminal to which the player is connected. • Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may be off.

  • Page 169: X84; Listening Modes

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Sound suddenly reduces • When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits. „...

  • Page 170: X84; Video

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Video • Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct. • Make sure that none of the connecting cables are bent, twisted, or damaged. •...

  • Page 171: X84; Tuner

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Tuner ❏ Poor reception or much noise • Recheck the antenna connection. p69) • Move the antenna away from the speaker cord or power cord. • Move the unit away from your TV or PC. •...

  • Page 172: X84; Usb Storage Device

    • If the PC is downloading or copying large files, the playback sound may be interrupted. ❏ The initial setup of Chromecast built-in cannot be performed on Integra Control Pro • If you have agreed to the privacy policy that requires agreement to use the Chromecast built-in function during the Initial Setup of this unit, you do not have to agree to the privacy policy on Integra Control Pro.

  • Page 173: X84; Remote Controller

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Remote Controller • Make sure that the batteries are inserted with the correct polarity. • Insert new batteries. Do not mix different types of batteries, or old and new batteries. • Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type fluorescent lights. Relocate it if necessary. •...
  • Page 174 HDCP standards. Operation has been confirmed on the following devices: (As of January 2018) Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand RIHD-compatible players; Toshiba brand players and recorders; Sharp brand players and recorders (when used with a Sharp brand television)
  • Page 175 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Supported Audio Formats – 4K (3840×2160p) 24/25/30Hz, 4K SMPTE (4096×2160p) 24/25/30Hz : RGB/YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit) 2 ch linear PCM: – 4K (3840×2160p) 50/60Hz, 4K SMPTE (4096×2160p) 50/60Hz : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit YCbCr4:2:0 (8 bit) Multi-channel linear PCM: Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,...
  • Page 176 Contents Connections Playback Setup ≫ ≫ ≫ ≫ General Specifications „ Amplifier Section Tone Control Characteristics (ZONE 2) ±10 dB, 100 Hz (BASS) Rated Output Power (FTC) (North American) ±10 dB, 10 kHz (TREBLE) With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 100 Signal to Noise Ratio watts per channel minimum RMS power, with no more than 0.08% total 106 dB (IHF-A, LINE IN, SP OUT)
  • Page 177 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Network Section Audio Format Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS, DTS:X, Ethernet LAN DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS- 10BASE-T/100BASE-TX ES, DTS Express, DSD, PCM „...
  • Page 178 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Audio Inputs Digital OPTICAL 1 (CD), 2 (TV) COAXIAL (BD/DVD) Analog BD/DVD, CBL/SAT, GAME, STRM BOX, CD, TV, PHONO, AUX (front) „ Audio Outputs Analog ZONE2 PRE/LINE OUT ZONE3 PRE/LINE OUT PRE OUT (FRONT L/R, CENTER, SURROUND L/R, SURROUND BACK L/R, HEIGHT 1 L/R, HEIGHT 2 L/R, 2 SUBWOOFER) Speaker Outputs...
  • Page 179 SN 29403446_EN (C) Copyright 2018 Onkyo & Pioneer Corporation Japan. All rights reserved. http://www.onkyo.com/privacy/ H1805-0...

Table of Contents
