Blodgett BCT-102E Manual

BCT-102E
Single Electric
Combination-Oven/Steamer with
Touchscreen Control

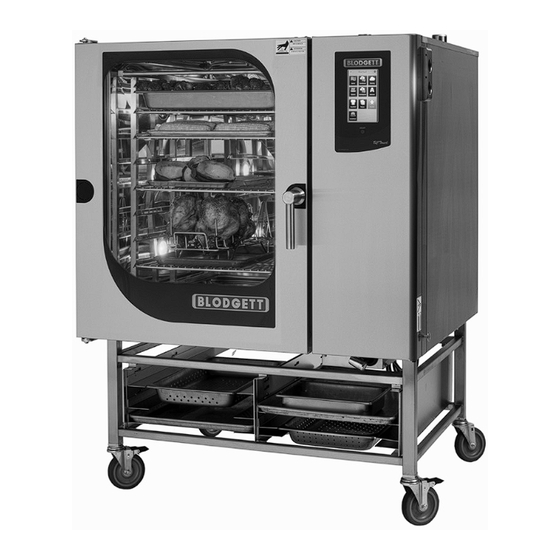

Shown on optional stand with casters
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
„ Banquetting Accessories
‰ Pan cassette with 2.56" (65mm) spacing
‰ Pan cassette with 3.35" (85mm) spacing
‰ Plate cassette with 2.56" (65mm) spacing holds
63 plates
‰ Plate cassette with 3.35" (85mm) spacing holds
51 plates
‰ Transport trolley, to move the cassette
‰ Insulated thermal blanket with vent
‰ 21-1/2" tall stainless steel stand with runners &
casters
‰ Wire oven rack
‰ Right hinge door
‰ Backflow preventer
‰ Extra year warranty
OPTIONS AND ACCESSORIES
(AT NO CHARGE)
‰ Optional pan cassette with 2.56" (65mm) spacing
www.blodgett.com • 44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
Project
Item No.
Quantity
‰ Standard pan cassette with 3.35" (85mm) spacing holds eight full size
sheet pans or sixteen 12" x 20" x 2-1/2" deep North American hotel
pans
‰ Optional pan cassette with 2.56" (65mm) spacing holds ten full size
sheet pans or twenty 12" x 20" x 2" deep Gastronorm pans
Refer to operator manual specification chart for listed model names.
CONSTRUCTION
„ 304 stainless steel exterior and interior
„ Dual pane tempered viewing window with hinged inner glass for easy cleaning
„ 2" (50mm) fixed drain in the bottom center of cavity
„ Door mounted drip tray reduces the risk of wet, slippery floors
„ Automatic door stops in positions of 110° and 180°
„ Left hinge door is field convertible to the right side (with the purchase of con-
version kit)
„ Two step safety door latch. The first step stops the fan.
OPERATION
„ Built in steam generator produces pure, dry steam
„ Automatic boiler flushing system
„ Easy to use touchscreen control
„ Multiple cooking modes include hot air, CombiSmart, CombiOptima, retherm,
steaming, low-temperature steaming, forced steaming, proofing, preheating
„ Stores up to 500 recipes with up to 15 steps each
„ Manual or automatic cooling
„ Automatic humidity pulsing
„ External core temperature probe
„ Rack timing allows for setting individual timers for each rack
„ Reversible 9 speed fan for optimum baking and roasting results
„ USB port for data and recipe transfer
„ HACCP recording and documentation
„ Automated CombiWash, closed circuit cleaning system features very low water
and detergent consumption and no contact with chemicals. No proprietary
chemicals required, see owner's manual for detergent guidelines.
„ Semi automatic deliming system
STANDARD FEATURES
„ Rack support platform
„ External core temperature probe with multiple measuring points
„ 21-1/2" tall stainless steel stand with runners & adjustable feet
„ Bright halogen lights for superior visibility
„ Built in hand shower
„ Removeable cleaning chemical bottle shelf
„ 5 wire shelves
„ Start-up inspection service by factory authorized service agent
„ One year parts and labor oven warranty*
* For all international markets, contact your local distributor.
