Contents Introduction‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 3 Copyrights‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 3 Installing H6essential Control‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 4 Connecting with an H6essential‥ ‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 5 Home Screen‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 7 Making input settings‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 9 Adjusting the line output level‥ ‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 11 Playing a test tone‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 11 Recording‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 12 Adding marks during recording‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 13 ‥...

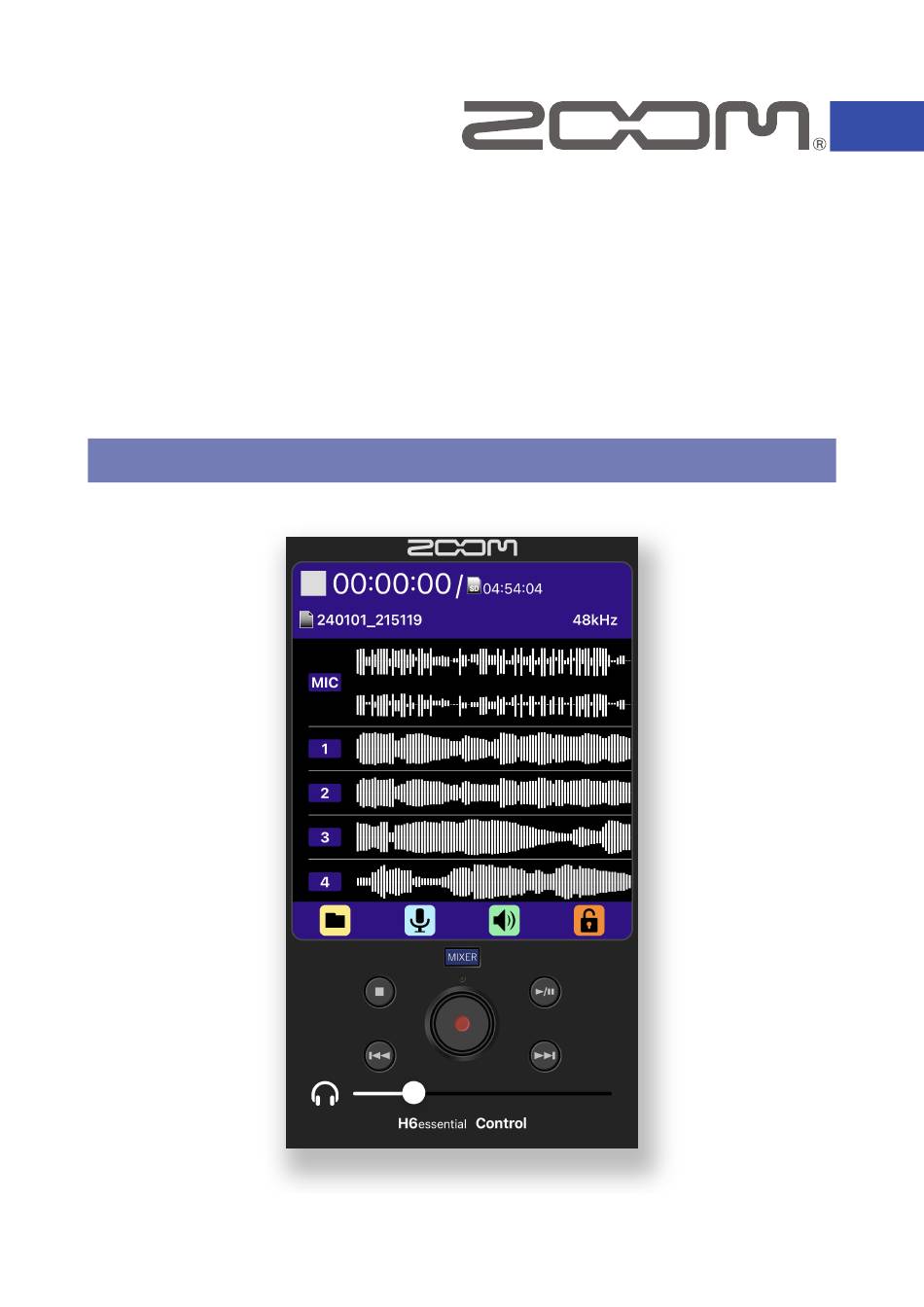

Introduction H6essential Control is a remote control application designed for the ZOOM H6essential Field Recorder. In addition to the fundamental operations of starting/stopping recording/playback and searching forward/backward, this app can be used to add marks and to set various param- eters.
Installing H6essential Control Open the App Store on the iOS/iPadOS device and search for “H6essential Con- trol”. Tap “GET” on the H6essential Control screen. This‥will‥install‥H6essential‥Control‥on‥the‥device.
MEMO •‥ A‥separate‥ZOOM‥BTA-1‥Bluetooth‥adapter‥must‥be‥installed‥in‥H6essential‥to‥remotely‥ control it from a smartphone/tablet. For details, see the operation manual. Remove the H6essential REMOTE connector cover and connect a BTA-1 or oth- er dedicated wireless adapter. Start the H6essential. On the Home Screen, select “SYSTEM” and press “ENTER”.
Page 6
When connection completes, “H6essential Control Connected!” will appear on the H6essential display. MEMO • If connection is not successful, move the device closer to the H6essential or move both to a place where nothing‥interferes‥with‥radio‥waves‥and‥start‥H6essential‥Control‥again.‥Confirm‥also‥that‥the‥Bluetooth‥ function of the iOS/iPadOS device can be used.
Home Screen <Home Screen> Elapsed recording time Remaining battery charge Status icon Remaining recordable time File name Recording format Track button Input signal waveforms Menu bar MIXER button STOP button PLAY/PAUSE button REC button REW button FF button Headphone volume ■...
Page 8
<When recording> → • MARK : Use this to add a mark to the file being recorded. ( Adding marks during recording → • OUTPUT : This opens a screen with settings related to output. ( Adjusting the line output level •...
Making input settings Use this screen to make settings related to inputs. on the Home Screen. This‥opens‥the‥Input‥Settings‥Screen. Tap the input for which you want to set. This‥shows‥the‥various‥setting‥items.
Page 10
Tap a setting on the Input Settings Screen and change it. Setting item Description Lo Cut can cut low frequencies to reduce the sound of wind, Lo Cut vocal pops and other noise. Slide left and right to adjust the cutoff frequency. The‥setting‥whether‥the‥mic‥capsule‥input‥become‥mono‥or‥...
Adjusting the line output level The‥line‥level‥output‥to‥other‥devices‥can‥be‥adjusted. on the Home Screen. This‥opens‥the‥Output‥Settings‥Screen. Slide the Line Out Level left and right to adjust the volume. Playing a test tone A test tone can be played in order to adjust the level of a connected device. on the Home Screen.
Recording Tap the buttons of the tracks that you want to record on the Home Screen. Inputs that will be recorded appear blue. MEMO • Waveforms for input signals that are not being recorded will not be shown on the Home Screen. on the Home Screen.
Adding marks during recording while recording. This‥will‥add‥a‥mark‥at‥the‥position‥of‥the‥current‥elapsed‥recording‥time. The‥playback‥position‥can‥be‥moved‥to‥a‥mark‥during‥playback. Moving the file being recorded to the TRASH folder while recording. Tap YES on the confirmation pop-up. This‥will‥stop‥recording‥and‥move‥the‥file‥being‥recorded‥to‥the‥TRASH‥folder.
Playing recordings Playback time Remaining battery charge Status icon File length Playback file name Playback file format Track button Mark bar Menu bar MIXER button STOP button PLAY/PAUSE button REC button REW button FF button Headphone volume ■ Menu bar •...
Playing recordings when the Home Screen is open. This‥opens‥the‥Playback‥Screen‥on‥the‥display‥and‥starts‥playback‥selected‥recorded‥file. This‥stops‥playback‥and‥reopens‥the‥Home‥Screen.
Repeat playback of a set interval (A-B repeat) Playback can be repeated between two set points. on the Playback Screen. The‥playback‥starting‥point‥and‥the‥playback‥ending‥point‥are‥shown‥on‥the‥Playback‥Screen. Slide left and right to set the A point (playback starting point) and B point (play- back ending point).
Automatic volume adjustment during playback By‥setting‥“Audio‥Normalization”‥to‥“On”,‥the‥playback‥volume‥can‥be‥evened‥out‥regard- less of recording levels. on the Playback Screen. Tap “ON” of the Audio Normalization. Changing the playback speed The‥playback‥speed‥can‥be‥changed. on the Playback Screen. Slide “Playback Speed” left and right to set the playback speed.
Mixer Screen Level meters Volume Stereo mix track Track button Adjusting the monitoring balance of input sounds On the Mixer Screen, the monitoring balance of all inputs can be adjusted. Moreover, the volumes of the input sounds and their stereo mix signal can be checked with the level me- ters.
File List Screen PLAY button File list Menu bar ■ Menu bar • PLAY VIEW :This opens the Playback Screen for the selected file. • TRASH : Use this to move the selected file to the TRASH folder.
Checking files When the Home Screen or Playback Screen is open, tap This‥opens‥the‥File‥List‥Screen,‥which‥list‥the‥files‥on‥the‥microSD‥card. Tap the file name. This‥opens‥the‥Options‥Screen‥where‥you‥can‥check‥the‥following‥information. Data item Description Date Created The‥date‥of‥recording Length Length of time...
