GENERAL PUMP
FEATURES
• Flex coupling and bell housing available
for direct drive
• Oversized, premium bearings for long life
• New generation seal system for longer life
• Forged brass manifold
SPECIFICATIONS
Pump Model
Maximum Volume
Maximum Discharge Pressure
Horsepower
Maximum Pump Speed
Maximum Inlet Pressure
Minimum Inlet Pressure
Plunger Bore (in / mm)
Plunger Stroke (in / mm)
Oil Capacity
Maximum Fluid Temperature
Inlet Port Thread
Discharge Port Thread
Shaft Diameter
Weight
Dimensions
DIMENSIONAL DRAWING
General Pump
is a member of
the Interpump Group
A member of the Interpump Group
.591 in. / 15 mm

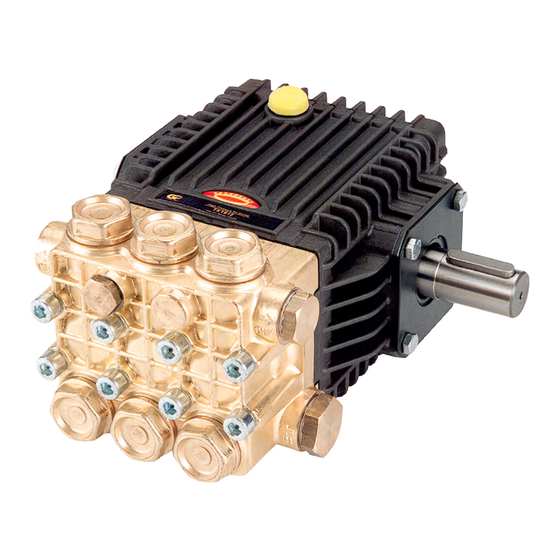

TX Series "63"
Triplex Plunger Pump, Solid Shaft
TX1513S17
3.0 GPM
3000 PSI
6.2 EBHP
1750 RPM
125 PSI
3 Ft. Water / 2.6 In. Hg.
.512 in. / 13 mm
14.0 oz.
165°F
1/2 - 14 BSPP-F
3/8 - 19 BSPP-F
.945 in. / 24 mm
19 lbs.
8.4 in. x 8.3 in. x 4.8 in.
TX1813S17
4.1 GPM
2500 PSI
5.6 EBHP
1750 RPM
.709 in. / 18 mm
Ref 300651 Rev. E
08-22
