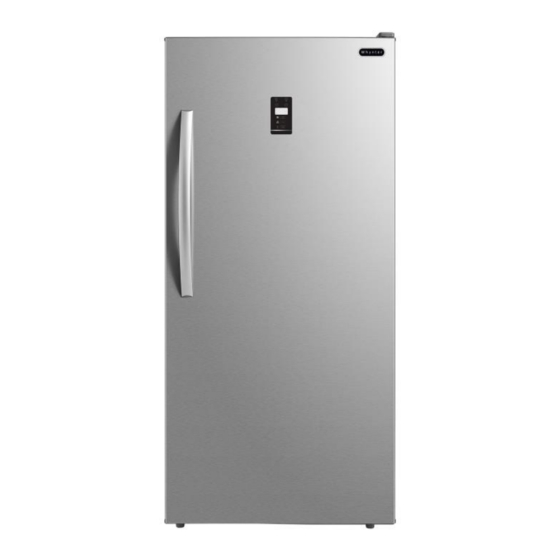

Whynter 13.8 cu.ft. Energy Star Digital Upright
Convertible Deep Freezer / Refrigerator - Stainless Steel
Model # : UDF-139SS
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Whynter UDF-139SS
Summary of Contents for Whynter UDF-139SS
- Page 1 Convertible Deep Freezer / Refrigerator - Stainless Steel Model # : UDF-139SS INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Table of Contents PAGE Safety Precautions 3 - 4 Parts and Accessories Product Features / Technical Data Installation 7 - 8 Operation and Controls 9 - 11 Cleaning and Maintenance 12 - 13 Troubleshooting 14 - 15 Warranty Information... -
Page 3: Safety Precautions
Safety Precautions TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN WARNING USING YOUR APPLIANCE, FOLLOW THESE BASIC PRECAUTIONS: Read all instructions before using the appliance. Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance. - Page 4 Safety Precautions Transport the appliance in an upright position only. Always place the appliance on even and hard and level surface. Close the freezer door immediately after putting in any items to maintain the internal temperature of the unit. ...
-
Page 5: Parts And Accessories
Parts and Accessories BOTTOM REAR SECTION 1. Door Handle 5. Leveling Leg 9. Air Outlet 13. Wheel Rollers (2) 2. Control Panel 6. Door Light Switch 10. Temperature Sensor 14. Compressor 11. Slide-out Wire 3. Door Hinge Cover 7. Light 15. -
Page 6: Product Features / Technical Data
Product Features / Technical Data Get the storage space and features you need with the stainless steel Whynter 13.8 cu.ft. Energy Star Digital Upright Convertible Deep Freezer / Refrigerator. With its powerful fan-circulated compressor, it ensures the precise airflow for efficient temperature distribution. Additionally, the convenient frost-free design ends the need to manually defrost this convertible refrigerator/deep freezer. -
Page 7: Installation
Installation Excessive Weight Hazard Two or more people should move and install convertible refrigerator/deep freezer. Failure to do so can result in back or other injury. REMOVE PACKAGING MATERIALS IMPORTANT: Do not remove any permanent instruction labels or the data label on your convertible refrigerator/ deep freezer REMOVE TAPE AND CLUE FROM YOUR UPRIGHT FREEZER BEFORE USING ... - Page 8 Installation A standard electrical supply (115 VAC only, 60 Hz, 10A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. IMPORTANT: Do not kink or pinch the power supply cord between the convertible refrigerator/deep freezer and wall or cabinet.
-
Page 9: Operation And Controls
Operation and Controls CONTROL PANEL GUIDE To obtain the best possible results for your convertible refrigerator/deep freezer, it is important that you operate it properly. Your convertible refrigerator/deep freezer uses a electronic digital control system for adjusting the ther- mostat. High temperature Door open indicator/alert... - Page 10 Operation and Controls DISPLAY SCREEN The display screen shows the temperature level from –11° to 10°F(-24° to -12°C) in Freezer Mode and 35°F to 46°F (2° to 8°C) in Refrigerator Mode. After setting the desired temperature, the set temperature will stay on for about 30 seconds then it will disappear.
-
Page 11: Operation And Controls
Operation and Controls When loading, freeze only 3 pounds of fresh food per cubic foot of space at a time. Distribute packages evenly throughout the cabinet. Storage recommendation printed on the packaging of frozen food by the manufacturers should be al- ways be followed. -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance NO DEFROSTING You never have to defrost your convertible refrigerator/deep freezer. It has been preset at the factory to de- frost itself automatically. During defrosting, a slight noise may be noticed if the door is opened while the con- vertible refrigerator/deep freezer is in the automatic defrosting cycle. - Page 13 Cleaning and Maintenance ENERGY SAVING TIPS The convertible refrigerator/deep freezer should be located in the coolest area of the room, away from heat- producing appliances or heating ducts, and out of direct sunlight. Let hot foods cool to room temperature before placing in the convertible refrigerator/deep freezer.
-
Page 14: Troubleshooting
The system is blocked Contact Whynter Service Department via email at service@whynter.com Freezer door being opened fre- Refrain from opening the convertible refrigerator/... - Page 15 Contact Whynter Service Department via email at Operational error service@whynter.com Internal temperature is too high Contact Whynter Service Department via email at Control panel beeps. “Hi -Temp” is lit service@whynter.com Press any button mute audible alarm Control panel beeps.
-
Page 16: Warranty Information
ONE YEAR LIMITED WARRANTY This Whynter product is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. When making a warranty claim, please have the original bill or invoice of purchase with purchase date available.
