- Page 1 Latitude SRL-P Manual STANDARDS Class ANSI Z359.14-2021 Anchor at or above OSHA 1910.66, 1910.140 dorsal D-ring V3. 2023 Copyright Safewaze: 220-00082...
- Page 2 • The user must read, understand, and follow all safety and usage information contained within this manual. • The user must safely and effectively use the Latitude SRL-P and all equipment used in conjunction with the SRL. • Failure to follow all safety and usage information can result in serious injury or death.
- Page 3 Women who are pregnant and individuals considered minors must not use any Safewaze equipment. • Do not alter or misuse equipment. Only Safewaze, or entities authorized in writing by Safewaze, may make repairs to Safewaze fall protection equipment. •...
-
Page 4: Table Of Contents
► Fall Clearance ► ► Compatibility of Connectors ► ► 10.0 Making Connections ► ► 11.0 Installation/Operation of Latitude ► ► 12.0 Inspection/Maintenance ► ► 13.0 Labels ► ► 14.0 Annual Inspection Form ► ► V3. 2023 Copyright Safewaze: 220-00082... -
Page 5: Introduction

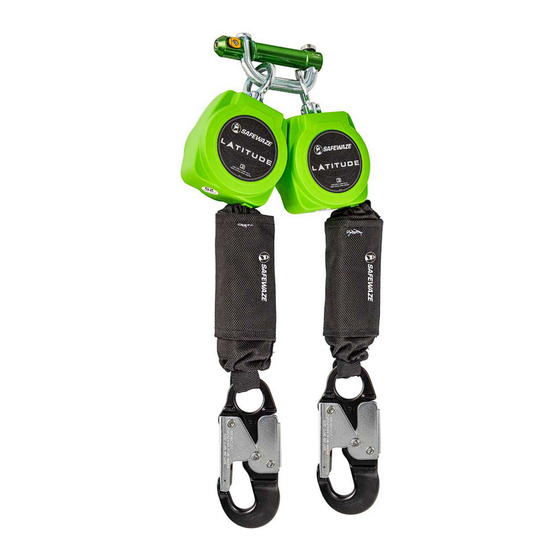

OSHA or any applicable state agency. The Latitude SRL-P is intended for use as part of a complete Personal Fall Arrest, Restraint, Work Positioning, or Rescue System. Safewaze SRLs are designed to safely arrest the user in a fall event, while minimizing forces on the body. -
Page 6: Intended Use
Safewaze SRLs are authorized for use with Horizontal Lifeline Systems (HLL) but must NEVER be used as the lifeline constituent of an HLL System. The Latitude SRL-P is a Class 1 SRL. Class 1 SRLs must only be used in overhead applications and are not authorized for use below the Dorsal D-ring. -
Page 7: Worker Classifications
Qualified Engineer: A person with a Bachelor of Science in Engineering degree from an accredited college or university. They are able to assume personal responsibility for the development and application of engineering science and knowledge in the design, construction, use, and maintenance of their projects. V3. 2023 Copyright Safewaze: 220-00082... -
Page 8: Rescue Plan
From OSHA 1926.502 and 1910.66: Anchorages used for attachment of personal fall arrest systems shall be independent of any anchorage being V3. 2023 Copyright Safewaze: 220-00082... -
Page 9: Product Specifications
Do not allow the lifeline to pass under arms or between the legs. • Sharp Edges: Safewaze Class 1 SRLs are NOT designed for use in Leading Edge Environments. Should a specific work area have an extremely sharp edge/ edges that may come into contact with the lifeline constituent of the SRL, a Class 2 SRL is required. -
Page 10: Fall Clearance
• Actual Arrest Distance (AD): Safewaze SRLs are tested in accordance with ANSI Z359.14-2021 conditioning test protocols. Table 2 reflects the Actual Arrest Distances of the Latitude SRL-P when subjected to Ambient, Wet, Hot, and Cold testing. These Actual Arrest Distances are typically lower than the 42” maximum as specified per ANSI. - Page 11 Note: A Qualified Person must determine if MRFCs can be adjusted based upon actual jobsite atmospheric conditions or additional factors. Table 3: MRFC ANSI CLASS 1 OVERHEAD USE Minimum Required Fall Model Actual Arrest Distance Clearance (Overhead) Latitude SRL-P 5' 5" (1.7 m) 23'' (58 cm) V3. 2023 Copyright Safewaze: 220-00082...
- Page 12 10' 11" (3.3 m) FALL CLEARANCE CHARTS *For the Overhead Use (white) Class 1 chart: Safewaze Latitude SRL-Ps meet all ANSI 130-310 lbs. (59-141 kg) and OSHA up to 420 lbs. (191 kg) requirements for a Class 1 SRL when anchored overhead. Clearance Values come from combined values of Arrest Distance, Harness Stretch, Swing Fall Drop Distance, and 2 ft.
- Page 13 WORKING IN THIS AREA MAY (8.7m) (9.3m) (9.9m) (X.Xm) (3.7m) (4.3m) (4.9m) RESULT IN SERIOUS INJURY OR 12'0" 14'0" 16'0" V3. 2023 Copyright Safewaze: 220-00082 WORKING IN THIS AREA MAY DEATH (3.7m) (4.3m) (4.9m) RESULT IN SERIOUS INJURY OR DEATH...
- Page 14 (2.3m) (2.6m) (3.0m) (3.4m) (2.4m) (X.Xm) (0.0m) (0.0m) (0.1m) (0.2m) (0.3m) (0.4m) (0.6m) (0.8m) (1.0m) (1.2m) (1.5m) (1.7m) V3. 2023 Copyright Safewaze: 220-00082 5'7" 5'7" 7'2" 7'2" 8'10" 8'10" 10'7" 10'7" 12'4" 12'4" 14'2" 14'2" 16'0" 16'0" 17'10" 17'10" 19'9"...
-
Page 15: Compatibility Of Connectors
16'0" 16'0" 17'10" 17'10" 19'9" 19'9" 21'7" 21'7" 5'0" 6'1" 7'2" 8'5" 9'8" 11'0" 12'5" • Safewaze equipment is designed for, and tested with, associated Safewaze (1.7m) (1.7m) (2.2m) (2.2m) (2.7m) (2.7m) (3.2m) (3.2m) (3.8m) (3.8m) (4.3m) (4.3m) (4.9m) (4.9m) (5.4m) -
Page 16: Making Connections
Ensure all connectors are fully closed and locked. Safewaze connectors (hooks, carabiners, and D-rings) are designed to be used only as specified in each product’s manual. See Figure 3 for examples of inappropriate connections. -
Page 17: Installation/Operation Of Latitude
When used properly, the lifeline of the SRL will extend and retract freely, with no slack or hesitation, as the user moves at normal speeds. In the event of a fall, Safewaze SRLs are equipped with a speed-sensing braking system. The braking system will activate, stop the fall, and absorb much of the energy created by the fall. - Page 18 Locking Button (B) Bar assembly of bracket that inserts FALL-ARREST behind webbing at dorsal D-ring. SW-9012 in open configuration. Curved portion of SW-9012 Locking Button (A) V3. 2023 Copyright Safewaze: 220-00082...
-
Page 19: Inspection/Maintenance
• A Competent Person must determine that the installation location to be utilized will support the intended loads. Frequency: • A Competent Person, other than the user, must inspect the Latitude SRL-P at least once annually. • While conducting inspections, the Competent Person must consider all applications and hazards that the equipment may have been subjected to while in use. - Page 20 Temperatures, Dirty Environment Directions: • Prior to each use, inspect the Latitude SRL-P for possible deficiencies including, but not limited to, missing parts, corrosion, deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating, alteration, and missing or illegible labels. Inspect all components of the device including the housing, connectors, fasteners, labels, and entire length of lifeline.
- Page 21 Do not store system if wet or damp. Allow equipment to fully dry before being stored. • Storage: Prior to installation, store the Latitude SRL-P in a cool, dry area where it will not be exposed to extreme light, extreme heat, excessive moisture, or possibly corrosive chemicals or materials.
-
Page 22: Labels
Anchor at or above the dorsal D-ring INSPECTION DO NOT ATTEMPT TO SERVICE OR REPAIR THIS UNIT! CONTACT SAFEWAZE FOR SERVICE OR REPAIR INFORMATION. Device must be inspected prior to each use in accordance with the manufacturer’s instructions. Perform the locking function test (by pulling sharply) and the retraction test. - Page 23 Inspection Log DO NOT ATTEMPT TO SERVICE OR REPAIR THIS Do Not Remove Label UNIT! CONTACT SAFEWAZE FOR SERVICE OR REPAIR INFORMATION. Device must be inspected prior to each use in accordance with the manufacturer’s instructions. Perform the locking function test (by pulling sharply) and the retraction test.
-
Page 24: Annual Inspection Form
INSPECTION LOG ANNUAL FORM Inspection Inspector: Pass/Fail: Comments/ Date: Corrective Action: Address: 225 Wilshire Ave SW, Concord, NC 28025 Phone: 800-230-0319 Fax: 704-262-9051 Email: info@safewaze.com Website: safewaze.com V3. 2023 Copyright Safewaze: 220-00082...
