SafeWaze Latitude Pro Manual

7' arc flash srl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

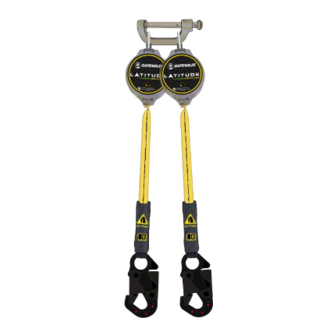

Latitude Pro
7' Arc Flash SRL Manual
2
SLIDE TO OPEN
1
PUSH
2
SLIDE TO OPEN
1
PUSH
WARNING
This product is part of a personal fall arrest, work positioning, or rescue system. The manufacturer's instructions must be provided to
users of this equipment. The user must follow the manufacturer's instructions for each component of the system. The user must read and
understand these instructions before using this equipment. Manufacturer's instructions must be followed for proper use and maintenance
of this equipment. Alterations to this product, misuse of this product, or failure to follow instructions may result in serious injury or death.
IMPORTANT
Questions regarding the use, care, or suitability of this equipment for your application? Contact Safewaze.
IMPORTANT
Record identification information before using this product. Identification information may be found on the equipment label
(See Figure 11). This information should be recorded in the "Inspection and Maintenance Log" located at the back of this manual (Page 16).
THESE DEVICES MEET OR EXCEED:
ANSI Z359.14, ASTM 887-18, NFPA 70E, and are 40 cal rated
This manual is intended to meet the manufacturer's instructions as
required by ANSI Z359.14 and should be used as part
of an employee training program as required by OSHA.
MANUAL - 220-00042

Advertisement

Table of Contents
loading

Related Manuals for SafeWaze Latitude Pro

Summary of Contents for SafeWaze Latitude Pro

  • Page 1 Alterations to this product, misuse of this product, or failure to follow instructions may result in serious injury or death. IMPORTANT Questions regarding the use, care, or suitability of this equipment for your application? Contact Safewaze. IMPORTANT Record identification information before using this product.

  • Page 2: Safety Information And Precautions

    Use of this equipment for any other purpose, such as material handling, sports activities, or other action not described in these User Instructions is not approved by Safewaze. Use of this equipment in a manner outside the scope of those covered within this Manual can result in serious injury or death.
  • Page 3 Safewaze Latitude Pro Arc Flash SRLs meet the testing requirements of the ASTM F887-18 standard and were developed for use in areas where an Arc Flash, or High Heat hazard may exist. In the event of an Arc Flash or other high heat incident, the Safewaze Latitude Pro Arc Flash SRLs are designed to withstand the high temperatures of such an event, and continue to function as a Fall Arrest device.
  • Page 4 1.1 PURPOSE Safewaze Pro Arc Flash SRLs are designed for use in environments where a fall could occur. The purpose is to prevent the fall or limit the potential fall arrest forces as much as possible. A variety of connection and configuration options are available to suit any users preference or job-site requirements (See Table 1).

  • Page 5: Inspection Frequency

    0 ft. (0 cm). In order to limit free fall distances, keep attachment of the SRL below Dorsal D-ring height to as minimal a distance as possible. Safewaze Latitude Pro Arc Flash SRLs are designed for use up to a maximum of 2 ft. (.61 m) below the user’s Dorsal D-ring.

  • Page 6: Normal Operations

    During normal operations, the lifeline constituent of the SRL will extend and retract freely with no slack or hesitation as the worker moves at normal speeds. In the event of a fall, Safewaze SRLs are equipped with a speed sensing braking system. The braking system will activate, stopping the fall, and absorbing much of the energy generated by the fall.

  • Page 7: Body Support

    2.6 BODY SUPPORT Only a Full Body Harness (FBH) may be used with this equipment. The Full Body Harness must connect to the Latitude Pro Arc Flash SRL via the dorsal D-ring. Safewaze SRLs are not rated for use with a body belt. Use of Safewaze SRLs with a body belt may result in injury. Figure 3 illustrates typical connection of Safewaze SRLs to the Dorsal D-ring of the Full Body Harness.
  • Page 8 Option C: Dual Leg Option D: Single Leg 020-5221 020-5208 Attached to Full Body Anchored Overhead Harness with 9013 FALL-ARREST SLIDE TO OPEN PUSH FALL-ARREST FIGURE 4 - DETERMINING MINIMUM REQUIRED FALL CLEARANCE (OVERHEAD USE) Page 8 V1.0 2021 Copyright Safewaze...
  • Page 9 Example 2- Latitude Pro Arc Flash SRL Anchored Below Dorsal D-ring: Example 2 represents the user anchoring the Latitude Pro Arc Flash SRL to an anchor point 2‘ below the height of the Dorsal D-ring (Down along the Y Axis) and 5’ Laterally (Along the X Axis).
  • Page 10 5’ 6’ 7’ 8’ 9’ X-AXIS Latitude Pro Arc Flash 7’ Web: Class A/B FIGURE 6 FIGURE 7 Fall Clearance for Class B SRL Fall Clearance for Class A / B SRL Single User (130 lbs. - 310 lbs.) Single User (130 lbs. - 310 lbs.) Latitude Pro Arc Flash 7’...
  • Page 11 Bar assembly of bracket which inserts Locking Button (B) behind webbing at dorsal D-ring FALL-ARREST Diagram of SW-9012 in opened configuration Curved Portion Locking Button (A) of SW-9012 Dwg. 4 Dwg. 2 Dwg. 1 Dwg. 3 Page 11 V1.0 2021 Copyright Safewaze...

  • Page 12: System Connections

    FALL-ARREST FALL-ARREST 4.2 DUAL LEG SRL With the Dual Leg Safewaze SRL mounted on the back of a Full Body Harness, the user can have continuous fall protection (100 % tie-off) while ascending, descending, or moving laterally (See Figure 10B).
  • Page 13 Inspect the SRL using the Inspection Form on Page 16 before returning to service. 6.3 STORAGE Store Safewaze SRLs in a cool, dry, clean environment out of direct sunlight. Avoid areas where chemical vapors may exist. Thoroughly inspect the SRL after any period of extended storage.

  • Page 14: Product Life

    7.5 DISPOSAL Dispose of the Safewaze SRL if it has been damaged by fall arrest forces or inspection reveals an unsafe or defective condition that cannot be repaired by an authorized Safewaze Service Center. Before disposing of the SRL, cut the web lifeline in half so that it is not mistakenly reused.
  • Page 15 Behind the Web Carabiner SLIDE TO OPEN Bracket PUSH Swivel Top Swivel Top Housing Label Housing Load Impact Load Impact Indicator Indicator Kevlar® Webbing Labeling Label Cover Hinge Gate Hook Body Snaphook Hook Nose Page 15 V1.0 2021 Copyright Safewaze...

  • Page 16: Inspection Form

    Test Braking / Locking Function PASS FAIL NOTE CONNECTORS Connector (Self-Closing & Locking) NOTES Impact Indicator Hook Body / Rivets Corrosion Pitting / Nicks 225 Wilshire Avenue SW, Concord NC 28025 • 800-230-0319 • www.safewaze.com Page 16 V1.0 2021 Copyright Safewaze...

  • Page 17: Inspection Log

    INSPECTION LOG Date Inspection Items Corrective Initials Noted Action Page 17 V1.0 2021 Copyright Safewaze...
  • Page 18 Safewaze 322 Industrial Court Concord, NC 28025 PHONE: 1-800-230-0319 FAX: 1-704-262-9051 WEB: safewaze.com EMAIL: info@safewaze.com Page 18 V1.0 2021 Copyright Safewaze...
