OWNERS GUIDE TO
INSTALLATION
AND OPERATION
END SUCTION
CENTRIFUGAL PUMPS
READ THESE INSTRUCTIONS CAREFULLY
Read these installation instructions in detail before installing your pump. Be sure to check the following:
1. Be certain the motor is connected for the correct line voltage being used (check motor nameplate).
2. Be certain the pump is completely primed before starting. Otherwise damage may occur to the seal.
Every pump is tested before leaving the factory, and its performance depends largely on the installation.
GENERAL SAFETY INFORMATION
1. Follow all local electrical and safety codes, as
well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
2. Replace damaged or worn wiring cord immediately.
3. Do not kink power cable and never allow the cable
to come in contact with oil, grease, hot surfaces, or
chemicals.
4. Protect the power cable from coming in contact with
sharp objects.
5. Be careful when touching the exterior of an
operating motor - it may be hot enough to be painful
or cause injury.
6. Make certain that the power source conforms to the
requirements of your equipment.
7 . Always disconnect power source before performing
any work on or near the motor or its connected load.
If the power disconnect point is out-of-sight, lock it in
the open position and tag it to prevent unexpected
application of power. Failure to do so could result in
fatal electrical shock.
8. Do not handle the pump with wet hands or when
standing in water as fatal electrical shock could
occur. Disconnect main power before handling unit
for ANY REASON!
9. Unit must be securely and adequately electrically
grounded. This can be accomplished by wiring the
unit to a ground metal-clad raceway system or by
using a separate ground wire connected to the bare
metal of the motor frame or other suitable means.
10. WARNING: Risk of electric shock. This pump has
not been investigated for use in swimming pool
areas.
11. WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
INSPECTION AND STORAGE
1. Immediately upon receipt of shipment, inspect and
check the shipping document and report to the
Transportation Company's local agent any damage
or shortage. If the unit is received sometime before
it can be used, it should be inspected, re-crated and
stored in a dry location.
2. Unless otherwise specifically agreed, all capacity,
head and efficiency guarantees are based on factory
test when handling clear, cold, fresh water at a
temperature not over 85°F .
LOCATION
IMPORTANT: In installations where property damage
might result from an inoperative or leaking pump due
to power outages, discharge line blockage or any other
reason, a back-up system(s) and/or warning system(s)
should be used.
1. Locate pump as close to the fluid source as possible.
CAUTION: The unit should be placed where the motor
and electrical components are protected from the
weather and extremes of heat, humidity and below
freezing temperatures.
2. Mount unit in a dry location that is easily accessible
for inspection and maintenance. Allow ample
clearance around the unit for free air circulation.
If a dry location is not available mount it on a
foundation well above the wet floor.
WARNING: Do not handle the pump with wet hands or
when standing in water as fatal electrical shock could
occur. Disconnect main power before handling unit
for ANY REASON!
Pumps incorporate a discharge port on the pump
3.
casing that can be adjusted in 90° increments. If
necessary adjust the discharge port to accommodate
the specific application. Pump performance will not
be affected by the position of the discharge port.
1
95 North Oak Street • Kendallville, IN 46755
Copyright 2021. All Rights Reserved.
134984 C

Advertisement

Table of Contents
loading

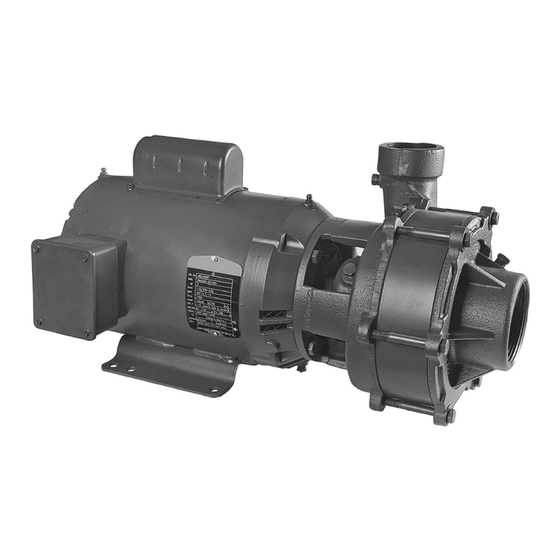

Summary of Contents for Flint & Walling C22000 Series

  • Page 1 OWNERS GUIDE TO INSTALLATION AND OPERATION END SUCTION CENTRIFUGAL PUMPS READ THESE INSTRUCTIONS CAREFULLY Read these installation instructions in detail before installing your pump. Be sure to check the following: 1. Be certain the motor is connected for the correct line voltage being used (check motor nameplate). 2.
  • Page 2 DIMENSIONS in INCHES 2” Discharge 3” Suction Figure 1 IL1000 C22000 SERIES Catalog Number Motor Frame 1 Phase 3 Phase Size SINGLE STAGE 3500 RPM C22131 — 182JM 4.50 7.50 10.24 4.50 10.81 4.06 12.12 19.49 3.44 — C22133 145JM 5.00...
  • Page 3 2. When foot valves are used, or where there are other motor. This unit is not weatherproof nor is it able to possibilities of “liquid hammer” , close the discharge be submersed in water, or any other liquid. valve before shutting down the pump. 2.
  • Page 4: Table Of Contents

    3 Phase SINGLE PHASE Distance From Motor Recommended Copper Wire Size To Fuse Box Meter, 1-1/2 HP 2 HP 3 HP 5 HP or Electrical Outlet LOW VOLTAGE HIGH VOLTAGE 115V 100 ft. 230V 115V 150 ft. 230V 115V 200 ft. 230V 115V 300 ft.
  • Page 5: Figure 8

    completely filled with liquid. This priming can be Magnetic Starter Wiring accomplished by any of the following methods. Fused Diagram - Single Phase Disconnect 2. When the liquid supply level is above the center Switch line of the pump, it is primed by opening the suction and discharge valves.
  • Page 6 ROTARY SHAFT SEAL If the motor runs, but no water is pumped, be sure pump is primed, that there are no air leaks in suction The mechanical shaft seal should be replaced if water piping, that all gate valves are open and all check valves is noticed around the motor shaft.
  • Page 7 2. If the available NPSH is not equal to, or greater than could be atmospheric pressure or vessel pressure that required by the pump, it must be increased. This (pressurized tank). is usually done by increasing the static head, Hz. 4.
  • Page 8: Three Phase

    FW0043 0221 SUPERSEDES 0309 CENTRIFUGAL PUMP REPAIR PARTS “C22000” SERIES (For Pricing Refer To Repair Parts Price List) Two Stage 021434 Repair Kit Kit Includes: Item Qty. Part No. & Description 136559 Seal Assembly • 136576 O-Ring, Cap Screw • 136572 O-Ring, Impeller •...
  • Page 9 GUÍA DEL PROPIETARIO DE INSTALACIÓN Y FUNCIONAMIENTO BOMBAS CENTRÍFUGAS DE SUCCIÓN FINAL LEA ATENTAMENTE ESTAS INSTRUCCIONES Lea detenidamente estas instrucciones de instalación antes de instalar la bomba. Asegúrese de revisar lo siguiente: 1. Asegúrese de que el motor esté conectado al voltaje de línea correcto siendo usado (verifique la placa de datos del motor).
  • Page 10 DIMENSIONES en CENTÍMETROS Y PULGADAS Descarga de 2 pulg. Succión de 3 pulg. Figura 1 IL1000 Serie C22000 Número de Tamaño catálogo armazón motor ETAPA ÚNICA 3500 RPM C22131 — 182JM 4.50 7.50 10.24 4.50 10.81 4.06 12.12 19.49 3.44 —...
  • Page 11 2. Al utilizar válvulas de zapata o cuando existan otras causas 2. Los voltajes de los motores varían de acuerdo a la potencia de “golpe de ariete” , cierre la válvula de descarga antes de del motor, fase y fabricante. Consulte la placa de datos del apagar la bomba.
  • Page 12: 230V

    3. Un cableado insuficiente puede causar el fallo del motor MONOFÁSICO (bajo voltaje), desactivación frecuente del protector Tamaño recomendado del cable de Distancia desde el motor contra sobrecargas del motor, interferencia de televisión cobre al medidor de la caja de e incluso un incendio.
  • Page 13 tubería de succión estén completamente llenas de líquido. Diagrama de cableado Este cebado puede llevarse a cabo por cualquiera de los Interruptor de del arrancador métodos siguientes. desconexión con fusibles magnético - Monofásico 2. Cuando el nivel de suministro de líquido esté por encima de la línea central de la bomba, se ceba mediante la apertura de las válvulas de succión y descarga.
  • Page 14 SELLO DEL EJE GIRATORIO FALTA DE BOMBEO El sello del eje mecánico debería ser sustituido si se observa Si el motor funciona, pero no bombea agua, asegúrese de que agua alrededor del eje del motor. Retire la carcasa y el la bomba esté...
  • Page 15 2. Si la carga neta positiva de succión disponible no es igual 3. Hp-Presión absoluta en la superficie del líquido, donde los a, o mayor que la requerida por la bomba, esta debe tanques de la bomba succionan, expresada en pies. Esta ser aumentada.
  • Page 16 FORM NO. FW0043S 0221 SUPERSEDES 0614 PIEZAS DE REPUESTO PARA BOMBAS CENTRÍFUGAS Serie “C22000” (Para precios, consulte la Lista de precios de las piezas de repuesto) Dos etapas 021434 Juego de reparación El juego incluye: Nº de Cant. Nº de pieza y descripción componente 136559 Conjunto de sello •...
