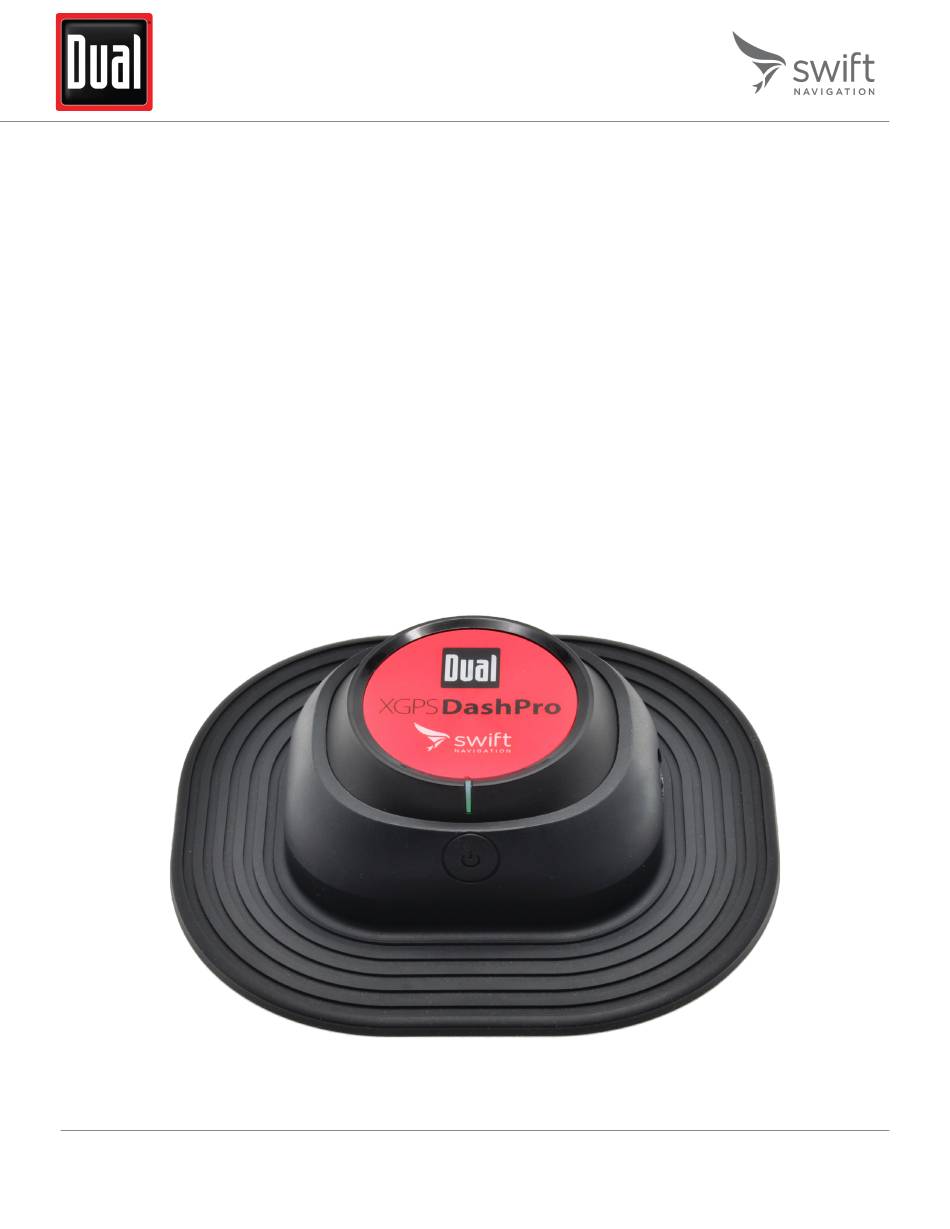

XGPS DashPro User Guide
XGPS DashPro User Guide
Introduction

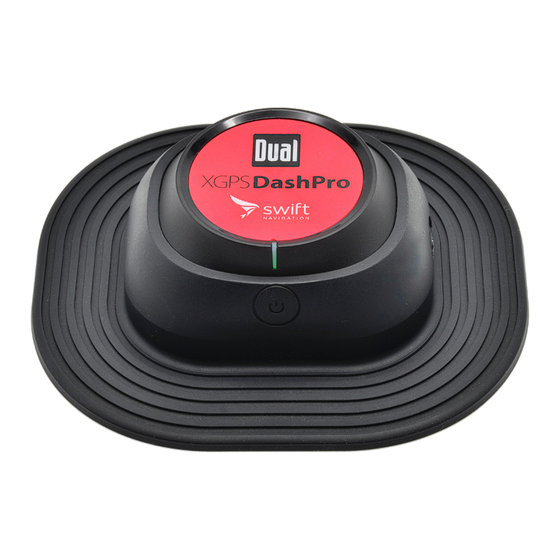

Thank you for purchasing the XGPS DashPro™ Bluetooth® GNSS Receiver from Dual Electronics powered by Swift
Navigation's Skylark™Precise Positioning Service.
The XGPS DashPro works with signals from satellite systems around the world to determine your precise location
anywhere. The XGPS DashPro transmits your location via a Bluetooth connection to your phone or other device
supporting the DashPro app. The precise location generated by the XGPS DashPro can then be used by any other
location-based app on your mobile device.
You can connect the XGPS DashPro to many Android® and iOS® smartphones, tablets, and other computing devices that
support apps.
