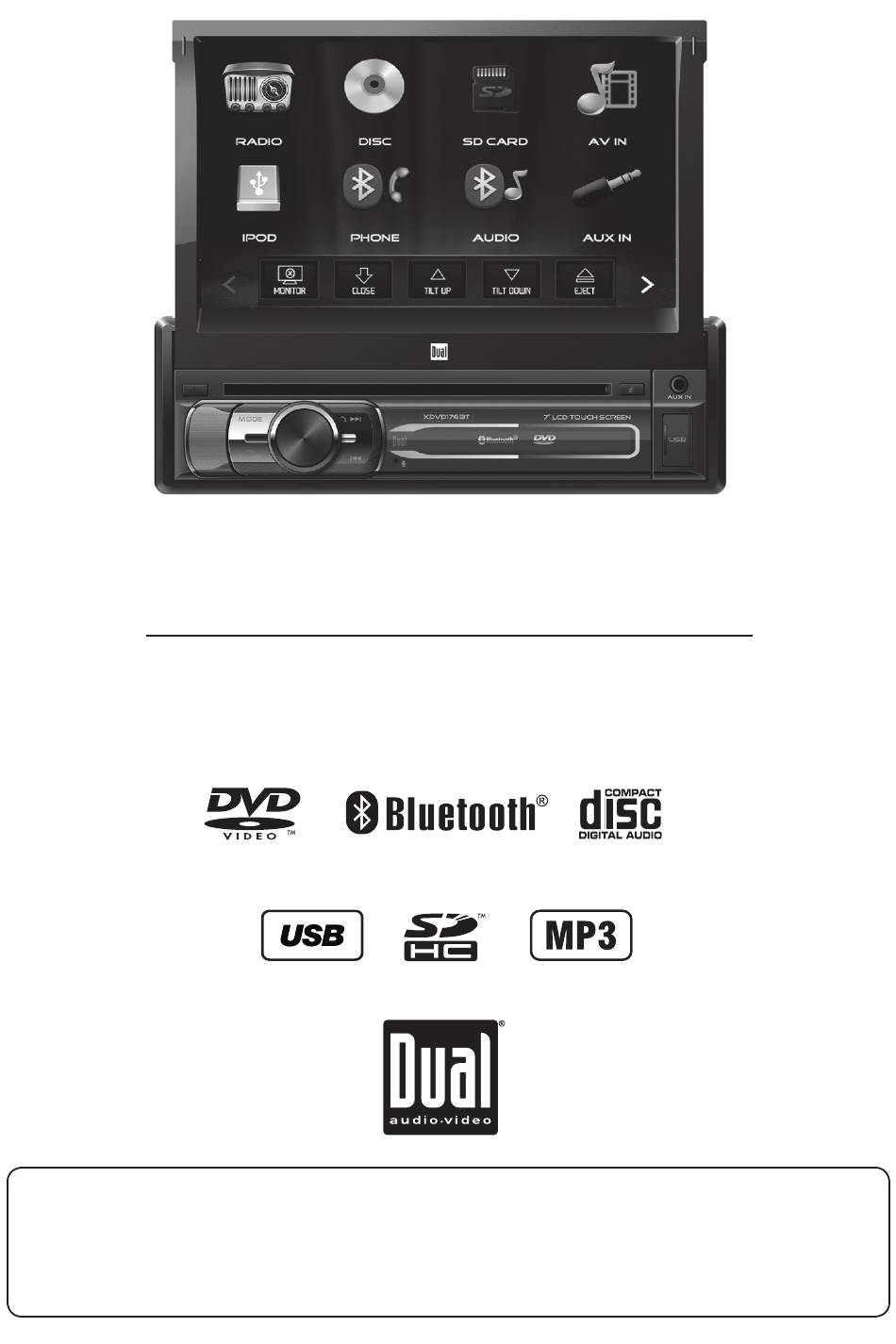

XDVD176BT
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
7"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDVD176BT and is the answer not in the manual?

Questions and answers

Related Manuals for Dual Electronics Corporation XDVD176BT

Summary of Contents for Dual Electronics Corporation XDVD176BT

  • Page 1 XDVD176BT INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth ® featuring a 7" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
  • Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    XDVD176BT PREPARATION Table of Contents Page Warning Statement ..........
  • Page 4 XDVD176BT PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...

  • Page 5: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XDVD176BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

  • Page 6: Preparation/Mounting

    XDVD176BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 7: Wiring Diagram

    XDVD176BT INSTALLATION Wiring Diagram - Inputs/Outputs PARKING BRAKE (-) REVERSE B+ AMP TURN ON POWER ANTENNA B+ ACC (B+) Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATM mini style fuse located on the power connector.

  • Page 8: Control Locations

    XDVD176BT OPERATION Control Locations Eject Mute / End Call Auxiliary Input Band USB Port Open / Power Microphone Release Tune/Track Down Mode Volume Up/Down / Talk Tune/Track Up Volume Up Volume Down Mute / Voice Control (long press) Tune/Track Up...

  • Page 9: Remote Preparation

    XDVD176BT OPERATION Remote Control Preparation Retire la cinta aislante de la batería antes del primer uso. Para instalar una batería nueva, quite la tapa de la batería y la batería vieja, luego inserte la batería nueva y asegúrese de mantener el lado (+) hacia arriba.

  • Page 10: General Operation

    XDVD176BT OPERATION General Operation Align the faceplate with the front of the unit, then snap in place Installing the Faceplate beginning with the left side. Momentarily press to turn the unit on or off. Power On/Off Rotate the volume knob to increase or decrease the volume level.
  • Page 11 XDVD176BT OPERATION General Operation Setup Menu From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from the following categories: General, Audio, Video and Bluetooth. General: • OSD Language - Select English Only.
  • Page 12 XDVD176BT OPERATION General Operation Touch Screen The touch screen controls on the bottom of each screen Controls allow direct access to important features during any mode of operation. Espera Presionar para atenuar la pantalla o poner la unidad en modo de espera.

  • Page 13: Am/Fm Tuner Operation

    XDVD176BT OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Displays current mode of operation. Current Mode Indicator Tune Frequency Down Press << to tune radio to a lower frequency. Press < to tune the unit down one step at a time.

  • Page 14: Cd/Usb/Sd Card Operation

    XDVD176BT OPERATION CD/USB/SD Card Operation To play audio files from a disc or MP3 files from a disc, USB device or SD CD/USB or SD Operation card, insert disc or device and playback will begin automatically. To return to disc, USB or SD card playback from another mode of operation, select the corresponding icon from the Main Menu.
  • Page 15 XDVD176BT OPERATION Media Compatibility - CD/DVD File Type Level 1, Level 2  ISO9660 Level 3 Playback  ISO9660 JOLIET File System Extension Filename 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3  File Extension .rmp/.m4a MPEG 1 ...
  • Page 16 XDVD176BT OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3  File Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5...

  • Page 17: Media Compatibility

    XDVD176BT OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) •...

  • Page 18: Dvd Operation

    XDVD176BT OPERATION DVD Operation Inserting a Disc Insert disc into the slot, and playback will begin automatically. Sub- menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.
  • Page 19 XDVD176BT OPERATION DVD Operation Screen Setup Press to adjust screen color settings. Zoom Press to zoom in or out on an image. Subtitle Press to access subtitle options. Audio Press to adjust audio options. Monitor On/Off Press to put the monitor in standby mode.

  • Page 20: Bluetooth Operation

    Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XDVD176BT". Bluetooth passcode is "0000". The unit can be in any mode of operation when pairing is performed.
  • Page 21 XDVD176BT OPERATION Bluetooth Operation Standby Press to put the monitor into standby mode. Eject Eject the disc. Audio Press to adjust Audio options. Settings Press to access the Settings menu. Bluetooth Music Press to access Bluetooth Music (from Phone mode).

  • Page 22: Ipod Operation

    XDVD176BT OPERATION iPod Operation Connecting an iPod Device Connect an iPod device to the unit's USB port. Main Menu Press to return to the Main Menu screen. Current Mode Indicator Displays current mode of operation. Repeat Press to select a repeat option: Repeat 1, Repeat All (default) or Repeat Off.

  • Page 23: Auxiliary Inputs/Rear Camera Operation

    XDVD176BT OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

  • Page 24: Swc Input Operation

    The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDVD176BT to be compatible with any steering wheel controls. The following controls are available for most vehicles.

  • Page 25: Dual Ipod App Operation

    XDVD176BT OPERATION Dual iPlug App Operation The Dual iPlug™ Smart App is the ultimate wireless remote control for your multimedia receiver. You can download the Dual iPlug app from Apple Appstore or Google Playstore and install it on your smartphone or tablet.

  • Page 26: Specifications

    XDVD176BT OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:...

  • Page 27: Warranty

    XDVD176BT OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You may What to do? also have other rights which vary from state to state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual.

  • Page 28: Troubleshooting

    XDVD176BT OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground...
  • Page 29 XDVD176BT OPERATION Notes...
  • Page 30 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2018 Dual Electronics Corp. All rights reserved. NSA0718-V02 Printed in China...
