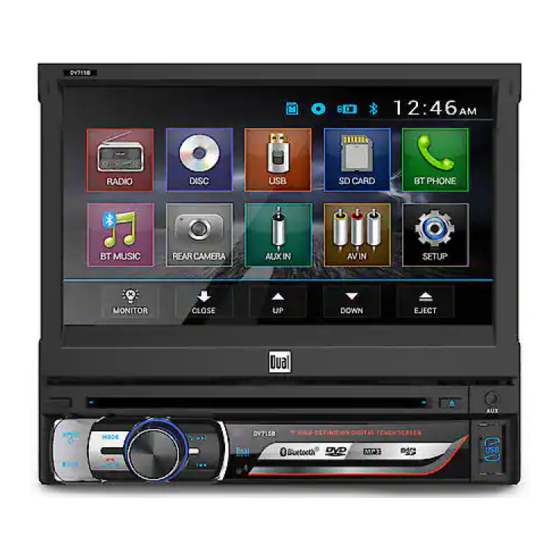

Dvd multimedia receiver with bluetooth featuring a 7" touch screen display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DV715B
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth®
featuring a
7"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety
feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in
Park and the parking brake is engaged. It is illegal in most states for the driver to view video while the
vehicle is in motion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV715B and is the answer not in the manual?

Questions and answers

Related Manuals for Dual Electronics Corporation DV715B

Summary of Contents for Dual Electronics Corporation DV715B

  • Page 1 DV715B INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth® featuring a 7" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the parking brake is engaged.
  • Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    DV715B PREPARATION Table of Contents Page Warning Statement ..........
  • Page 4 DV715B PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons...

  • Page 5: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL DV715B is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

  • Page 6: Preparation/Mounting

    DV715B INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 7: Wiring Diagram

    DV715B INSTALLATION Wiring Diagram - Inputs/Outputs GRAY GRAY GRAY GRAY PARKING BRAKE ORANGE REVERSE SWC - 3.5mm JACK GRAY BLUE/BLACK REMOTE TURN-ON GRAY ORANGE/BLACK VIOLET VIOLET Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.

  • Page 8: Control Locations

    DV715B OPERATION Control Locations Eject Mute / End Call Auxiliary Input Band USB Port Open / Power Microphone Release Tune/Track Down Mode Volume Up/Down / Talk Tune/Track Up microSD Slot Reset...

  • Page 9: General Operation

    DV715B OPERATION General Operation Installing the Faceplate Align the faceplate with the front of the unit, then snap in place beginning with the left side. Power On/Off Momentarily press to turn the unit on or off. Volume Rotate the volume knob to increase or decrease the volume level.
  • Page 10 DV715B OPERATION General Operation Setup Menu From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from the following categories: General, Audio, Video and Bluetooth. General: • OSD Language - Select English Only.
  • Page 11 DV715B OPERATION General Operation Touch Screen The touch screen controls on the bottom of each screen Controls allow direct access to important features during any mode of operation. Standby Press to dim the screen or put the unit in standby mode.

  • Page 12: Am/Fm Tuner Operation

    DV715B OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press << to tune radio to a lower frequency. Press < to tune the unit down one step at a time.

  • Page 13: Cd/Usb/Sd Card Operation

    DV715B OPERATION CD/USB/microSD Card Operation To play audio or MP3 files from a disc, USB device or microSD card, CD/USB or microSD Operation insert disc or device and playback will begin automatically. To return to disc, USB or microSD card playback from another mode of operation, select the corresponding icon from the Main Menu.
  • Page 14 DV715B OPERATION Media Compatibility - CD/DVD File Type  Level 1, Level 2 ISO9660 Level 3  Playback ISO9660 JOLIET File System Extension Filename 32 bytes Playback ROMEO Other Filename Extensions Apple ISO  .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a  MPEG 1 MPEG ...
  • Page 15 DV715B OPERATION Media Compatibility - USB/microSD Card File Type FAT 12 File System  FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a  MPEG 1 MPEG  MPEG 2 Format  MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5...

  • Page 16: Media Compatibility

    DV715B OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) •...

  • Page 17: Dvd Operation

    DV715B OPERATION DVD Operation Inserting a Disc Insert disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features. Ejecting the Disc Press to eject the disc.
  • Page 18 DV715B OPERATION DVD Operation Screen Setup Press to adjust screen color settings. Zoom Press to zoom in or out on an image. Subtitle Press to access subtitle options. Audio Press to adjust audio options. Monitor On/Off Press to put the monitor in standby mode.

  • Page 19: Bluetooth Operation

    DV715B OPERATION Bluetooth Operation Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The unit broadcasts the pairing signal constantly when no devices are currently connected.
  • Page 20 DV715B OPERATION Bluetooth Operation Standby Press to put the monitor into standby mode. Eject Eject the disc. Audio Press to adjust Audio options. Settings Press to access the Settings menu. Bluetooth Music Press to access Bluetooth Music (from Phone mode).

  • Page 21: Auxiliary Inputs/Rear Camera Operation

    DV715B OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

  • Page 22: Swc Input Operation

    The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the DV715B to be compatible with any steering wheel controls. The following controls are available for most vehicles.

  • Page 23: Warranty

    DV715B OPERATION Limited One Year Warranty What to do? This warranty gives you specific legal rights. You may also have other rights which vary from state 1. Before you call for service, check the to state. troubleshooting guide in your owner’s manual.

  • Page 24: Specifications

    DV715B OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner 87.5MHz-107.9MHz Tuning range: 10dBf Usable sensitivity: 20dBf 50dB quieting sensitivity: Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:...

  • Page 25: Troubleshooting

    DV715B OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Red wire not connected or incorrect Check connections for proper voltage (11~16VDC) Unit will not turn on voltage (no power) Black wire not connected Check connection to ground...
  • Page 26 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2021 Dual Electronics Corp. All rights reserved. NSA0421-V01 Printed in China...
