Summary of Contents for Dual Electronics Corporation XVMBT279

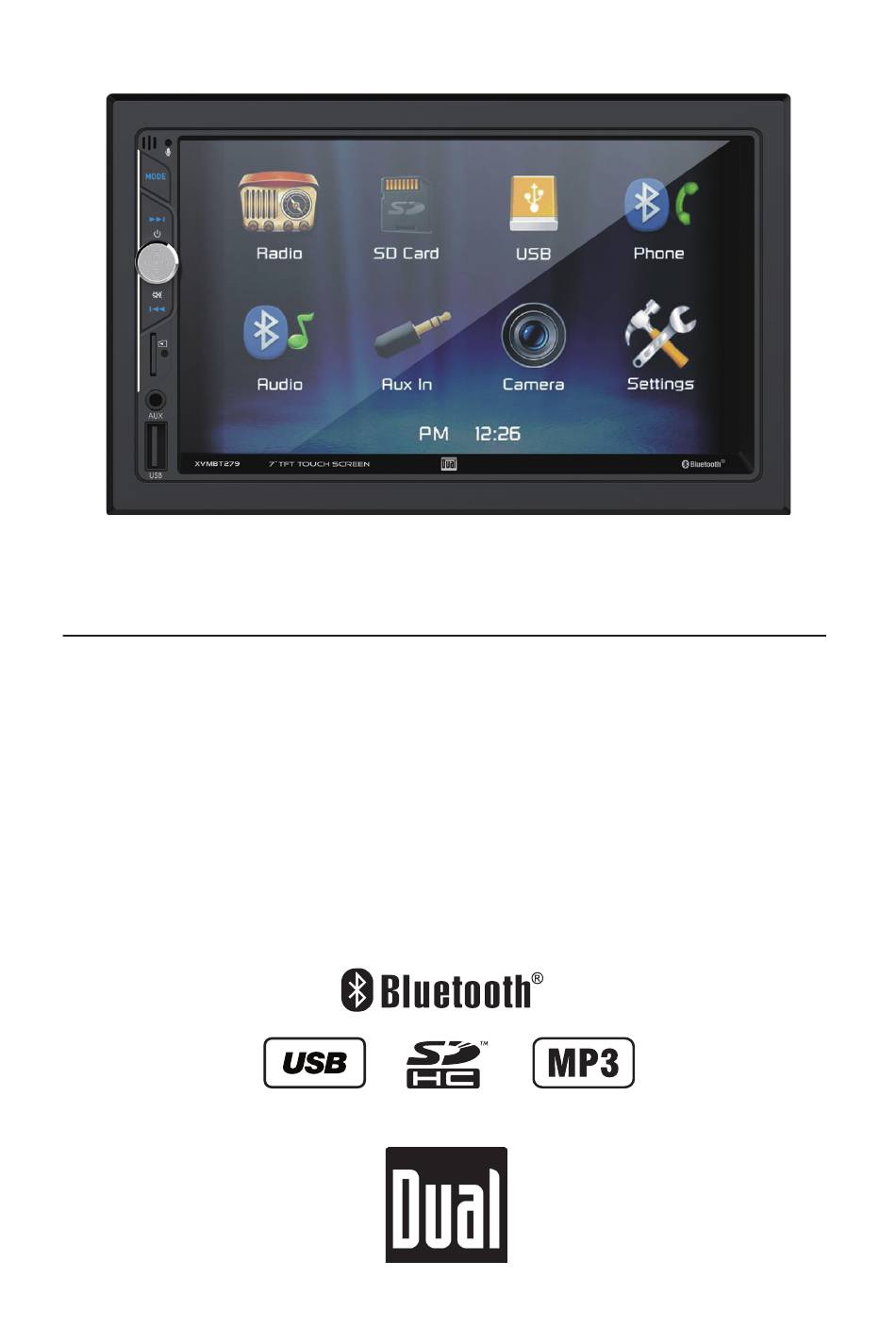

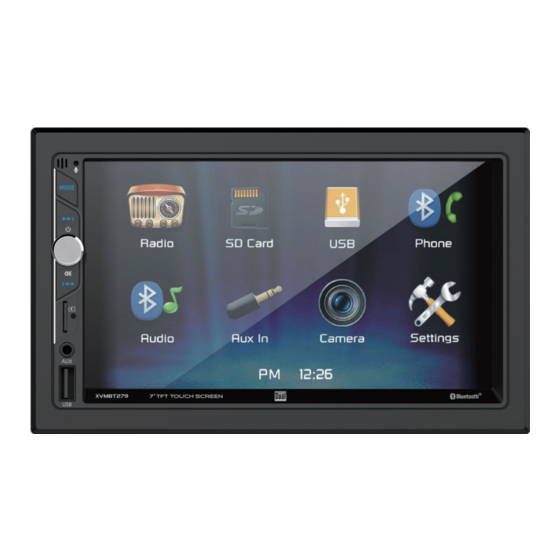

- Page 1 XVMBT279 INSTALLATION/OWNER’S MANUAL Media Receiver with Bluetooth® featuring a 7" Touch Screen Display...
- Page 2 Copyright Note: The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. The microSD logo is a trademark of SD-3C LLC. Siri and Apple are registered trademarks owned by Apple Inc. Google Assistant and Android are trademarks owned by Google LLC. Other trademarks and trade names are those of their respective owners.
-
Page 3: Safety Information
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XVMBT279 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. - Page 4 XVMBT279 INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 XVMBT279 INSTALLATION Wiring Diagram - Inputs/Outputs GRAY REVERSE GREEN/WHITE GRAY/BLACK BLUE AMP/ANT(+) ORANGE TFT DIMMER (+) ACC 12V (+) VIOLET VIOLET/BLACK Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
-
Page 6: Control Locations
XVMBT279 OPERATION Control Locations microSD Card Slot Mode Button Reset Tune/Track Up Auxiliary Input Power/Volume/Mute USB Port Tune/Track Down... - Page 7 XVMBT279 OPERATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE Rotating the volume again to return to the previously selected volume.
-
Page 8: General Operation
OPERATION XVMBT279 General Operation From the Main Menu screen, select Settings to access the Setup menu and Setup Menu select from three categories represented by the icons on the left side of the screen: Settings, Audio and Bluetooth. Settings: • Time Setting - Access and adjust date and time settings. -
Page 9: Am/Fm Tuner Operation
XVMBT279 OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press and hold << to seek a lower frequency. Press << momentarily to tune the unit down one step at a time. - Page 10 XVMBT279 OPERATION USB/microSD Card Operation USB/microSC Operation To play audio files from a USB device or microSD card, insert device and playback will begin automatically. To return to USB or microSD card playback from another mode of operation, select the corresponding icon from the Main Menu.
- Page 11 XVMBT279 OPERATION Media Compatibility - USB/microSD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz MPEG 1...
-
Page 12: Media Compatibility
XVMBT279 OPERATION Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • WAV format • WMV format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB flash drive or microSD card. -
Page 13: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XVMBT279". The Bluetooth passcode is "0000". -
Page 14: Rear Camera Operation - (Optional)
OPERATION XVMBT279 Bluetooth Operation Dimmer Press to dim the display. Audio Press to adjust Audio options. Settings Press to access the Settings menu. Bluetooth Phone Press to access Bluetooth Phone (from Music mode). Bluetooth Music Press to access Bluetooth Music (from Phone mode). - Page 15 XVMBT279 OPERATION Dual iPlug P1 Smart App Remote Control Use the Dual iPlug P1 Smart App Remote Control on an Apple or Android smartphone to control the receiver via Bluetooth. Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver's line-of-sight.
-
Page 16: Specifications
OPERATION XVMBT279 Specifications FM Tuner 87.5MHz-107.9MHz Tuning range: 10dBf Usable sensitivity: 20dBf 50dB quieting sensitivity: 38dB Stereo separation @ 1kHz: 30Hz-13kHz Frequency response: AM Tuner 530kHz-1710kHz Tuning range: 24uV Usable sensitivity: 30Hz-2.3kHz Frequency response: Front USB High Speed USB 2.0... -
Page 17: Limited One Year Warranty
XVMBT279 OPERATION Limited One Year Warranty What to do? This warranty gives you specific legal rights. You may also have other rights which vary from state to state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. -
Page 18: Troubleshooting
XVMBT279 OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 19 XVMBT279 OPERATION Notes...
- Page 20 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2020 Dual Electronics Corp. All rights reserved. NSA0420-V1 Printed in China...
