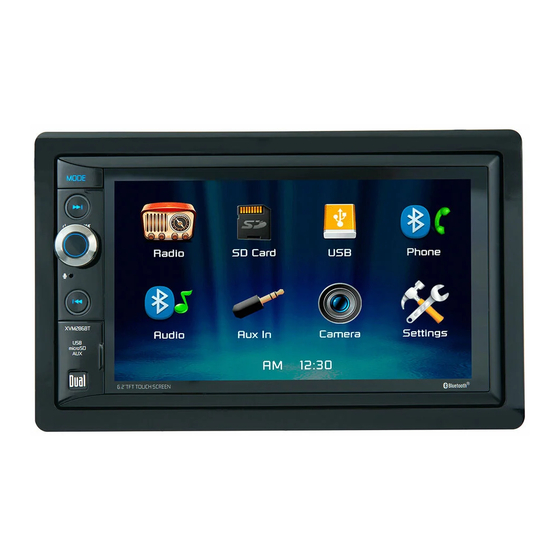

- Page 1 XVM286BT INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth® featuring a 6.2" Touch Screen Display...
- Page 2 Copyright Notes The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. SD Logo is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners.
-
Page 3: Safety Information
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XVM286BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. - Page 4 XVM286BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 XVM286BT INSTALLATION Wiring Diagram - Inputs/Outputs GRAY REVERSE GRAY/BLACK REMOTE TURN-ON Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
-
Page 6: Control Locations
XVM286BT OPERATION Control Locations Mode Tune/Track Up Power/Volume/Mute Tune/Track Down USB/microSD/AUX Inputs Volume Up Volume Down Mute / Voice Control (long press) Tune/Track Up Tune/Track Down... - Page 7 XVM286BT OPERATION Remote Control Preparation Remove battery insulation tape prior to first use. To install a new battery, remove the battery cover and the old battery, then insert the new battery making sure to keep the (+) side up. Replace the battery cover to secure.
-
Page 8: General Operation
XVM286BT OPERATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. - Page 9 XVM286BT OPERATION General Operation From the Main Menu screen, select Settings to access the Setup menu and Setup Menu select from three categories represented by the icons on the left side of the screen: Settings, Audio and Bluetooth. Settings: • Time Setting - Access and adjust date and time settings.
- Page 10 XVM286BT OPERATION General Operation Touch Screen The touch screen controls on the bottom of each screen allow direct access Controls to important features during any mode of operation. Dimmer Press to dim the display. Audio Press to adjust audio options such as EQ, Treble/Bass or Balance/Fader.
-
Page 11: Am/Fm Tuner Operation
XVM286BT OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Displays current mode of operation. Current Mode Indicator Tune Frequency Down Press and hold << to seek a lower frequency. Press << momentarily to tune the unit down one step at a time. -
Page 12: Usb/Sd Card Operation
XVM286BT OPERATION USB/SD Card Operation To play audio files from a USB device or SD card, insert device and USB/SD Operation playback will begin automatically. To return to USB or SD card playback from another mode of operation, select the corresponding icon from the Main Menu. -
Page 13: Media Compatibility - Usb/Sd Card
XVM286BT OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5... -
Page 14: Media Compatibility
XVM286BT OPERATION Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • WAV format • WMV format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB flash drive or SD card. -
Page 15: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XVM286BT". The Bluetooth passcode is "0000". - Page 16 XVM286BT OPERATION Bluetooth Operation Dimmer Press to dim the display. Audio Press to adjust Audio options. Settings Press to access the Settings menu. Bluetooth Phone Press to access Bluetooth Phone (from Music mode). Press to access Bluetooth Music (from Phone mode).
- Page 17 XVM286BT OPERATION Front 3.5mm Aux Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).
-
Page 18: Specifications
XVM286BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 19: Limited One Year Warranty
XVM286BT OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You may What to do? also have other rights which vary from state to state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. -
Page 20: Troubleshooting
XVM286BT OPERATION Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 21 XVM286BT OPERATION Notes...
- Page 22 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2019 Dual Electronics Corp. All rights reserved. NSA0119-V1 Printed in China...
