INSTALLATION/OWNER'S MANUAL

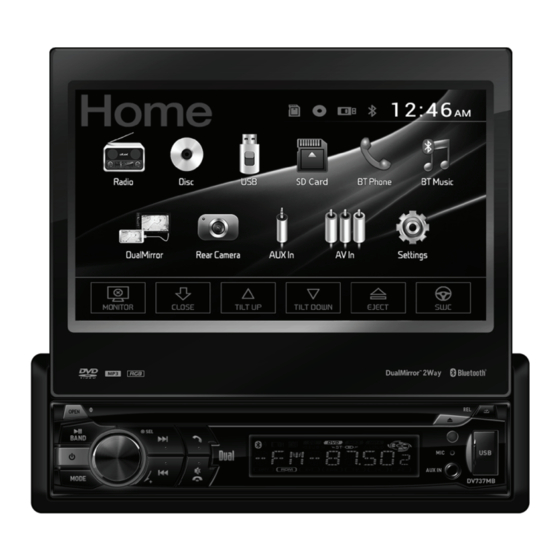

DVD Multimedia Receiver with Bluetooth
®
featuring a
7"
Touch Screen Display
2-Way DualMirror™
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.
