REF. 720320
Code Connect

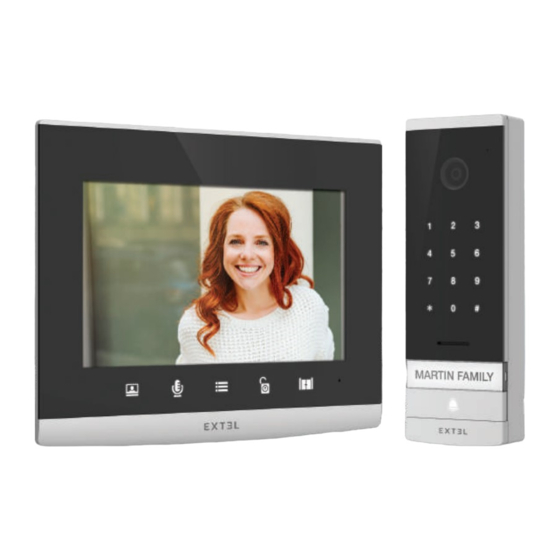

Connected videophone
Screen and intercom
panel
panel
www.avidsen.com
Guide d'installation et d'utilisation
Installation and User Manual
Installatie- en gebruikersgids
Installations-und Bedienungsanleitung
Guía de instalación y de uso
Manual de instalação e utilização
Manuale d'uso e installazione
v7
Advertisement
Table of Contents
Related Manuals for Extel Code Connect
Summary of Contents for Extel Code Connect

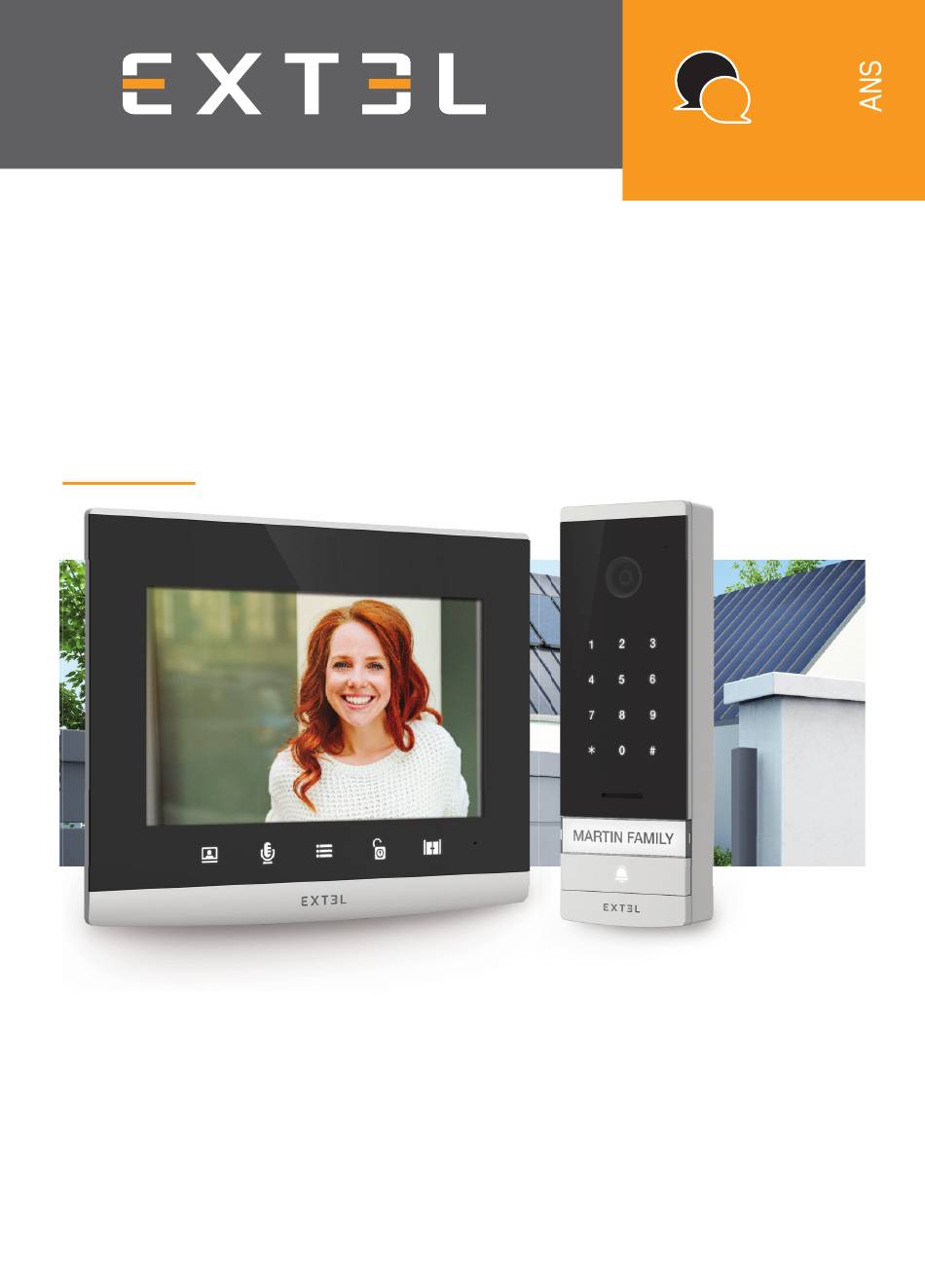

- Page 1 HOTLINE GARANTIE REF. 720320 Code Connect Connected videophone Screen and intercom panel panel www.avidsen.com Guide d’installation et d’utilisation Installation and User Manual Installatie- en gebruikersgids Installations-und Bedienungsanleitung Guía de instalación y de uso Manual de instalação e utilização Manuale d’uso e installazione...
- Page 2 Fig. 1 Fig. 2 Fig. 3 EXTEL - CODE CONNECT - 720320...
- Page 3 Fig. 4 50cm 160cm 150cm Fig. 5.1 Fig. 5.2 Fig. 6.1 EXTEL - CODE CONNECT - 720320...
- Page 4 Fig. 6.2 Fig. 7 Fig. 8 EXTEL - CODE CONNECT - 720320...
- Page 5 Fig. 9 Note that if you have a second family screen, you will need to activate the function by entering a code on the keypad. Fig. 10 EXTEL - CODE CONNECT - 720320...
-
Page 6: Table Of Contents
1 - Default codes 2 - Opening the electric strike plate or motor drive 3 - Code management G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE ............................08 1 - Preparing the videophone 2 - Pairing your doorkeeper with a smartphone for the first time... -
Page 7: A - Kit Contents
Name holder (the transparent plastic can be Monitor, electric strike plate and gate motor peeled back to write on the label) drive connectors (for details, see Fig. 7) Microphone When on: button for calling family 1 EXTEL - CODE CONNECT - 720320... -
Page 8: D - Installation
• Insert the adapter wires in the back of the monitor (without plugging it into the wall socket). Warning: you must comply with the polarity (red and black terminals). • Install the monitor (1) on the wall bracket. EXTEL - CODE CONNECT - 720320... -
Page 9: Connecting An Electric Strike Plate
0.75 mm². E - MONITOR USER MANUAL The Extel Code Connect videophone is controlled through touch-sensitive keys. The button functions vary depending on the menu accessed. The icons at the bottom of the screen help guide you as to their use. - Page 10 Menu: Back/Exit (back button to parent menu) 2 - NAVIGATING THE MENU The Extel Code connect monitor screen is not a touchscreen. To navigate the settings menus, you need to move the orange selection cursor using the touch-sensitive buttons below the direction arrows.
-
Page 11: Sound Adjustment Menu
If a secondary monitor is connected, you can call it using this menu: Enables you to answer the call and talk with the second monitor Enables you to hang up and return to the previous menu EXTEL - CODE CONNECT - 720320... - Page 12 6 - WIFI SETTINGS MENU Activate/deactivate WiFi Ringer time interval setting on smartphone Monitor’s WiFi connection status 7 - PHOTO/VIDEO MENU View and manage photos recorded during calls View and manage videos recorded during calls EXTEL - CODE CONNECT - 720320...
-
Page 13: Advanced Settings
RESET RESET MENU Image adjustment: colour, contrast, Activate/deactivate “Do not disturb” mode brightness Clock/calendar setting Reset administrator codes and opening Photo or video recording code pad Erase all photos or videos Restore factory settings EXTEL - CODE CONNECT - 720320... -
Page 14: F - Intercom Panel User Manual
In settings, you can exit this mode by waiting for 15 s or pressing the # key 3 times. If you make a mistake with the code, press the * key before entering the code again. EXTEL - CODE CONNECT - 720320... - Page 15 F - INTERCOM P ANEL USER MANUAL EXTEL - CODE CONNECT - 720320...
-
Page 16: G - Connecting Your Extel Code Connect Videophone To Your Smartphone
G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE 1. PREPARING THE VIDEOPHONE When your doorkeeper is first connected to your Extel Code Connect video, you need to pair it with your smart- phone. To pair it, go to the WiFi sub-menu then reset the WiFi settings:... -
Page 17: Pairing Your Doorkeeper With A Smartphone For The First Time
2. PAIRING YOUR DOORKEEPER WITH A SMARTPHONE FOR THE FIRST TIME Note: screenshots are from the Android version of the application. The iPhone procedure is identical. Download the Extel Connect application from Google Play or the App Store. Click on the “+” button. - Page 18 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE Then scan the QR code on your doorkeeper’s monitor screen. If the scan of the QR code is correct, the application should find the Extel Code Connect monitor. Press “Ajouter” [Add].
-
Page 19: Pairing Your Doorkeeper With A Smartphone When It Is Already Connected
G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE Once the connection has been established between the Extel Code Connect monitor and Y ou will be immediately asked to change your router, the message “Jumelage réussi” the secret connection code for your video [Pairing successful] should appear. - Page 20 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE In the smartphone app, click on the “+” symbol. Select “Mon périphérique est déjà connecté à Internet” [My device is already connected to the Internet]. Select “Extel Code Connect”.
- Page 21 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE Then scan the QR code on your doorkeeper’s monitor screen. If the scan of the QR code is correct, the application should find the Extel Code Connect monitor. Press “Ajouter” [Add].
-
Page 22: Interface Functions
G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE The message “Jumelage réussi” [Pairing successful] should appear. Enter a name to identify your video doorkeeper and press “Enregistrer” [Save]. To finish the procedure, open the live image from your video doorkeeper by clicking on its thumbnail. - Page 23 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE Monitoring mode Enables you to manage the camera settings: name, password, WiFi network, Channel number and alarm Activate/deactivate the sound Activate/deactivate the microphone Take a video that can be viewed in the log...
-
Page 24: Settings Accessible In The Application
G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE 5. SETTINGS ACCESSIBLE IN THE APPLICATION Many configuration options can be accessed by clicking on the icon at the top right of the live image screen. Allows you to change the name of the intercom in the application Allows you to see the monitor’s UID... - Page 25 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE The QR code creation feature allows you to generate a QR code that you can send to whomever needs to open the electric strike plate in your absence. To access this menu: Name: Give the QR code a name for easy identification in the future.
- Page 26 G - CONNECTING YOUR EXTEL CODE CONNECT VIDEOPHONE TO YOUR SMARTPHONE The QR code now appears in the existing list. Press to access the sharing page. Allows the QR code to be shared (by email, text message or other means)
-
Page 27: H - Technical Settings
If necessary, consult our technical website: • Do not open the device, as this will void the warranty. www.avidsen.com • Clean with a soft cloth only, no solvents. The EXTEL - CODE CONNECT - 720320... -
Page 28: J - Safety Instructions
Avidsen, undersigned, states that radio equipment such - Only use this product with electrical current in the as the Extel Code Connect is compliant with directive following ranges: 100-240 Volts and 50-60 Hertz. 2014/53/EU Never attempt to use this device at a different voltage. -
Page 29: K - Declaration Of Conformity
EN 62368-1:2020+A11:2020 Directive 2014/30/UE: • EN 301 489-1 V2.2.3 (2019-11) • EN 301 489-17 V3.2.4 (2020-09) • EN 55032:2015+A11:2020 • EN 55035:2017+A11:2020 Directive 2014/53/UE: • EN 300328 V2.2.2 (2019-07) IN Tours, 16/05/2022 Alexandre Chaverot, CEO EXTEL - CODE CONNECT - 720320... - Page 30 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
