i
HOTLINE
GARANTIE

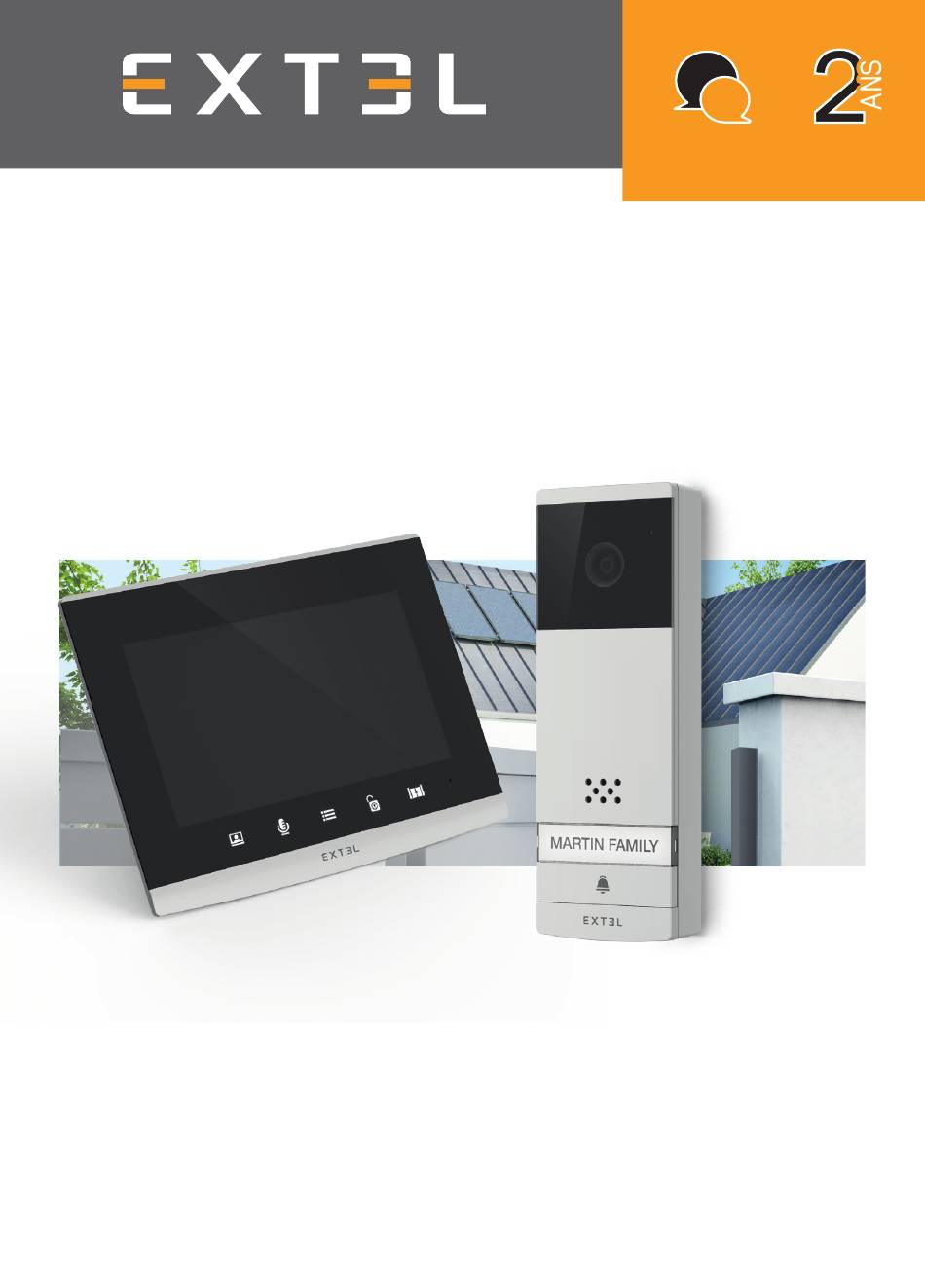

REF. 720313
WAVE
Connected videophone
Screen and intercom panel
www.avidsen.com
Guide d'installation et d'utilisation
Installation and User Manual
Installatie- en gebruikersgids
Installations-und Bedienungsanleitung
Guía de instalación y de uso
Manual de instalação e utilização
Manuale d'uso e installazione
Οδηγός εγκατάστασης και χρήσης
V5
Advertisement
Table of Contents
Related Manuals for Extel WAVE
Summary of Contents for Extel WAVE
- Page 1 HOTLINE GARANTIE REF. 720313 WAVE Connected videophone Screen and intercom panel www.avidsen.com Guide d’installation et d’utilisation Installation and User Manual Installatie- en gebruikersgids Installations-und Bedienungsanleitung Guía de instalación y de uso Manual de instalação e utilização Manuale d’uso e installazione...
- Page 2 Fig. 1 Master Slave Fig. 2 Master Slave Fig. 3 VIDEO MICK VIDEO MICK EXTEL - WAVE - 720313...
- Page 3 Fig. 4 Fig. 4’ Power RESET PAIR1 EXTEL - WAVE - 720313...
- Page 4 Fig. 4’ Power PAIR1 Fig. 5 50cm 160cm 150cm EXTEL - WAVE - 720313...
- Page 5 Fig. 6 Fig. 6' Fig. 7 WiFi EXTEL - WAVE - 720313...
- Page 6 Fig. 8 EXTEL - WAVE - 720313...
- Page 7 Fig. 9 EXTEL - WAVE - 720313...
- Page 8 EXTEL - WAVE - 720313...
-
Page 9: Table Of Contents
4 - WiFi settings 5 - Advanced settings G - TECHNICAL SETTINGS ............................16 H - WARRANTY .................................17 I - SAFETY INSTRUCTIONS ............................18 J - TECHNICAL AND LEGAL INFORMATION.......................19 1 - Declaration of conformity EXTEL - WAVE - 720313 en - 1... -
Page 10: A - Kit Contents
Connectors for power supply, strike plate and Microphone motor drive Call button Connectors for the intercom panel Dawn-to-dusk cell capable of detecting Eco mode management switch ambient brightness Connectors for the PowerBox en - 2 EXTEL - WAVE - 720313... -
Page 11: E - Installation
• Y ou can connect and use an electric strike plate (not provided) with your intercom panel, with mechanical memory. The Extel Wave videophone can only activate an electric strike plate when the PowerBox is powered by the power supply unit provided and Power mode is enabled. -
Page 12: Installing The Powerbox
The wire size to be used is 0.75mm². • The use of a 12 V/1.1 A max. electric strike plate with WECA mechanical memory (Extel reference 109021 or 109031) or WECA 5001/2 10 SER R1 (reference 150011) is recommended. -
Page 13: Pairing The Monitor With The Powerbox
1 - Put the screen in pairing mode In the menu of your videophone, go to the settings sub-menu In the settings sub-menu, select the second line and launch the pairing mode EXTEL - WAVE - 720313 en - 5... - Page 14 After pressing the PowerBox pairing button and launching the screen timer, press the intercom panel’s call button. The screen starts ringing. Note: you must press the intercom panel button before the screen timer reaches 0. en - 6 EXTEL - WAVE - 720313...
-
Page 15: Smartphone Application
WiFi by clicking on RESET, then wait for the icon to appear (about 30 seconds). The Extel Wave videophone works with all types of 2.4GHz or 5GHz WiFi. However, for optimum performance, we recommend connecting your videophone to a 5GHz WiFi. - Page 16 . If no network where to find the QR Code you need to scan. Click on appears, your phone is probably in 3G/4G. “suivant” (next). When the WiFi network you want appears, enter the password. en - 8 EXTEL - WAVE - 720313...
- Page 17 After pairing with your smartphone, you must press the call button to view the video stream. Add a smartphone to a connected videophone 1- Download the Extel Connect application to your smartphone from the Apple store or Play store Note: Disable the smartphone's WiFi smart network mode if it is activated.
- Page 18 QR Code and get its UID faster. Click on Save. If the videophone is not nearby, you can scan the barcode in the Extel Connect owner's application. The barcode is available under the “Inviter un ami” (Invite a friend) menu in the already connected application.
- Page 19 • Have your friends download the Extel Connect application. • Share the link using the messaging service of your choice by pressing ‘Share’. • Securely share your password. • When you click on the link, your friend's Extel Connect EXTEL - WAVE - 720313 en - 11...
- Page 20 • The application asks you to enter the password you have already chosen. • Y our friend is now connected to your videophone. Used to delete recordings Groups recordings Allows you to edit photos (delete, sort and group) Groups saved photos. en - 12 EXTEL - WAVE - 720313...
-
Page 21: F - Monitor User Manual
F - MONITOR USER MANUAL The Extel Wave videophone is controlled through touch-sensitive keys. The button functions vary depending on the menu accessed. The icons at the bottom of the screen help guide you as to their use 1 - BUTTON FUNCTIONS... -
Page 22: Sound Adjustment Menu
Access the pairing the videophone with your smartphone sub-menu 2 - Smartphone pairing menu Videophone ID WiFi network connected WiFi status pairing mode connected (if fixed icon) connecting (if dynamic icon) WiFi rebooting WiFi reboot en - 14 EXTEL - WAVE - 720313... -
Page 23: Advanced Settings
5 - ADVANCED SETTINGS “Do not disturb” sub-menu Start pairing Selecting the recording mode (photo or video) Erasing photos/videos/full memory Opening pulse duration for the gate motor drive Restore videophone factory settings EXTEL - WAVE - 720313 en - 15... -
Page 24: G - Technical Settings
Monitor: 5V/1A Electrical features Intercom panel: 4x1.5V LR20 or external 12-30V/2A power supply Application: Extel Connect (smartphone with 3G/4G or WIFI connection required) Smartphone compatibility OS compatibility: Android (v4.4 or higher)/iOS (7 or higher) Push notifications if a visitor calls Operating temperature -10°C/+40°C... -
Page 25: H - Warranty
Before cleaning, disconnect the equipment or switch it off at the mains. Latest version of the downloadable instructions in • The receipt or invoice is proof of purchase date. colour on: www.avidsen.com EXTEL - WAVE - 720313 en - 17... -
Page 26: I - Safety Instructions
- Y ou must follow the instructions for use of any other devices connected to the system. - Please contact an experienced person if you have en - 18 EXTEL - WAVE - 720313... -
Page 27: J - Technical And Legal Information
J - TECHNICAL AND LEGAL INFORMATION 1 - DECLARATION OF CONFORMITY Avidsen, undersigned, states that radio equipment such as the Extel Wave is compliant with directive 2014/53/EU Standards: • L VD 2014/35/EU • EN 62368-1:2014+A11:2017 • EMC 2014/30/EU • EN 301 489-1 V2.2.3 •... - Page 28 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
