- Page 1 HOTLINE WARRANTY REF. 720321 WAVE 2 Connected videophone Screen and intercom panel www.avidsen.com Guide d’installation et d’utilisation Installation and User Manual Installatie- en gebruikersgids Installations-und Bedienungsanleitung Guía de instalación y de uso Manual de instalação e utilização Manuale d’uso e installazione...
- Page 2 Fig. 1 Master Slave Fig. 2 Master Slave Fig. 3 EXTEL - WAVE 2 - 720321...
- Page 3 Fig. 4 50cm 160cm 150cm Fig. 5 Fig. 6 EXTEL - WAVE 2 - 720321...
- Page 4 Fig. 7 EXTEL - WAVE 2 - 720321...
-
Page 5: Table Of Contents
F - CHARGING THE BATTERY ...........................14 G - TECHNICAL SETTINGS ............................16 H - WARRANTY .................................17 I - SAFETY INSTRUCTIONS ............................18 J - TECHNICAL AND LEGAL INFORMATION.......................19 1 - Declaration of conformity EXTEL - WAVE 2 - 720321 en - 1... -
Page 6: A - Kit Contents

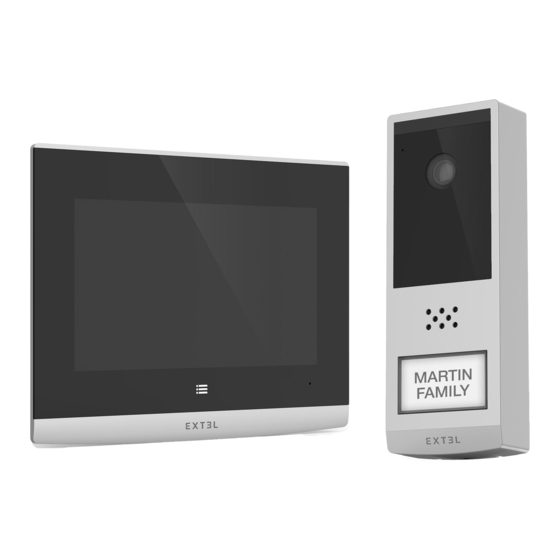

Control output Loudspeaker Call button and name holder (the transparent plastic can be peeled back to write on the label) Microphone Dawn-to-dusk cell capable of detecting ambient brightness and in infrared LEDs EXTEL - WAVE 2 - 720321 en - 2... -
Page 7: D - Installation
• The maximum distance between the intercom panel and the electric strike plate or electric lock is 50 m maximum. The wire size to be used is 0.75 mm². • The use of a 12 V/1.1 A max. electric strike plate with WECA mechanical memory (Extel reference 109021 or 109031 or reference 150011). -
Page 8: Pairing The Monitor With The Intercom Panel
In the menu of your videophone, go to the settings sub-menu In the settings sub-menu, go to the second line and press the button. Press the button once to display the orange and press the button. EXTEL - WAVE 2 - 720321 en - 4... - Page 9 1 second as shown above. If pairing is successful, the screen will display a instead of the countdown. If the pairing is not successful, the countdown continues to 0. EXTEL - WAVE 2 - 720321 en - 5...
-
Page 10: Smartphone Application
5 - SMARTPHONE APPLICATION Connecting a monitor to the WiFi network 1- Download the Extel Connect application onto your smartphone. From the Apple store or Play store 2- From the monitor, go to the WiFi menu then the pairing with your smartphone sub-menu... - Page 11 D - INST ALLATION 3 - From the Extel Connect application, click on + to The application reminds you that the screen of your add a device. videophone must be in pairing mode, and indicates where to find the QR Code you need to scan. Click on “suivant”...
- Page 12 Add a smartphone to a connected videophone 1- Download the Extel Connect application to your smartphone from the Apple store or Play store Note: Disable the smartphone's WiFi smart network mode if it is activated.
- Page 13 D - INST ALLATION 2 - From the Extel Connect application, click If the videophone is not nearby, you can scan the on + to add a device. barcode in the Extel Connect owner's application. The barcode is available under the “Inviter un ami” (Invite a friend) menu in the already connected application.
- Page 14 Used to delete a device from the account Open the electric strike plate or the gate Warning: is used to modify and is used to validate. Press and hold to speak to the visitor. EXTEL - WAVE 2 - 720321 en - 10...
- Page 15 • Share the link using the messaging service of your choice by pressing ‘Share’. • Securely share your password with friends. • When you click on the link, your friend's Extel Connect application automatically opens and all information on the videophone is pre-populated.
-
Page 16: E - Monitor User Manual
Turn the WiFi on or off Adjusting the time between the call to the intercom panel and the despatch of the call to the smartphone Access the pairing the videophone with your smartphone sub-menu EXTEL - WAVE 2 - 720321 en - 12... -
Page 17: Advanced Settings
4 - ADVANCED SETTINGS “Do not disturb” sub-menu Start pairing Selecting the recording mode (photo or video) Erasing photos/videos/full memory Opening pulse duration for the gate motor drive Restore videophone factory settings EXTEL - WAVE 2 - 720321 en - 13... -
Page 18: F - Charging The Battery
It is also displayed on the live image on your smartphone To recharge the intercom panel battery if necessary: Remove the front cover using the tool provided Remove the battery by grabbing it from the sides EXTEL - WAVE 2 - 720321 en - 14... - Page 19 • Repeated use of the monitoring function (displaying the image when a visitor is not present) • High number of calls per day • High use of night vision • Distance and nature of obstacles between the intercom panel and the monitor EXTEL - WAVE 2 - 720321 en - 15...
-
Page 20: G - Technical Settings
Electrical features Intercom panel: included 3.7V 5000mAh rechargeable battery or external power supply 5V / 1A Application: Extel Connect (smartphone with 3G/4G/5G or WiFi connection required) Smartphone compatibility OS compatibility: Android (v4.4 or higher) / iOS (7 or higher) Push notifications... -
Page 21: H - Warranty
Latest version of the downloadable instructions in • The receipt or invoice is proof of purchase date. colour on: www.avidsen.com EXTEL - WAVE 2 - 720321 en - 17... -
Page 22: I - Safety Instructions
- For schools, training equipment, workshops, etc., the presence of qualified personnel is needed to monitor operation of the electronic devices. - Adhere to the usage instructions for other devices connected to the system. EXTEL - WAVE 2 - 720321 en - 18... -
Page 23: J - Technical And Legal Information
J - TECHNICAL AND LEGAL INFORMATION 1 - DECLARATION OF CONFORMITY Avidsen, undersigned, states that radio equipment such as the Extel Wave is compliant with directive 2014/53/EU Standards: EN 62311:2020 EN 55032:2015+A1:2020 EN 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A2:2021+AC:2022-01 EN 301 489-1 V2.2.3(2019-11) EN 301 489-17 V3.2.4(2020-09) - Page 24 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
