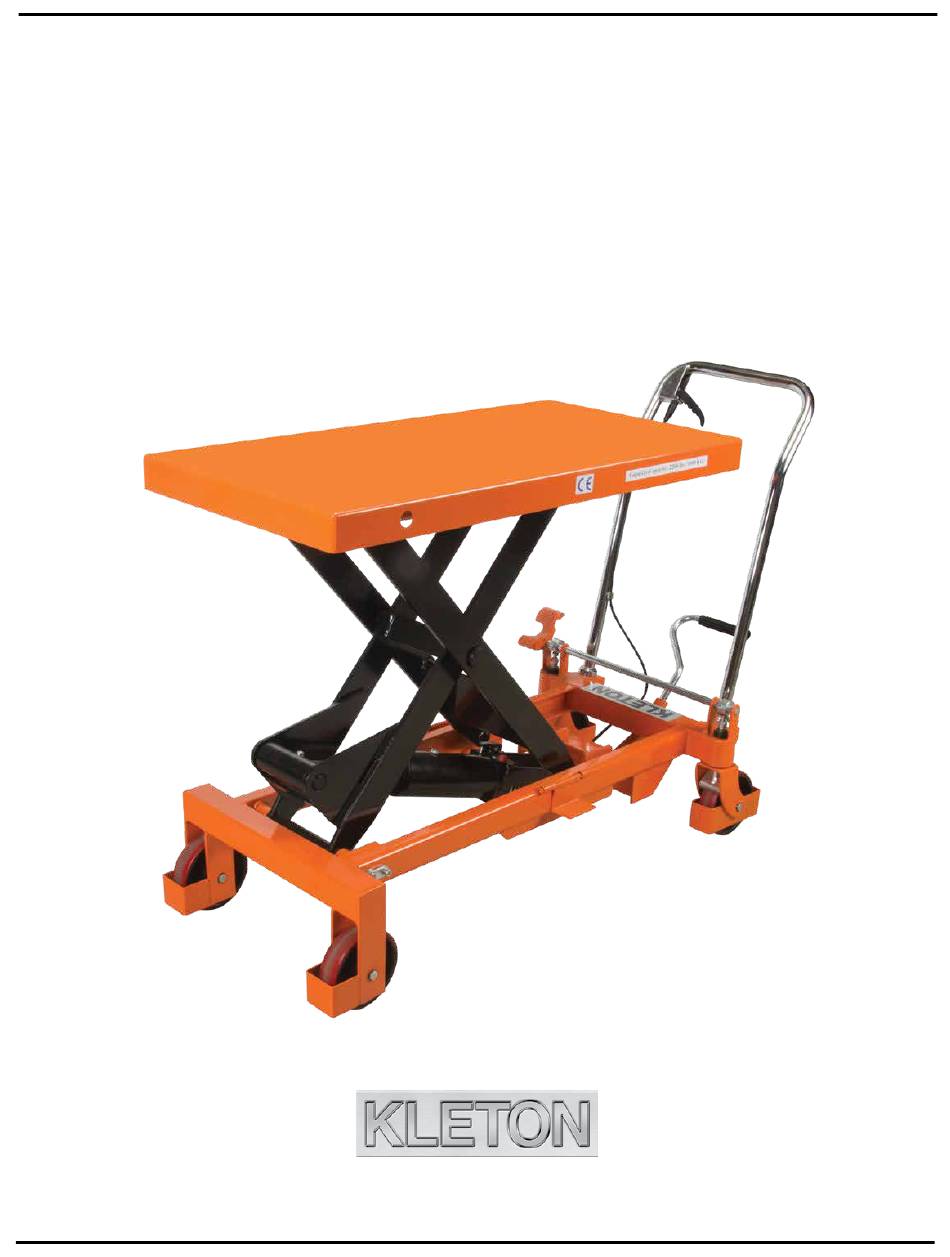

- Page 1 Instruction Manual MP011 Mobile Hydraulic Scissor Lift Table 2200 lbs. (1000 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. •... -
Page 3: Specifications
Wheel Weight Height Strokes to Elevate 1000 kg. 510 x 1016 mm 380-1000 mm 150 mm 115 kg. MP011 ≤55 2200 lbs. 20" x 40" 14.9" x 39.3" 5.9" 253 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease,... - Page 4 LIFT TABLE PARTS LIST Part Model Description Qty. SPB90.1.01 Handle bar SP70.0-15 SP70.0-14 SP70.0-13 Retaining ring SPB90.0-02 Pedal GB77-85 Screw GB41-86 SP70.0-11 SPA.0-02 Washer GB93-1986 Washer GB5781-2000 Bolt GB/T276-94 Bearing SP70.0-10 Bush GB297-64 Bearing GB5781-2000 Bolt GB41-86 GB95-1985 Washer SP70.7-01 Spring SPB90.7.02 Rack wheel...
-
Page 5: Pump Parts List
PUMP PARTS LIST Model Model Model Part Part Part Description Qty. Description Qty. Description Qty. GB3452.1-86 O-ring SP.8-17 Spring SP70.6-07 Washer SP.8-11 Pump cylinder SP.8-16 Adjusting screw GB3452.1-82 O-ring UHS18 YX-seal ring GB3452.1-86 O-ring SP70.6-08 Cup packing DH18 Dust seal SP.8-15 Cover ring SP70.6-09... - Page 6 HANDLE PARTS LIST Model Part Description Qty. MJ986 Spring pin SPB90.1.01 Handle bar MP015 Knob MP019 Screw Pull rod...
