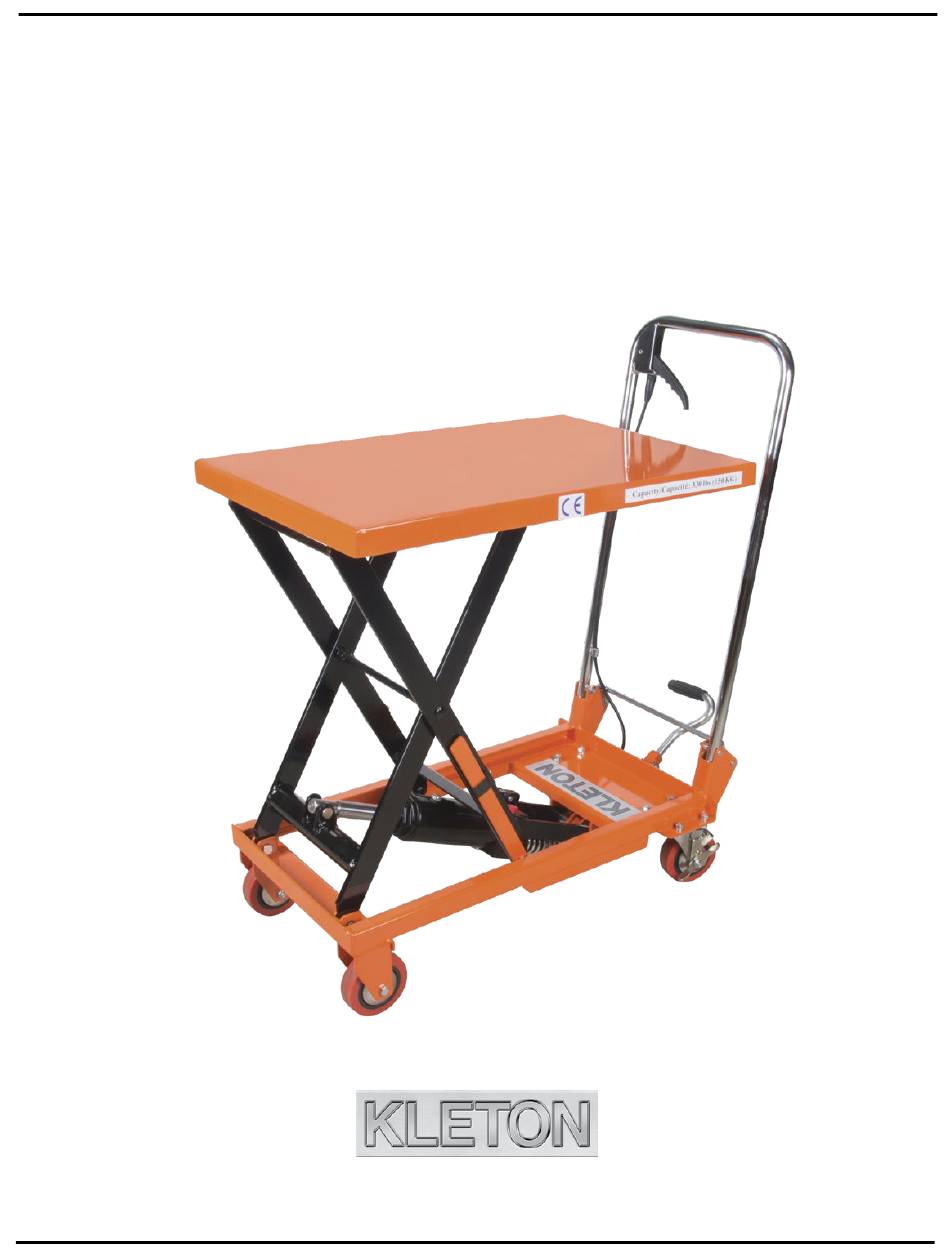

- Page 1 Instruction Manual MP005 Mobile Hydraulic Scissor Lift Table 330 lbs. (150 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. •... -
Page 3: Specifications
Wheel Weight Height to Elevate 150 kg. 450 x 700 mm 225-740 mm 100 mm 42 kg. MP005 ≤ 25 330 lbs. 17.7" x 27.5" 8.8" x 29.1" 4" 92.4 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease,... - Page 4 LIFT TABLE PARTS LIST Part Model Qty. Description SPIII15.1.01 Handle bar SP15.0.11 Pressing buckle SP15.0-13 Spring SP.1-02 Retaining ring GB882-86 GB5781-2000 Bolt GB96-85 Washer GB95-85 Washer GB93-87 Washer GB41-86 Nut M8 MP020 Wheel 4" SP15.7-00 Frame GB5780-2000 Bolt SP15.0-03 Wheel GB889-86 Nut M8 SP.0-11...
-
Page 5: Pump Parts List
PUMP PARTS LIST Part Model Qty. Description GB3542.1-86 O-ring SP.8-11 Pump cylinder UHS18 YX-seal ring DH18 Dust ring SP.8-10 Pump plunger SP.8-09 Spring SP.8-08 Spring seat GB894.1-86 Retaining ring SP15.0-10 Joint plate SP.0-14 JF.1-17 Plug JB982-77 Copper washer 6W804.1-12 Damp valve YQ-03 Spring YQ-02... - Page 6 HANDLE PARTS LIST Part Model Qty. Description GB879-86 Spring pin SPAIII.1.01 Handle bar MO015 Handle Knob MP016 Adjusting screw Pull rod...
