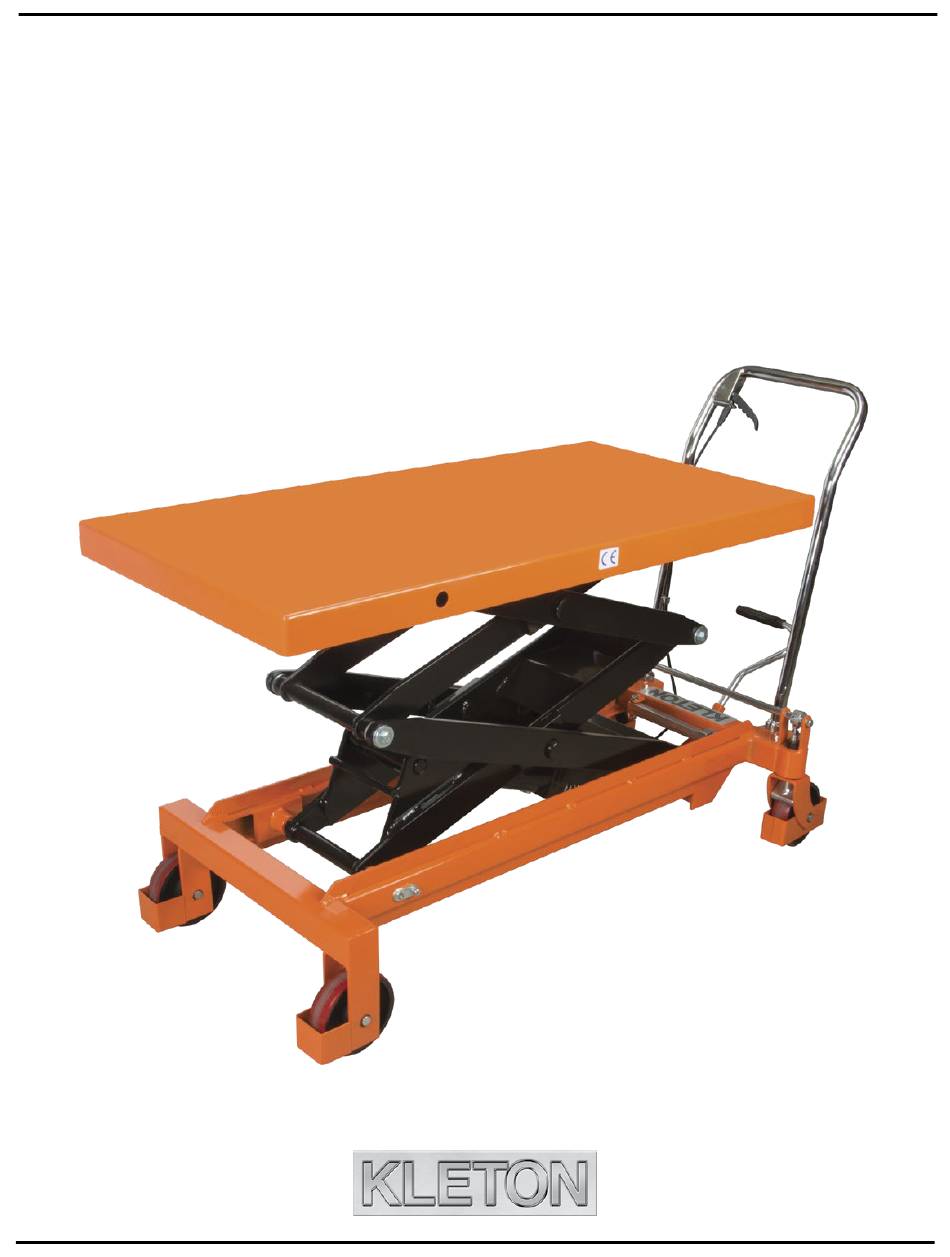

- Page 1 Instruction Manual MP012 Mobile Hydraulic Scissor Lift Table 1760 lbs. (800 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. •... -
Page 3: Specifications
Wheel Weight Height Strokes to Elevate 800 kg. 610 x 1220 mm 475-1500 mm 150 mm 172 kg. MP012 ≤ 70 1760 lbs. 24" x 48" 18.7" x 59" 5.9" 378.4 lbs. Service Instructions Change hydraulic oil every 12 months... - Page 4 LIFT TABLE PARTS LIST Part Model No. Description Qty. SPB90.1-00 Handle SP150.0-01 SP70.0-14 SP70.0-13 Retaining ring SPB90.0-02 Pedal GB41-1986 GB77-85 Screw SPA.0-02 Washer GB93-1987 Washer GB/T5780-2000 Bolt SP70.0-11 GB276-94 Bearing SP70.0-10 Bush GB297-94 Bearing GB/T5783-2000 Bolt GB41-1986 GB95-85 Washer SP70.0-01 Spring SPB90.7.02 Wheel rack...
-
Page 5: Pump Parts List
PUMP PARTS LIST Part Model No. Description Qty. GB3452.1-86 O-ring SP.8-11 Pump cylinder UHS18 YX-seal ring DH18 Dust ring SP.8-10 Pump plunger SP.8-09 Spring SP.8-08 Spring seat GB894.1-86 Retaining ring SP70.0-09 Joint plate SP.0-14 JF.1-17 Screw JB982-77 Copper washer 6W804.1-12 Damp valve YQ-03A Spring... - Page 6 HANDLE PARTS LIST Part Model No. Qty. Description GB879-86 SPB90.1.01 Handle MP015 Knob MP019 Screw Pull rod...
