Summary of Contents for Kleton MP010

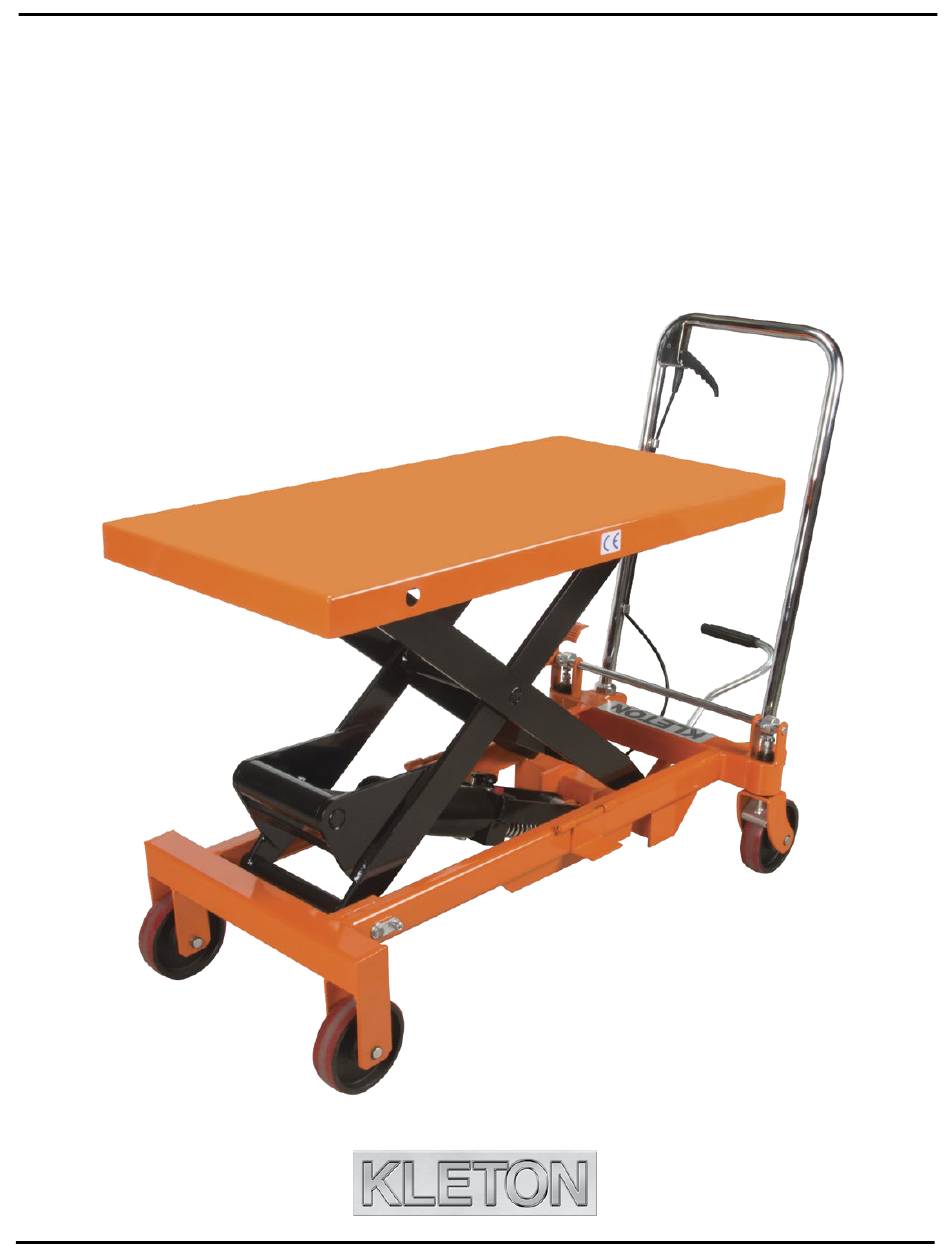

- Page 1 Instruction Manual MP010 Mobile Hydraulic Scissor Lift Table 1760 lbs. (800 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. •...
- Page 3 Wheel Weight Height Strokes to Elevate 800 kg. 510 x 1000 mm 420-1000 mm 150 mm 115 kg. MP010 ≤ 70 1760 lbs. 20" x 39.3" 16.5" x 39.3" 5.9" 253 lbs. Service Instructions Change hydraulic oil every 12 months...
- Page 4 LIFT TABLE PARTS LIST Part Model No. Description Qty. SPAIII.1.01 Handle bar SP70.0-15 SP70.0-14 SP70.0-13 Retaining ring SP70.0-12 Pedal GB77-85 Screw GB41-86 SP70.0-11 SPA.0-02 Washer GB93-1986 Washer GB5781-2000 Bolt GB/T276-94 Bearing SP70.0-10 Bush GB297-64 Bearing GB5781-2000 Bolt GB41-86 GB95-1985 Washer SP70.7-01 Spring SP70.7.03...
- Page 5 PUMP PARTS LIST Part Model No. Description Qty. GB3452.1-86 O-ring SP.8-11 Pump cylinder UHS18 YX-seal ring DH18 Dust ring SP.8-10 Pump plunger SP.8-09 Spring SP.8-08 Spring seat GB894.1-86 Retaining ring SP70.0-09 Joint plate SP.0-14 JF.1-17 Screw JB982-77 Copper washer 6W804.1-12 Damp valve YQ-03A Spring...
- Page 6 HANDLE PARTS LIST Part Model No. Qty. Description GB879-86 SPAIII.1.01 Handle bar MP015 Handle knob MP019 Screw Pull rod...
