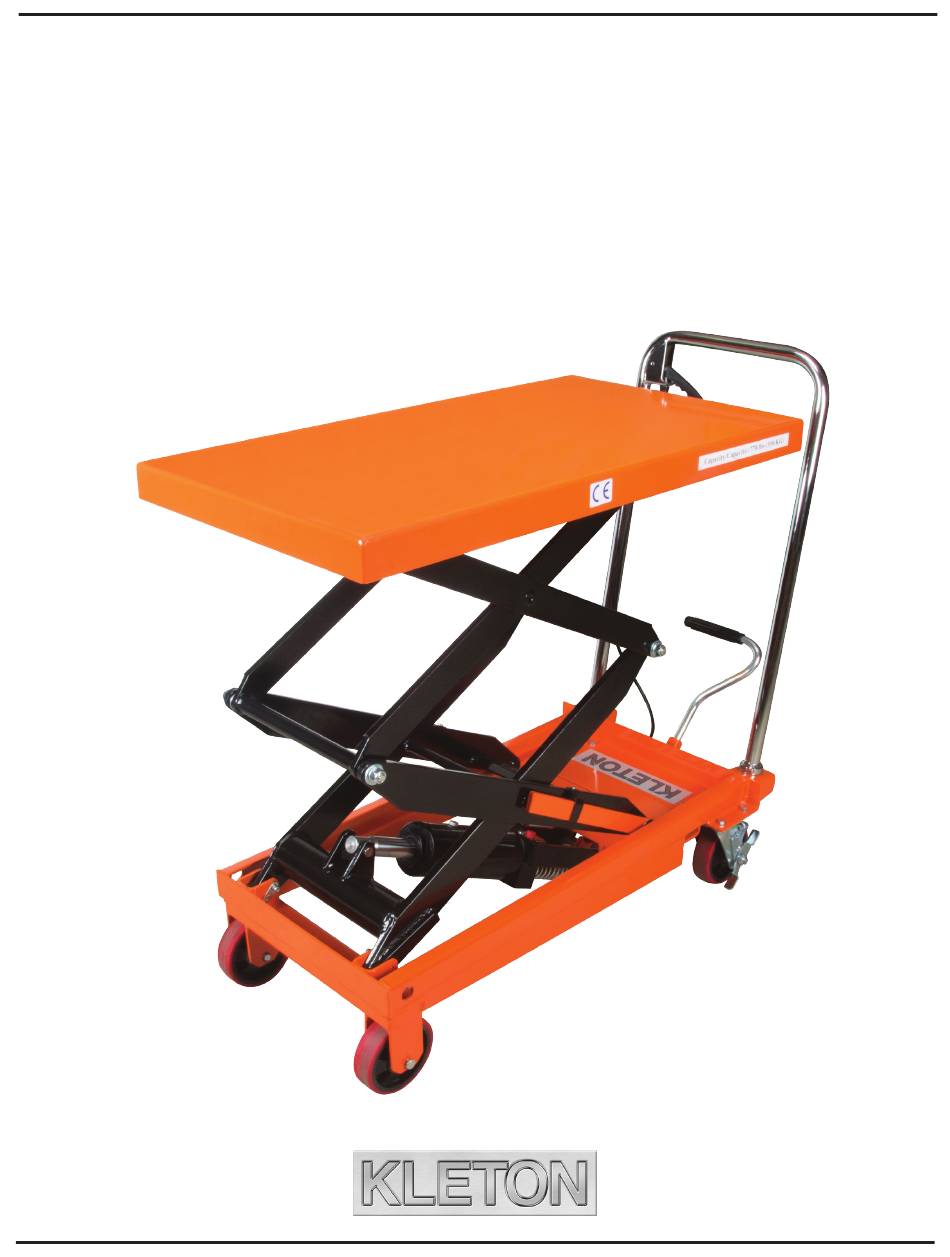

- Page 1 Instruction Manual MP007 Mobile Hydraulic Scissor Lift Table 770 lbs. (350 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. •...
- Page 3 Wheel Weight Height Strokes to Elevate 350 kg. 500 x 910 mm 350-1300 mm 127 mm 105 kg. MP007 ≤ 60 770 lbs. 19.7" x 35.9" 13.8" x 51.1" 5" 231.5 lbs. Service Instructions Change hydraulic oil every 12 months...
- Page 4 LIFT TABLE PARTS LIST Part Model Description Qty. SPIII.1-00 Handle bar SPA.0-02 Washer GB93-1987 Washer GB5781-2000 Bolt GB5781-2000 Bolt GB95-1985 Washer GB93-1987 Washer GB41-86 MP021 Wheel SPSC.3-00 Frame SP.0-08 Shaft MP021 Wheel GB894.1-86 Retaining ring SP.0-11 Shaft SP.0-12 Bush GB894.1-86 Retaining ring SPS.0-03 Shaft...
- Page 5 PUMP PARTS LIST Part Model Description Qty. GB3452.1-86 O-ring SP.8-11A Pump cylinder UHS14 YX - seal ting DH14 Dust ring SP.8-10A Pump plunger SP.8-09 Spring SP.8-08 Spring seat GB894.1-86 Retaining ring SP.0-13B Joint plate SP.0-14 JF.1-17 Screw JB982-77 Copper washer 6W804.1-12 Damp valve YQ-03...
- Page 6 HANDLE PARTS LIST Part Model Qty. Description GB879-86 Spring pin SPAIII.1.01 Handle bar MP015 Knob GB6172-86 SPIII.0-01 Screw MP017 Pull rod...
