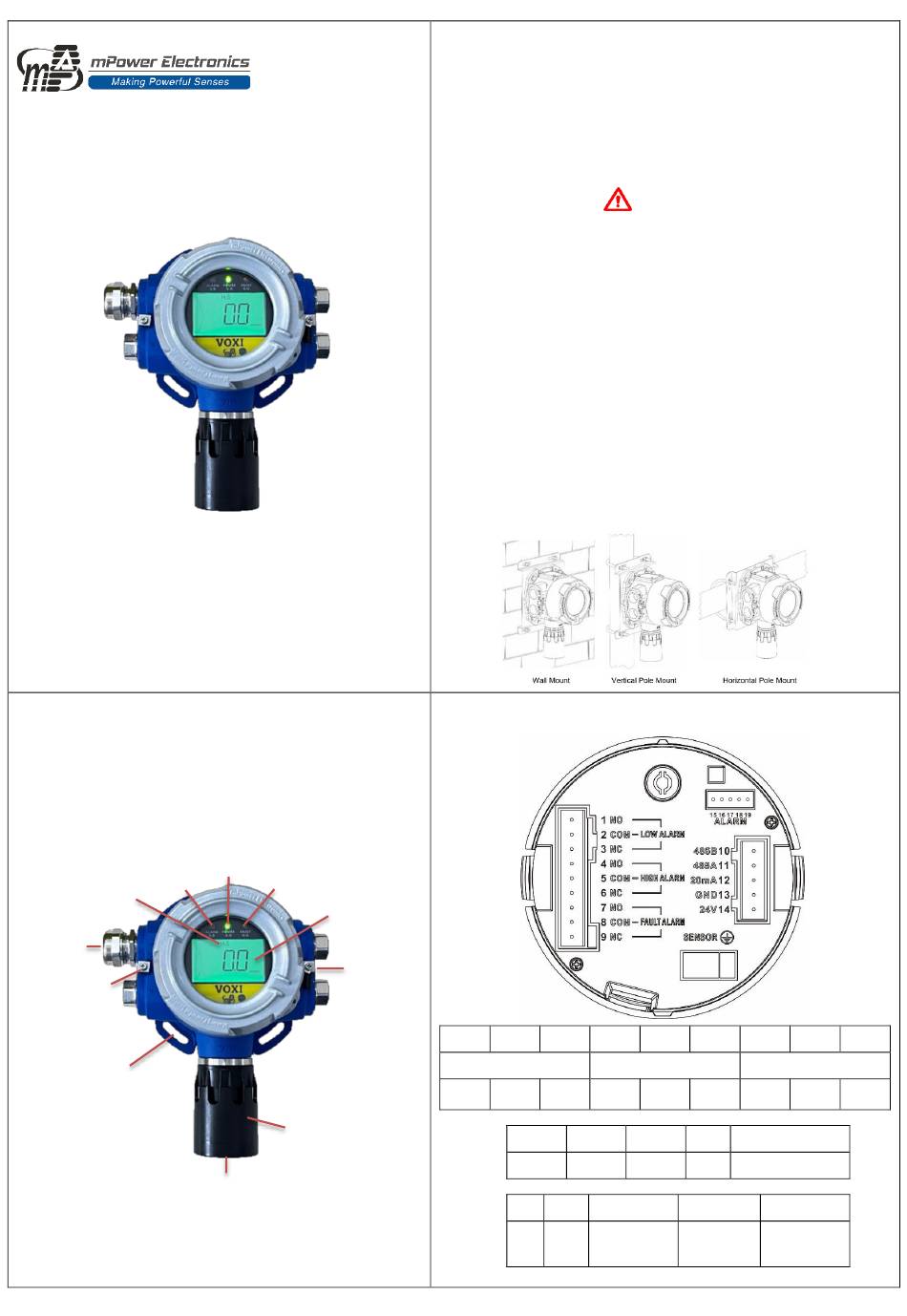

VOXI
MP84X Series
Quick Start Guide
mPower Electronics Inc.
2910 Scott Blvd. Santa Clara, CA 95054
www.mpowerinc.com
info@mpowerinc.com
PN: M024-4002-000
User Interface
The user interface of the VOXI EC has an LCD
graphic display and LED indications. The operations
are controlled using an IR romote programmer.
Alarm
Chemical
LED
Sensor Type
Conduit
Port for
Wiring
Grounding
Point*
Mounting
Slot
*The ground wire must be connected to the VOXI housing
reliably. We recommend using AWG11 as ground wire.
EC
Power
LED
Fault
LED
Concentration
Display
Grounding
Point*
Rain Cap
Gas Inlet
The VOXI EC User's Guide must be carefully read by all
individuals who have or will have the responsibility of using,
maintaining or servicing this product. The product will
perform as designed only if it is used, maintained and
serviced in accordance with the manufacturer's instructions.
• Never operate the monitor when the cover is removed.
• Remove the monitor cover only in an area known to be non-
hazardous.
• Use only mPower's sensor and accessories. Substitution of
components will impair intrinsic safety and void warranty.
• For optimal results, it is recommended to allow the unit to
warm up for 2 minutes after entering the test interface.
• For maximum safety, the accuracy of the instrument should be
checked by exposing it to a known concentration calibration gas
at regular intervals.
• Ensure that the gas inlet is not blocked.
• Ensure that all filters are clean and replaced on a regular basis.
• Remove the sensor only if necessary for repair. Zero and span
calibration are required once the sensor is moved.
Mount the VOXI EC to a wall or pole using the bracket and
pole loops provided.
v1.21
1
2
Low Alarm Contacts High Alarm Contacts Fault Alarm Contacts
Norm.
Norm.
Com
Open
Closed
10
RS485B RS485A 4-20 mA
15
+V
2
Read Before Operating
Warnings
Mounting
Wiring Diagram
3
4
5
6
Norm.
Norm.
Com
Open
Closed
11
12
13
-V
16
17
18
Strobe/Horn
Strobe/Horn
Fault Alarm
Low Alarm
-V
(reserved)
(reserved)
1
7
8
9
Norm.
Norm.
Com
Open
Closed
14
+V (10-30V, <1W)
19
Strobe/Horn
High Alarm
(reserved)
3
