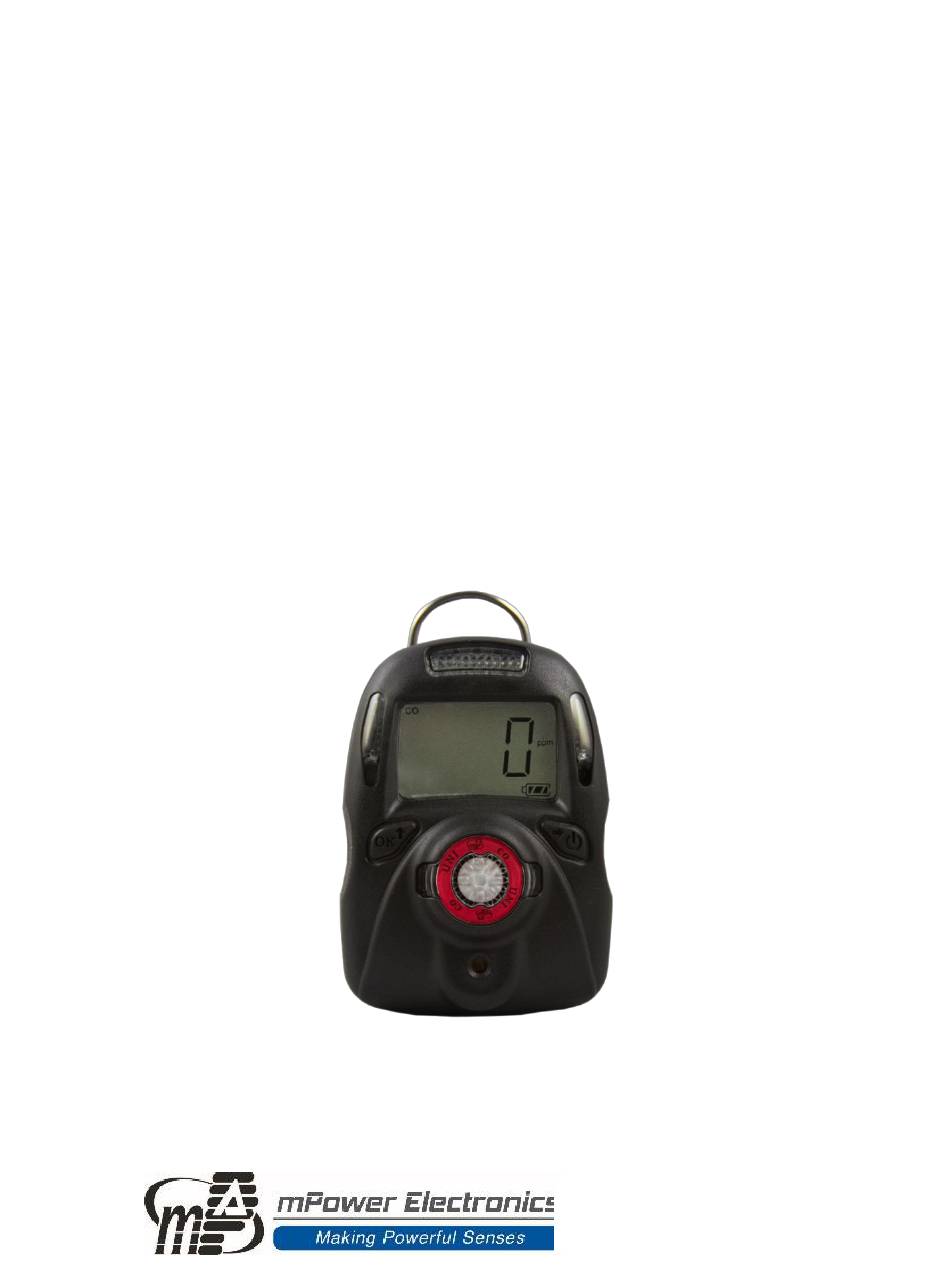

- Page 1 Multi-Gas Detectors MP100 User’s Guide Rev. 1.11 October 2019...
-
Page 2: Table Of Contents
UNI MP100 User’s Guide Contents 1. General Information ......................... 3 2. User Interface ........................... 3 3. Display ............................. 4 4. Operation..........................5 Turning the Unit On and Off ..................5 Warm-up Sequence ....................... 5 Normal User Mode ....................... 5 4.3.1 Real Time Readings ................... - Page 3 UNI MP100 User’s Guide Read Before Operating This manual must be carefully read by all individuals who have or will have the responsibility of using, maintaining or servicing this product. The product will perform as designed only if it is used, maintained and serviced in accordance with the manufacturer’s instructions.
-
Page 4: General Information
UNI MP100 User’s Guide 1. General Information The UNI (MP100) is a single sensor, portable, personal toxic gas monitor. It displays gas concentration continuously on a big segment LCD. It also monitors the STEL, TWA, Peak and Minimum (for O only) values, and these can be displayed on demand. -
Page 5: Display
UNI MP100 User’s Guide 3. Display 1. Gas name, includes: CO, H S, or O 2. Question mark (to confirm action) 3. Unit status indicator “OK” and to confirm entry 4. Gas unit, includes: x10 , ppm, %, mg/m mol/mol µ... -
Page 6: Operation
UNI MP100 User’s Guide 4. Operation 4.1 Turning the Unit On and Off Press and hold the Right Key for 3 seconds, until the red light, buzzer, and vibrator all trigger, followed by the green light, and the LCD displays “On”. To turn off, press and hold the Right Key from normal display mode for a 5-second count-down, until the unit displays “Off”. -
Page 7: Twa
UNI MP100 User’s Guide A STEL alarm cannot be cleared except by turning the unit off and back on, but will clear automatically after 15 minutes in clean air. 4.3.3 TWA This displays the Time-Weighted Average (TWA) calculation, which is the average concentration times the fraction of 8 hours that the instrument has been on. -
Page 8: Configuration Mode
UNI MP100 User’s Guide 4.4 Configuration Mode In Config mode, the user can change parameters and calibrate the unit. In general, use the Left Key to increase the number or confirm an operation, and use the Right Key to move the cursor or go to the next menu item. -
Page 9: Span Calibration
UNI MP100 User’s Guide 4.5.2 Span Calibration Span calibration determines the sensitivity of the sensor to the gas. Recommended calibration gases and concentrations are listed in Section 7.7 at the end of this manual and in TA Note 4 (available at www.mpowerinc.com). Special calibration procedures for highly reactive gases are described in TA Note 6. -
Page 10: Bump Test
UNI MP100 User’s Guide 4.5.3 Bump Test A Bump Test is a quick check to ensure that the sensor and alarms are working properly. It is done with the same gas as is used for span calibration. Enter the menu, start the gas flow, then press the Left Key to start bump count-down (typically 45 seconds, but varies with sensor). -
Page 11: Span Value
UNI MP100 User’s Guide 4.6.2 Span Value The span gas concentration can be changed from the Cal SET menu using the same process as for setting alarm limits. NOTE: The MP100 will show an error message “Err” if: • The Span setting is less than 5% of the measuring range or greater than the measuring range. -
Page 12: Fast Power-On Enable/Disable
UNI MP100 User’s Guide if enabled, or between if disabled. Use the Right Key to change the status, and the Left Key to confirm and exit. When the unit is re-started and user is prompted with to zero, it must be initiated within 30 s or else the zeroing is skipped. -
Page 13: Computer Interface
UNI MP100 User’s Guide 5. Computer Interface Computer interface requires a Single Docking Box or CaliCase Docking Station connected to a PC fitted with mPower Suite software. mPower Suite can be used to 1) download logged alarm and calibration events, 2) upload configuration parameters to the instrument and 3) upgrade the instrument firmware. -
Page 14: Uni Docking Box (Mp100T) Calibrations
UNI MP100 User’s Guide 10. Alarm Events are shown in the bottom half panel and Bump/Calibrations times can be viewed by clicking on the corresponding tab. 11. To export data to a csv file readable by Excel or other spreadsheet software, move the cursor over the right data panel, right-click the mouse, and then select “Export event log”. - Page 15 UNI MP100 User’s Guide 6. The Docking Box will not allow calibrations or bump tests after the cylinder expiration date entered. 7. Hibernate Timeout is the number of seconds of inaction before the Docking Box turns itself off automatically. Press the Cal/ button to turn back on.
-
Page 16: Procedures For Uni Calibration On Docking Box
UNI MP100 User’s Guide 9. “Save” stores the current Docking Box configuration file to the PC. 10. “Load” calls up a stored Docking Box configuration file from the PC to mPower Suite. 11. To update the Docking Box firmware, select “Firmware Upgrade”. The firmware must first be downloaded to the PC from the mPower website www.mPowerinc.com. -
Page 17: Maintenance And Specifications
UNI MP100 User’s Guide Color Buzzer Description Green blinking None Cal/bump testing Green Beep Once Cal/bump test pass Unit LED Orange None Sensor type mismatch 3 beeps per sec Cal/bump test fail Green None Power On Green blinking None Low battery... -
Page 18: Battery Replacement
UNI MP100 User’s Guide Maintenance should be performed only by a qualified person who has proper training and fully understands the contents of the manual. 7.1 Battery Replacement The battery typically lasts 3 years, but may be drained faster if the unit has frequently gone into alarm. -
Page 19: Sensor Filter Replacement
UNI MP100 User’s Guide • Remove the monitor cover and battery only in area known as non-hazardous. • Use only mPower’s lithium battery part number M500-0001-000 [1.17.02.0002] (3.6V, 2700mAH, AA size) or part No. ER14505 cell manufactured by EVE Energy Co., LTD. -
Page 20: Year Of Manufacture
UNI MP100 User’s Guide Sensors are not interchangeable. Use only mPower sensors, and use only the sensor type specified for your MP100 monitor. Use of non-mPower components will void the warranty and can compromise the safe performance of this product. -
Page 21: Alarm Signal Summary
UNI MP100 User’s Guide 7.6 Alarm Signal Summary Display Reason Over Range alarm： Buzzer 3 beeps per second LED 3 flashes per second 1 Vibration per second “OVER” and “500” (“sensor range”) 1 flash per second High alarm： Buzzer 3 beeps per second... - Page 22 UNI MP100 User’s Guide Bump Overdue alarm: Buzzer 1 beep per minute LED 1 flash per minute 1 Vibration per minute Cal Overdue alarm: Buzzer 1 beep per minute LED 1 flash per minute 1 Vibration per minute Battery Low alarm：...
-
Page 23: Sensor Specifications And Default Configurations
UNI MP100 User’s Guide 7.7 Sensor Specifications and Default Configurations Sensor Range Resolution Span* High STEL Panel Response (ppm) (ppm) (ppm) (ppm) (ppm) (ppm) (ppm) Ring Time t 0-500 0-1000 0-1999 0-50 Light Blue 0-100 0-200 0-1000 0-100 Orange 0-500... -
Page 24: Instrument Specifications
UNI MP100 User’s Guide 7.8 Instrument Specifications Size 3.46 x 2.44 x 1.3 in (88 x 62 x 33 mm) Weight 4.4 oz (125 g) Sensors Electrochemical Response time 15 seconds (CO/H (t90) Others vary, see individual sensor specification sheet... - Page 25 UNI MP100 User’s Guide Technical Support and mPower Contacts mPower Electronics Inc. 3046 Scott Blvd. Santa Clara, CA 95054 Phone: (408) 320-1266 Fax: (669) 342-7077 info@mpowerinc.com www.mpowerinc.com...
