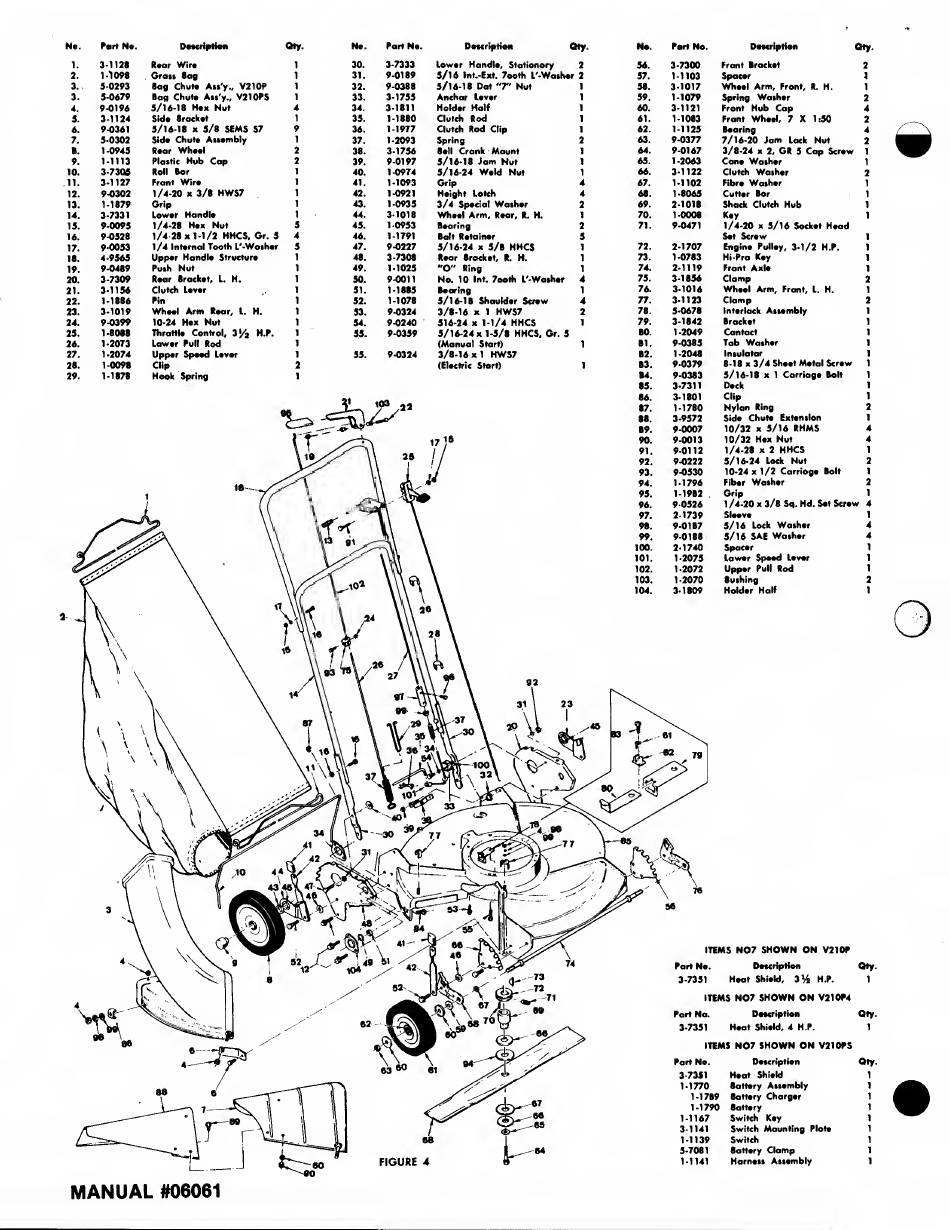

Snapper VI80 Manual page 9

No. Part No. Description
Qty.
Ne. Part No. Description CHy. No. Part No. Description
Qty.
1. 3-1128
Rear Wire
1
30. 3-7333 Lower Handle, Stationary
2 56. 3-7300
Front Bracket
2
2. 1-1098 Grass Bag 1 31. 9-0189 5/16 Int.-Ext. Tooth L'-Wather 2 57.
1-1103
Spacer
1
3. 5-0293 Bag Chut* Ass'y., V210P 1 32. 9-0388 5/16-18 Dot "T" Nut 1
58. 3-1017
Wheel Arm, Front, R. H.
1
3.
5-0679
Bag Chut* Ass'y., V210PS 1 33. 3-1755 Anchor Lever 1 59. 1-1079
Spring Washer 2
4. 9-0196 5/16-18 Hex Nut
4 34.
3-1811
Holder Half
1 60. 3-1121 Front Hub Cap 4
5.
3-1124 Sid* Bracket 1 35. 1-1880 Clutch Rod 1 61.
1-1083
Front Wheel, 7 X 1:50
2
6.
9-0361 5/16-18 x 5/8 SEMS ST
9
36. 1-1977 Clutch Rod Clip V 62. 1-1125 Bearing 4
7. 5-0302
Sid* Chute Assembly 1
37. 1-2093 Spring 2 63. 9-0377 7/16-30 Jam Lock Nut
2
8
.
1-0945
Rear Wheel 2
38. 3-1756 Bell Crank Mount 1
64.
9-0167 3/8-24 x 2, GR 5 Cop Scrow 1
9. 1-1113 Plastic Hub Cap
2
39. 9-0197 5/16-18 Jam Nut 1 65. 1-2063 Cone Washer
1
10. 3-7305 Roll Bar
1
40. 1-0974 5/16-24 Weld Nut 1 66. 3*1122 Clutch Washer
2
it.
3-1127 Front Wire 1 41. 1-1093 Grip
4 67. 1-1102 Fibre Washer 1
12.
9-0302 1/4-20 x 3/8 HWST 1 42. 1-0921 Height Latch 4
68. 1-8065 Cutter Bar 1
13. 1-1879 Grip 1
43.
1-0935 3/4 Special Washer 2 69. 2-1018 Shock Clutch Hub 1
14. 3-7331 Lower Handle 1
44.
3*1018 Wheel Arm, Rear, R. H. 1 70. 1*0008 Key 1
15. 9-0095
1/4-28 Hex Nut 5 45. 1 0953 Bearing
2
71. 9-0471
1/4-20 x 3/16 Sockot Hoad
16.
9-0523
1/4 28 x M/2 HHCS, Gr. 5 4
46.
1-1791
Bolt Retainer
5
Set Screw
1
17.
9-0053
1/4 Internal Tooth L'-Washer 5 47.
9-0227 5/16-24 x 5/8 HHCS 1
72.
2-1707 Engine Pulley, 3-1/2 H.P. 1
18.
4-9565
Upper Handle Structure 1 48. 3-7308 Rear Brocket, R. H.
l
73. 1-0783 Hi-Pro Key
1
19.
9-0489 Push Nut t 49. 1*1025 "O" Ring
1
74.
2-1119 Front Axle 1
20.
3-7309
Rear Bracket, L. H.
1 50. 9-0011 No. 10 Int. Tooth L'-Washer 4
75. 3-1856 Clamp
2
21.
3*1156
Clutch Lever
1 51. 1-1885 Bearing 1
76. 3-1016 Wheel Arm, Front, L. H.
1
22.
1-1886 Pin 1
52. 1-1078 5/16-18 Shoulder Screw 4
77. 3-1123 Clamp 2
23.
3-1019 Wheel Arm Rear, L. H. 1
53. 9-0324 3/8-16 x 1 HWST 2
78. 5-0678 Interlock Assembly 1
24. 9-0399 10*24 Hex Nut 1 54.
9-0240 516-24 x 1-1/4 HHCS
1
79. 3-1842 Brocket 1
25. 1-8088 Throttle Control, 3
/z
H.P. 1 55. 9-0359 5/16-24 x 1-5/8 HHCS, Gr. 5
80. 1-2049 Contact 1
26. 1*2073
Lower Pull Rod 1
(Manual Start) 1
81. 9-0385
Tab Washer
1
27. 1*2074 Upper Speed Lever
55.
9*0324 3/8-16 x 1 HWST 82. 1-2048
Insulator 1
28. 1-0098 Clip 2
(Electric Start)
1
83. 9-0379
8-18 x 3/4 Sheet Metol Screw 1
29. 1-1878 Hook Spring 1
84. 9-0383 5/16-18 x 1 Carriage Bolt 1
85. 3-7311
Deck 1
MANUAL #06061
