Snapper VI80 Manual page 5

Item
Part No. Description
Qty
Item
Part No. Description
Qty-
1.
3-1128 Rear Wire
1 29. 9-0379 8-18 x 3/4 SMS 1
2.
1-2085 Grass Bag
i 30.
9-0385 Tab Washer 1
3. 3-1127 Front Wiro
1 31. 1-2048 Insulator 1
4.
5-0293 Bag Chute Assembly, V210
l 32. 1-2049
Ground Contact 1
4. 5-0679
Bag Chute Assembly, V210S
1 33. 9-0187
5/16 Lock Washer
4
4. 5-0346 Bag Chute Assembly, VI80
i 34.
2-1737 Wheel Arm Spacer, VI80 2
4. 5-0609
Bag Chute Assembly, VI 80S
1
35. 3-7277
Rear Bracket, L. H.
1
5.
9-0196 5/16-18 Hex Nut 4
36. 1-1078 Shoulder Screw 4
6.
3-1124 Side Bracket
1 37.
1-0921 Height Latch, V210
4
7. 9-0361 5/16-18 x 5/8 SEMS
5 37. 1-0921 Height Latch, Front, V180 2
8. 5-0680
Side Chute Assembly, V210 Series
1 38. 1-1093 Grip 4
8.
5-0600
Side Chute Assembly, VI80
1 39. 9-0242
5/16-24 x 1-5/8 Cap Screw, GR. 5
1
8. 5-0610 Side Chute Assembly, V180S
1
40. 9-0188 5/16 SAE Washer 7
9.
1-1079 Spring Washer
4 41. 9-0324
3/8-16 x 1 St. Screw
2
10. 9-0388 5/16-18 Dot "T" Nut
2
42. 5-9517 Deck Assembly, V210 1
11.
1-1791 Bolt Retainer 4
42.
5-9520 Deck Assembly, VI80 1
12. 9-0377
7/16-20 Jam "L" Nut
4
43.
3-7275 Rear Bracket, R. H. 1
13. 3-1121 Hub Cap
8
44. 9-0227 5/16-24 x 5/8 HHCS 2
14.
1-1083 Front Wheels, V210, 7 x 1.50
2
45. 3-7305 Roll Bar, V210 1
14. 1-1083 Front Wheels, V180, 7 x 1.50
2
45. 1-8074
Roll Bar, V180
1
15.
3-1017 Wheel Arm, Front R. H., Rear L. H.
2
46. 1-1082 Rear Wheels, V210-8 x 1.75 2
16.
6-0131 Shock Clutch Kit
1 46.
1-1083 Rear Wheels, V180-7 x 1.50
2
1-0008 Key
1
47. 9-0189 5/16 Int.-Ext. Tooth Lock Washer
2
17. 2-1018
Shock Clutch
1
48. 1-0974 5/16-24 Weld Nut
2
18.
3-1122 Clutch Washer
1
49.
9-0211 5/16-18 x 1-1/2 HHCS (V180) 2
19.
1-1102 Fiber Washer 1
50.
3-7333
Lower Handle Stationary, V210
2
20. 9-0167
3/8-24 x 2 Cap Screw, Grade 5 1
50. 3-7332 Lower Handle Stationary, VI80
2
21.
1-2063 Cone Washer
1
51. 9-0095 1/4-28 Hex Nut 3
22.
1-1796 Fiber Washer
2
52. 3-7331 Lower Handle Pivoting
1
23.
1-8065 Cutter Blade, V210
1
53. 1-0098 Clip, Throttle Control 2
23. 1-8075
Cutter Blade, VI80 1
54. 1-1028 1/4-28 x 1V2 Curved Head Bolt
2
24.
3-7300 Front Bracket
2
55. 1-8088 Throttle Control 1
25. 1-1749
Front and Reor Axle, VI80 2
56. 5-0601 Upper Handle
1
25. 2-1119 Front and Rear Axle, V210
2
57. 1-1103 Spacer
2
26. 3-1123
Clamp
2
58. 9-0053 1/4 Internal Tooth Lock Washer 3
27.
28.
3-1016
3-1842
Wheel Arm, Front L. H., Rear R. H.
Bracket
2
1
59.
60.
1-1125
5-0678
Bearing
Interlock Assembly
8
1
*• T3
61. 5-0615 Wing Nut 2
62. 1-1780 Nylon Ring 2
63. 9-0015 1/4-20 x 1% Carriage Bolt 2
\
y'lry 64. 3-9572 Side Chute Extension
1
_L
\\
j \\ \
65. 9-0013 No. 10 Fine Hex Nut 4
\\ *l« \\ \
66.
9-0011 No. 10 Internal Tooth Lock Washer 4
67. 9-0007 10-32 x 5/16 RHMS
4
68. 3-1801
Clip 1
69. 9-0383 5/16-18x1 Carr. Bolt 1
70. 3-1762 Guard, VI80 Series
1
70. 3-1763 Guard, V210 Series
1
71. 9-0041 1/8x1 Cotter Pin 2
72. 1-2076 Rear Height
Latch, VI80 2
73. 9-0111 1/4-28x1-3/4 HHCS
1
ITEMS NOT SHOWN ON
VI80 OR V210
Part No. Description Qty.
3-7351 Heat Shield 1
9-0457 Int. Tooth Lock Washer 1
ITEMS NOT SHOWN ON
VI SOS OR V210S
Part No. Description Qty.
3-7351 Heat Shield 1
1-1770 Battery Assembly 1
1-1789 Battery Charger 1
1-1790 Battery 1
1-1167 Switch Key 2
3-1141 Switch Mounting Plate 1
1-1139 Switch 1
5-7081 Battery Clamp 1
1-1141 Harness Assembly 1
ITEMS
MANUAL #06051

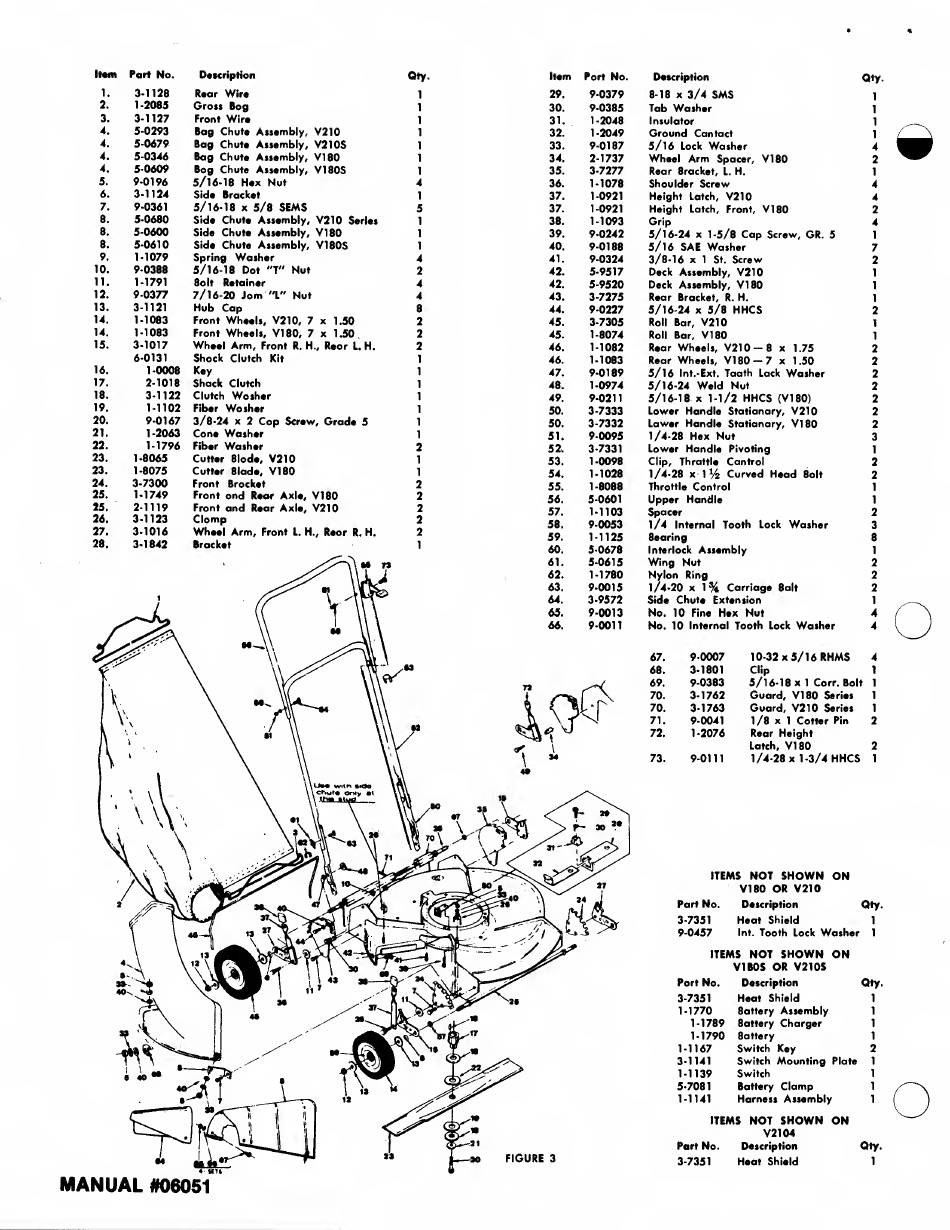

FIGURE 3
Part No.
3-7351
NOT SHOWN
V2104
Description
Heat Shield
ON
Qty.
1
