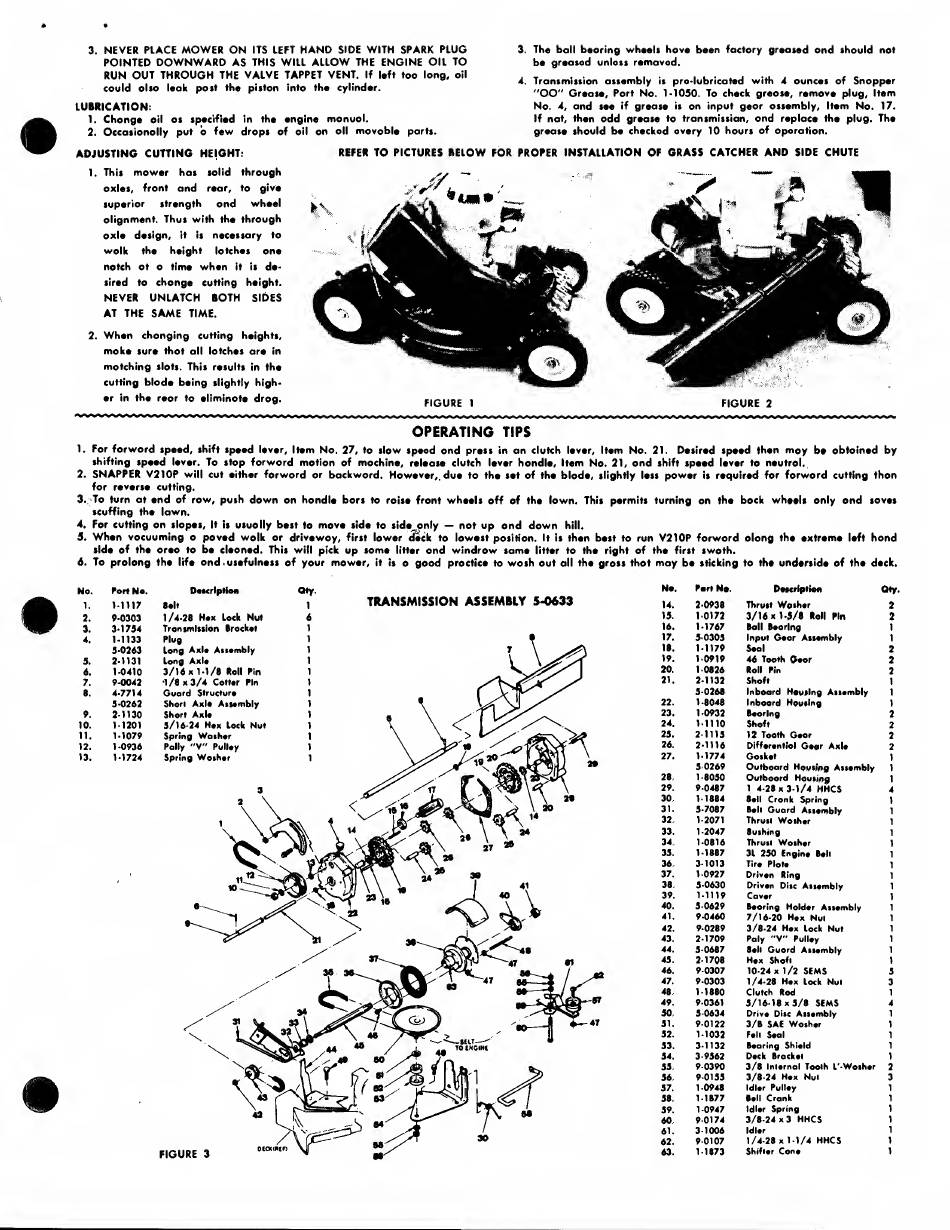

Snapper VI80 Manual page 8

3. NEVER PLACE MOWER ON ITS LEFT HAND SIDE WITH SPARK PLUG
POINTED DOWNWARD AS THIS WILL ALLOW THE ENGINE OIL TO
RUN OUT THROUGH THE VALVE TAPPET VENT. If left too long, oil
could also leak past the piston into the cylinder.
LUBRICATION:
1. Change oil as specified in the engine manual.
2. Occasionally put a few drops of oil on all movable parts.
3. The ball bearing wheels have been factory greased and should not
be greased unless removed.
4. Transmission assembly is pre-lubricatod with 4 ounces of Snapper
"OO" Grease, Part No. 1-1050. To check grease, remove plug, Item
No. 4, and see if grease is on input gear assembly. Item No. 17.
If not, then add grease to transmission, and replace the plug. The
grease should be checked every 10 hours of operation.
ADJUSTING CUTTING HEIGHT:
1. This mower has solid through
axles, front and rear, to give
superior strength and wheel
alignment. Thus with the through
axle design, it is necessary to
walk the height latches one
notch at a time when it is de¬
sired to change cutting height.
NEVER UNLATCH BOTH SIDES
AT THE SAME TIME.
2. When changing cutting heights,
make sure that all latches are in
matching slots. This results in the
cutting blade being slightly high¬
er in the rear to eliminate drag.
REFER TO PICTURES BELOW FOR PROPER INSTALLATION OF GRASS CATCHER AND SIDE CHUTE
FIGURE 1 FIGURE 2
OPERATING TIPS
1. For forward speed, shift speed lever. Item No. 27, to slow speed and press in on clutch lever. Item No. 21. Desired speed then may be obtained by
shifting speed lever. To stop forward motion of machine, release dutch lever handle, Item No. 21, and shift speed lever to neutral.
2. SNAPPER V210P will cut either forward or backward. However,.due to the set of the blade, slightly less power is required for forward cutting than
for reverse cutting.
3. To turn at end of row, push down on handle bars to raise front wheels off of the lawn. This permits turning on the back wheels only and saves
scuffing the lawn.
4. For cutting on slopes, it is usually best to move side to side only — not up and down hill.
5. When vacuuming a paved walk or driveway, first lower deck to lowest position. It is then best to run V210P forward along the extreme left hand
side of the area to be cleaned. This will pick up some litter and windrow some litter to the right of the first swath.
6
. To prolong the life and ■ usefulness of your mower, it is a good practice to wash out all the grass that may be sticking to the underside of the deck.
No.
1
.
2
.
3.
4.
5.
7.
8
.
9
.
10
.
11.
12
.
13.
Part No.
1-1117
9-0303
3- 1734
1- 1133
5-0243
2- 1131
1- 0410
9-0042
4- 7714
5- 0262
2- 1130
1-1201
1-1079
1-0936
1-1724
Description
Belt
1/4-28 Hex Lock Nut
Transmission Bracket
Plug
Long Axle Assembly
Long Axle
3/16 x 1-1/8 Roll Pin
•1/8 x 3/4 Cotter Pin
Guard Structure
Short Axle Assembly
Short Axle
5/16-24 Hex Lock Nut
Spring Washer
Polly "V" Pulley
Spring Washor
TRANSMISSION ASSEMBLY 5-0633
FIGURE 3
No. Part No.
Description Oty.
14. 2-0938 Thrust Washer
2
15. 1-0172 3/16x1-3/8 Roll Pin
2
16. 1-1767 Ball Bearing
1
17. 5-0305 Input Gear Assembly
1
18. 1-1179
Seal 2
19.
1-0919
46 Tooth Gear 2
20. 1-0826 Roll Pin
2
21.
2-1132 Shaft
1
5-0268 Inboard Housing Assembly
1
22.
1-8048 Inboard Housing
1
23. 1-0932 Bearing
2
24.
1-1110 Shaft
2
25.
2-1115 12 Tooth Gear
2
26.
2-1116 Differential Geer Axle
2
27. 1-1774 Gasket
1
5-0269
Outboard Housing Assembly 1
28.
1-8050 Outboard Housing
1
29.
9-0487
1 4-28x3-1/4 HNCS
4
30.
1-1884 Bell Crank Spring
1
31. 5-7087
Belt Guard Assembly
1
32. 1-2071
Thrust Washor
1
33. 1-2047 Bushing
1
34. 1-0816 Thrust Washer
1
35. 1-1887
3L 250 Engine Belt
1
36. 3-1013 Tire Plate
1
37. 1-0927
Driven Ring
1
38. 5-0630
Driven Disc Assembly 1
39. 1-1119
Cover
1
40. 3-0629
Bearing Holder Assembly
1
41.
9-0460 7/16-20 Hex Nut
1
42. 9-0289 3/8-24 Hex Lock Nut
1
43. 2-1709 Poly "V" Pulley 1
44. 5-0687
Belt Guard Assembly 1
45. 2-1708 Hex Shaft
1
46. 9-0307 10-24 x 1/2 SEMS 5
47. 9-0303
1/4-28 Hex Lock Nut 3
48. 1-1880 Clutch Rod
1
49.
9-0361 5/16*18x5/8 SEMS 4
50. 5-0634
Drive Disc Assembly 1
31. 9-0122 3/8 SAE Washer
1
52.
1-1032
Felt Seat
1
33. 3-1132
Bearing Shield
1
54. 3-9562 Deck Bracket
1
53. 9-0390
3/8 Internal Tooth L'-Washer
2
56. 9-0155 3/8-24 Hex Nut 3
57. 1-0948
Idler Pulley
1
58. 1-1877 Bell Crank 1
59.
1-0947 idler Spring 1
60. 9-0174
3/8-24 x 3 HHCS
1
61. 3-1006
Idler 1
62. 9-0107 1/4-28 x 1-1/4 HHCS 1
63. 1-1873
Shifter Cone 1
