Voltage Readings - Tektronix 3A6 Instruction Manual

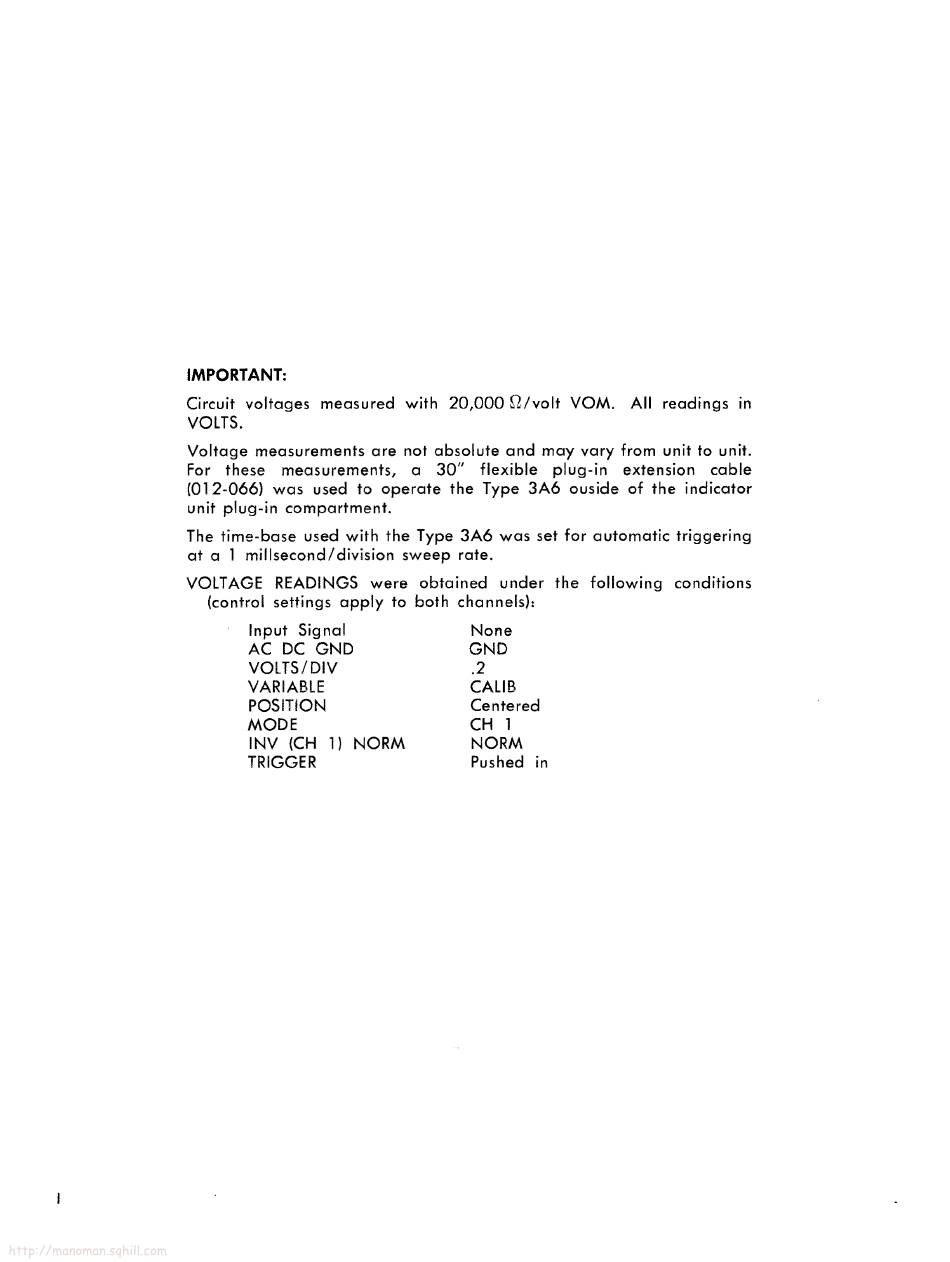

IMPORTANT:
Circuit voltages measured with 20,000 Q2/volt VOM. All readings in
VOLTS.
Voltage measurements are not absolute and may vary from unit to unit.
For these measurements, a 30" flexible plug-in extension cable
(012-066) was used to operate the Type 3A6 ouside of the indicator
unit plug-in compartment.
The time-base used with the Type 3A6 was set for automatic triggering
at a 1 millsecond/division sweep rate.
VOLTAGE READINGS were obtained under the following conditions
(control settings apply to both channels):
Input Signal None
AC DC GND GND
VOLTS/DIV 2
VARIABLE CALIB
POSITION Centered
MODE CH 1
INV (CH 1) NORM NORM
TRIGGER Pushed in
