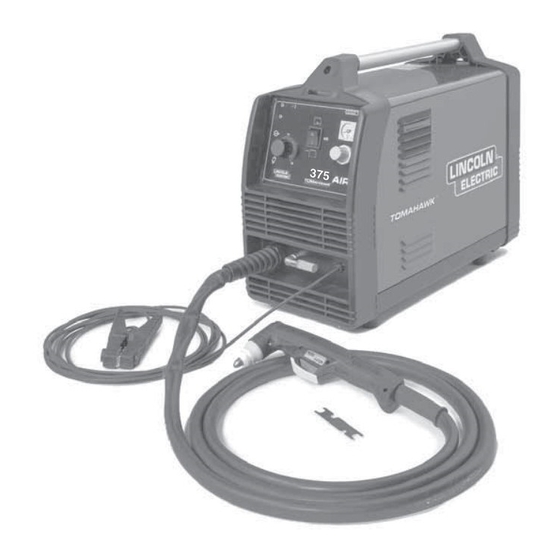

TOMAHAWK
375 AIR
®
For use with machines having Code Numbers:
11579
SERVICE MANUAL
SVM221-A
| Issue D ate 12-Jul
© Lincoln Global, Inc. All Rights Reserved.
NOTE: This manual will cover most of the troubleshooting and repair
procedures for the code numbers listed. Some variances may exist when
troubleshooting/repairing later code numbers.
