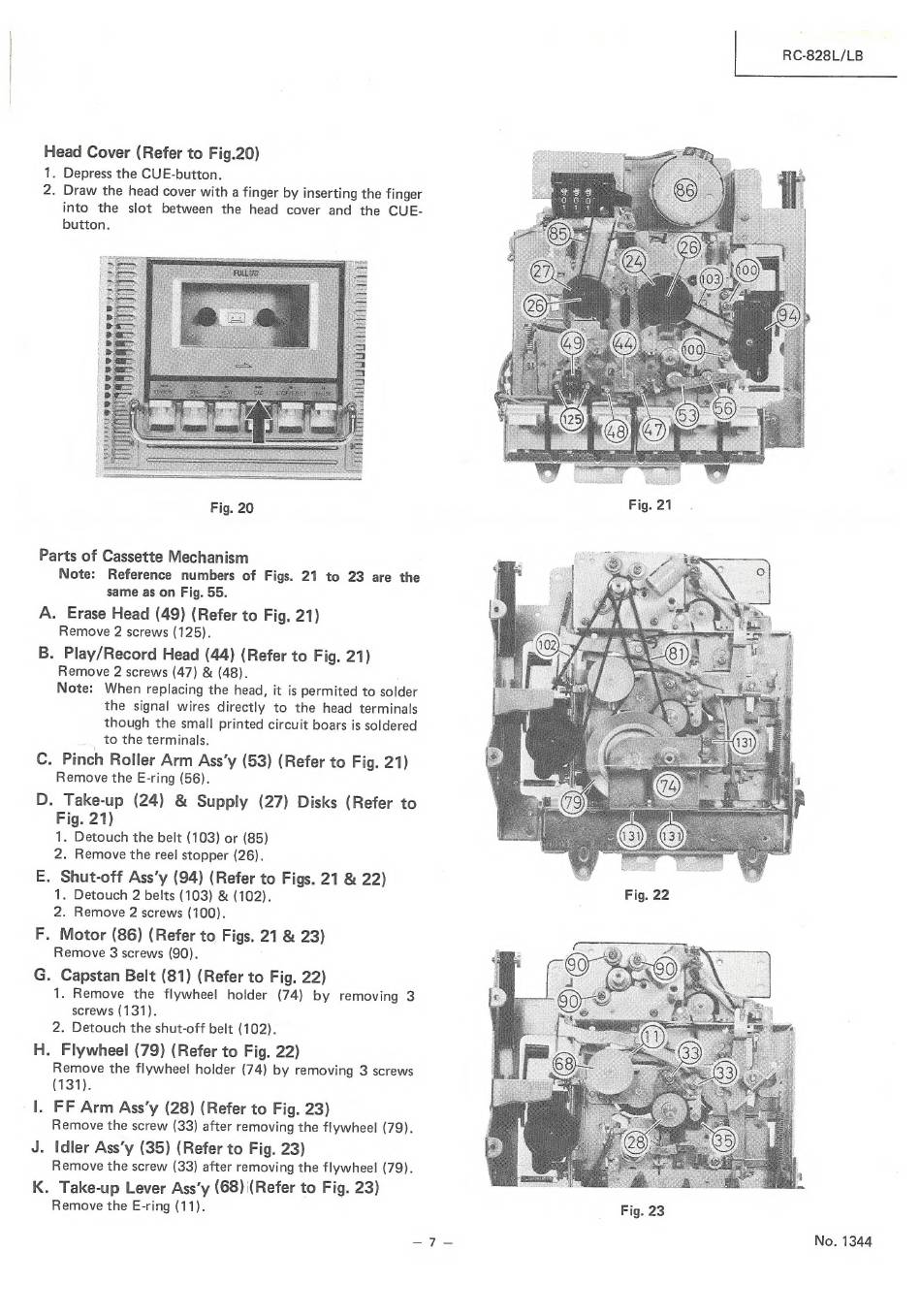

Head Cover (Refer to Fig.20)
1. Depress the CUE-button.
2. Draw the head cover with a finger by inserting the finger
Fig. 20
Parts of Cassette Mechanism
Remove 2 screws (125).
Remove 2 screws (47) & (48).
Remove the E-ring (56).
Fig. 21)
1. Detouch the belt (103) or (85)
2. Remove the reel stopper (26).
1. Detouch 2 belts (103) & (102).
2. Remove 2 screws (100).
F. Motor (86) (Refer to Figs. 21 & 23)
Remove 3 screws (90).
G. Capstan Belt (81) (Refer to Fig. 22)
H. Flywheel (79) (Refer to Fig. 22)
FF Arm Ass'y (28) (Refer to Fig. 23)
J. Idler Ass'y (35) (Refer to Fig. 23)
Remove the screw (33) after removing the flywheel (79).
K. Take-up Lever Ass'y (68)\(Refer to Fig. 23)
Remove the E-ring (11).
RC-828L/LB
