| RC-828L/LB

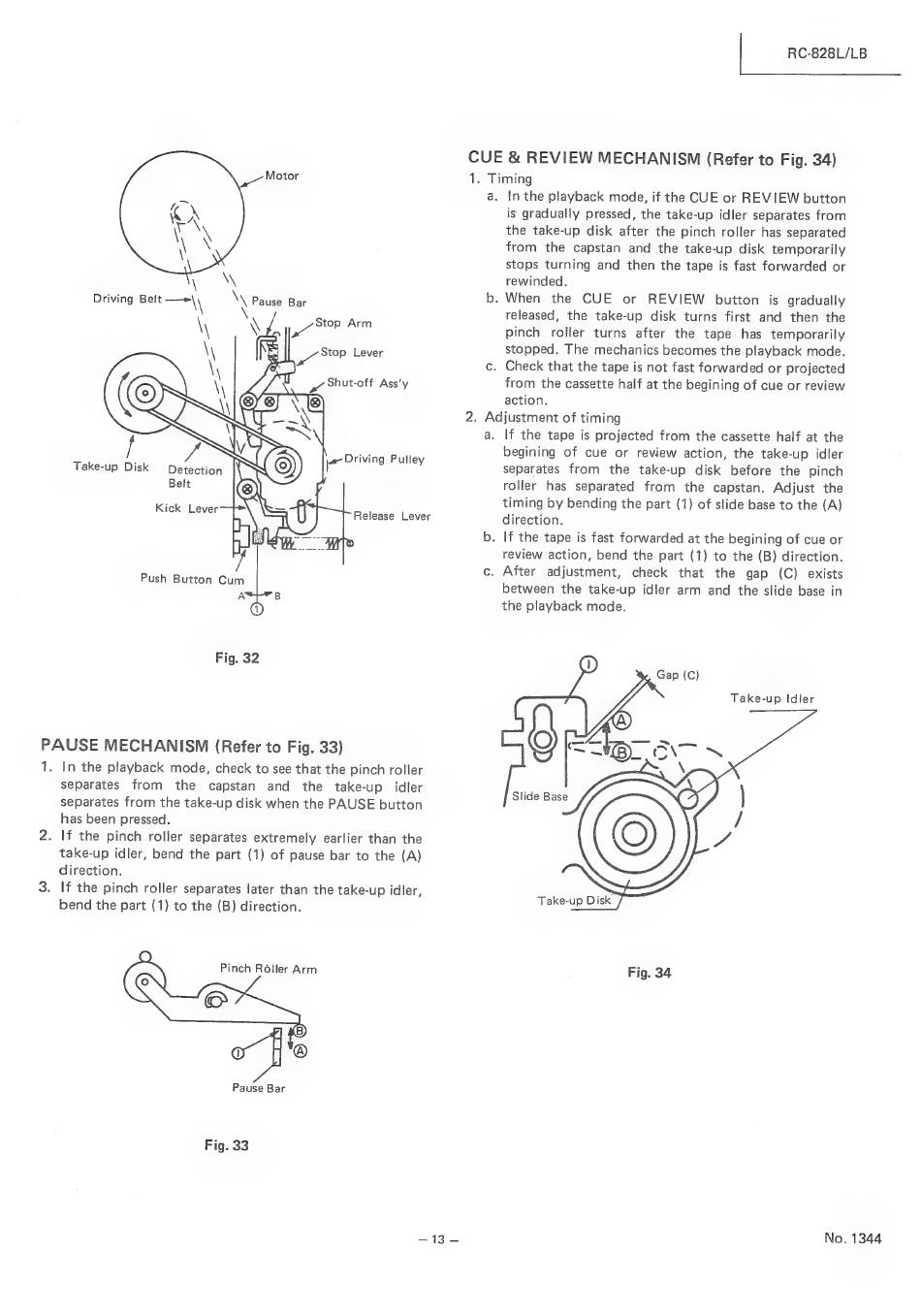

Motor 1. Timing
a. Inthe playback mode, if the CUE or REVIEW button
is gradually pressed, the take-up idler separates from
the take-up disk after the pinch roller has separated
from the capstan and the take-up disk temporarily
stops turning and then the tape is fast forwarded or
action.
2. Adjustment of timing
a. If the tape is projected from the cassette half at the
begining of cue or review action, the take-up idler
separates from the take-up disk before the pinch
roller has separated from the capstan. Adjust the
timing by bending the part (1) of slide base to the (A)
direction.
b. If the tape is fast forwarded at the begining of cue or
review action, bend the part (1) to the (B) direction.
Take-up Idler
PAUSE MECHANISM (Refer to Fig. 33)
Take-up D isk"
Fig. 34
Pause Bar
Fig. 33
—13 — No. 1344
