No. 1344
RC-828L/LB

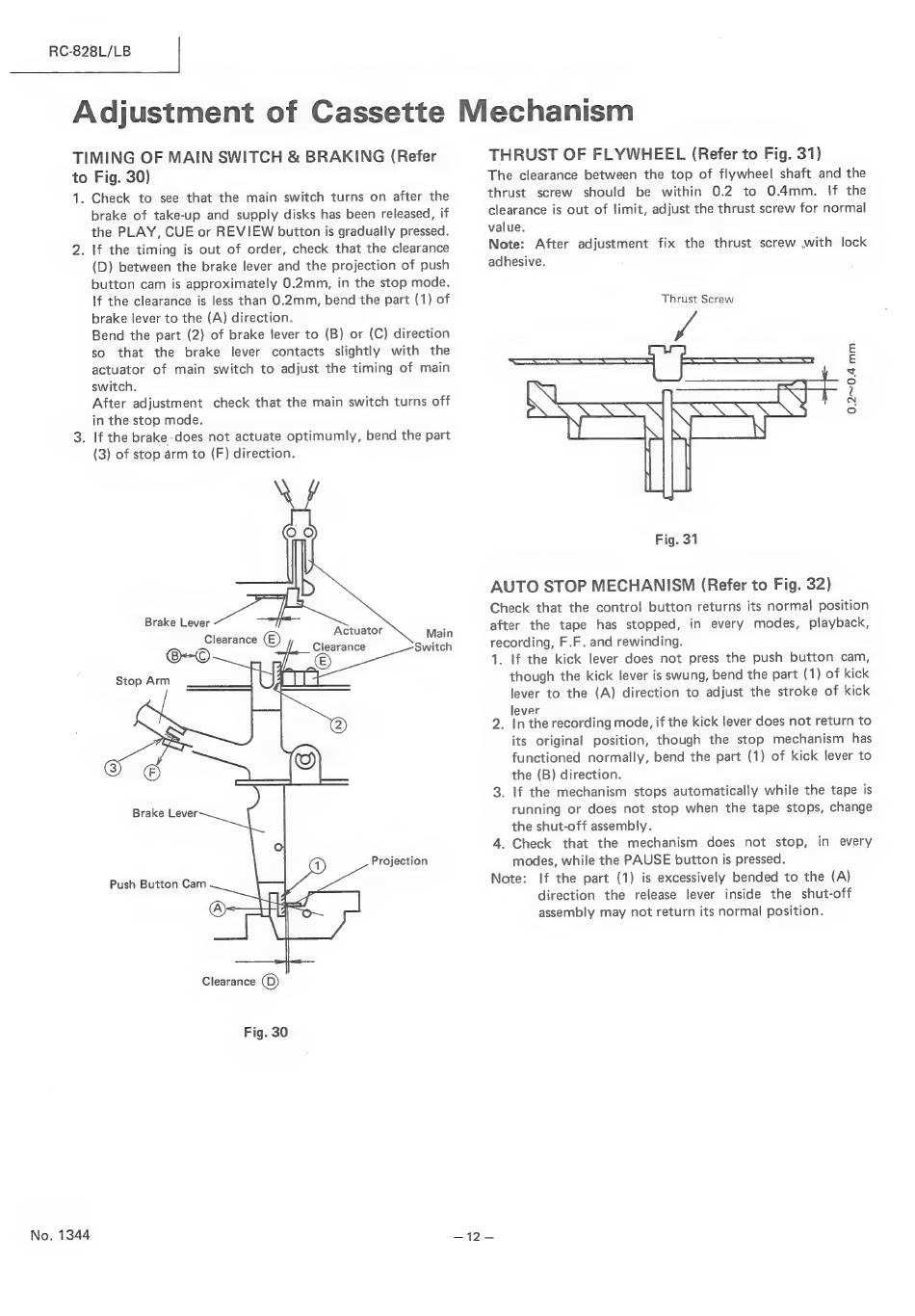

Adjustment of Cassette Mechanism
TIMING OF MAIN SWITCH & BRAKING (Refer
to Fig. 30)
1. Check
to see that the main
switch turns on after the
brake of take-up and supply disks has been released, if
the PLAY, CUE or REVIEW button is gradually pressed.
2. If the timing is out of order, check that the clearance
(D) between the brake lever and the projection of push
button cam is approximately 0.2mm,
in the stop mode.
If the clearance is less than 0.2mm, bend the part (1) of
brake lever to the (A) direction.
Bend the part (2) of brake lever to (B) or (C) direction
so
that
the
brake
lever
contacts
slightly
with
the
actuator
of main
switch to adjust the timing of main
switch.
After adjustment
check that the main switch turns off
in the stop mode.
3. If the brake-does not actuate optimumly, bend the part
(3) of stop arm to (F) direction.
Actuator
Clearance
Main
Switch
Brake Lever
Projection
Push Button Cam
Clearance
©)
Fig. 30
THRUST OF FLYWHEEL
(Refer to Fig. 31)
The clearance between the top of flywheel shaft and the
thrust
screw
should
be
within
0.2
to
0.4mm.
If the
clearance is out of limit, adjust the thrust screw for normal
value.
Note:
After
adjustment
fix the
thrust
screw with
lock
adhesive.
Thrust Screw
a
ee
0.2~0.4
mm
Fig. 31
recording, F.F. and rewinding.
lever
2. In the recording mode, if the kick lever does not return to
its original
position, though
the stop
mechanism
has
functioned
normally, bend the part (1) of kick lever to
the (B) direction.
3. If the mechanism
stops automatically while the tape is
running or does not stop when the tape stops, change
the shut-off assembly.
Note:
If the part (1) is excessively bended to the (A)
direction
the
release
lever
inside
the
shut-off
assembly may not return its normal position.
