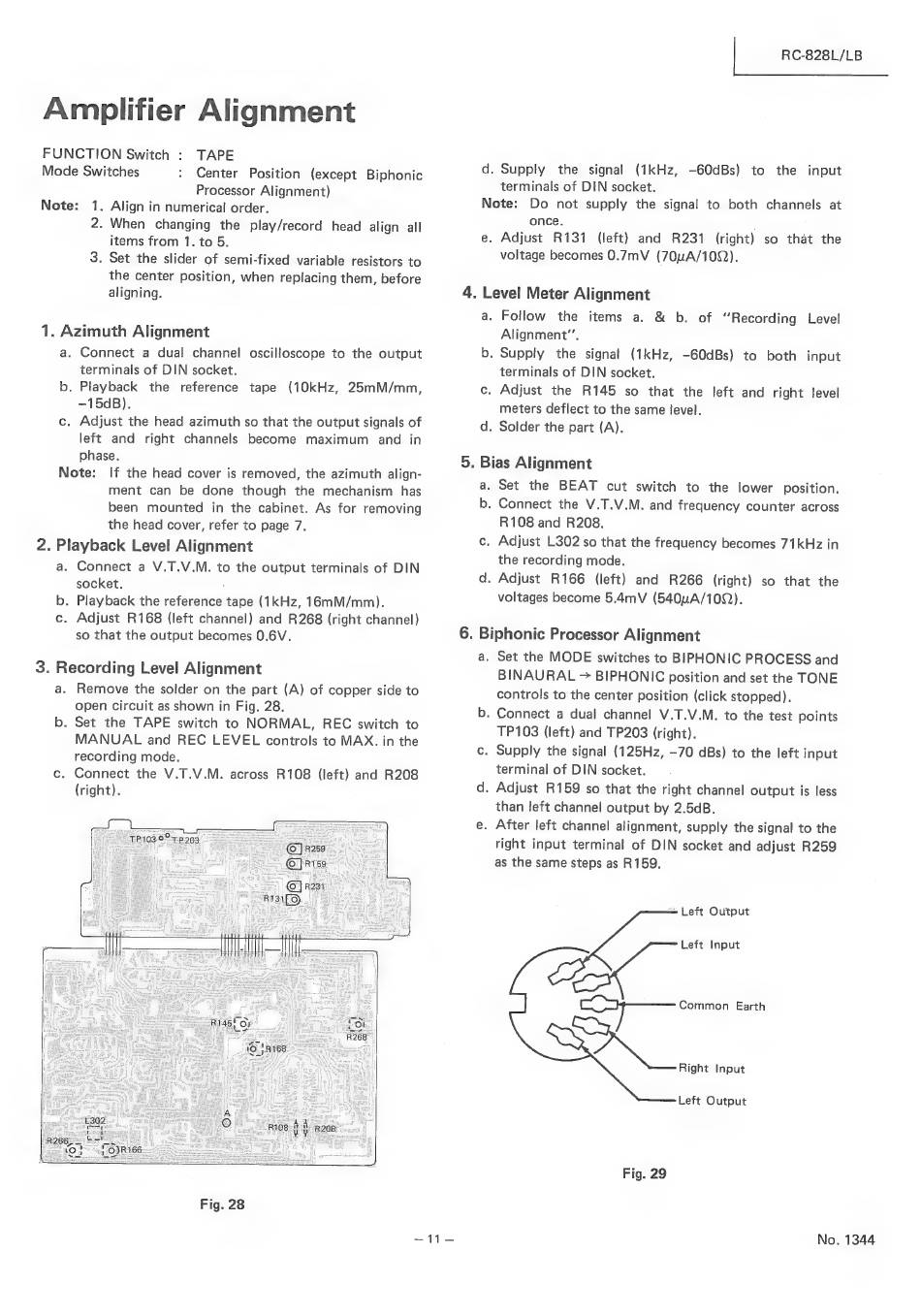

FUNCTION
Switch
:
TAPE
Mode Switches
Center
Position
(except
Biphonic
Processor Alignment)
Note:
1. Align in numerical order.
2. When
changing
the
play/record
head
align all
items from 1. to 5.
3. Set the slider of semi-fixed variable resistors to
the center position, when replacing them, before
aligning.
1. Azimuth Alignment
a. Connect
a dual
channel
oscilloscope to the output
terminals of DIN socket.
b. Playback
the
reference
tape
(10kHz,
25mM/mm,
—15dB).
c. Adjust the head azimuth so that the output signals of
left
and
right
channels
become
maximum
and
in
phase.
Note:
If the head cover is removed, the azimuth align-
ment
can
be done
though
the mechanism
has
been
mounted
in the cabinet. As for removing
the head cover, refer to page 7.
2. Playback Level Alignment
a. Connect
a V.T.V.M. to the output terminals of DIN
socket.
.
b. Playback the reference tape (1kHz, 16mM/mm).
c. Adjust R168 (left channel) and R268 (right channel)
so that the output becomes 0.6V.
3. Recording Level Alignment
a.
Remove the solder on the part (A) of copper side to
open circuit as shown in Fig. 28.
b. Set the TAPE
switch to NORMAL,
REC switch to
MANUAL
and REC
LEVEL
controls to MAX. in the
recording mode.
c. Connect
the V.T.V.M.
across
R108
(left) and R208
(right).
Fig. 28
|
RC-828L/LB
d. Supply
the
signal
(1kHz,
-60dBs)
to
the
input
terminals of DIN socket.
Note:
Do
not supply
the signal to both
channels
at
once.
e. Adjust
R131
(left) and
R231
(right) so that the
voltage becomes 0.7mV (70QuA/10Q).
. Level Meter Alignment
d. Solder the part (A).
. Bias Alignment
. Biphonic Processor Alignment
— Left Output
Left Input
Right
Input
Left Output
Fig. 29
No. 1344
