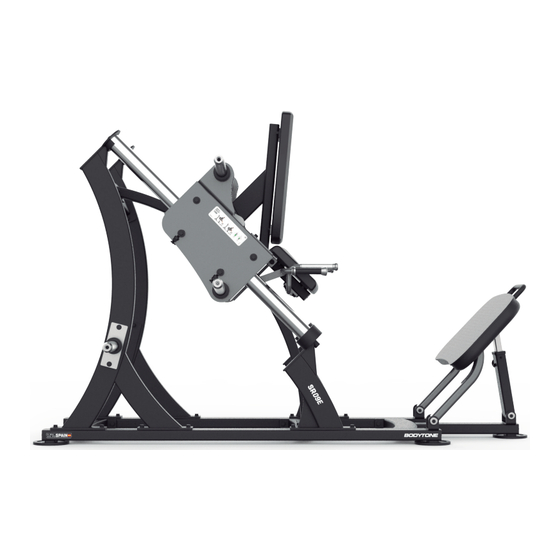

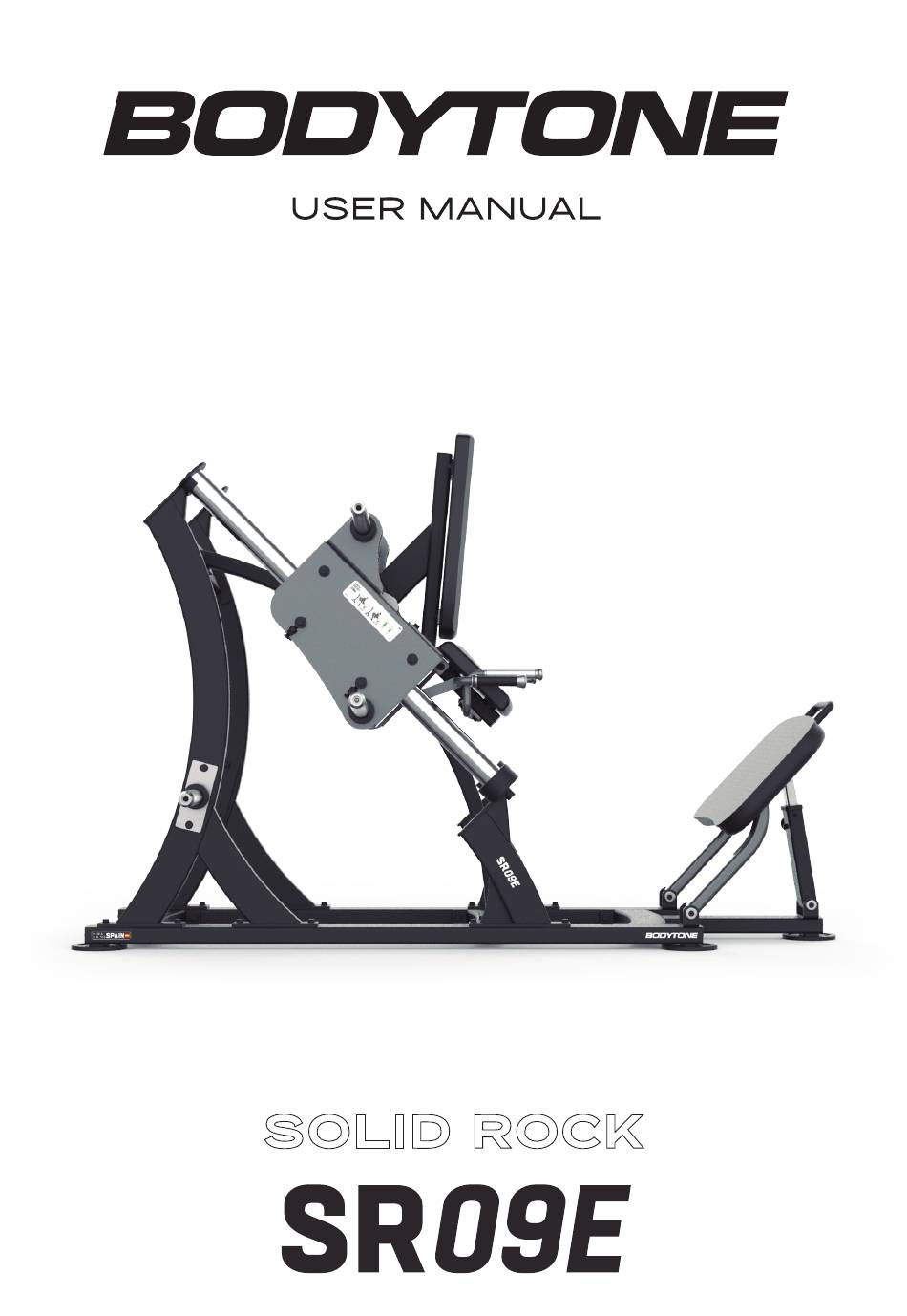

BODYTONE SR09E User Manual

Solid rock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR09E and is the answer not in the manual?

Questions and answers

Related Manuals for BODYTONE SR09E

Summary of Contents for BODYTONE SR09E

  • Page 2: Table Of Contents

    ! CAUTION Read all precautions and instructions in this manual before using this equipment. Table of Contents Important Safety Instructions--------------------------------------------------------------------------------------2 Instructions-------------------------------------------------------------------------------------------------------------3 Parts List----------------------------------------------------------------------------------------------------------------4 Exploded View---------------------------------------------------------------------------------------------------------6 Measurement Guide--------------------------------------------------------------------------------------------------8 Assembly Instructions------------------------------------------------------------------------------------------------9 Assembly----------------------------------------------------------------------------------------------------------------10 Maintenance Schedule----------------------------------------------------------------------------------------------28 General Maintenance Information--------------------------------------------------------------------------------29 Weight Training Tips--------------------------------------------------------------------------------------------------30 Specifications-----------------------------------------------------------------------------------------------------------30 - 1 -...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: *Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit.

  • Page 4: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your carton. When ordering, use part number and description from the lists. Use only our replacement part when servicing.

  • Page 5: Parts List

    Parts List Note: some of these parts may come pre-installed. ITEM ITEM DESCRIPTION DESCRIPTION Front Bottom Frame Assembly 11.4 Roller Shaft Front Bottom Frame 11.5 Roller Adjustment Shaft Flat Hex Nut M12 11.6 Adjustment Sleeve Back Bottom Frame 11.7 Deep Groove Bearing 6205ZZ Right Bottom Frame Assembly 11.8 Limited Circle Φ35...
  • Page 6 13.11 Flat Hex Nut M12 Shorter Barbell Support Frame Assembly 13.12 25.1 Shorter Barbell Support Frame Button Head Cap Bolt M10×16 13.13 25.2 Rubber Sleeve A Button Head Cap Bolt M8×16 13.14 25.3 Pyramid Cap Flat Washer Φ8.5×Φ24×2 13.15 25.4 Flat Washer Φ11×Φ35×2.5 Button Head Cap Bolt M8×30 Barbell Fixing Frame Assembly...

  • Page 7: Exploded View

    Exploded View - 6 -...
  • Page 8 Exploded Parts View - 7 -...

  • Page 9: Measurement Guide

    Measurement Guide Cross Recessed Pan Head Tapping Screw Hex Socket Set Screw with Flat Point Flat Head Cap Screw Button Head Cap Screw Socket Head Cap Bolt Hex Bolt - 8 -...

  • Page 10: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assembly the equipment by professional installers. You may find it quicker, safer, and easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 11: Assembly

    Assembly Step 1 Attach Front Bottom Frame Assembly (#1), Back Bottom Frame (#2), Pedal Bottom Frame Assembly (#19) to Right Bottom Frame Assembly (#3) and Left Bottom Frame Assembly (#4) using: 12 X Hex Bolt M12X35 (#42) 12 X Flat Washer Φ13×Φ24×2 (#47) 12 X Spring WasherΦ12 (#49) - 10 -...
  • Page 12 Step 2 1. Attach Right Support Frame Assembly(#5) to Right Bottom Frame Assembly (#3) and Left Bottom Frame Assembly(#4) using: 2 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 2 X Hex Bolt M12X30 (#41) 4 X Spring WasherΦ12 (#49) 2.
  • Page 13 Step 3 Attach 2 X Front Support Frame (#7) to Right Bottom Frame Assembly(#3) and Left Bottom Frame Assembly(#4) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 12 -...
  • Page 14 Step 4 Attach Central Connection Frame Assembly (#8) to Right Support Frame Assembly (#5) and Left Support Frame Assembly (#6) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 13 -...
  • Page 15 Step 5 Attach Support Frame Assembly (#9) to Front Bottom Frame Assembly (#1) and Central Connection Frame Assembly (#8) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 14 -...
  • Page 16 Step 6 Attach 1 X Guiding Rod Frame(#10),Right Rolling Frame Assembly (#11) and Buffering Pad(#33) to Right Support Frame Assembly (#5) and Front Support Frame (#7) using: 1 X Socket Head Cap Bolt M10×50(#38) 1 X Hex Bolt M10X35 (#40) 1 X Flat Washer Φ11×Φ20×2 (#46) 3 X Spring Washer Φ10 (#48) - 15 -...
  • Page 17 Step 7 Attach 1 X Guiding Rod Frame(#10),Left Rolling Frame Assembly (#12) and Buffering Pad(#33) to Left Support Frame Assembly (#6) and Front Support Frame (#7) using: 1 X Socket Head Cap Bolt M10×50(#38) 1 X Hex Bolt M10X35 (#40) 1 X Flat Washer Φ11×Φ20×2 (#46) 3 X Spring Washer Φ10 (#48) - 16 -...
  • Page 18 Step 8 Attach Barbell Fixing Frame Assembly(#14) to Right Rolling Frame Assembly (#11) and Left Rolling Frame Assembly (#12) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 17 -...
  • Page 19 Step 9 Attach Back Pad Fixing Frame Assembly (#13) to Barbell Fixing Frame Assembly (#14) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 18 -...
  • Page 20 Step 10 Attach 2 X Upper Connection Frame(#15) to Right Rolling Frame Assembly (#11), Left Rolling Frame Assembly(#12) and Back Pad Fixing Frame Assembly (#13) using: 8 X Hex Bolt M12X35 (#42) 8 X Flat Washer Φ13×Φ24×2 (#47) 8 X Spring WasherΦ12 (#49) - 19 -...
  • Page 21 Step 11 1. Attach Adjustment Handle Frame Assembly (#17) to Back Pad Fixing Frame Assembly (#13) using: 1 X Button Head Cap Bolt M10×16 (#36) 1 X Socket Head Cap Bolt M8×12 (#37) 1 X Flat Washer Φ11×Φ35×2.5 (#45) 2. Attach Connection Frame (#16) to Adjustment Handle Frame Assembly (#17) and Back Pad Fixing Frame Assembly (#13) using: 2 X Button Head Cap Bolt M10×16 (#36) 2 X Flat Washer Φ11×Φ35×2.5 (#45)
  • Page 22 Step 12 Attach Handle Frame Assembly (#18) to Back Pad Fixing Frame Assembly (#13) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) - 21 -...
  • Page 23 Step 13 Attach Pedal Adjustment Frame Assembly (#22), Shaft Φ25×138 (#31) to Pedal Bottom Frame Assembly (#19) using: 2 X Flat Head Cap Screw M8X20 (#34) 2 X Decorative Cap Φ9×Φ38×8 (#32) - 22 -...
  • Page 24 Step 14 1. Attach Pedal Connection Frame Assembly (#21) to Pedal Frame Assembly (#20) using: 4 X Hex Bolt M12X35 (#42) 4 X Flat Washer Φ13×Φ24×2 (#47) 4 X Spring WasherΦ12 (#49) 2. Attach Pedal Adjustment Frame Assembly (#23), Adjustment Shaft (#29) to Pedal Frame Assembly (#20) using: 2 X Flat Head Cap Screw M8X20 (#34) 2 X Decorative Cap Φ9×Φ38×8 (#32)
  • Page 25 Step 15 1. Attach Pedal Adjustment Frame Assembly (#23) to Pedal Adjustment Tube (#22) , Pull up the Pop Pin and put it in position and fasten the Bolt M8X30 2. Following Step#14 and put 2 X Rotating Shaft(#30) to Right Bottom Frame Assembly (#3) and Left Bottom Frame Assembly (#4) using: 4 X Flat Head Cap Screw M8X20 (#34) 4 X Decorative Cap Φ9×Φ38×8 (#32)
  • Page 26 Step 16 1. Attach Back Pad (#26) to Back Pad Fixing Frame Assembly (#13) using: 4 X Hex Bolt M10X30 (#39) 4 X Flat Washer Flat Washer Φ11XΦ20X2 (#46) 4 X Spring WasherΦ10 (#48) 2. Attach Seat Pad (#27) to Back Pad Fixing Frame Assembly (#13) using: 4 X Hex Bolt M10X30 (#39) 4 X Flat Washer Flat Washer Φ11XΦ20X2 (#46) 4 X Spring WasherΦ10 (#48)
  • Page 27 Step 17 1. Attach 2 X Barbell Support Frame Assembly (#24) to Barbell Fixing Frame Assembly (#14) using: 2 X Flat Head Cap Screw M8X25 (#35) 2. Attach 1 X Barbell Support Frame Assembly (#24) to Right Rolling Frame Assembly (#11) using: 1 X Flat Head Cap Screw M8X25 (#35) 3.
  • Page 28 Step 18 1. Attach 1 X Shorter Barbell Support Frame Assembly (#25) to Right Support Frame Assembly (#5) using: 2 X Hex Bolt M12X80 (#43) 2 X Nut M12 (#44) 4 X Flat Washer Φ13×Φ24×2 (#47) 2. Attach 1 X Shorter Barbell Support Frame Assembly (#25) to Left Support Frame Assembly (#6) using: 2 X Hex Bolt M12X80 (#43) 2 X Nut M12 (#44)

  • Page 29: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME ROUTINE LATEST DATE ENTRY MAINTENANCE MAINTEMANCE Inspect: Links, Pull Pins, Snap DAILY WEEKLY Locks, Swivels, Weight Stack Pins Clean: Upholstery DAILY WEEKLY Inspect: Cables or Belts and their DAILY WEEKLY tension Inspect: Accessory Bars, and WEEKLY 3 MONTHS Handles Inspect: All Decals...

  • Page 30: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: *To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.

  • Page 31: Weight Training Tips

    of grease. Insert the shaft back into the bearing and wipe off excess grease. Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program.
