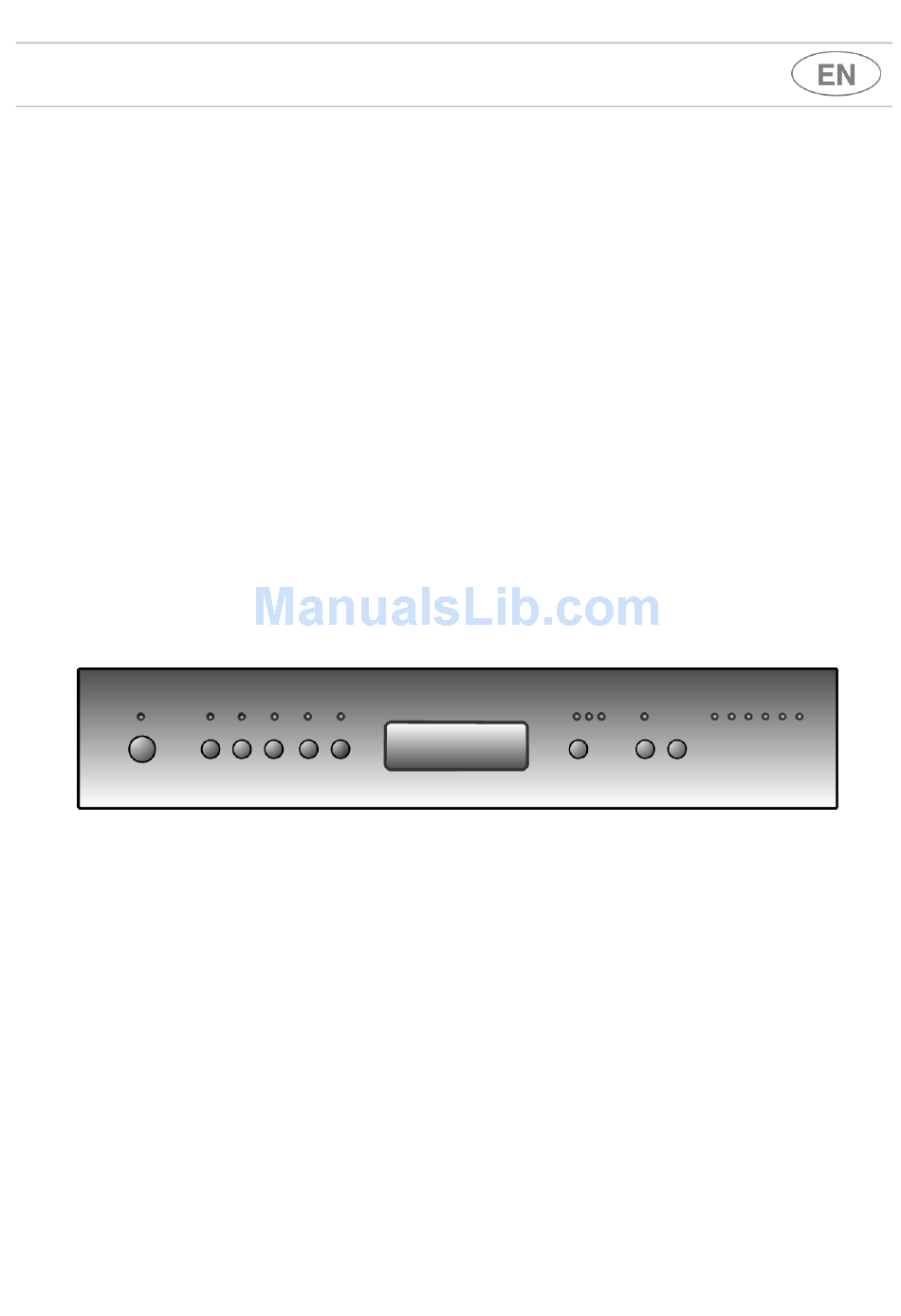

- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
6. Troubleshooting ________________________________________ 45 Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
DESCRIBED ABOVE. THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE REMOVED. DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE. -
Page 4: Safety Instructions
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY. -
Page 5: Installation And Hook-Up
Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance. -
Page 6: Electrical Connection
3 m) the drain hose can be placed at a maximum height of 85 cm from the ground. Electrical connection Plug the power cord into a suitable electrical outlet, according to the instructions given in chapter "1. Safety and operating instructions". -
Page 7: Description Of The Controls
NO RINSE AID LIGHT (on some models only) RECESSED DOOR HANDLE LIGHTING When the ON/OFF button (1) is pressed, the dishwasher switches on and the light (6) comes on. About 2 seconds later, the PROGRAM PHASES lights (10) will come on. PROGRAMMING In this model of dishwasher, all programming procedures can only be carried out with the door closed. -
Page 8: Table Of Programs
68°C AND WITH DRY RESIDUALS Only run the soak program with half loads. The HALF LOAD option (4) is available for all programs except the soak program. (*) Reference program as EN 50242 standard. (-) Not present. 19 590 0227 02... - Page 9 To start the appliance, simply press the START/PAUSE button (5) for a few seconds, the PROGRAM PHASES lights (10) will go out until the light of the first phase of the selected program start flashing (confirmation buzzer). This phase, that updates itself during the cycle, is “indicative”...
-
Page 10: Washing Programs
User instructions In case that the door is opened during the operation, to the next door closing it is going to be necessary to start the program as shown in paragraph “S ”. The program will resume TART PROGRAM from the point in which it was interrupted. - Page 11 At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in the lower basket, it is advisable to unload the lower basket first, and then the upper basket.
-
Page 12: Operating Instructions
Before replacing the cap, remove any salt residues from around the opening. When using the dishwasher for the first time, in addition to the salt it is also necessary to add • one litre of water to the container. - Page 13 User instructions ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply. According to the machine model, the selector which acts on the adjustment may be located: •...
-
Page 14: Using The Rinse Aid And Detergent Dispensers
The amount of rinse aid must be increased if the washed dishes appear dull or feature circular • stains. If, on the other hand, the dishes are sticky or have white streaks, it is necessary to reduce the • rinse aid setting. -
Page 15: Adding The Detergent
(granular salt, powder detergent and liquid rinse aid). However, please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again, so traces of white coating may still be found on the tank and dishes. -
Page 16: General Warnings And Recommendations
If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month. -
Page 17: Using The Baskets
For optimum use of space, the bottom basket is fitted with two plate supports which can be laid flat if there are no plates to be loaded. It also has a "tip-up support" (with one or two sectors depending on models) for small plates; to take small plates, it must be positioned as shown in the illustrations. - Page 18 The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.
- Page 19 Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.
-
Page 20: Cleaning And Maintenance
Clean the door gaskets with a damp sponge. Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits. - Page 21 D from the underside to remove it from the micro-filter: • separate the two parts which make up the plastic filter by pressing the body of the filter in the • zone shown by the arrows;...
- Page 22 Certain detergents can be more • corrosive than others. check that the cap of the salt container is securely closed, and that the water softening setting • is correct. If after following the above troubleshooting instructions the problem persists, call the nearest After- Sales Centre.
-
Page 23: Troubleshooting
User instructions 6. Troubleshooting In case of a malfunction, the dishwasher will identify the program by switching on a combination of lights. When an alrm is present, all the PROGRAM lights (7) come on, while the PROGRAM PHASES lights (10) identify the error code:... - Page 24 Free standing from 850 mm to 870 mm Semi-integrated from 820 mm to 870 mm Capacity 14 Standard place settings Water supply pressure min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) Electrical characteristics See rating plate...
- Page 25 820- 820- 1/2” S N SF 3x16 3/4” 0,3-10 bar 0,3-10 bar 0,3-10 bar 0,3-10 bar 1,14 m 1,14 m 1,25 m 1,25 m 1,23 m 1,23 m 1,50 m 1,50 m 1,78 m 1,78 m 1,66 m 1,66 m...
- Page 26 Lato superiore Lato superiore Bord supérieure Bord supérieure Upper edge Upper edge Oberkante Oberkante Superficie interna Superficie interna Surface interne Surface interne Inner surface Inner surface Innenfläche Innenfläche...
