Contents
1
General safety instructions _______________________________ 2
2.
Installation ___________________________________________ 9
3.
Product description ____________________________________ 12
4.
Operating instructions __________________________________ 16
5.
Cleaning and maintenance ______________________________ 17
6.
Troubleshooting ______________________________________ 18
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
This manual contains only the basic information required to use the
appliance. The complete manual can be obtained from
www.smeg.com/download-manuals
by entering the product code shown on the plate attached to the inner right
hand edge of the dishwasher door.
The manual can be accessed quickly via the QR code using a device with
a QR reader application.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smeg Classica DW9QSDXSA-1
Summary of Contents for Smeg Classica DW9QSDXSA-1
-
Page 1: Table Of Contents
This manual contains only the basic information required to use the appliance. The complete manual can be obtained from www.smeg.com/download-manuals by entering the product code shown on the plate attached to the inner right hand edge of the dishwasher door. -
Page 2: General Safety Instructions
Warnings TRANSLATION OF THE ORIGINAL INSTRUCTIONS 1 General safety instructions This manual is an integral part of the appliance; it must always be kept intact together with the dishwasher for future reference (even if sold). Before using appliance, carefully read instructions contained in this manual. - Page 3 Warnings Never leave waste packaging unattended. Do not allow children to play with packaging materials. Separate waste packaging materials by type and consign them to the nearest recycling centre. The plate with the technical data, serial number and marking is in a visible position on the inside edge of the door.
- Page 4 Warnings Building-in the appliance underneath a hob is absolutely forbidden. Installing a hob on top of free- standing appliance is absolutely forbidden. To ensure stability, install the appliance only under continuous worktop, securely fixed to adjacent cabinets. If the appliance is installed in a high cabinet, both the appliance and the cabinet must be adequately fixed.
- Page 5 Warnings The appliance must be connected to the water supply by means of new hoses. Briefly test the appliance after installation. Run a wash cycle with a temperature of between 45 and 70°C with the dishwasher empty and using a specific dishwasher detergent.
- Page 6 Warnings suffocation. Observe all the safety instructions on the packaging of these products. Do not drink the water residues which may be present on the dishes or appliance at the end of the washing program. Never place solvents such as alcohol or turpentine, which are potentially explosive, inside the appliance.
- Page 7 Warnings have it replaced by the manufacturer or an authorised technical service centre. Some components are live even with the on/off button in the off position. Before performing any maintenance work on the appliance, disconnect it from the electrical power supply. ...
- Page 8 Warnings 1.1 Declaration of conformity The appliance complies with the essential requirements of the following European directives: - 2009/125/EC - 2011/65/EU - 2014/35/EU - IEC/EN 62471, risk group 1, for models with internal lighting. IEC/EN 61770 1.2 Disposal This appliance must be disposed of separately from other waste (directives 2012/19/EC).
-
Page 9: Installation
Installation 2. Installation 2.1 Technical characteristics Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) Water supply temperature max. 60°C Capacity 12-13 standard place settings Class of protection against IPX0 moisture Protection against electric shock class I Electrical data see the data plate... - Page 10 Installation Building-in a dishwasher underneath a hob is absolutely forbidden. Moreover, dishwashers may not be installed directly touching appliances which are not conventional built-in kitchen appliances (e.g. fireplaces, stoves, etc.). When installing the dishwasher in a compartment next to one or more other appliances, it is essential to comply with all the recommendations provided by the appliance’s manufacturer (minimum distances, installation procedures, etc.).
- Page 11 Installation DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose.
-
Page 12: Product Description

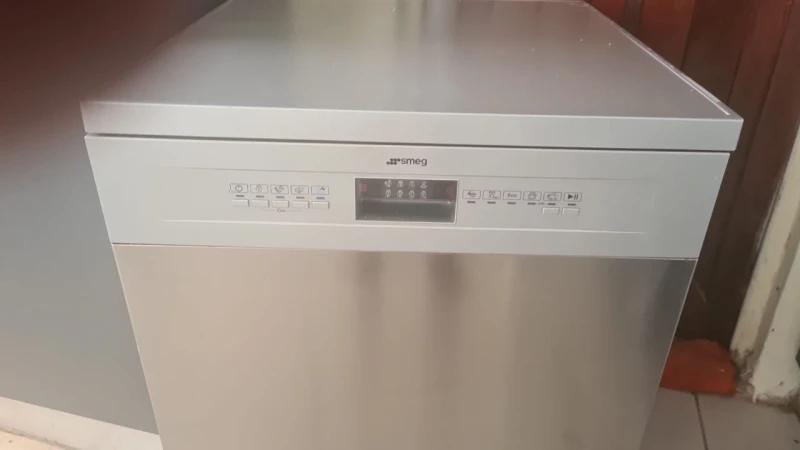

User instructions 3. Product description 3.1 Control panel The panel shown is only a guideline example: the form of the lights and buttons may vary depending on the model. PROGRAM INDICATOR LIGHTS PROGRAM SELECTION BUTTON SALT INDICATOR LIGHT RINSE AID INDICATOR LIGHT OPTIONS (according to the model purchased) DISPLAY (if present) DELAY TIMER BUTTON (if present) - Page 13 User instructions PROGRAMS TABLE Program SOAK cold 0,02 AUTO When this cycle is selected, the dishwasher recognizes the type of soil SENSOR and automatically adjusts the washing parameters. (**) The program ends with a drying cycle. 55(2)/ 190(2)/ ● 45°C cold 0,734 (**)
- Page 14 User instructions Automatic door opening – Dry Assist Automatic door opening is included in programs indicated with ** in the first column (*) Standard program according to EN60436. The DRY ASSIST option (if the button is present) must be active. (1) Consumption and program duration are measured according to EN 60436.
- Page 15 User instructions Description of the programs: SOAK EXPRESS 27’ Rinses dishes while waiting to be Quick cycle for lightly soiled dishes, washed. washed immediately after use. AUTO SENSOR CRYSTAL 45° Normally soiled mixed loads such as Wine glasses and lightly soiled fine dishes and pans, even with dried-on china.
-
Page 16: Operating Instructions
User instructions 4. Operating instructions After having installed the dishwasher, remove the basket retainers. 4.1 Adding the salt The salt prevents the formation of scale deposits. Unscrew the cap of the salt container. Only for the first time, fill the container with a litre of water. -
Page 17: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the omnipolar circuit breaker. CLEANING THE WATER INTAKE FILTER Close the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it under running water. -
Page 18: Troubleshooting
User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT DESCRIPTION Acquastop failure (some models only) Safety level Water heating fault Water temperature detection fault Water intake fault Water drainage fault Turbine flow-meter fault (some models only)
Need help?
Do you have a question about the Classica DW9QSDXSA-1 and is the answer not in the manual?
Questions and answers
My smeg dishwasher - mod-Dw7Qsxsa, is flashing, I don't know where to reset, the manual is lost, the whole control board is flashing
To reset the Smeg Classica DW9QSDXSA-1 dishwasher when the control board is flashing, follow these steps:
1. Stop the current program.
2. Switch off the dishwasher.
If the flashing lights indicate an alarm (except for E1 and E11, which require technical assistance), stopping the program and switching off the dishwasher should help reset it. If the issue persists, consult the manual for further troubleshooting.
