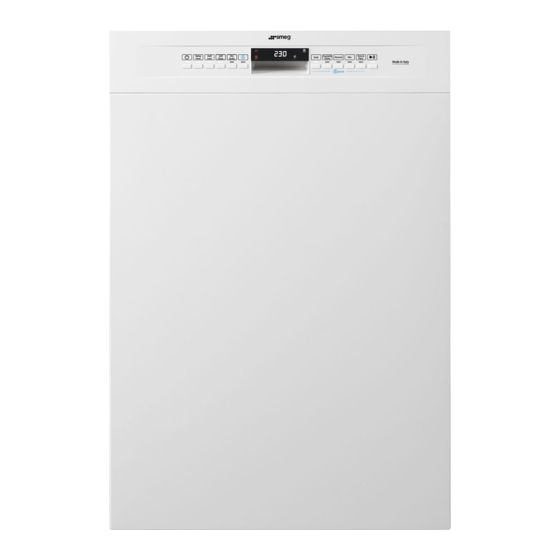

Smeg LSPU8643WH Manual
  1. Manuals
  2. Brands
  3. Smeg Manuals
  4. Dishwasher
  5. LSPU8643WH
  6. Manual

Smeg LSPU8643WH Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Contents
1.
IMPORTANT SAFETY INSTRUCTIONS ____________________ 2
2.
INSTALLATION AND HOOK-UP _________________________ 10
3.
DESCRIPTION OF THE CONTROLS _____________________ 18
4.
OPERATING INSTRUCTIONS ___________________________ 26
5.
CLEANING AND MAINTENANCE ________________________ 27
6.
TROUBLESHOOTING _________________________________ 28
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
This manual contains only the basic information required to use the
appliance. The complete manual can be obtained from
www.smeg.com/download-manuals
by entering the product code shown on the plate attached to the inner
right hand edge of the dishwasher door.
The manual can be accessed quickly via the QR code using a device
with a QR reader application.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LSPU8643WH and is the answer not in the manual?

Questions and answers

Related Manuals for Smeg LSPU8643WH

Summary of Contents for Smeg LSPU8643WH

  • Page 1: Table Of Contents

    This manual contains only the basic information required to use the appliance. The complete manual can be obtained from www.smeg.com/download-manuals by entering the product code shown on the plate attached to the inner right hand edge of the dishwasher door.

  • Page 2: Important Safety Instructions

    Installation TRANSLATION ORIGINAL INSTRUCTIONS 1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS  Before using the appliance, carefully read all the instructions contained in this manual.  During installation, take care not to injure yourself on the sharp edges of the appliance: wear safety gloves.
  • Page 3 Installation  Do not operate your dishwasher unless all enclosure panels are properly in place.  Do not tamper with controls.  The appliance must be installed and connected in accordance with the instructions provided by the manufacturer. Installation must be performed by qualified technicians accordance...
  • Page 4 Installation  Never leave waste packaging unattended. Do not allow children to play with packaging materials. Separate waste packaging materials by type and consign them to the nearest recycling centre.  The plate with the technical data, serial number and marking is in a visible position on the inside edge of the door.
  • Page 5 Installation  Building-in the appliance underneath a hob is absolutely forbidden. Installing a hob on top of free- standing appliance is absolutely forbidden.  To ensure stability, install the appliance only under continuous worktop, securely fixed to adjacent cabinets. If the appliance is installed in a high cabinet, both the appliance and the cabinet must be adequately fixed.
  • Page 6 Installation  The appliance must be connected to the water supply by means of new hoses.  Briefly test the appliance after installation. Run a wash cycle with a temperature of between 113°F and 158°F (45°C-70°C) with the dishwasher empty and using a specific dishwasher detergent.
  • Page 7 Installation  Some detergents are strongly alkaline. Avoid contact with the skin and eyes. Detergents can be extremely dangerous if swallowed. They contain substances capable of causing permanent damage to the mouth and throat, and even leading to suffocation. Observe all the safety instructions on the packaging of these products.
  • Page 8 Installation void the warranty but may also put the user’s safety at risk.  In the event of a fault, disconnect the dishwasher from the electrical power supply and shut off the water tap. In the event of damage to the supply cord, have it replaced by the manufacturer or an authorised technical service centre.
  • Page 9 Installation 1.1 Disposal The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives: To dispose of the appliance:  Remove the washing compartment door.  Cut the power cable, ...

  • Page 10: Installation And Hook-Up

    Installation 2. INSTALLATION AND HOOK-UP Technical characteristics Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) Water supply temperature max. 140°F – 60°C Capacity 12-13 standard place settings Class of protection against IPX0 moisture Protection against electric class I shock...
  • Page 11 Installation General Information  This appliance may be placed up against walls or other furniture units.  If the appliance is installed near a heat source, fit a special insulating panel to prevent overheating and malfunction of the appliance.  To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction;...
  • Page 12 Installation Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance. Building-in a dishwasher underneath a hob is absolutely forbidden. Moreover, dishwashers may not be installed directly touching appliances which are not conventional built-in kitchen appliances (e.g.
  • Page 13 Installation For free-standing models only - Installing a hob on top of a free-standing dishwasher is absolutely forbidden. - If the appliance is accessible from one side, the door hinge area has to be covered for safety reasons (risk of injury). The covers are available as an accessory and can be ordered through the Technical Assistance Service.
  • Page 14 Installation Water supply connection CONNECTING TO THE WATER SUPPLY Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher. Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼...
  • Page 15 Installation DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm (1"37/64), or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose.
  • Page 16 Installation 2.4 Electrical connection  Check that the voltage and the frequency of the mains match the ratings on the name plate of the appliance positioned on the inner edge of the door.  This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
  • Page 17 Installation  Do not use adaptors or shunt connections in order to avoid the possibility of overheating or burning. The power cable must be replaced by the manufacturer or by an Authorized Service Centre.

  • Page 18: Description Of The Controls

    User instructions 3. DESCRIPTION OF THE CONTROLS 3.1 Upper panel All the dishwasher controls are grouped on the front panel. Programming and option selection are only possible with the door closed. ON/OFF BUTTON AND WARNING LIGHT OPTION SELECTION BUTTONS AND WARNING LIGHTS START/PAUSE BUTTON PROGRAM SELECTION BUTTONS INFORMATION DISPLAY...
  • Page 19 User instructions 3.2 Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions. Rinse aid lack warning indicator Salt lack warning indicator End of cycle signal Shows that sanitation has been completed. Delayed start indicator, wash cycle duration and alarms H0….H5 Water softener setting indicator...
  • Page 20 User instructions LIGHTING Pressing the ON/OFF button will start the dishwasher and will lit up the dishwasher pilot light. After approximately 3 second from this operation the DISPLAY will be turned on with a visualization that will depend upon the state of the dishwasher. PROGRAMMING All the programming operations are possible only with closed door.
  • Page 21 User instructions Warning: during the initial phase of the wash program the spray arms cannot be heard in operation because they start turning about 5 minutes after the start. This is the normal wash cycle sequence. END PROGRAM At the end of the program the DISPLAY shows “end”. By pressing one of the program buttons the dishwasher is ready to start a new cycle.
  • Page 22 User instructions PROGRAMS TABLE Program 4.5l SOAK cold 0,02 1,19 gal. 126 (4) CRYSTAL & 45°C 55 °(4) /70°C 15.6l P2(**) ● 1,15 CHINA (113°F) (131°F/158°F) 4,12gal 45°C 55 ° (4)/64°C 170(4) 3,4l NORMAL cold ● (113°F) (127°F/158°F) 0.9gal (**) 65°C 55 °...
  • Page 23 User instructions 1 – The cycle times and electrical energy listed use and care manual are based on normal soil loads and 120°F (49°C) incoming water and will vary based on your actual conditions. 2 – Program for energy star; the DRY ASSIST option must be enabled. 3-Only “POTS &...
  • Page 24 User instructions Description of the programs: SOAK EXPRESS 27’ Pans and dishes awaiting completion of Dishes with light dirt, washed the load immediately after use CRYSTAL & CHINA DELICATE Wash cycle for delicate items, such as Wash cycle for mixed loads such as wine wine glasses and lightly soiled fine glasses and lightly soiled dishes.
  • Page 25 User instructions Option Description SPECIAL Creates additional programs. Allows the dishes to be dried perfectly even at low rinse temperatures, with significant energy savings. It starts DRY ASSIST automatically if the selected program is compatible with it. If it is not required, press the button to disable it. Allows you to wash just a few dishes when distributed HALF-LOAD evenly between the baskets.

  • Page 26: Operating Instructions

    User instructions 4. OPERATING INSTRUCTIONS After having installed the dishwasher, remove the basket retainers. 4.1 Adding the salt The salt prevents the formation of scale deposits.  Unscrew the cap of the salt container.  Only for the first time, fill the container with a litre of water.

  • Page 27: Cleaning And Maintenance

    User instructions 5. CLEANING AND MAINTENANCE Before carrying out any work, always unplug the appliance from the electrical supply or switch off the omnipolar circuit breaker. CLEANING THE WATER INTAKE FILTER Close the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it under running water.

  • Page 28: Troubleshooting

    User instructions 6. TROUBLESHOOTING The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM FAULT DESCRIPTION The anti-flooding system (where present) has been tripped service. E 01 The water level limitation system has tripped.
