mbj UV High Power Series Operating Manual

Mechanical Integration
The light is equipped with M4/M5 threaded holes which can be
used to fix the lighting to the specified position.
In addition M2.5 threaded holes are provided at the two long
sides of the barlights to mount the foil and filter holder set.
Filterholder are also available for ringlights.
To secure a long live time additional heat transfer measurements
at the holding positions are highly recommended.

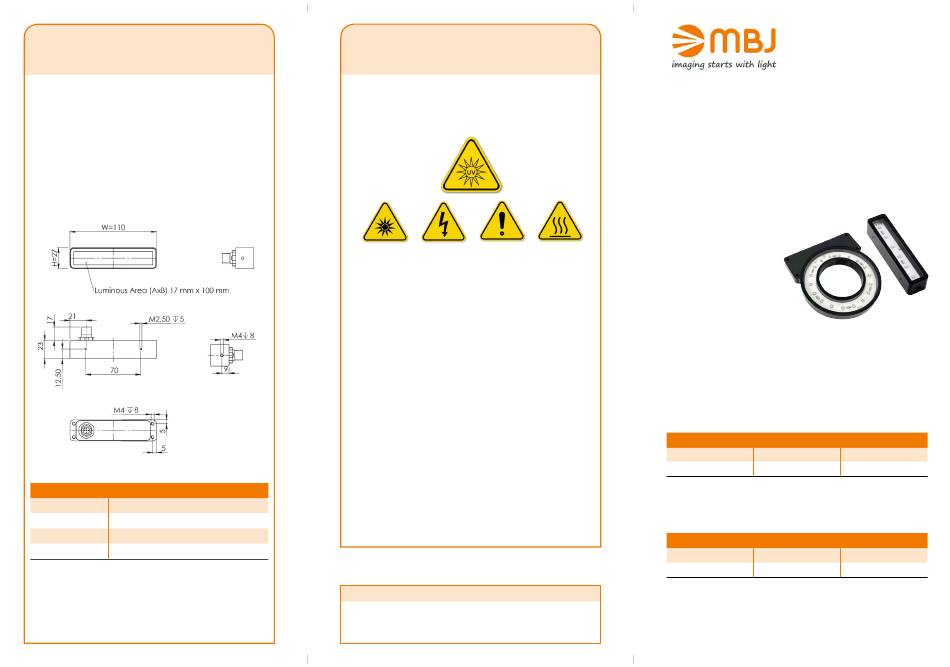

Example: Model UV High Power MBL-0210
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification UV High Power Series
Operating temperature 10°C to 30°C / 45°C
Certifications CE, RoHS
Degree of protection IP54 /IP67 2)
Humidity 30 % to 70 %
1) Max. of 30°C is recommended for steady light operation w/o additional heat
transfer measurements, for max. 45°C a thermal connection is mandatory. Max.
of 45°C is also permissible for flash light operation with a max. 10% duty cycle.
2) MBJ LED lights are protected against the ingress of solids and water in accor-
dance with the selected protection class and applicable standards. Permanent
protection against liquids containing solvents, such as cleaning agents, machine
emulsions or other lubricants, cannot be guaranteed. IP is only valid with a
connected cable (MBJ cable recommended)."
Before working with this unit, read the warning and application
instructions carefully and completely before operating the device.
Have the illuminators commissioned only in compliance with the
specified protective measures. It is essential that you comply with the
permissible ambient conditions.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recom-
mended to look directly into the light source. The lighting must be
switched off before installation and/or maintenance. The device
must not be used when a failure may cause a personal injury.
3. UV radiation – Always use suitable UV protective goggles when
operating the device. The light is classified in risk group 3 (RG3)
according to DIN EN 62471 "Photobiological safety of lamps and
lamp systems". For protection, do not look into the LED and do not
expose skin to UV radiation permanently.
4. Heat – In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
5. Electricity – The housing is electrically isolated from the ground
of the power supply. Exceeding the permissible input voltage U
or U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
6. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to an inhomogeneous light emission.
7. Cleaning – The light emission surface has to be cleaned with a
standard glass cleaner and a soft cleaning cloth. Do not use other
material for cleaning as it will damage the device.
8. Installation – The service life of the LED can be maximized by
1)
avoiding heat build-up. To achieve this, the lighting should be in-
stalled with a good thermal connection. Please screw the cables
hand-tight, do not overtighten.
04161.00 Manual MBJ UV High Power Series, Februar 2024
Jochim-Klindt-Straße 7
22926 Ahrensburg, Germany
Safety Notes
in
MBJ Imaging GmbH
+49 4102 778 90 - 31
sales@mbj-imaging.com
www.mbj-imaging.com
Operating Manual
Technical Data
UV High Power
Models and Sizes in Series
The light is available in the following models and sizes
UV High Power MBL-0210 UV High Power MBL-0220
UV High Power WBL-0410 UV High Power SRL-10
1) Size definition: High Power MBL-0220 refers to a barlight with a luminous area
of 17 mm x 200 mm.
Possible LED Colors
LED Abbr.
1)
Ultraviolett 365 nm -UV365
Ultraviolett 395 nm -UV395
1) Color option will be added to the model name after the size information. High Power
UV MBL-0220-UV395 refers to a barlight with 395 nm ultraviolett emitting light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current."
Series
1)
UV High Power MBL-0230
UV High Power SRL-12
Peak Wavelength
2)
near 365 nm
near 395 nm
