mbj High Power Series Safety Instructions Operating Manual Technical Data

Mechanical Integration

The light is equipped with M4 threaded holes at each end. It can be
used to fix the lighting to the specified position. In addition M2.5
threaded holes are provided at the two long sides to mount the foil
and filter holder set.
Spot: The spot is equipped with 1x M8 and 3x M4 threaded holes at one
side to fix the lighting to a specified position.
To ensure a long operational live time of the light additional heat
transfer measures at the mounting positions are highly recommended.

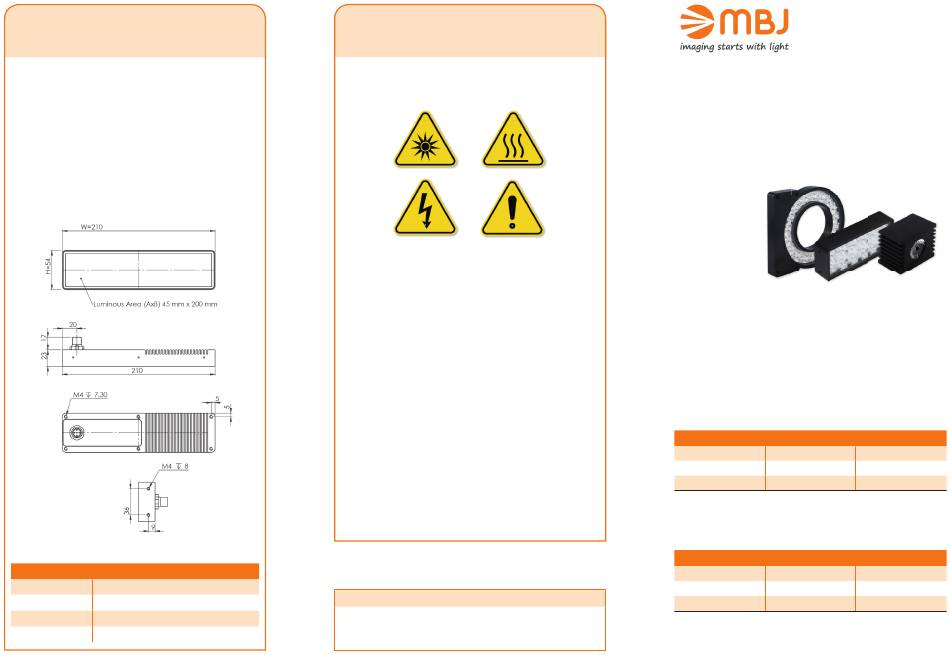

Example: Model High Power WBL-0420
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification High Power Series
Operating temperature 10°C to 30°C
Certifications CE, RoHS
Degree of protection IP54
Humidity 30 % to 70 %

Safety Notes

Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recommended
to look directly into the light source. The lighting must be switched
off before installation and/or maintenance. The device must not be
used when a failure may cause a personal injury.
3. Heat – In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
4. Electricity – The housing is electrically isolated from the ground of
the power supply. Exceeding the permissible input voltage U
U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to an inhomogeneous light emission.
6. Cleaning – The light emission surface has to be cleaned with a stan-
dard glass cleaner and a soft cleaning cloth. Do not use other material
for cleaning as it will damage the device.
03200.06 Manual MBJ High Power HP-Series, August 2022
MBJ Imaging GmbH
Jochim-Klindt-Straße 7 +49 4102 778 90 - 31
22926 Ahrensburg, Germany sales@mbj-imaging.com
www.mbj-imaging.com
High Power Series
or
in

Model Sizes in Series

The light is available in the following sizes
High Power WBL-0410
High Power WBL-0420
High Power WBL-0430
1) Size definition: High Power WBL-0420 refers to a wide bar with a light field of
45 mm x 200 mm, High Power SRL-12 refers to a ring light with a outside light field
diameter of 121 mm, Narrow/Wide refers to the light beam opening angle.

Possible LED Colors

LED
White
Red
Infrared
1) Color option will be added to the model name after the size information.
High Power WBL-0420-RD refers to a backlight with 634 nm red light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current.
Operating Manual

Technical Data

1)
High Power SRL-10 High Power SL-Narrow
High Power SRL-12 High Power SL-Wide
Abbr. 1) Peak Wavelength 2)
-WT 5000 K, min. CRI70
-RD near 634 nm
-IR near 850 nm
