mbj High Power MBL Series Operating Manual

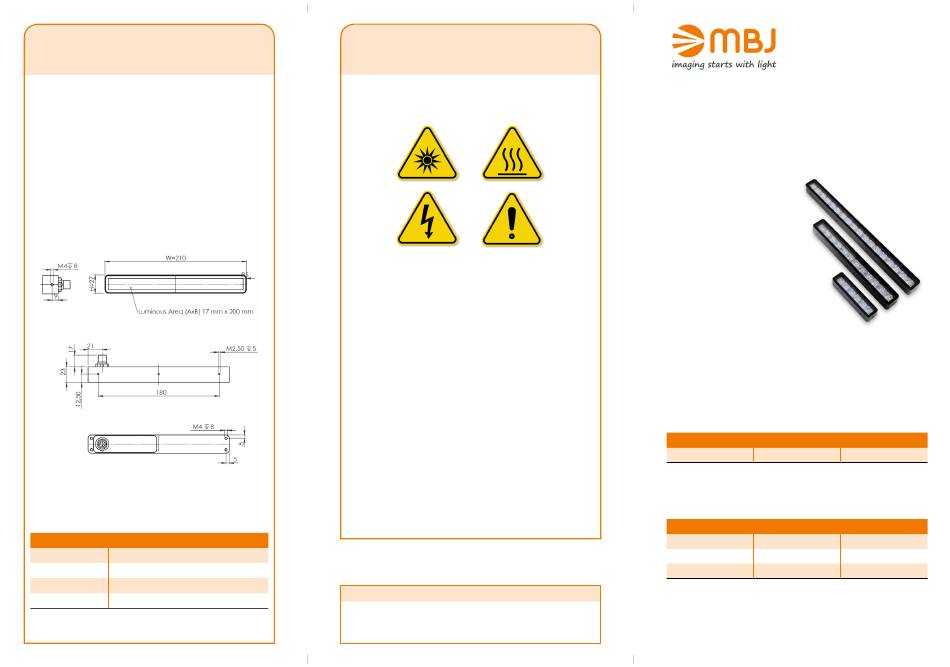

Mechanical Integration

The light is equipped with M4 threaded holes at each end. It can be
used to fix the lighting to the specified position. In addition M2.5
threaded holes are provided at the two long sides to mount the foil
and filter holder set.
To ensure a long operational lifetime of the light additional heat trans-
fer measures at the mounting positions are highly recommended.
Example: Model High Power MBL-0420
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification High Power MBL-Series
Operating temperature 10°C to 30°C / 45°C
Certifications CE, RoHS
Degree of protection IP54
Humidity 30 % to 70 %
1) Max. of 30°C is recommended for steady light operation w/o additional heat
transfer measurements, for max. 45°C a thermal connection is mandatory. Max.
of 45°C is also permissible for flash light operation with a max. 10 % duty cycle.
Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recommended
to look directly into the light source. The lighting must be switched
off before installation and/or maintenance. The device must not be
used when a failure may cause a personal injury.
3. Heat – In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
4. Electricity – The housing is electrically isolated from the ground of
the power supply. Exceeding the permissible input voltage U
U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to an inhomogeneous light emission.
6. Cleaning – The light emission surface has to be cleaned with a stan-
dard glass cleaner and a soft cleaning cloth. Do not use other material
for cleaning as it will damage the device.
1)
03978.00 Manual MBJ High Power MBL-Series, November 2023
Jochim-Klindt-Straße 7
22926 Ahrensburg, Germany

Safety Notes

or
in
MBJ Imaging GmbH
+49 4102 778 90 - 31
sales@mbj-imaging.com
www.mbj-imaging.com
Operating Manual

Technical Data

High Power Barlights

Model Sizes in Series

The light is available in the following sizes
1)
High Power MBL-0210 High Power MBL-0220
1) Size definition: High Power MBL-0220 refers to a barlight with a luminous area
of 17 mm x 200 mm.

Possible LED Colors

LED Abbr. 1)
White -WT
Red -RD
Infrared -IR
1) Color option will be added to the model name after the size information.
High Power WBL-0420-RD refers to a backlight with 634 nm red light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current.
High Power MBL-0230
Peak Wavelength 2)
5000 K, min. CRI70
near 634 nm
near 850 nm
