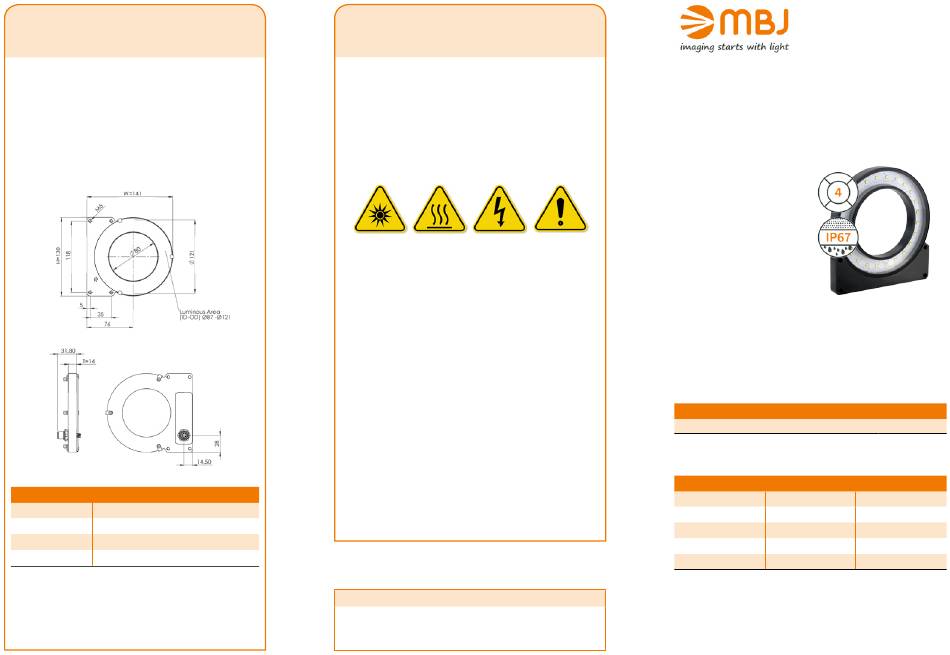

mbj SRL-12 Operating Manual

Mechanical Integration
The lights are equipped with 4 combined mounting positions of thread-
ed or through holes. It can be used to fix the lighting to the specified
position. To secure a long live time additional heat transfer measure-
ments at the holding positions are highly recommended.
Model SRL-12
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification Segmented Ringlight
Operating temperature 10°C to 30°C / 45°C
Certifications CE, RoHS
Degree of protection IP54 or IP67
Humidity 30 % to 70 %
1) Max. of 30°C is recommended for steady light operation w/o additional heat
transfer measurements, for max. 45°C a thermal connection is mandatory. Max.
of 45°C is also permissible for flash light operation with a max. 10 % duty cycle.
2) MBJ LED lights are protected against the ingress of solids and water in accor-
dance with the selected protection class and applicable standards. Permanent
protection against liquids containing solvents, such as cleaning agents, machine
emulsions or other lubricants, cannot be guaranteed. IP is only valid with a
connected cable (MBJ cable recommended).
Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
Have the illuminators commissioned only in compliance with the
specified protective measures. It is essential that you comply with the
permissible ambient conditions. The lighting must be switched off before
installation and/or maintenance. The device must not be used when a
failure may cause personal injury.
1. The device is designed for indoor use only.
2. Light – Due to the risk of irritation of or damage to the eyes or
skin it is not recommended to look directly into the light source.
3. Heat –In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may get hot. Do not touch the product during operation or
immediately after it is turned off. Keep off flammable materials at
any time and allow for sufficient heat dissipation.
4. Electricity – The housing is electrically isolated from the ground
of the power supply. Operate only with the permissible current.
Exceeding the permissible current can lead to the destruction of
the device or to a significant shortening of the lifetime of the LEDs
in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to an inhomogeneous light emission.
6. Cleaning – The light emission surface has to be cleaned with a
standard glass cleaner and a soft cleaning cloth. Do not use other
material for cleaning as it will damage the device.
1)
2)
03412.00 Manual MBJ Segmented Ringlight, Februar 2023
Jochim-Klindt-Straße 7
22926 Ahrensburg, Germany
Safety Notes
MBJ Imaging GmbH
+49 4102 778 90 - 31
sales@mbj-imaging.com
www.mbj-imaging.com
Operating Manual
Segmented Ringlight
Optional:
Model Sizes in Series
The light is available in the following size 1)
SRL-12
1) Size definition refers to the outer luminous area diameter in cm.
Possible LED Colors (Color mix for segments on request)
LED Abbr.
1)
White -WT
Red -RD
Green -GN
Blue -BE
Infrared -IR
1) Color option will be added to the model name after the size information.
SRL-12-4WT refers to a ringlight with 4 segments with white LED light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current
Technical Data
Peak Wavelength
2)
5000 K, CRI80
near 625 nm
near 470 nm
near 521 nm
near 850 nm
