mbj Coaxial Light Series Operating Manual

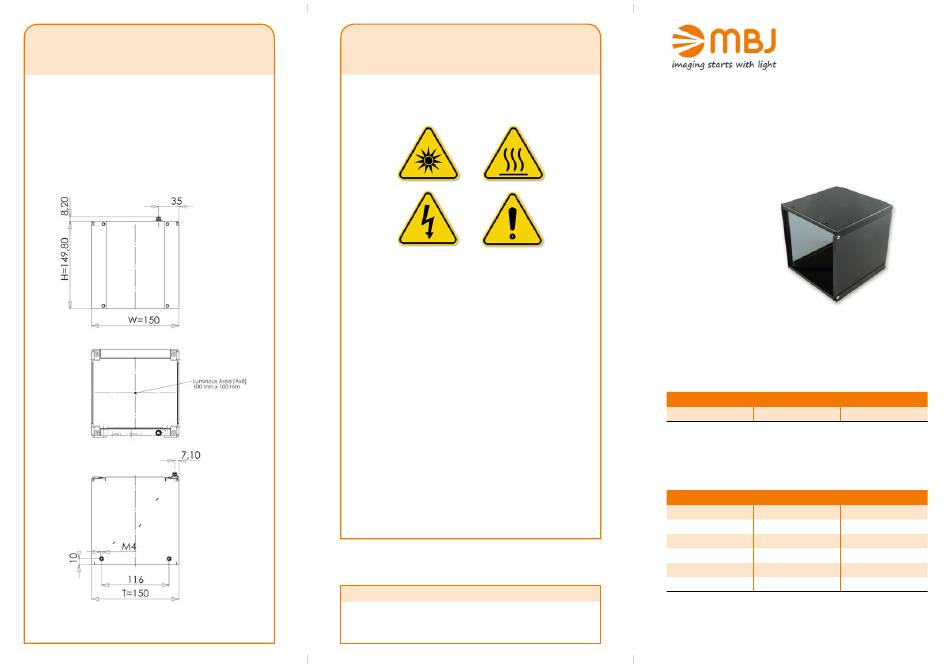

Mechanical Integration
The light is equipped with M4 threaded holes at the left and right side.
It can be used to fix the lighting to the specified position.
To ensure a long operational live time of the light additional heat
transfer measures at the mounting postions are highly recommended.
Example: Model COX-1010
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Safety Notes
Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recommended
to look directly into the light source. The lighting must be switched
off before installation and/or maintenance. The device must not be
used when a failure may cause a personal injury.
3. Heat - In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
4. Electricity - The housing is electrically isolated from the ground of
the power supply. Exceeding the permissible input voltage U
U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to a inhomogenious light emission.
6. Cleaning - The light emission surface has to be cleaned with a stan-
dard glass cleaner and a soft cleaning cloth. Do not use other materi-
el for cleaning as it will damage the device.
Manual COX CoaxLight Series: Revision 02 - 28 January 2021. INDD file Rev07.
MBJ Imaging GmbH
Jochim-Klindt-Strasse 7 +49 41 02 77 89 0 - 31
22926 Ahrensburg, Germany sales@mbj-imaging.com
www.mbj-imaging.com
Coaxial Light Series
Model Sizes in Series
The illumination is available in the following sizes
or
in
COX-1010
1) Size definition: COX-1010 refers to a light field of 100mm x 100mm
Possible LED Colors
LED
White
Red
Infrared
Green
Blue
Yellow
1) Color option will be added to the model name after the size information. COX-2020-
RD refers to a coaxial light with 625nm red light
2) This is an approximated value. The exact value also depends on LED temperature
and LED current
Operating Manual
Technical Data
